Experience reliable indoor comfort for everyone in your home season after season

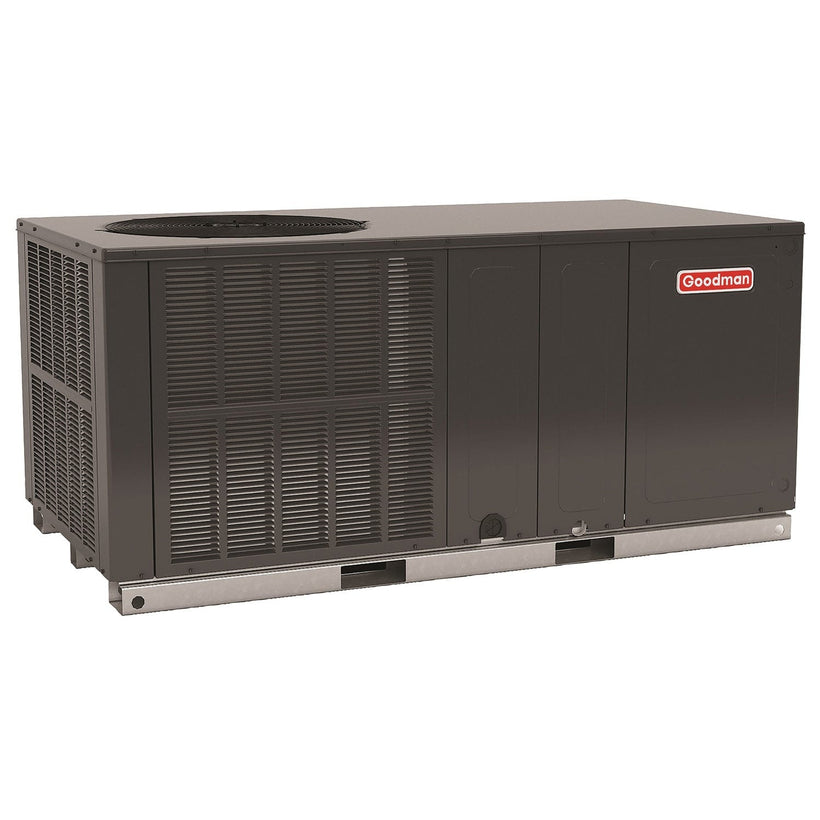

The GPCH36041 units are loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend that is here to stay for many years.
Standard Features
- Energy-efficient compressor
- Multi-speed ECM indoor blower motor
- Quiet horizontal discharge
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- 5 kW to 20 kW electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds.
Key Specifications
- Goodman
- Multi-Speed ECM Blower Motor
- horizontal
- 34
- 208-230 V / 1 Phase / 60 Hz
- 24 in
- Central Ducted
- 10 years Warranty
- 412 lbs
- 66
System Specifications
| Application | Air Conditioner / Cooling only |
|---|---|
| Blower Motor | Multi-Speed ECM Blower Motor |
| Certifications and Listings | AHRI Certified; ETL and ETLC Listed |
| Configuration | horizontal |
| Depth | 34 |
| Electrical | 208-230 V / 1 Phase / 60 Hz |
| Height | 24 in |
| Installation Type | Central Ducted |
| Manufacturer Limited Warranty (text) | 10 years Warranty |
| MCA (Minimum Circuit Ampacity) | 35.4 amps |
| MOP (Maximum Overcurrent Protection-Breaker) | 50 |
| Type | Compact Air Conditioner shipping_time |
| Voltage | 208/230 Volt |
| Weight | 412 lbs |
| Width | 66 |
