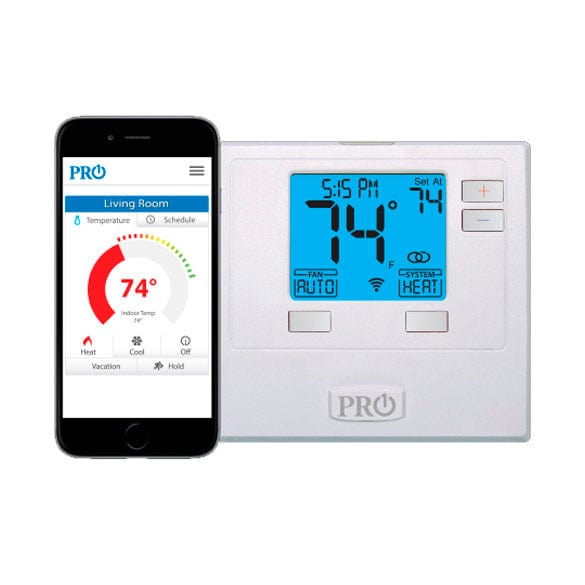

Pro1 T701i Wi-Fi Enabled Thermostat Makes Temperature Control Easy
Program and control this high-tech thermostat from your IOS or Android device. From the well-known-brand of thermostats, the Pro1 T701i makes indoor climate control stylish. The 4 Sq/inch easy-to-read display is enhanced with a blue backlight and glow in the dark light button.
Additional Features
- Use with heat pumps without auxiliary heat
- Works with gas or oil heat systems
- Compatible with electric furnaces
- Compatible with cool only or heat only systems
- Separate heating and cooling swing (cycle rate) adjustments
- Programming only though web app
- 5-minute compressor delay protection (selectable on or off)
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- 24v power
- Dimensions: 4.7" W x 4.4" H x 1.1" D
Key Specifications
- Pro1
- Gas; Electric; Oil Furnaces; Heat Pumps without Auxiliary Heat
- 2 in
- 2 in
- 24V Hardwired
- T701i
- 1
- 1
- Gas; Electric or Oil Configurable
- Standard
System Specifications
| Compatibility | Gas; Electric; Oil Furnaces; Heat Pumps without Auxiliary Heat |
|---|---|
| Control Range Temperature | 44°F to 90°F (7°C to 32°C) |
| Dimensions WxHxD (in) | 4.7" W x 4.4" H x 1.1" D |
| Display Height | 2 in |
| Display Width | 2 in |
| Illuminated Display | Blue |
| Millivolt Compatible | Yes |
| Mounting Type | Junction Box & Wall |
| Must ship freight | Yes |
| Power Source | 24V Hardwired |
| Protection | 5-minute compressor delay protection (selectable on or off) |
| Related Product Group | Maxwell |
| Shipping Time | 24 to 72 hours |
| Model Number | T701i |
| Stages Cool | 1 |
| Stages Heat | 1 |
| System Configuration | Gas; Electric or Oil Configurable |
| Terminal Block Configuration | Rh; Rc; C; Y; W; G; B; O |
| Unit Type (Selector) | Standard |
| User Interface | Push Button |
| Warranty Terms | 5 year manufacturer limited |
