Pro1 Large Display Thermostat with Minivolt Compatibility

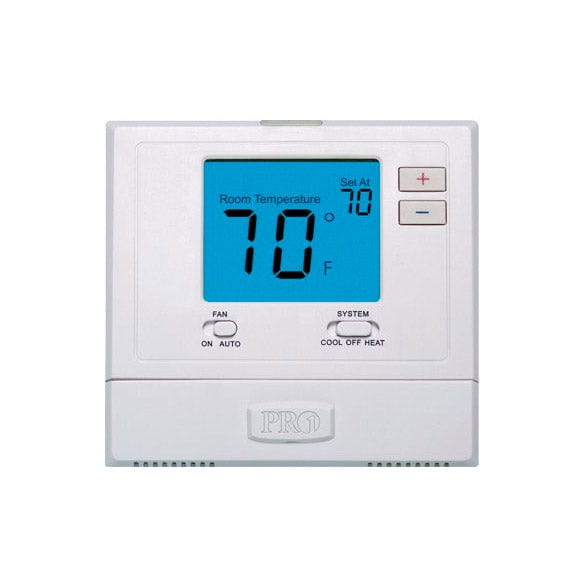

The T701 digital thermostat has a sleek thin design that fits in all decors. Its 4 Sq/Inch blue backlit display and large buttons make it simple and easy to use. It provides excellent temperature and humidity control for maximum comfort. Power with a battery or hardwire.
Additional Features
- 4 Sq/inch display
- Blue backlight
- Glow in the dark light button
- Easy access battery compartment
- Electric, Gas, Oil compatible
- Use with heat pumps
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- 24 Volt
- Minivolt compatible
- 5 minute compressor delay protection (selectable on or off)
- Easy wire color-coded terminal blocks
- Universal sub-base
- Separate B & O terminals for reversing valve
- Mounts on wall or junction box
- Battery or 24v power
- Dimensions: 4.7" W x 4.4" H x 1.1" D
Manufacturer Limited Warranty
- 5 years from the date of installation or 6 years from the date of manufacture, whichever comes first
Key Specifications
- Pro1
- Standard 24 Volt Heating & Air Conditioning; Heat Pump without Auxiliary/Emergency Heat
- 2 in
- 2 in
- Battery & 24 Volt
- T701
- 1
- 1
- Gas; Electric or Oil Configurable
- Standard
System Specifications
| Compatibility | Standard 24 Volt Heating & Air Conditioning; Heat Pump without Auxiliary/Emergency Heat |
|---|---|
| Control Range Temperature | 44°F to 90°F (7°C to 32°C) |
| Day Light Savings Adjustment | No |
| Dimensions WxHxD (in) | 4.7" W x 4.4" H x 1.1" D |
| Display Height | 2 in |
| Display Width | 2 in |
| Dual Fuel Capability | Yes |
| Illuminated Display | Blue |
| Millivolt Compatible | Yes |
| Mounting Type | Junction Box & Wall |
| Must ship freight | Yes |
| Power Source | Battery & 24 Volt |
| Protection | 5 minute compressor delay (selectable on or off) |
| Related Product Group | Maxwell |
| Shipping Time | Same Day |
| Model Number | T701 |
| Stages Cool | 1 |
| Stages Heat | 1 |
| System Configuration | Gas; Electric or Oil Configurable |
| Terminal Block Configuration | Rh; Rc; C; Y; W; G;O;B |
| Unit Type (Selector) | Standard |
| User Interface | Push Button |
| Warranty Terms | 5 year limited manufacturer |
