System Specifications
| System Model Number | 2MX18AXVJU + CTX09AXVJU + CTX12AXVJU |
|---|---|

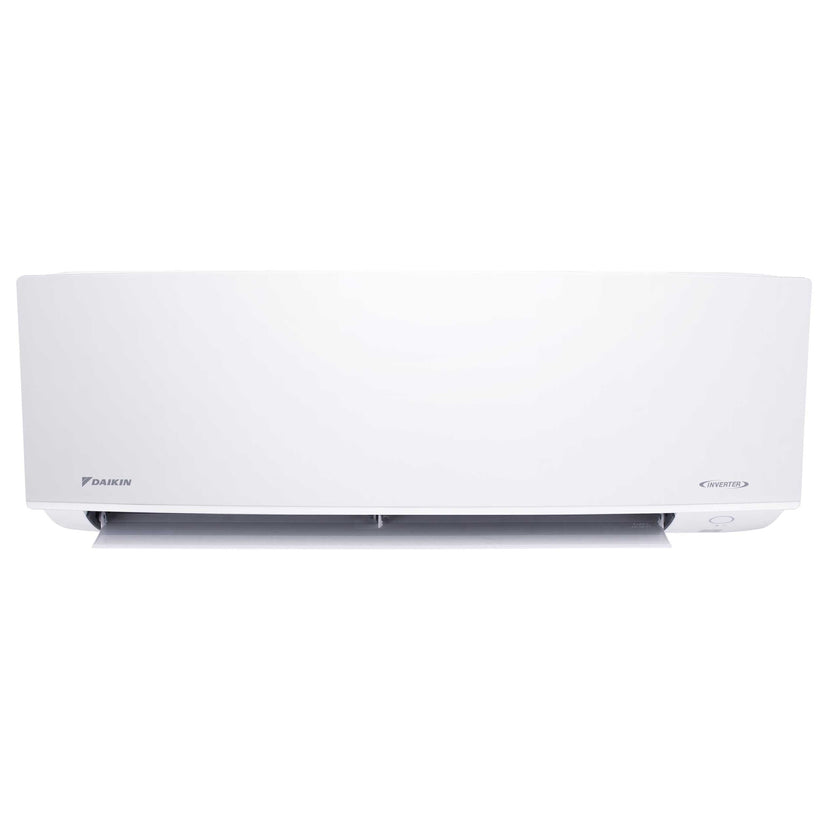

| Indoor 1 Model Number | CTX09AXVJU |
| Indoor 2 Model Number | CTX12AXVJU |
| Outdoor Model Number | 2MX18AXVJU |
| System Heating Capacity (BTU) | 17,000 |
| System Cooling Capacity (BTU) | 17,000 |
| Aplication Area | 400 + 550 SqFt |
| Manufacturer Limited Warranty (years) | 10 Year Parts Warranty |
| Mounting Type | Wall Mount |
| Voltage System | 208/230 V |
| Efficiency | 17 Seer |
| Application | Heat Pump / Heating & Cooling |
| System Shipping Weight | 117.0 |
Specifications for model: CTX12AXVJU
| Brand | Daikin |
|---|---|
| Purifiers Air Type | Electronic & HEPA |
| Type | Central Air Conditioner |
| Unit Type (Selector) | Standard |
| Application Area | 550 SqFt |
| Mounting Type | Wall Mounted |
| [k_4] | 1.5 |
| EER (Energy Efficiency Ratio) | 10 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Voltage | 208/230 Volt |
| Manufacturer Limited Capacity | 10 Year Parts |
| Ambient Temperature Cooling Range | 50°F – 115°F |
| Ambient Temperature Heating Range | -13°F – 65°F |
| Certifications | Ahri; ETL |
| MCA (Minimum Circuit Ampacity) | 18.7 amps |
| MOP (Maximum Overcurrent Protection) | 20 amps |
| Liquid Line Size | 1/4 inches |
| Suction Line Size | 3/8 inches |
| Weight | 20 lbs |
| Depth | 9.84 In |
| Height | 11.33 In |
| Width | 30.91 In |
| Louvers | Yes |
| Auto Restart | Yes |
| Automatic Swing | Yes |
| Colors | White |
| Convenience Features | Humidistat |
| DC Inverter Technology | Yes |
| Filter Cleaning Methods | Washable |
| Low Temperature Operation | Yes |
| Matching Outdoor Unit | RXL18UMVJU |
| Memory | Yes |
| Remote Control Temperature Sensor | Yes |
| Shipping Cost | 75 |
| Thermostat Type | Wireless Remote |
| Turbo | Yes |
Specifications for model: 2MX18AXVJU
| Shipping Time | 24 to 72 hours |
|---|
Specifications for model: CTX09AXVJU
| Brand | Daikin |
|---|---|
| Purifiers Air Type | Electronic & HEPA |
| Type | Central Air Conditioner |
| Unit Type (Selector) | Standard |
| Application Area | 400 SqFt |
| Mounting Type | Wall Mounted |
| [k_4] | 1.5 |
| EER (Energy Efficiency Ratio) | 10 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Voltage | 208/230 Volt |
| Manufacturer Limited Warranty (Years) | 12 Year Parts Warranty |
| Ambient Temperature Cooling Range | 50°F – 115°F |
| Ambient Temperature Heating Range | -13°F – 65°F |
| Certifications | Ahri; ETL |
| MCA (Minimum Circuit Ampacity) | 18.7 amps |
| MOP (Maximum Overcurrent Protection) | 20 amps |
| Liquid Line Size | 1/4 inches |
| Suction Line Size | 3/8 inches |
| Weight | 20 lbs |
| Depth | 9.84 In |
| Height | 11.33 In |
| Width | 30.91 In |
| Louvers | Yes |
| Auto Restart | Yes |
| Automatic Swing | Yes |
| Colors | White |
| Convenience Features | Humidistat |
| DC Inverter Technology | Yes |
| Filter Cleaning Methods | Washable |
| Low Temperature Operation | Yes |
| Matching Outdoor Unit | RXL18UMVJU |
| Memory | Yes |
| Remote Control Temperature Sensor | Yes |
| Shipping Cost | 75 |
| Thermostat Type | Wireless Remote |
| Turbo | Yes |
