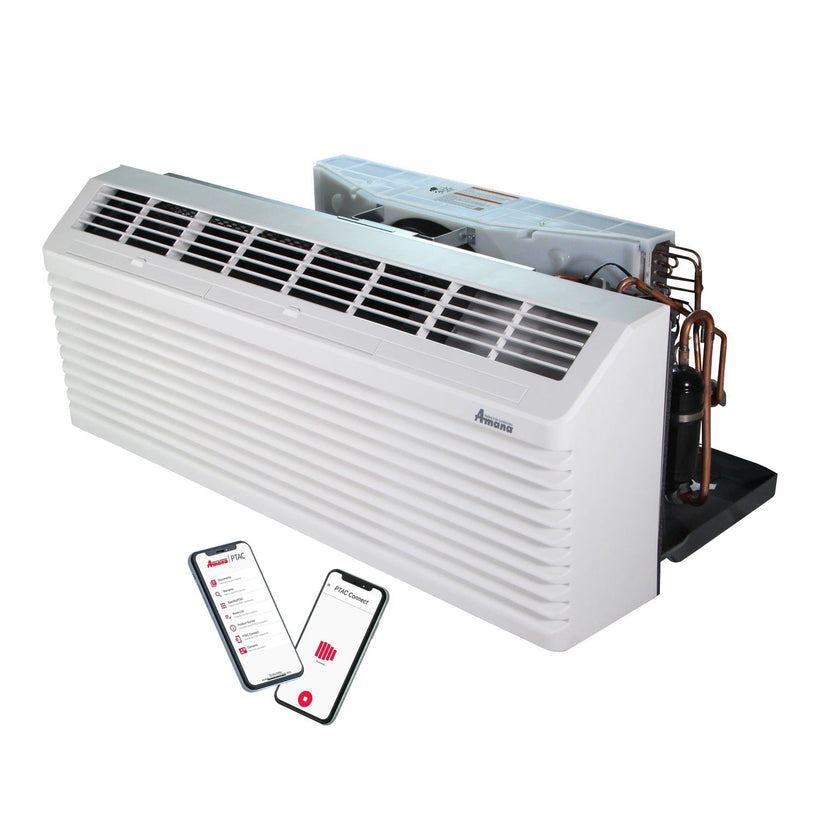

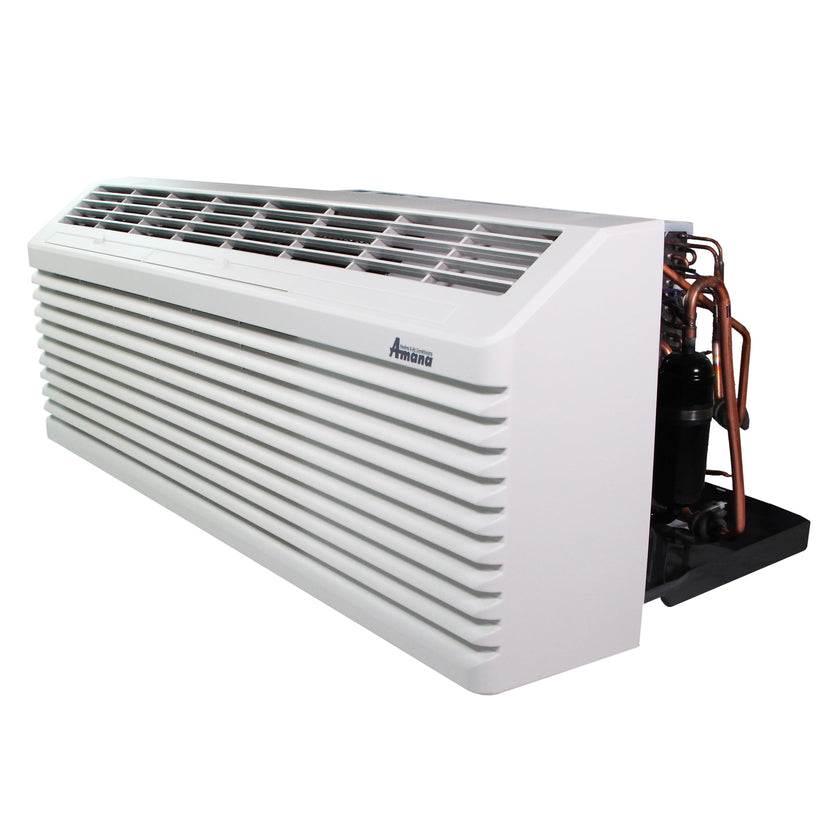

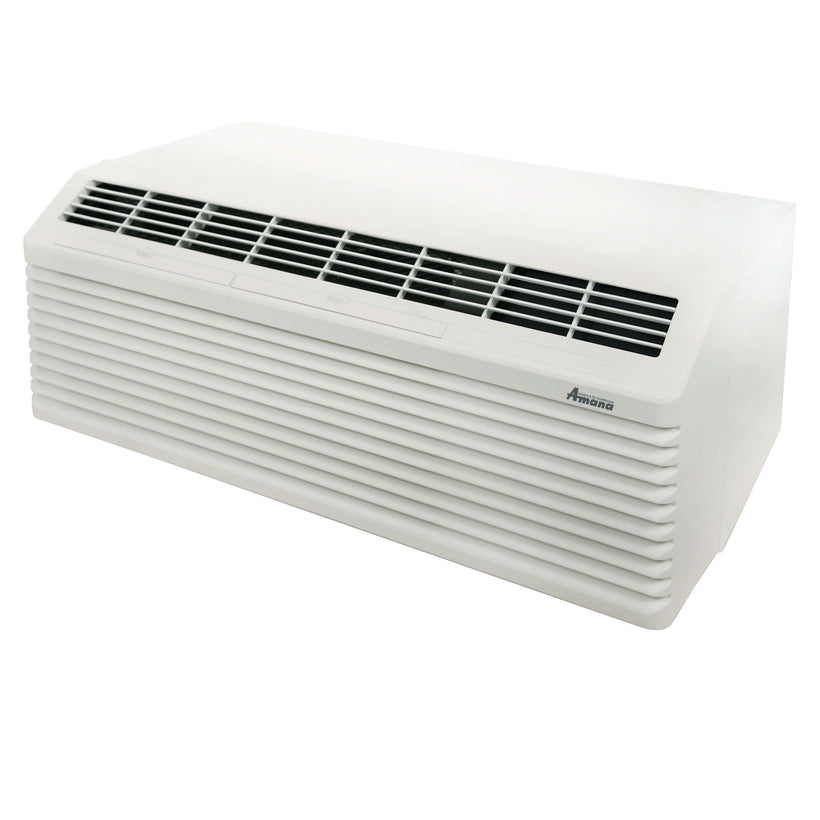

AMANA PTAC 14,800 BTU Air Conditioner PTC153K35AXXX with 3.5 kW Heater 20 Amp Plug

Model Number: PTC153K35AXXX SKU: APTC1530010
$1,235.00
$1,235.00
$1,563.00
Sold out
In stock

| SHIPS IN: 24 to 72 hours

Out of stock
  • 90-Day Returns
  • PRICE Match Plus
  • 1 Years Unit Replacement 5 Years Parts Warranty
  • Free Shipping
  • Tax-Free Sale*Except Florida
    • ×

    Notify me when back in stock

    Enter your email address below to be notified when this item is back in stock:

    There was an error submitting your email. Please try again.

    Thank you! We will notify you when this product becomes available.

    Do You Have Questions?

    Accessories
    • The NEW more efficient Amana “K” Series PTAC is redesigned as a replacement for the model (PTC153G35AXXX) introducing integrated Bluetooth and RF connectivity along with the new Amana brand mobile app.
    • The Bluetooth and RF connectivity reduces unit setting and configuration time. You’re able to access advanced unit features including personal settings, troubleshooting, diagnostics, and easy access to warranty coverage using the Amana brand mobile app.
    • Fits in a standard PTAC Sleeve Size (WxHxD): 42" x 16 1/16" x 14 1/8".
    • Designed and assembled in the U.S.A. The new Amana PTAC can now achieve an EER value of up to 10.
    • The new Quiet White color series eliminates the user-operated control pad for a modern and streamlined appearance and operation. Improved design and materials to reduce the operating noise and reduction of exterior and operating sounds from entering the room.
    • It is recommended to use the unit with a new or existing PTAC thermostat.

    WHAT’S INCLUDED:

    YOUR AMANA PTAC FROM HEAT & COOL COMES WITH:

    • 15000 BTU Amana Unit
    • 3.5KW Electric Heater
    • Power Cord – 6-20P (20 AMP PLUG)
    • Installation Manual
    • User’s Manual

    Manufacturer’s warranty

    • 1-year unit complete labor & replacement limited warranty
    • 5 years parts limited warranty.

    Downloads

    Key Specifications

    • Amana
    • 750 SqFt
    • Yes
    • 14.125 in
    • 10.0
    • 208-230 V; 1 Phase; 60 Hz
    • 16.063 in
    • 1 Year Unit Replacement; 5 Year Parts
    • PTC153K35AXXX
    • 113 Lbs
    • PTAC Cooling + Electric Heater
    • 42 in
    System Specifications
    Application Area 750 SqFt
    Auto Restart Yes
    Depth 14.125 in
    EER (Energy Efficiency Ratio) 10.0
    Electrical 208-230 V; 1 Phase; 60 Hz
    Heating Source Type Electric Heater Only
    Height 16.063 in
    Manufacturer Limited Warranty (years) 1 Year Unit Replacement; 5 Year Parts
    MCA (Minimum Circuit Ampacity) 19.5 amps
    Model Number PTC153K35AXXX
    MOP (Maximum Overcurrent Protection-Breaker) 20 Amp
    Must ship freight Yes
    Net Weight 113 Lbs
    Product Category Package Terminal Air Conditioner (PTAC)
    Refrigerant R-410A
    Shipping Time 24 to 72 hours
    Unit Type (Selector) PTAC Cooling + Electric Heater
    Voltage 208/230 volt
    Width 42 in
