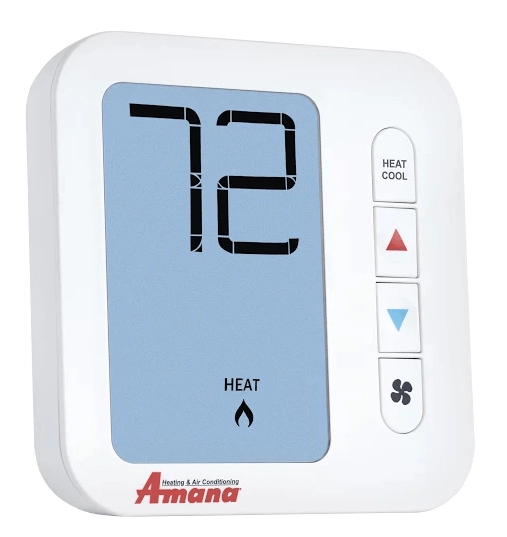

Amana PHWT-A200 Wired remote Thermostat 2H/2C
Programmable and/or manual operation, 2 stage heat and 2 stage cool heat pump thermostat. This Amana thermostat can be used for Cooling/Conventional PTAC Units with or without electric heat as well as Heat Pump PTAC units, with or without electric heat. It offers up to 4 programmable time periods a day including morning, daytime, evening and night, 2 periods - daytime and night time or a single period. It also features easy to use push-button controls. Even though this thermostat is programmable, it can also be used manually to set and change your comfort levels.
Heat and Cool Mode:
- AUTO: automatically selects heat/cool mode as needed (may be disabled in installer settings)
- OFF: thermostat stops all heating or cooling functions
- HEAT: thermostat permits heating operation
- COOL: thermostat permits cooling operation
Thermostat Fan Mode:
- Auto: fan operates in low or high as needed
- Fan Low; Fan High
- Temperature Up and Down buttons
Features include:
- Large, Backlit 4.25" Display
- 2 Speed Fan - Settings include Auto, Low and High
- Temperature Limits
- Field Adjustable Calibration
- Programmable
- Auto Changeover
- Auto Daylight Savings Time
- PTAC/PTHP Operation - 2 Stage Heat / 2 Stage Cool; 2 Stage Heat Pump
- Temperature Control: 45°F - 90°F
- Accuracy: ±1°F
- Patented Thermal Intrusion Barrier
- Adjustable Maximum Heat / Minimum Cool Set Points
- Hardwired
Electrical Rating:
- 24 VAC (18-30 VAC)
- 1.5 amp maximum per terminal; 3 amp maximum total load
- Easy access terminal block
Temperature Control Ranges:
- 45°F to 90°F, Accuracy: ±1°F
- 7°C to 32°C, Accuracy: ±.5°C
Terminals: R, C, W1/O/B, Y1, W2, Y2, G, S1, S2
A wiring harness is required for all new thermostat installations
Downloads
Key Specifications
- Amana
System Specifications
| Thermostat Type | Wired Remote |
|---|
