Daikin 2-Zone Wall Mounted Ductless Mini-Split 18000 BTU Heat Pump Air Conditioner 9k + 12k - 17 SEER

Name: Daikin 2-Zone Wall Mounted Ductless Mini-Split 18000 BTU Heat Pump Air Conditioner 9k + 12k - 17 SEER
Brand: Daikin
Price: 2159.0 USD
Availability: InStock
Rating: 4.9 (10 reviews)

Model Number: 2MX18AXVJU + CTX09AXVJU + CTX12AXVJU SKU: HCDNA2773

$2,159.00

$2,159.00 ~~$3,045.00~~

In stock

SHIPS IN: 24 to 72 hours

4.9

Rated 4.9 out of 5 stars

10 Reviews

90-Day Returns

PRICE Match Plus

10 Years Parts Warranty

Free Shipping

Tax-Free Sale *Except Florida

Quantity

Notify me when back in stock

Enter your email address below to be notified when this item is back in stock:

There was an error submitting your email. Please try again.

Thank you! We will notify you when this product becomes available.

Quantity must be 1 or more

Share on Facebook
Tweet on Twitter

Do You Have Questions?

Accessories

Daikin’s Multi-Zone Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. With the ability to connect two wall-mounted indoor units to a single outdoor unit, this compact and simple solution can provide additional comfort to spaces where other solutions may not be viable. In addition, with a small outdoor unit footprint, the Daikin CIRRA Multi-Zone unit takes up less space on a patio or balcony (compared to other Daikin Multi-Zone outdoor units). Suitable for new build and renovation projects, Daikin Multi-Zone Systems are an innovative, reliable solution for your home or space.

Features:

10 Years Parts Warranty (Check Manuals & Specification Tables).
Cooling Capacity: (6,000 min ~ 17,500 max. BTU) 17 SEER Efficiency.
Heating Capacity: (5,000 min ~ 18,000 max BTU) 9 HSPF Efficiency
Daikin 2-Zone CIRRA Series has a small condenser cabinet with Blue Fin Protection and anti-corrosion treatment on the heat exchanger. Pre-charged for up to 98-1/2 ft.

Additional Features:

Eco+
Blue Fin Protection
Simplified Maintenance
Anti-Corrosion Treatment on Heat Exchanger
Quick Warming Function
Automatic Defrosting
Reduced size and footprint compared to other Daikin Multi-Zone outdoor units.
Operating Cooling Ranger: 50° - 115°F
Operating Heating Range: 5° - 65°F

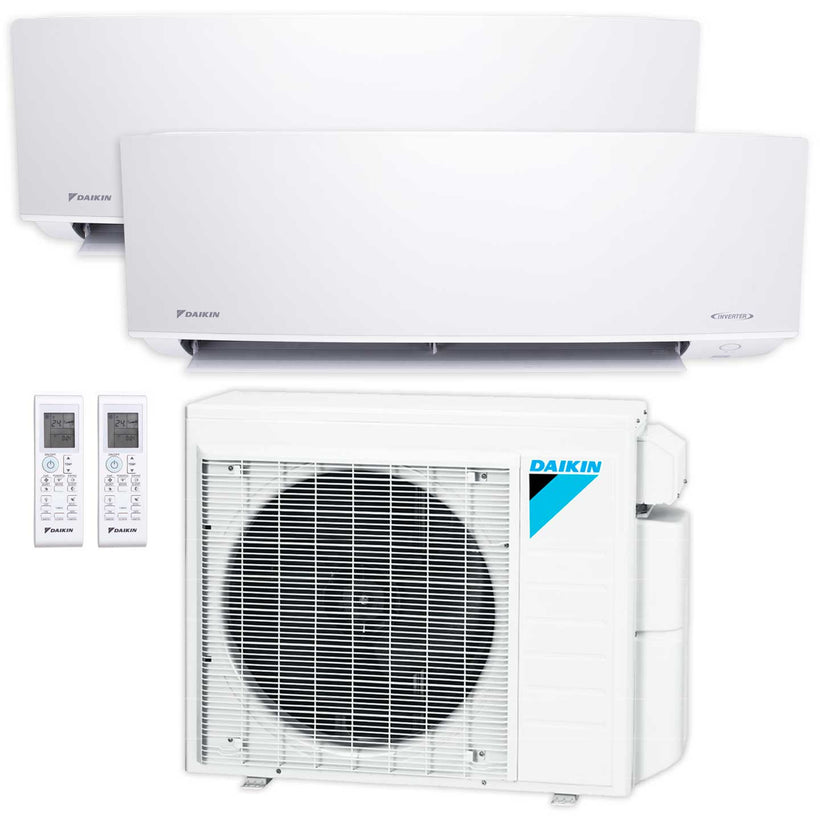

WHAT’S INCLUDED

Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:

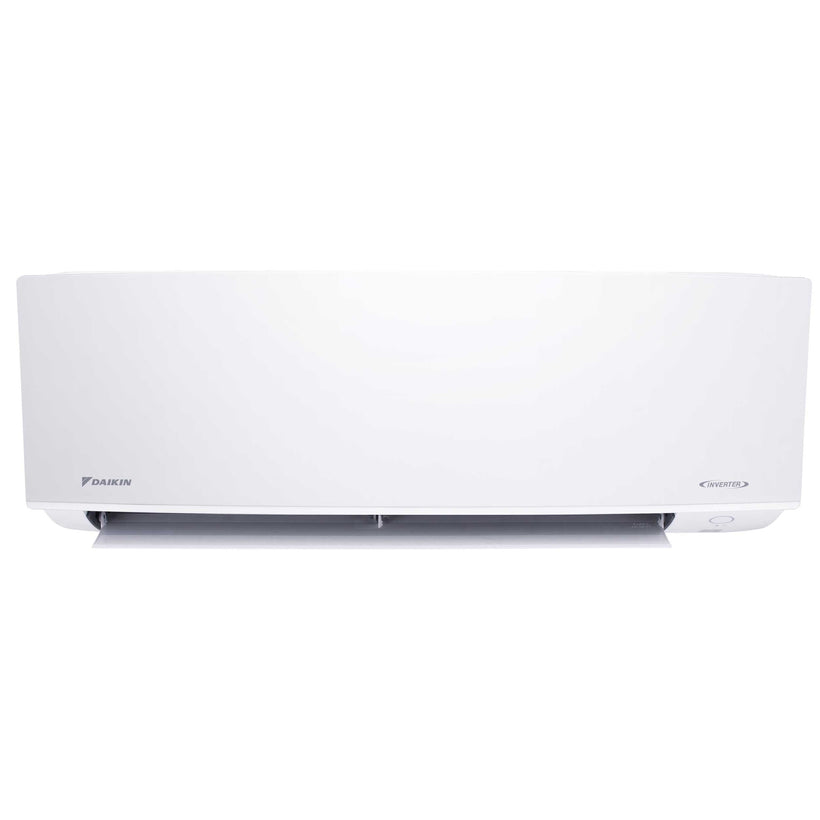

CTX09AXVJU | Indoor Unit
CTX12AXVJU | Indoor Unit

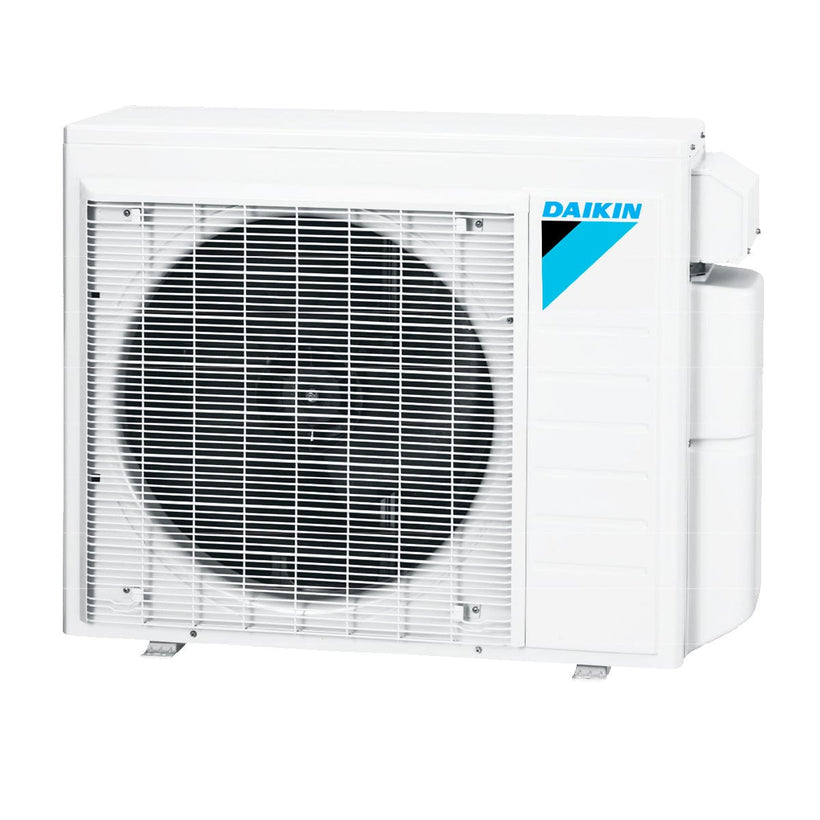

2MX18AXVJU | Outdoor Unit

MANUFACTURER’S WARRANTY

10-year parts warranty

Downloads

Key Specifications

Brand:Daikin
System Model Number2MX18AXVJU + CTX09AXVJU + CTX12AXVJU
Indoor 1 Model NumberCTX09AXVJU
Indoor 2 Model NumberCTX12AXVJU
Outdoor Model Number2MX18AXVJU
System Heating Capacity (BTU)17,000
System Cooling Capacity (BTU)17,000
Aplication Area 400 + 550 SqFt
Manufacturer Limited Warranty (years)10 Year Parts Warranty
Mounting TypeWall Mount
Voltage System208/230 V
Efficiency17 Seer
ApplicationHeat Pump / Heating & Cooling
System Shipping Weight117.0

Bundle includes 3 items

9,000 BTU Multi-zone Wall-Mount Fan Coil Unit CTX09AXVJU

Model Number: CTX09AXVJU SKU: HCDNA2769

12,000 BTU Multi-zone Wall-Mount Fan Coil Unit CTX12AXVJU

Model Number: CTX12AXVJU SKU: HCDNA2770

18,000 BTU Daikin Cirra Multi-Zone Outdoor Heat Pump Unit Up to 17 SEER 2MX18AXVJU

Model Number: 2MX18AXVJU SKU: HCDNA2768

System Specifications

Coverage (Sq/Ft), Each Indoor Model	400 + 550
Certifications	AHRI Performance Certified 210/240
EER (Energy Efficiency Ratio)	10
Electrical	208-230 V; 1 Phase; 60 Hz
HSPF (Heating Seasonal Performance Factor)	9
Installation Kit (Included)	No
Maximum Indoor Units	2
Model Number	2MX18AXVJU + CTX09AXVJU + CTX12AXVJU
Outdoor Model Number	2MX18AXVJU
Mounting Type	Wall Mounted
Number of Zones (Rooms)	2
Must ship freight	Yes
Refrigerant	R-410A
Efficiency (SEER)	17
Shipping Time	24 to 72 hours
System Cooling Capacity (BTU)	17,000
System Heating Capacity	17,500
System Type (Selector)	Aisystem_total_weight
System Type (Selector)	Ductless MiniSplit Multizones
Technology	Inverter
Video Codes	nz87g1rl0p
Voltage	208/230 Volt
Indoor 1: Model Number	CTX12AXVJU
Indoor 2: Model Number	CTX09AXVJU
Zone 2: System Type	Ductless Mini Split

Specifications for model: CTX12AXVJU

Brand	Daikin
Purifiers Air Type	Electronic & HEPA
Type	Central Air Conditioner
Unit Type (Selector)	Standard
Application Area	550 SqFt
Mounting Type	Wall Mounted
[k_4]	1.5
EER (Energy Efficiency Ratio)	10
Electrical	208-230 V; 1 Phase; 60 Hz
Voltage	208/230 Volt
Manufacturer Limited Capacity	10 Year Parts
Ambient Temperature Cooling Range	50°F – 115°F
Ambient Temperature Heating Range	-13°F – 65°F
Certifications	Ahri; ETL
MCA (Minimum Circuit Ampacity)	18.7 amps
MOP (Maximum Overcurrent Protection)	20 amps
Liquid Line Size	1/4 inches
Suction Line Size	3/8 inches
Weight	20 lbs
Depth	9.84 In
Height	11.33 In
Width	30.91 In
Louvers	Yes
Auto Restart	Yes
Automatic Swing	Yes
Colors	White
Convenience Features	Humidistat
DC Inverter Technology	Yes
Filter Cleaning Methods	Washable
Low Temperature Operation	Yes
Matching Outdoor Unit	RXL18UMVJU
Memory	Yes
Remote Control Temperature Sensor	Yes
Shipping Cost	75

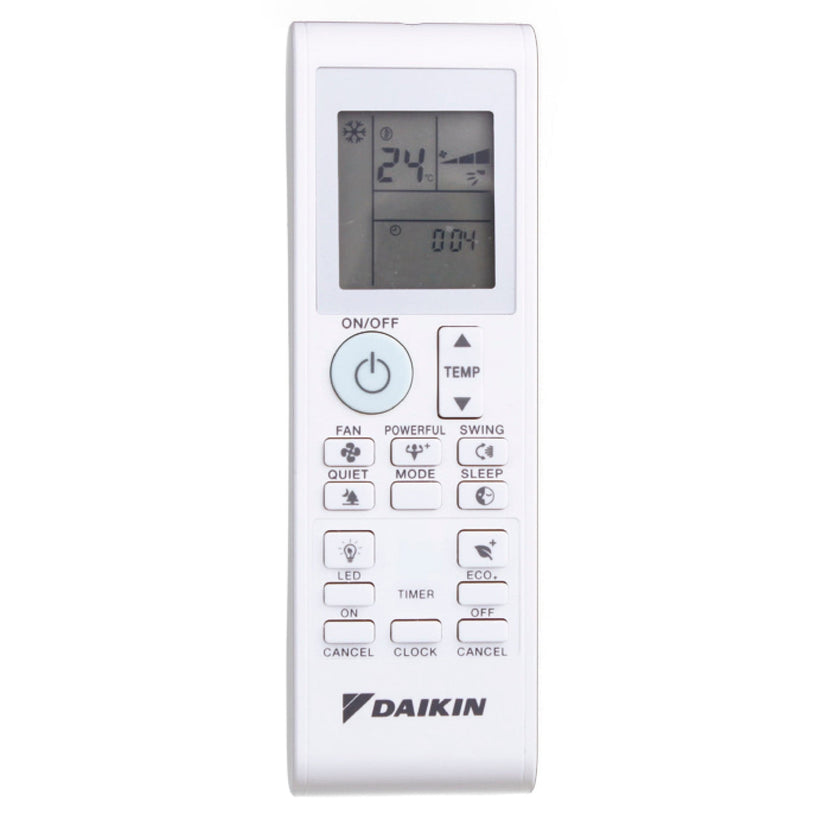

Thermostat Type	Wireless Remote
Turbo	Yes

Specifications for model: 2MX18AXVJU

Certifications	AHRI
Compressor Type	Hermetically Sealed Swing
Cooling Amperage	7.91 Amp
Depth	11-3/16
Electrical	208-230 V; 1 Phase; 60 Hz
Heating Amperage	6.49 Amp
Height	26-1/2 In
HSPF (Heating Seasonal Performance Factor)	9
Manufacturer Limited Warranty (text)	10 year parts limited warranty
Manufacturer Limited Warranty (years)	10 Year Parts Warranty
Maximum Indoor Units	2
Model Number	2MX18AXVJU
Efficiency (SEER)	17.0
SEER (Left Filter)	17+
Shipping Time	24 to 72 hours
Unit Type (Selector)	Standard
Voltage	208/230 Volt
Weight	84 lbs
Width	21-11/16 In

Specifications for model: CTX09AXVJU

Brand	Daikin
Purifiers Air Type	Electronic & HEPA
Type	Central Air Conditioner
Unit Type (Selector)	Standard
Application Area	400 SqFt
Mounting Type	Wall Mounted
[k_4]	1.5
EER (Energy Efficiency Ratio)	10
Electrical	208-230 V; 1 Phase; 60 Hz
Voltage	208/230 Volt
Manufacturer Limited Warranty (Years)	12 Year Parts Warranty
Ambient Temperature Cooling Range	50°F – 115°F
Ambient Temperature Heating Range	-13°F – 65°F
Certifications	Ahri; ETL
MCA (Minimum Circuit Ampacity)	18.7 amps
MOP (Maximum Overcurrent Protection)	20 amps
Liquid Line Size	1/4 inches
Suction Line Size	3/8 inches
Weight	20 lbs
Depth	9.84 In
Height	11.33 In
Width	30.91 In
Louvers	Yes
Auto Restart	Yes
Automatic Swing	Yes
Colors	White
Convenience Features	Humidistat
DC Inverter Technology	Yes
Filter Cleaning Methods	Washable
Low Temperature Operation	Yes
Matching Outdoor Unit	RXL18UMVJU
Memory	Yes
Remote Control Temperature Sensor	Yes
Shipping Cost	75
Thermostat Type	Wireless Remote
Turbo	Yes
