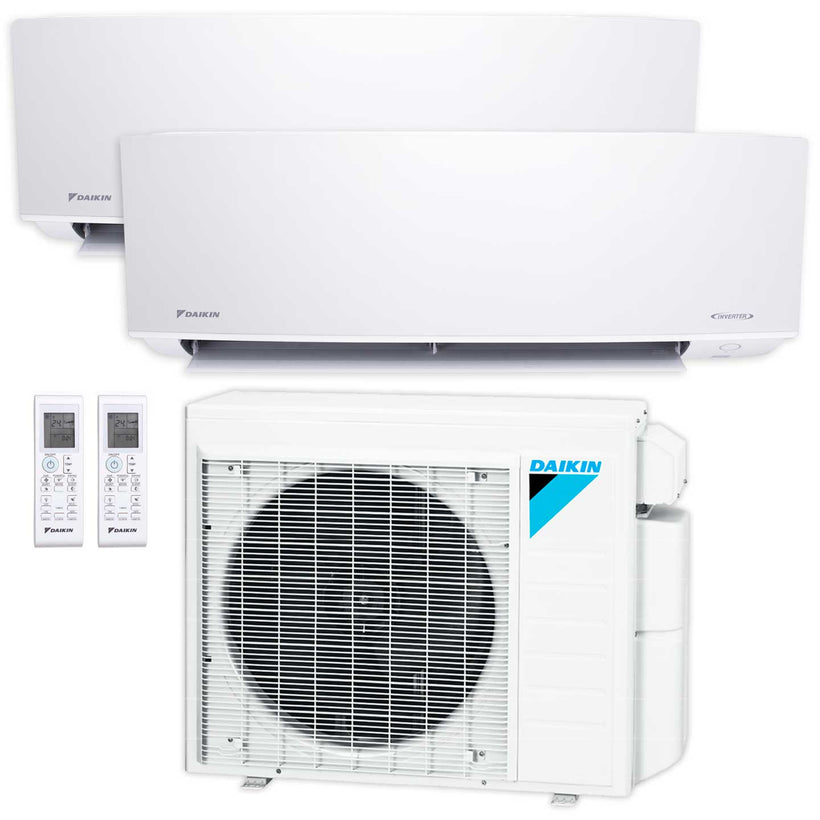

System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 400 |
|---|---|
| Certifications | AHRI Performance Certified 210/240 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 9 |
| Maximum Indoor Units | 2 |
| Model Number | 2MX18AXVJU + CTX09AXVJU + CTX09AXVJU |
| Mounting Type | Wall Mounted |
| Number of Zones (Rooms) | 2 |
| Refrigerant | R-410A |
| Efficiency (SEER) | 17 |
| Shipping Time | 24 to 72 hours |
| System Cooling Capacity (BTU) | 17,000 |
| System Heating Capacity | 17,500 |
| Technology | Inverter |
| Video Codes | nz87g1rl0p |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | FTXS09LVJU |
| Indoor 2: Model Number | FTXS09LVJU |
| Zone 2: System Type | Ductless Mini Split |

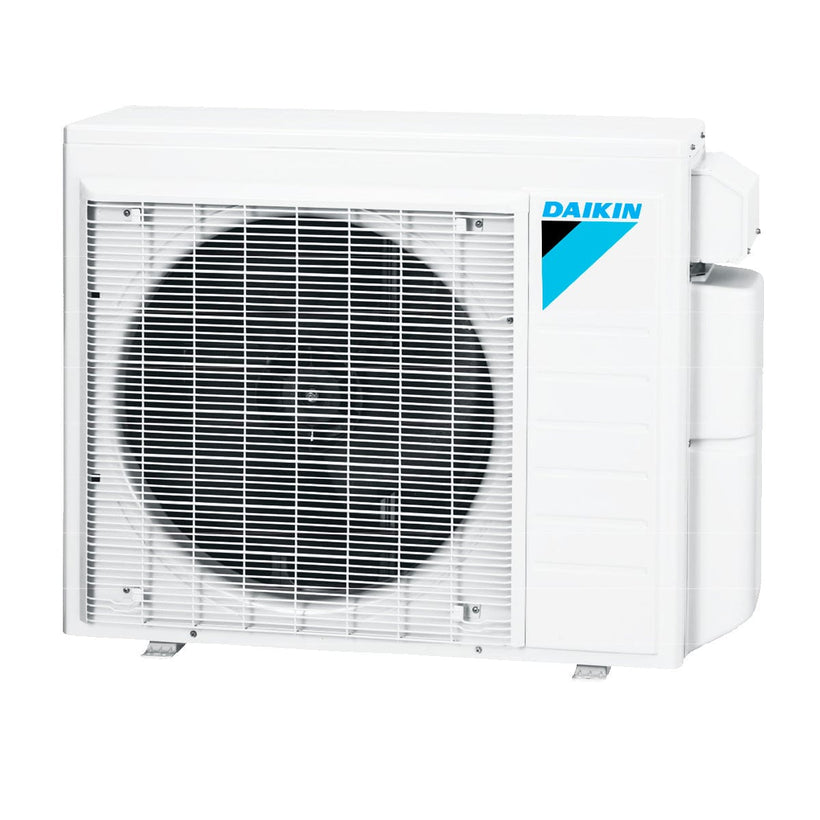

Specifications for model: 2MX18AXVJU
| Outdoor Unit Model | 2MX18AXVJU |
|---|---|
| Rated Cooling Conditions (°F DB/WB) | 50 / 114.8 |
| Rated Heating Conditions (°F DB/WB) | 5 / 64.4 |
| Cooling Capacity (Btu/hr) | 17,000 |
| Min/Max Cooling Capacity (Btu/hr) | 3,000 / 17,500 |
| Heating Capacity (Btu/hr) | 17,000 |
| Min/Max Heating Capacity (Btu/hr) | 2,500 / 18,000 |
| SEER | 17 |
| HSPF | 9.0 |
| EER | 10 |
| COP | 3.5 |
| Power Supply (V/Hz/Ph) | 208-230 / 60 / 1 |
| Min. Circuit Amps MCA (A) | 10.9 |
| Max Overcurrent Protection (MOP) (A) | 15 |
| Airflow Rate Cooling (H) (CFM) | 1,170 |
| Airflow Rate Heating (H) (CFM) | 1,300 |
| Liquid Line Size (in) | 1/4 |
| Gas Line Size (in) | 3/8 |
| Sound Pressure (dBA) | 51 / 56 |
| Dimensions (HxWxD) (in) | 21-11/16 x 26-1/2 x 11-3/16 |
| Weight (Lbs) | 77 |

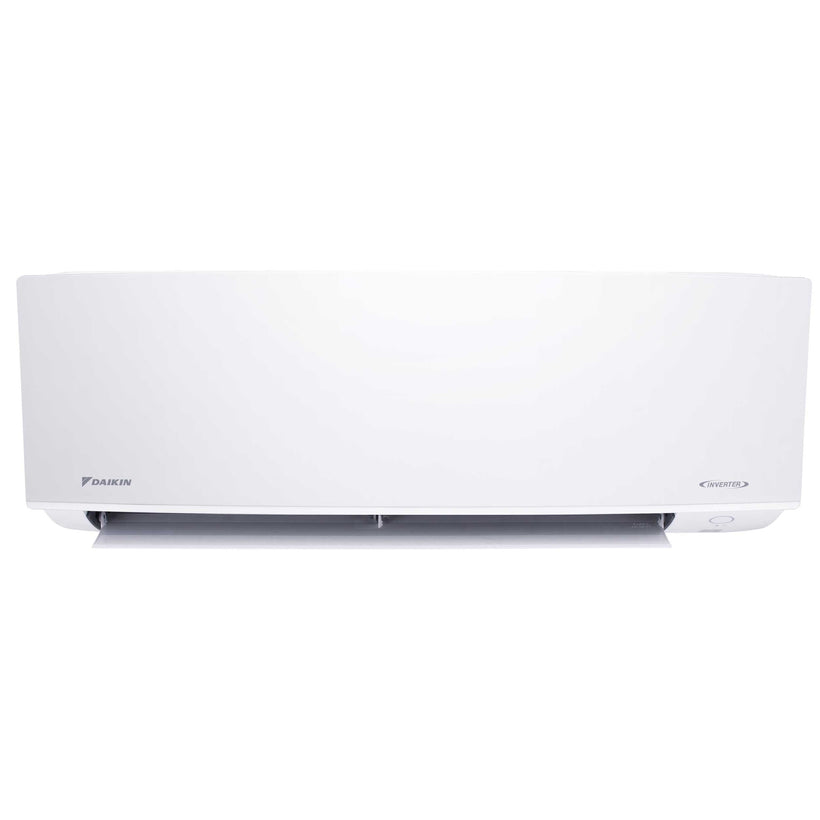

Specifications for model: CTX09AXVJU
| Brand | Daikin |
|---|---|
| Purifiers Air Type | Electronic & HEPA |
| Type | Central Air Conditioner |
| Unit Type (Selector) | Standard |
| Application Area | 400 SqFt |
| Mounting Type | Wall Mounted |
| [k_4] | 1.5 |
| EER (Energy Efficiency Ratio) | 10 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Voltage | 208/230 Volt |
| Manufacturer Limited Warranty (Years) | 12 Year Parts Warranty |
| Ambient Temperature Cooling Range | 50°F – 115°F |
| Ambient Temperature Heating Range | -13°F – 65°F |
| Certifications | Ahri; ETL |
| MCA (Minimum Circuit Ampacity) | 18.7 amps |
| MOP (Maximum Overcurrent Protection) | 20 amps |
| Liquid Line Size | 1/4 inches |
| Suction Line Size | 3/8 inches |
| Weight | 20 lbs |
| Depth | 9.84 In |
| Height | 11.33 In |
| Width | 30.91 In |
| Louvers | Yes |
| Auto Restart | Yes |
| Automatic Swing | Yes |
| Colors | White |
| Convenience Features | Humidistat |
| DC Inverter Technology | Yes |
| Filter Cleaning Methods | Washable |
| Low Temperature Operation | Yes |
| Matching Outdoor Unit | RXL18UMVJU |
| Memory | Yes |
| Remote Control Temperature Sensor | Yes |
| Shipping Cost | 75 |

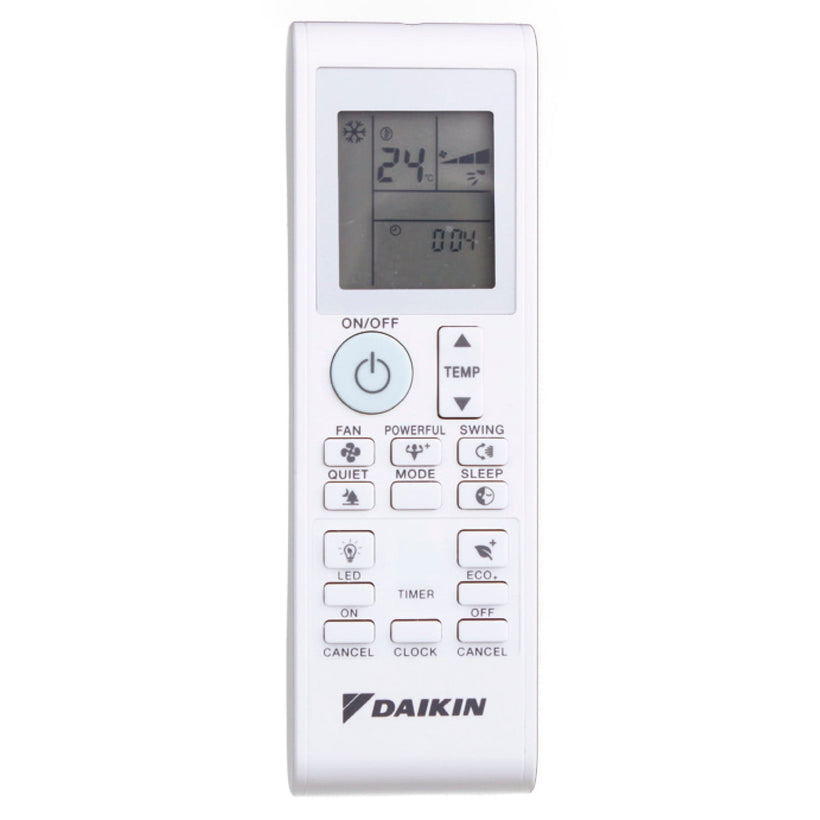

| Thermostat Type | Wireless Remote |
| Turbo | Yes |
