THROUGH THE WALL PACKAGED TERMINAL AIR CONDITIONER HEAT PUMPS PROVIDE ZONED COOLING & HEATING SOLUTION

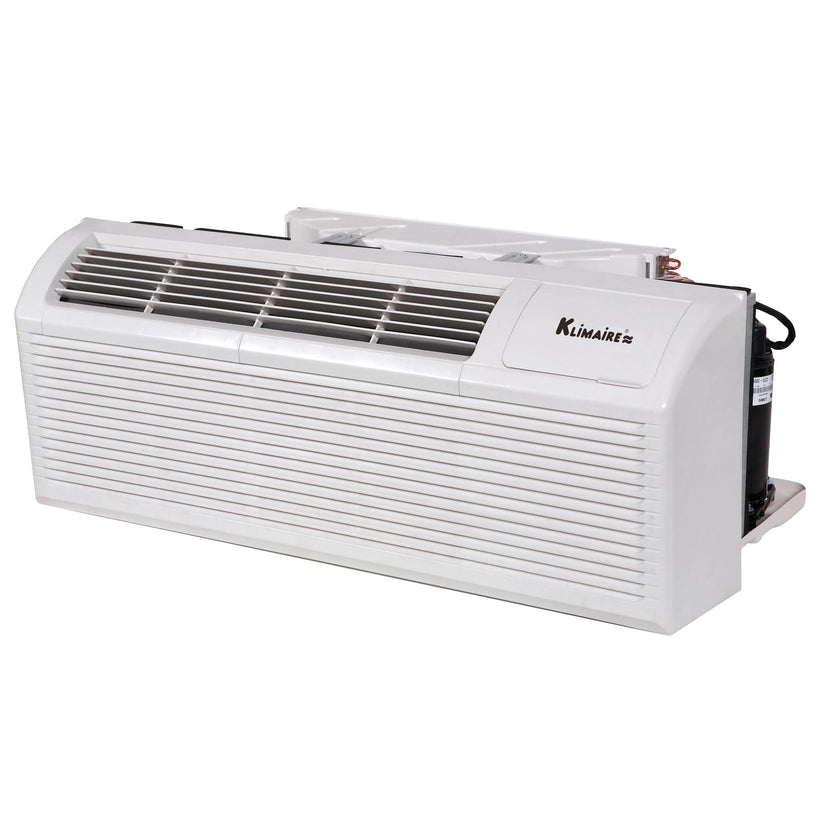

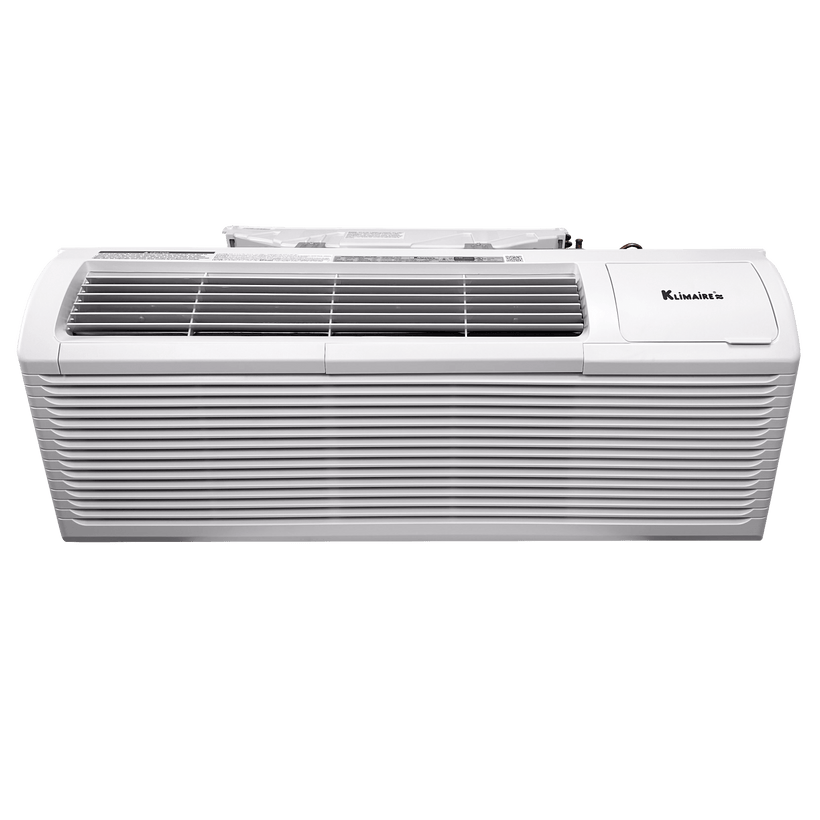

Klimaire Package Terminal Air Conditioner (PTAC) and Heat Pump (PTHP) units are designed to provide year-round comfort in hotel, motel, office buildings, nursing homes, classrooms, apartments, dormitories, and hospitals. PTAC's are conveniently installed on an interior wall with the back of the unit vented to the exterior. No ducting is required. Klimaire's PTAC and PTHP's are built to the industry standard 42-inch width and fit standard 16-inch existing wall sleeves.
PTHP’s provide energy-efficient heating and cooling using reverse cycle technology. Cooling capacity is 12,000 BTU and heat pump heating capacity is 10,800 BTU. The included electric auxiliary 3.5 kW (12,000 BTU) heat strip is supplemental and only needs to be used when the outside temperature drops too low for the heat pump to provide energy-efficient heating. This is generally only a few days out of the year. For most of the heating season, the energy efficient heat pump provides enough heating using about 1/3 the electric power required by standard electric heating.
This Klimaire 12,000 BTU package Terminal Heat Pump PTHP is a complete system including the electric heat strip. Optional recommended wall sleeve and sleeve grill are available.
- Compatible with standard wall thermostats
- Equipped with a built-in receiver for an optional wireless remote
- Front office control via dip switch configuration is ideal for hospitality and healthcare facilities

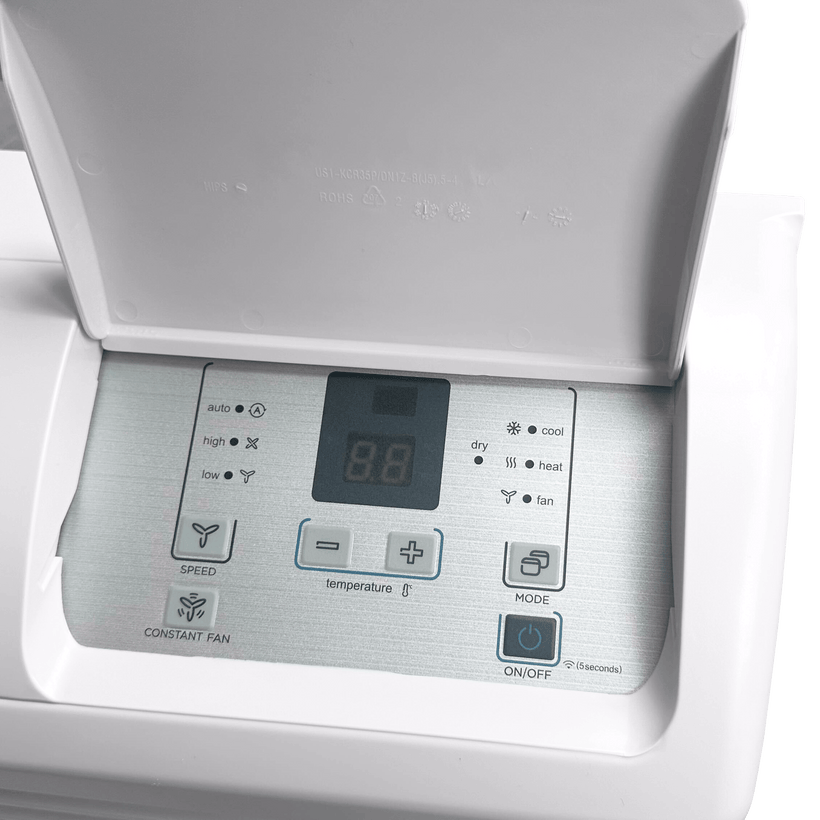

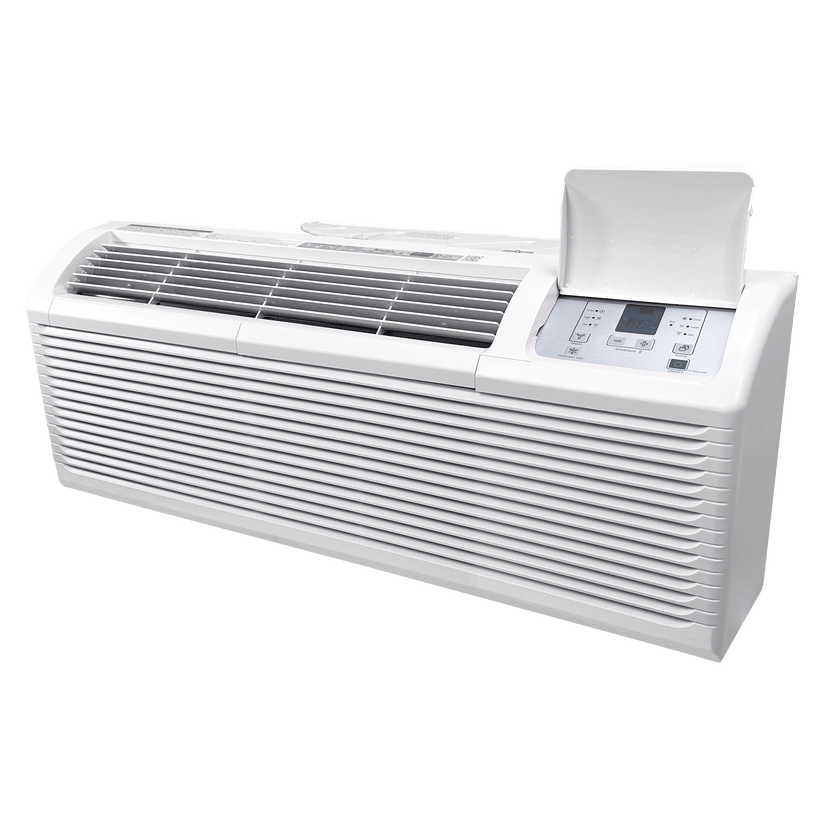

Every Klimaire PTAC unit is built with an LED lit easy push button control panel for the selection of heating or cooling mode, fan-only mode, and precise temperature adjustment. Fresh air intake design and the washable polypropylene air filter ensure indoor air quality. When the weather is mild, a large ventilation door circulates fresh air into the home, and in the event of power loss the Auto Restart feature remembers the latest settings so you can have peace-of-mind. The large diameter indoor tangential fan wheel and dual motor configuration contribute to low operational noise and uniform airflow.
ADDITIONAL FEATURES
- 24 V wall thermostat can be easily hooked up for added convenience.
- Display temperature in either Celsius or Fahrenheit
- Quiet operation ensured due to separate indoor outdoor motor

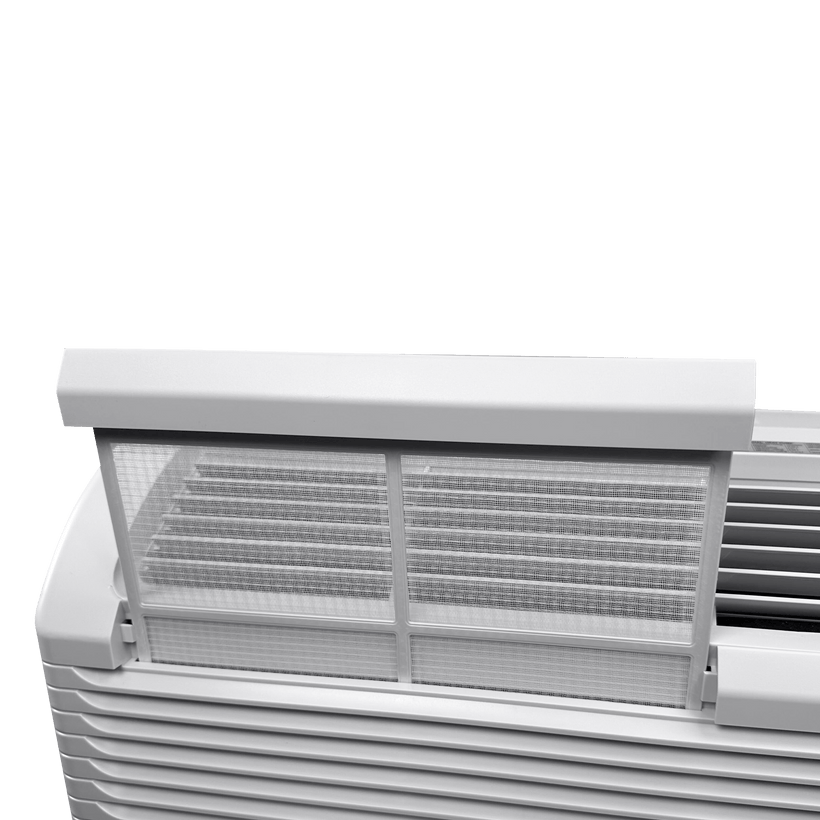

- Air filters easily pulls out for washing
- Washable filter is preferred for hospitality, assisted living and residential applications

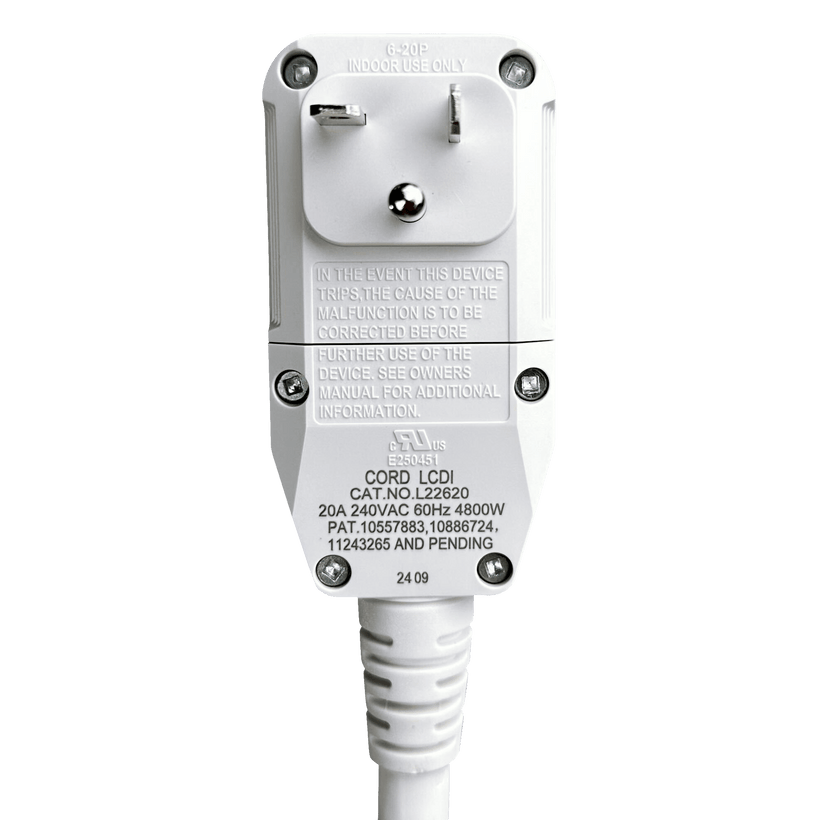

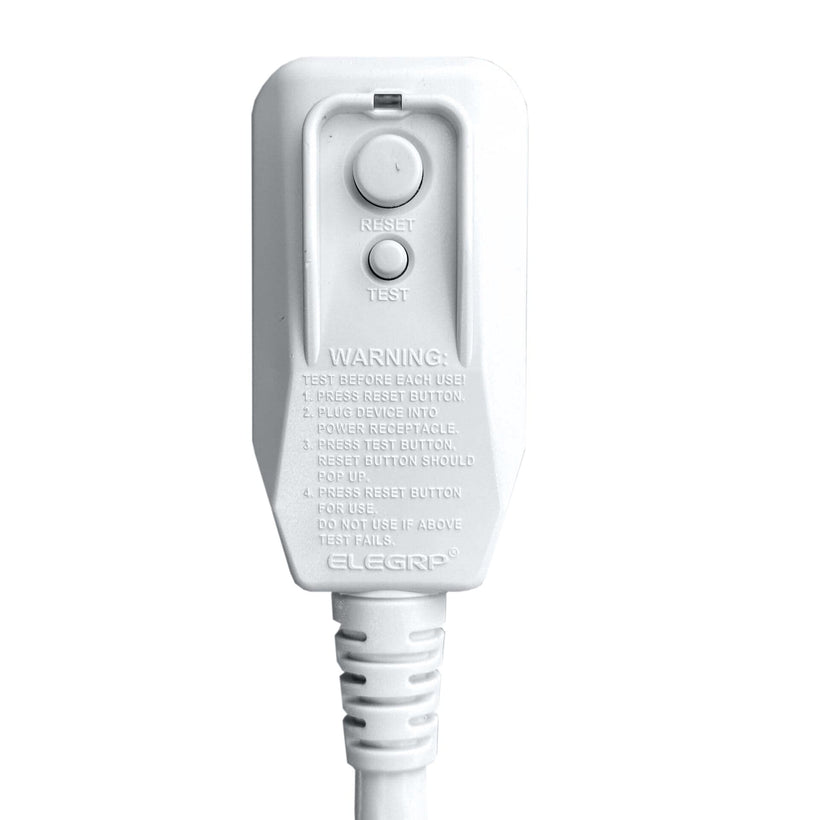

- Factory supplied power cord with 3-prong grounding plug and current detection device with reset
- Increase energy-savings with front office control
- Save valuable room space with slim 7 ¾” front depths
WIFI Connection

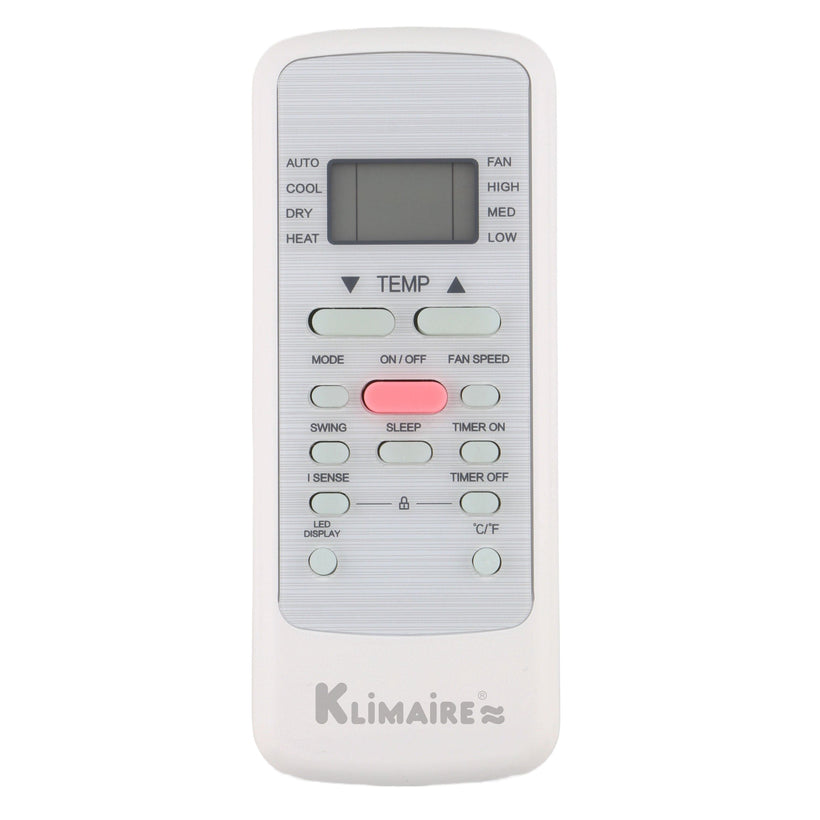

KLIMAIRE WIRELESS REMOTE CONTROL FOR PTAC-PTHP KC SERIES PACKAGED TERMINAL UNITS
Get the most out of your Packaged Terminal Air Conditioner (PTAC) or PTHP with a wireless remote control. Better control means more comfort and higher energy savings. Easy-to-read LED display, and push button controls. Works with cool only air conditioners and air conditioner heat pumps. Control fan-only mode and the heat and cool modes.
PTAC's and Packaged Terminal Air Conditioner Heat Pumps ((PTHP), often called hotel-style thru-the wall air conditioners, are commonly used in the hospitality and healthcare setting, but they're great also for the home. Install in a garage conversion or home addition and gain the convenience of zoned temperature control. And don't forget the wireless remote control.
- For Klimaire PTAC or PTHP KC Series
- Multi-function push button control
- LED display
WHAT’S INCLUDED:
Your KLIMAIRE PTHP KC Series from Heat & Cool comes with:
- Klimaire 12,000 BTU PTHP
- 3.5 kW Electric Heater
- Remote Control
- Power cord with 3-prong grounding plug
- Installation Manual
- User’s Manual
- Manufacturer Warranty
MANUFACTURER WARRANTY
- 2 year parts limited warranty
- 5 years compressor limited warranty
Downloads
- Klimaire PTAC-PTHP KC-3 SERIES - BROCHURE
- Klimaire PTAC-PTHP KC SERIES - TECHNICAL SPECIFICATION
- Klimaire PTAC-PTHP - MANUFACTURER WARRANTY
- KLIMAIRE PTAC-PTHP KC SERIES - USERS MANUAL
- KLIMAIRE PTAC KC-3 SERIES - SERVICE MANUAL
- KLIMAIRE DRAIN KIT PTAC - INSTALLATION MANUAL
- Klimaire PTAC Wi-Fi SMART KIT Manual
Key Specifications
- Klimaire
- Package Terminal Unit Heat Pump
- 550
- 12,000
- 10,800
- 3.5
- 10.5
- 3.2
- 208-230 V / 1 Phase / 60 Hz
- R-32
- LCDI (6-20P)
System Specifications
| Air Conditioner Type | Package Terminal Unit Heat Pump |
|---|---|
| Application Area (Sqft) | 550 |
| Cooling Capacity (Btu) | 12,000 |
| Heating Capacity (Btu) | 10,800 |
| Electric Heater Capacity (Kw) | 3.5 |
| EER | 10.5 |
| COP | 3.2 |
| Power Supply | 208-230 V / 1 Phase / 60 Hz |
| Refrigerant Gas Type | R-32 |
| Plug Type | LCDI (6-20P) |
| Manufacturer Limited Warranty (Yr) | 2 Year Parts 5 Years Compressor |
| Minimum Outdoor Temperature for Cooling (F°) | 48 |
| Minimum Outdoor Temperature for Heating (F°) | 23 |
| Operation Mode | Heat Pump + Electric Heat |
| Configuration | Through the Wall |
| Sound Level (Hi/Lo) dB(A) | 53 / 52.5 |
| Outdoor Sound Level dB(A) | 67 |
| Compressor Type | Rotary |
| Dimensions Unit Width / Depth / Height (In) | 42.01x20.94x15.98 |
| Dimensions Packing (WxDxH) (In) | 44.49x24.61x19.29 |
| Weight Net/Gross (Lb) | 110.23/119.05 |
