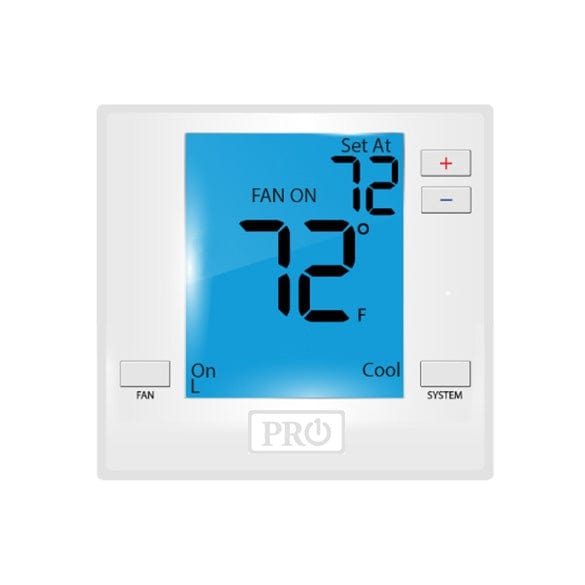

Pro1 T731 Stages 2H/1C Digital LCD Thermostat for PTAC & PTHP
Overview
Technical
Reviews
Q&A
{
$el.scrollIntoView({ behavior: 'smooth', block: 'start' });
})
"
:class="currentTab === 1 && '!bg-light-blue !text-white'"
class="lg:hidden flex w-full items-center justify-between bg-lighter-grey rounded py-5 px-3 text-base font-primary uppercase text-light-blue transition my-1">
Overview
4 sq. inch display
Improved blue back light
Glow in the dark light button
5 minute compressor delay protection (selectable on or off)
Adjustable setpoint limits
Separate heating and cooling swing (cycle rate) adjustments
Room temperature calibration adjustments
Simple private label badge system
Easy wire color coded terminal blocks
Universal sub-base
Mounts on wall or junction box
Battery or 24v power
5 year warranty
{
$el.scrollIntoView({ behavior: 'smooth', block: 'start' });
})
"
:class="currentTab === 2 && '!bg-light-blue !text-white'"
class="lg:hidden flex w-full items-center justify-between bg-lighter-grey rounded py-5 px-3 text-base font-primary uppercase text-light-blue transition my-1">
Technical
System Specifications
Compatibility
Gas; Electric; Oil Furnaces. 1 Heat 1 Cool Conventional; 2 Heat 1 Cool Heat Pump
Control Range Temperature
44˚F to 90˚F (7˚C to 32˚C)
Dimensions WxHxD (in)
4.7”W x 4.4”H x 0.8”D
Display Height
2.9 in
Display Width
2.4 in
Illuminated Display
Blue
Manufacturer Limited Warranty (years)
5 years
Millivolt Compatible
Yes
Mounting Type
Junction Box & Wall
Power Source
Battery & 24 Volt
Protection
5 minute compressor delay (selectable on or off)
Shipping Time
24 to 72 hours
Stages Cool
1
Stages Heat
2
System Configuration
Gas; Electric or Oil Configurable
Terminal Block Configuration
R; C; Y; W; O; B; GH; GL
Unit Type (Selector)
Standard
User Interface
Push Button
{
