Commercial Ductless System Teams Up Industry Leading Air Conditioning Brand
Beauty, brains and brawn best sum up this ductless air conditioning system. The neutral-colored Klimaire ductless ceiling/floor unit features an easy to clean glossy exterior. With a profile of only 9.3 inches and width of just over 26 inches, it requires minimal space. It’s loaded with high-tech functions like auto adjust louvers, full function remote control and self-diagnostics with fault display codes.
The powerful Energy Star certified air conditioner condenser has a 36,000 BTU capacity. It’s designed with a high-efficiency copeland scroll compressor and a smart coil. Together they maximize thermal heat transfer ability and reduce the amount of refrigerant needed.
- Auto swing louvers
- Airflow direction controllable with included remote control
- Energy Star Certified Condenser

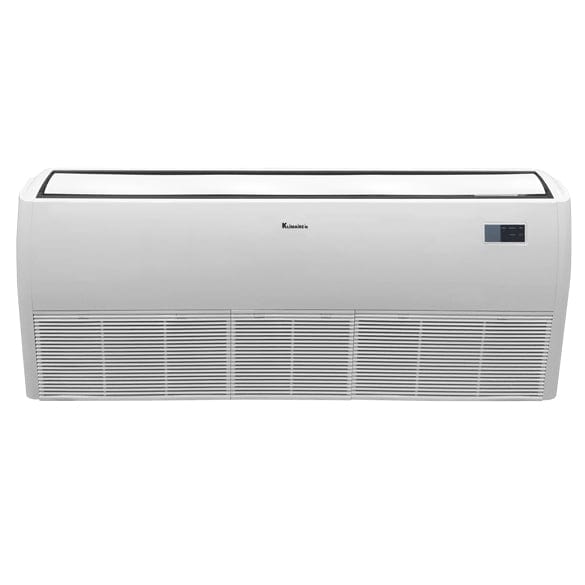

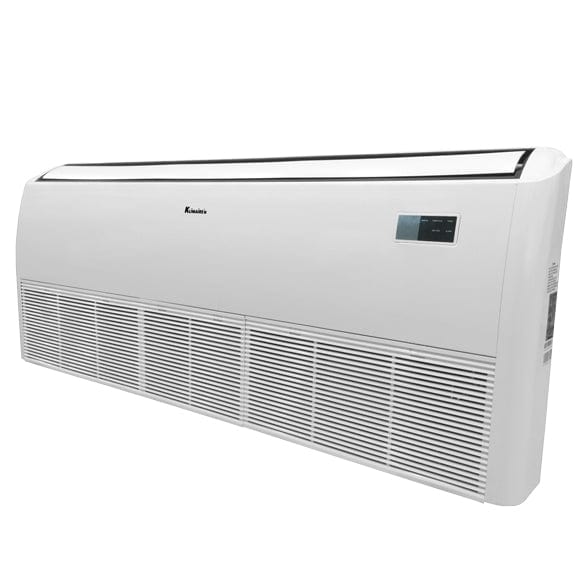

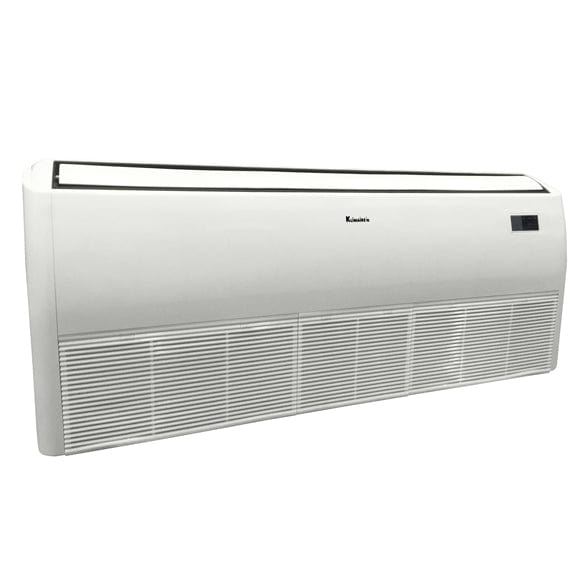

KFUF036-C2G | Indoor Unit

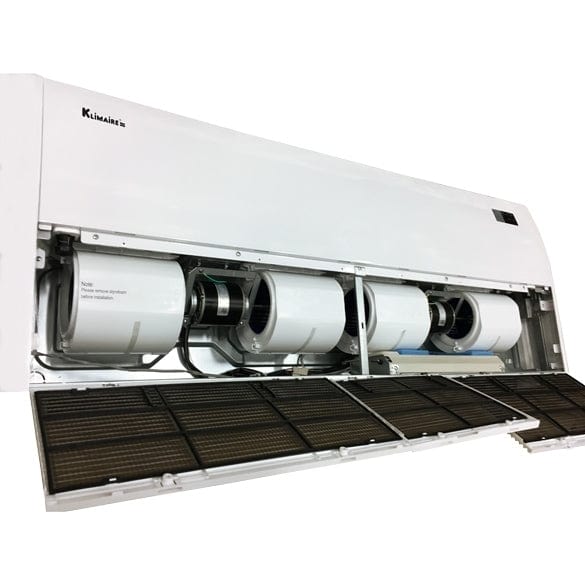

Extremely quiet operation and rugged construction make the 36,000 BTU KFUF036-C2G fan coil unit ideal for heavy traffic and public areas. It arrives pre-vacuumed and can be installed on a wall or on the floor. Includes slide out washable air filter and wireless remote control. Choose from cooling, fan and dehumidification modes. Features 24-hour timer, sleep mode and auto restart.
Directional air flow: Using the included remote control, manually adjust the airflow direction or set the unit to auto swing. This ensures that your commercial space is cooled evenly and prevents a continuous blast of cold air in one direction. This is especially important in commercial applications such as hydroponic indoor gardens or restaurants, both of which are ideally suited for commercial mini-split air conditioner systems.
- Adjustable airflow with wireless LED remote
- Auto swing louvers
- Auto restart after power failure

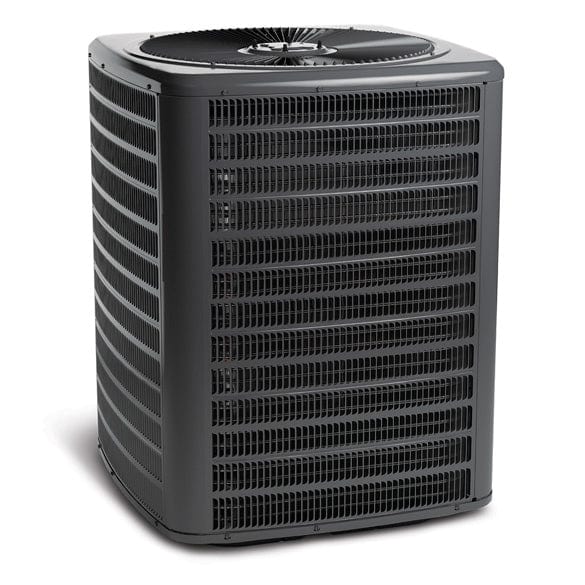

Reliable Outdoor Unit
Special sound dampening features on 3 Ton outdoor air conditioner condenser delivers its powerful 36,000 BTU capacity without disturbing you or your neighbors. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized steel louvered cabinet with noise suppressing features. The outdoor cabinet is attractive and durable. Features architectural gray powder-paint finish with 500-hour salt-spray approval.
Outdoor unit has single-panel access to controls with space provided for field-installed accessories. When properly anchored, the unit meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (anchor bracket kits available).
- Save money and resources with smarcoil 5mm copper tubing
- Fully charged for 15’ of tubing length
- AHRI Certified; ETL Listed
Additional Features
- LCD display on fan coil
- Attractive, modern design indoor unit
- Hydrophilic aluminum fins on indoor unit
- Factory-installed filter drier in outdoor unit
- Condenser features easy top and side maintenance access
Applications
- Greenhouses / Hydroponic gardening
- Sunrooms
- Offices
- Warehouses
- Restaurants
- Commercial spaces
- Garages/workshops

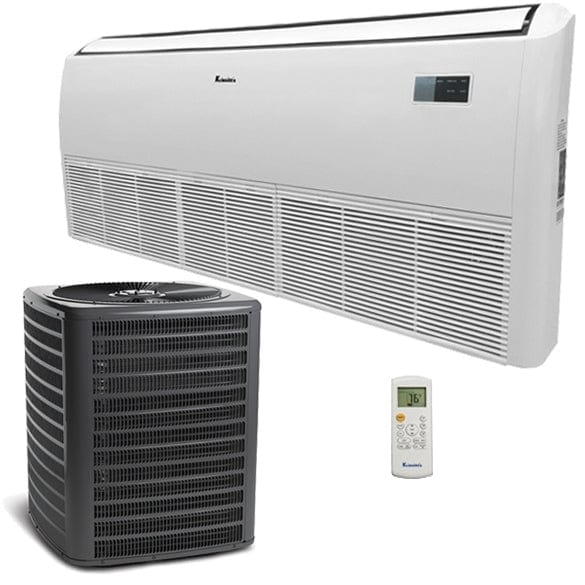

WHAT’S INCLUDED
Your Klimaire Ductless Light Commercial Fan Coil Air Conditioner from Heat & Cool Comes with:
- Klimaire KFUF036-C2G | Indoor Unit
- 3 Ton Condenser | Outdoor Unit

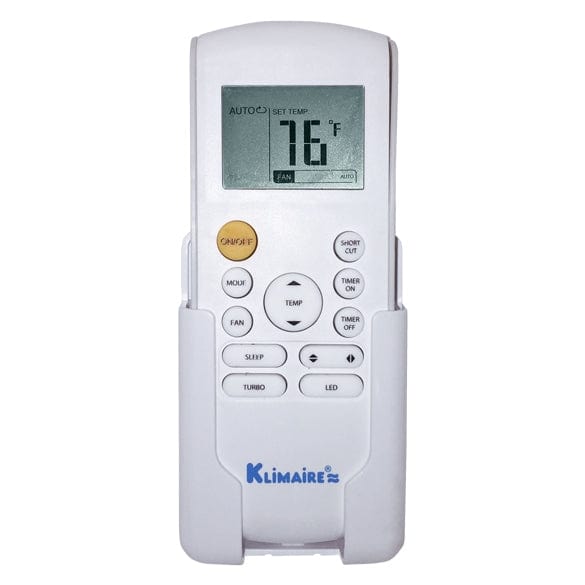

- Full-function LED wireless remote control
- Installation Manual
- User’s Manual
- Manufacturer Warranty
MANUFACTURERS WARRANTY
Air Conditioner Condenser, Outdoor Unit
- 10 year parts limited warranty
Klimaire KFUF036-C2 Ductless Fan Coil, Indoor Unit
- 1 year parts limited warranty
Key Specifications
- Klimaire
- 1440 SqFt
- 36,000
- 208-230 V; 1 Phase; 60 Hz
- 1 year indoor unit; 10 years outdoor unit
- 30 amps
- Floor Mount
- KFUF036-C2G
- 1
- 16
- Floor Mounted
- 208/230 Volt
Bundle includes 2 items
3 Ton Goodman GSX160361 16 SEER Outdoor Condensing Unit R410A Refrigerant
Model Number: GSX160361 SKU: HCGMC1034
36,000 Btu Flex-Match Floor-Ceiling Fan Coil Unit, 220v
Model Number: KFUF036-C2G SKU: HCKPI1807System Specifications
| Application Area | 1440 SqFt |
|---|---|
| Certifications | ETL |
| Cooling Capacity (BTU) | 36,000 |
| EER (Energy Efficiency Ratio) | 2.58 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (text) | 1 year indoor unit; 10 years outdoor unit |
| MOP (Maximum Overcurrent Protection) | 30 amps |
| Mounting Type | Floor Mount |
| Indoor Model Number | KFUF036-C2G |
| Number of Zones (Rooms) | 1 |
| Must ship freight | Yes |
| Refrigerant | R410A |
| Efficiency (SEER) | 16 |
| SEER (Left Filter) | 16+ |
| Shipping Time | 24 to 72 hours |
| Room 1: Mount Type | Ceiling Suspended |
| Unit Type (Selector) | Floor Mounted |
| Voltage | 208/230 Volt |
Specifications for model: GSX160361
| Compressor Stages | 1 |
|---|---|
| Compressor Type | Scroll |
| Cooling Capacity (Nominal) | 34800 Btu/h |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| Energy Star | Yes |
| Handling Cost | 25 |
| Manufacturer Compressor Limited Warranty | 10 |
| Liquid Valve Size | 3/8" |
| Liquid Line Size | 3/8" |
| Manufacturer Parts Limited Warranty | 10 |
| MCA (Minimum Circuit Ampacity) | 18.7 amps |
| MOP (Maximum Overcurrent Protection-Breaker) | 30 Amp |
| Must ship freight | Yes |
| Refrigerant Type | R-410A |
