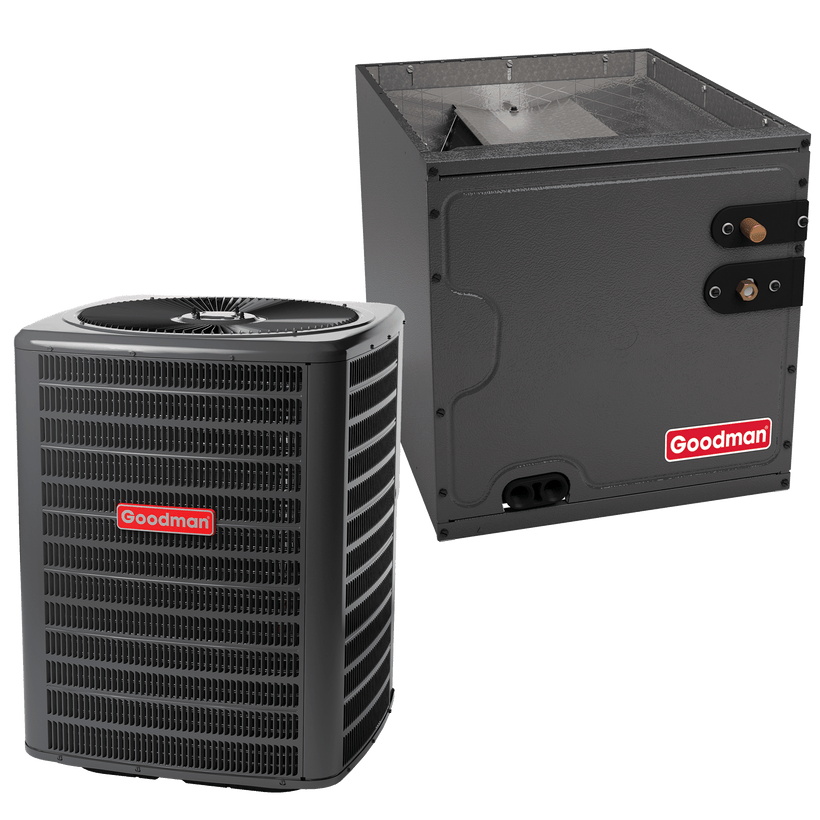

Goodman GLXS4BA3610 + CAPTA3626C3
Goodman brand lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials, and spot-on manufacturing. Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology.
Goodman uses advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that is designed to stay for many years.
GLXS4BA3610 | Outdoor Unit
The Goodman GLXS4BA3610 Energy Efficient Classic, R-32, up to 14.3 SEER2 air conditioner is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower efficiency units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.
Standard Features
- Energy-efficient compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil - 5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

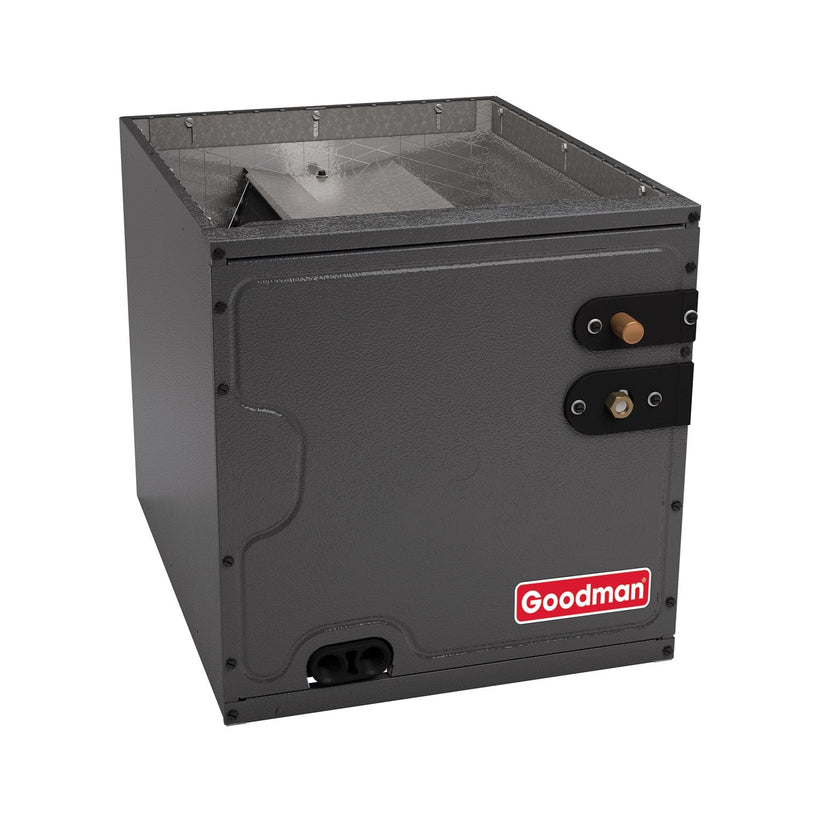

CAPTA3626C3 | Cased Coil
Goodman air handlers and coils have features designed to provide outstanding performance. By using advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend you will love for many years.
A TIME-TESTED SINGLE METAL SOLUTION

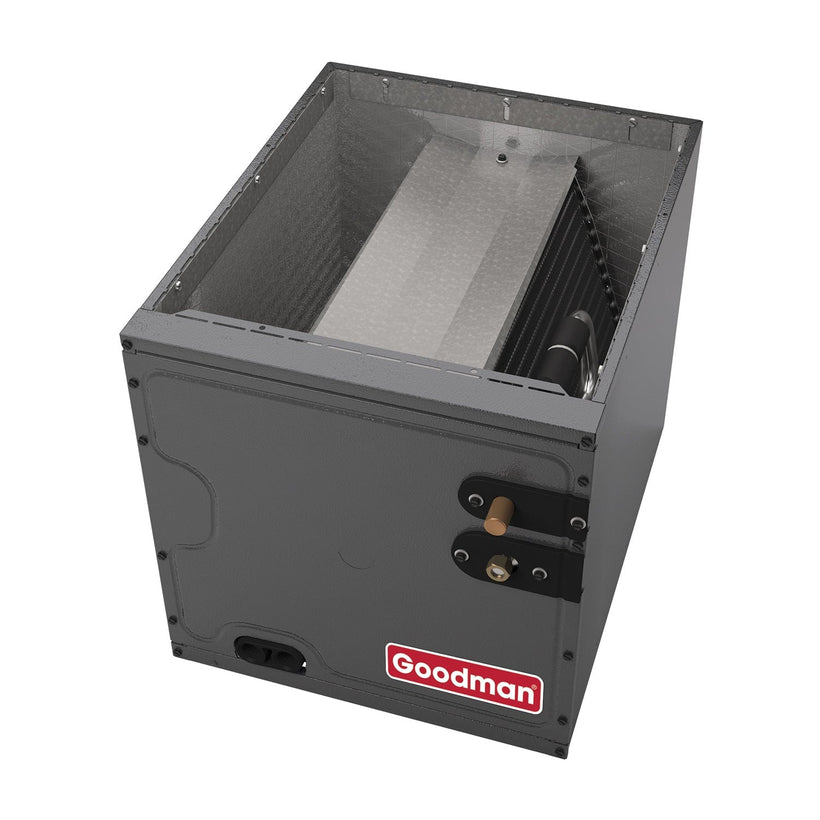

The All-Aluminum 21” width CAPTA3626C3 evaporator A coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. It is an evaporator coil designed with many features and benefits to help create great value for enhanced indoor comfort.
- Aluminum Tube and Aluminum Fin Coil Construction – Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
- Grooved Aluminum Tubing – Offers increased surface area for efficient heat transfer performance by the unit’s refrigerant.
- TXV Thermostatic Expansion Valve -The CAPTA has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for cooling and heat pump applications.
- Initial Pressure-Leak Test – To ensure high levels of product quality, coils are pressure tested during assembly. It is just the first step in three leak test processes to help ensure a high-quality product.
- Secondary Pressure-Leak Test – Before the coils leave the assembly line, a secondary pressure-leak test is conducted with hand-held devices to check brazed joints.
- Hound-Dog’ Vacuum Test – Coils undergo automated testing for leak ‘sniffing’ during the ‘hound-dog’ vacuum test.
What’s Included
Your Goodman Cased Coil from Heat & Cool Comes with:
- GLXS4BA3610 | Outdoor unit
- CAPTA3626C3 | Up-flow/Down-flow Cased Coil
- Installation Manual
- User’s Manual
- Manufacturer’s Warranty
MANUFACTURER WARRANTY
- 10 Year Parts Warranty. Complete warranty details available at www.goodmanmfg.com. To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
Key Specifications
- Goodman
- Central Ducted Air Conditioner Split System
- 3
- 1,800 up to 2,400
- 36,000
- 14.3
- 11.7
- 208/230 V, 1 Phase, 60 Hz
- 10
- Air Conditioner / Cooling Only
- AHRI Certified, ETL Listed
Bundle includes 2 items
3 Ton 15.2 SEER2 R-32 Goodman Central Air Conditioner Condenser
Model Number: GLXS4BA3610 SKU: GLS40255 Open in a new tab3 Ton R32 Goodman Evaporator Coil Upflow/Downflow with TXV - 21" Width
Model Number: CAPTA3626C3 SKU: GAPTA0296 Open in a new tabSystem Specifications
Air Conditioner Type | Central Ducted Air Conditioner Split System |
---|---|
Nominal Capacity (Ton) | 3 |
Application Area (SqFt) | 1,800 up to 2,400 |
Cooling Capacity (Btu) | 36,000 |
SEER2 | 14.3 |
EER2 | 11.7 |
Power Supply | 208/230 V, 1 Phase, 60 Hz |
Manufacturer Limited Warranty (Yr) | 10 |
Application | Air Conditioner / Cooling Only |
Certifications | AHRI Certified, ETL Listed |
Specifications for model: CAPTA3626C3
Specifications for model: GLXS4BA3610
Cooling Capacity (BTU) | 36,000 |
---|---|
Voltage | 208/230-1 |
Compressor Type | Scroll |
Sound Level | 67 |
Minimum Circuit Ampacity (MCA) | 17.8 |
Maximum Overcurrent protection (MOP) | 30 |
Liquid Line Size (In) | 3/8 |
Suction Line Size (In) | 7/8 |
Operation Mode | Cooling |
Net/Gross Weight (Lb) | 158/173 |
Width / Depth / Height (In) | 29 x 29 x 39 1/2 |
