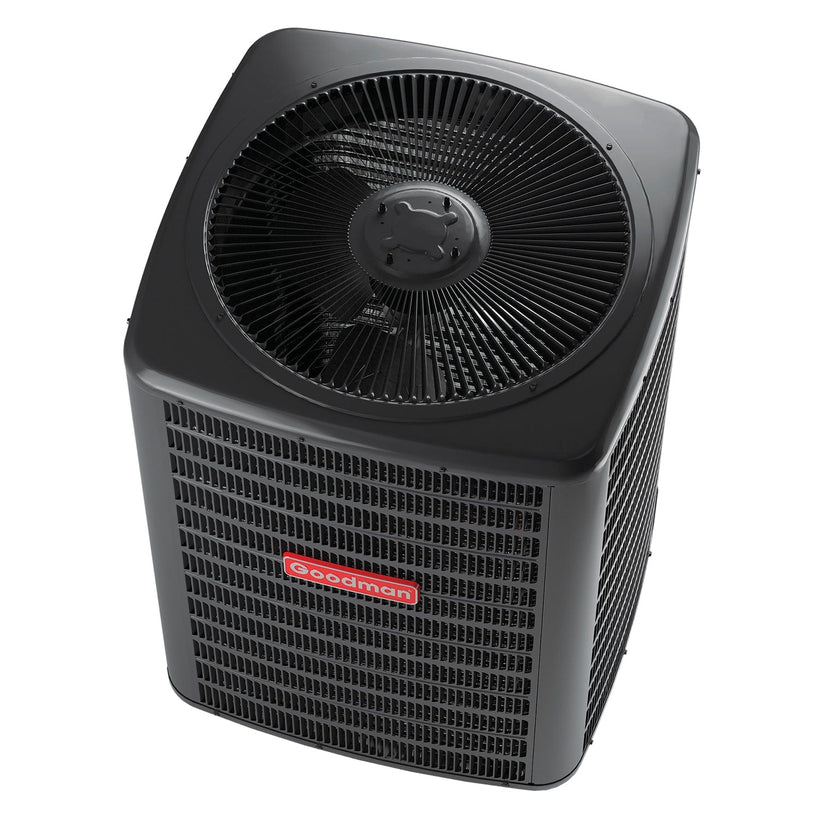

GLXS4BA3610 | Outdoor Unit
The Goodman GLXS4BA3610 Energy Efficient Classic, R-32, 15.2 SEER2 air conditioner is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower efficiency units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.
- Energy-efficient compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil - 5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
WHAT’S INCLUDED
Your Goodman Indoor Coils from Heat & Cool Comes with:
- Goodman GLXS4BA3610 | Condenser Unit
- Installation Manual
- User’s Manual
- Manufacturer Warranty
MANUFACTURERS WARRANTY
- 10 Year Parts Warranty
Key Specifications
- Goodman
- 36,000
- 208/230-1
- Scroll
- 67
- 17.8
- 30
- 3/8
- 7/8
- Cooling
- 158/173
- 29 x 29 x 39 1/2
