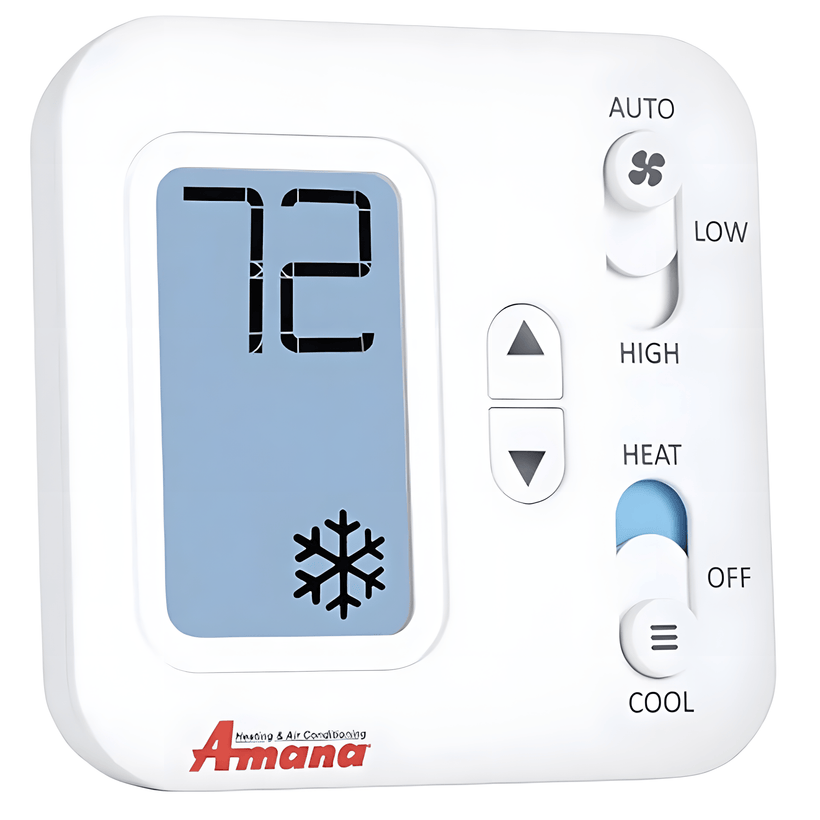

Amana Wall-mounted thermostat cooling with electric heat - 24V

The Amana PHWT-A100C is a non-programmable electronic thermostat, which can be used with the following heating/cooling applications:

• DISTINCTIONS Cooling / Conventional PTAC Units (PTC) with or without Electric Heat

SPECIFICATIONS

• Input Voltage: 19 to 30 VAC
• Output Rating: Max. 1.5A per terminal (3A total)
• Temperature Control: 45°F to 90°F (7°C to 32°C)
• Temperature Accuracy: ± 1°F (± 0.5°C)
• Wire Terminals: (C) 24 VAC Common, (GL) Fan LOW Speed, (GH) Fan HIGH Speed, (W) Heating Signal, (Y) Cooling Signal, (R) 24 VAC Hot, (B/O) Reversing Valve
