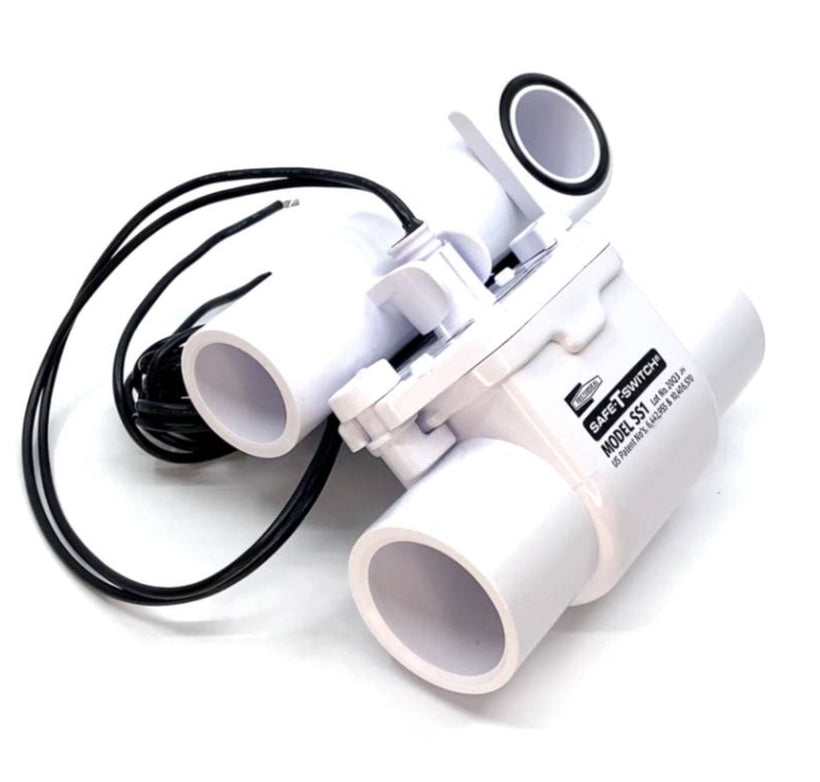

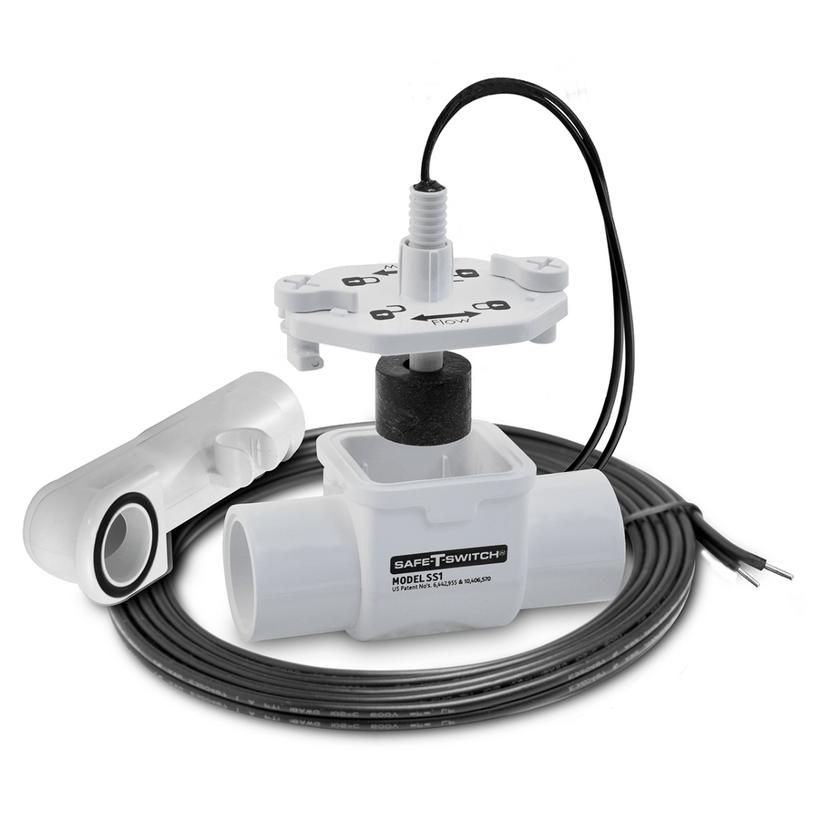

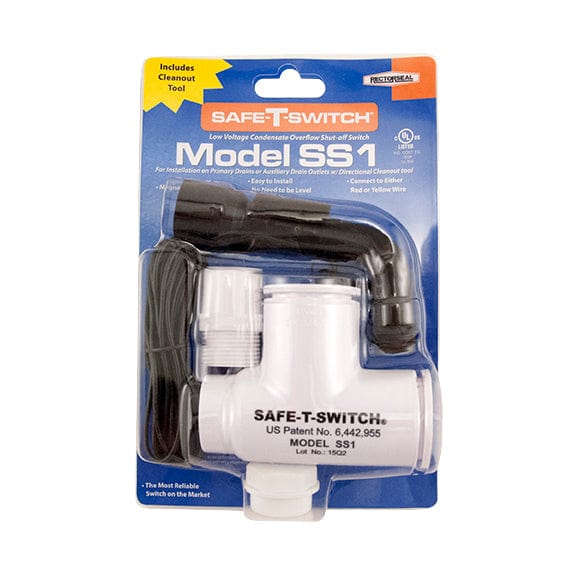

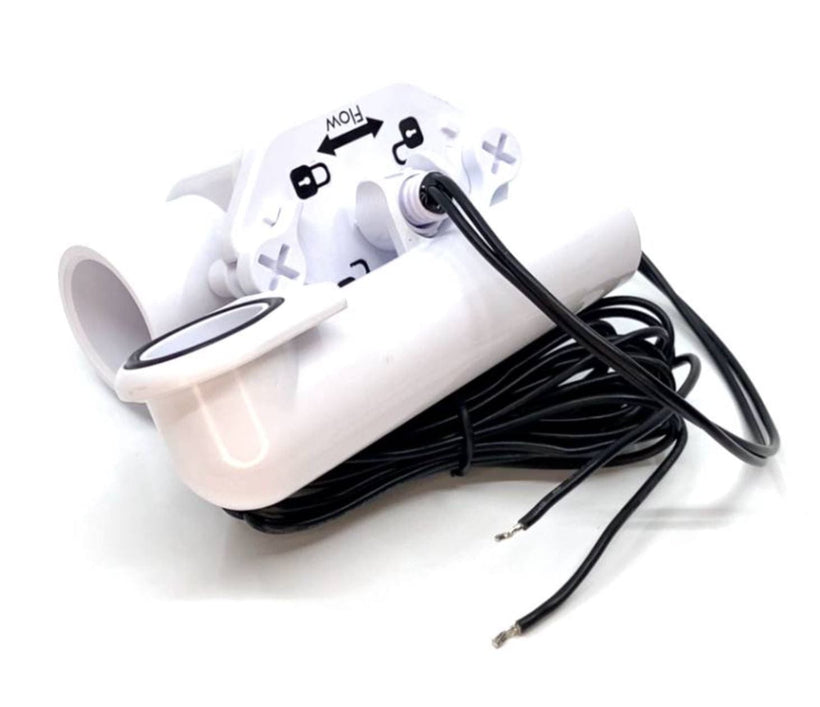

The SS1 Safe-T-Switch can be installed in line at any downward slope from vertical to horizontal. It can also be installed on auxiliary pan outlets utilizing the plug included with the kit. SS1 Safe-T-Switch detects downstream clogs in the condensate drain and prevents flooding by interrupting the thermostat circuit. The float resets automatically and after the drain is cleared. Sealed waterproof reed/magnet float switch technology with potted electrical contacts for reliable performance in wet environments. PVC Tee body accepts a ¾-inch slip PVC stub or drain pipe with included bushing. Compact footprint fits well in sloped drains and tight spaces. Package Includes Pre-wired 6-Foot, 18 Gauge Lead Wires, 3/4-inch Schedule 40 PVC Slip Plug, 3/4-inch Threaded Male X Slip Male Adaptor and 3/4-inch X 1-inch Reducer Bushing. 24 Volts A/C, 1.25 Amp GP Switching Current.
Detects downstream clogs in condensate drains and interrupts the thermostat circuit to prevent flooding.
Can be installed horizontally or vertically, inline or on the primary pan’s auxiliary drain outlet.
Float resets automatically and after the drain is cleared.
Package Includes Pre-wired 6-Foot, 18 Gauge Lead Wires, 3/4-inch Schedule 40 PVC Slip Plug, 3/4-inch Threaded Male X Slip Male Adaptor and 3/4-inch X 1-inch Reducer Bushing.
