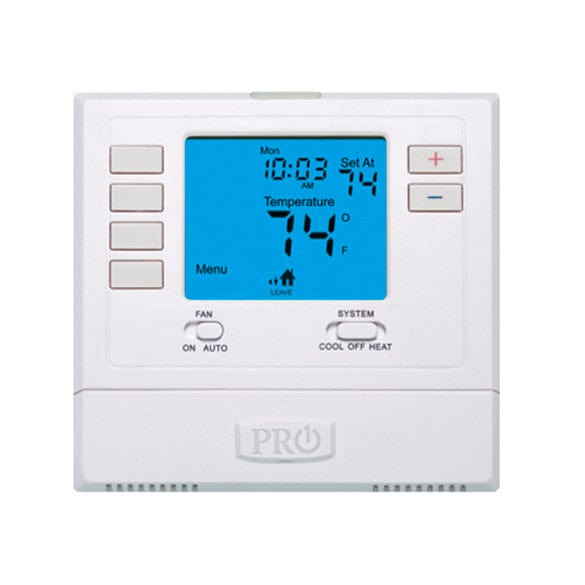

Pro1 Programmable Thermostat Makes Saving Energy Easy
Save energy by setting your thermostat to meet your family weekday schedule and unique routine for both Saturday and Sunday with the 5-1-1- programmable T715 from Pro1. The 4 Sq/inch easy-to-read display is enhanced with a blue backlight and glow in the dark light button. Menu driven programming and intuitive wake, leave, return, and sleep programming icons make using it a cinch. Configure for gas, electric or oil furnaces.
Additional Features
- Easy access battery compartment
- Minivolt compatible
- Gas, electric or oil furnaces
- Separate B & O terminals
- Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
- Filter change indicator (selectable on or off)
- Room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off)
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24V power
- Dimensions: 4.7" W x 4.4" H x 1.1 "D
Manufacturer Limited Warranty
- 5 years from the date of installation or 6 years from the date of manufacture, whichever comes first
Key Specifications
- Pro1
- Gas; Electric; Oil Furnaces
- 2 in
- 2 in
- Battery & 24 Volt
- T715
- 2
- 2
- Gas; Electric or Oil Configurable
- Standard
System Specifications
| Compatibility | Gas; Electric; Oil Furnaces |
|---|---|
| Control Range Temperature | 44°F to 90°F (7°C to 32°C) |
| Dimensions WxHxD (in) | 4.7" W x 4.4" H x 1.1 "D |
| Display Height | 2 in |
| Display Width | 2 in |
| Illuminated Display | Blue |
| Millivolt Compatible | Yes |
| Mounting Type | Junction Box & Wall |
| Must ship freight | Yes |
| Power Source | Battery & 24 Volt |
| Protection | 5 minute compressor delay (selectable on or off) |
| Related Product Group | Maxwell |
| Shipping Time | 24 to 72 hours |
| Model Number | T715 |
| Stages Cool | 2 |
| Stages Heat | 2 |
| System Configuration | Gas; Electric or Oil Configurable |
| Terminal Block Configuration | R; C; Y; Y2; W; W2; G |
| Product Weight | 1 ounces |
| Unit Type (Selector) | Standard |
| User Interface | Push Button |
| Warranty Terms | 5 year manufacturer limited |
