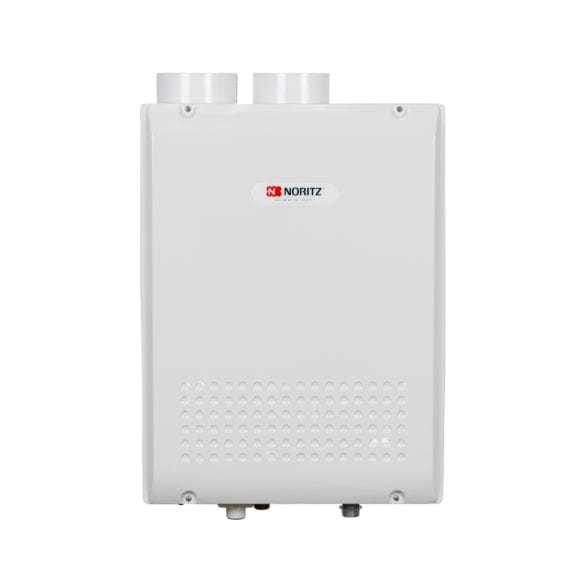

Noritz – NRC98 DV Condensing Tankless Water Heater
The ENERGY STAR rated NRC98 DV, Noritz's brand new ultra‐high efficient condensing model, demonstrates its ongoing commitment to the green movement by expanding its newest tankless water heater product line: the ecoTOUGH Series of high efficiency, easy‐to‐install, gas‐fired condensing tankless water heaters.
Offering a maximum input of 180,000 BTU per hour, the NRC98 Tankless Water Heater is designed to fully meet the domestic hot water needs of northern residences with two bathrooms and southern homes with three baths.
Features:
- Heat Exchanger: Manufactured with commercial grade copper, 25% thicker piping than standard models
- Venting Options: Available as an Outdoor (requires no venting) or indoor Direct Vent (‐DV) model which includes special plastic flue adapters that are compatible with both 3" or 4" Schedule 40 and 80 PVC/CPVC pipe. The DV model can also be converted to a non‐direct vent (SV) model with the use of a Conversion Kit
- Quick Connect: Two identical units can be linked together by using the optional Quick Connect Cord (#QC‐2) for twice the hot water capacity
- Thermal Efficiency: Fully condensing, 93% efficient for use with natural gas or propane
- Temperature Controls: Includes remote thermostat that can precisely adjust the output temperature from 100°F to 140°F with the capability to display temperatures in both °C and °F
- Power Cord Installation Kit: 6' power cord is included with ‐DV models only
- Safety Devices: Flame Sensor, Overheat Prevention Device, Lightning Protection Device, Freeze Protection, Condensate Overfill
- Additional Features: Temperature Lockout, High Elevation Adjustment, Condensate Overflow Monitoring System, Service Reminder Function
WHAT’S INCLUDED
Your Tankless Water Heater From Heat and Cool Comes With:
- NRC98 DV | Tankless Water Heater
- Energy Guide
- Installation Manual
- Owners Guide
- Parts List
- Technical Specification
Downloads
- NRC98 DV SERIES - BROCHURE
- NRC98 DV/OD SERIES - TECHNICAL SPECIFICATION
- NRC98 DV/OD SERIES - OWNERS GUIDE
- NRC98 OD-LP SERIES - ENERGY GUIDE
- NRC98 DV SERIES - INSTALLATION MANUAL
- NRC98 DV-LP SERIES - ENERGY GUIDE
- NRC98 DV-NG SERIES - ENERGY GUIDE
- NRC98 SERIES - CERTIFICATE
- NRC98 SERIES - PARTS LIST
- NORITZ SERIES - INSTALLERS GUIDE
Key Specifications
- Noritz
- Yes
- 8.4 gpm
- 7.5 gpm
- 4.2 gpm
- 9.8 gpm
- Yes
- Indoor
- 140 ºF
- 0.5 gpm
- Standard
- 213 W
System Specifications
| Case | Steel |
|---|---|
| Direct Electronic Ignition | Yes |
| Energy Star | Yes |
| Finish Family | Beige |
| Flow Rate @ 35 ºF Rise | 8.4 gpm |
| Flow Rate @ 45 ºF Rise | 7.5 gpm |
| Flow Rate @ 75 ºF Rise | 4.2 gpm |
| Flow Rate, Maximum | 9.8 gpm |
| Hard-Wired Remote | Yes |
| Heat Exchanger Warranty | 12 Year year |
| Indoor/Outdoor | Indoor |
| Labor Warranty | 1 Year |
| Lightning Protection | Yes |
| Maximum Temperature | 140 ºF |
| Min. Installation Clearance, Front | 4 Inch |
| Min. Installation Clearance, Sides | 2 Inch in |
| Min. Installation Clearance, Top | 12 Inch in |
| Minimum Activation Rate | 0.5 gpm |
| Must ship freight | Yes |
| Parts Warranty | 5 Year Limited Parts Warranty |
| Product Depth | 9.4 in |
| Product Height | 24.2 in |
| Product Shipping Weight | 58 lb |
| Product Width | 18.33 in |
| Recirculation compatible | Yes |
| Shipping Cost | 140 |
| Shipping Time | 7 to 10 days |
| Thermal Efficiency | 0.93 % |
| Unit Type (Selector) | Standard |
| Warranty | 12 Year Limited Heat Exchange year |
| Water Connection Location | Top |
| Water Connection Size | 3/4 Inch in |
| Water Pressure Range, Min-Max | 15-150 psig |
| Wattage | 213 W |
