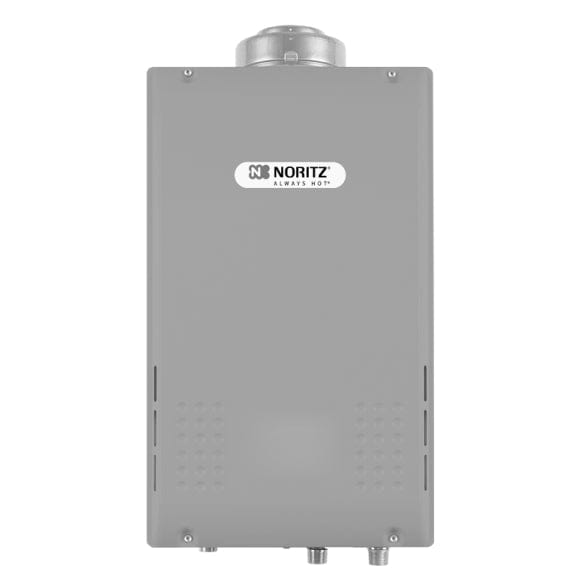

Noritz NC199DVC Condensing Tankless Water Heater
With more power than any tankless water heater in its class, the NC199 series is ideal for mid‐size homes with up to 4 showers. Built‐in features include safety lock‐out, freeze protection, and high elevation adjustment. PVC CANNOT be used for venting.
Features:
- Standard Input: Gas consumption ranges from 16,000 BTUh to 199,900 BTUh
- Compact Design: ANSI Z21.10.3/CSA 4.3 certified design that can be wall‐mounted indoors with a ‐DVC model or installed outdoors with an ‐OD model
- Durable Steel Casing with Acryl Coating
- Heat Exchanger: Manufactured with commercial grade copper, 25% thicker piping than standard models
- Venting Options: Available in Outdoor (‐OD) or Concentric Direct Vent(‐DVC) model that requires 5/3 in. Noritz concentric stainless steel pipe.
- Direct Electronic Ignition
- Multi‐System Capability: Units can be linked together by using either the optional 2‐unit Quick Connect or multi‐unit System Controller for up to 6 units.
- Fully Modulating: BTU input can range from 16,000 to 1.2 million BTU/h (for 6‐unit Multi‐System) with stable combustion provided by the industry's 1st Dual‐Flame Burner
- Thermal Efficiency: 84% efficient for use with natural gas or propane
- Temperature Controls: Includes remote thermostat that can precisely adjust the output temperature from 100°F to 180°F
- Safety Devices: Flame Sensor, Overheat Prevention Device, Lightning Protection Device, Freeze Protection
WHAT’S INCLUDED
Your Tankless Water Heater From Heat and Cool Comes With:
- NC199 DVC | Tankless Water Heater
- Energy Guide
- Installation Manual
- Owners Guide
- Parts List
- Technical Specification
Key Specifications
- Noritz
- 8.4 gpm
- 7.5 gpm
- 4.2 gpm
- 9.8 gpm
- Yes
- Indoor
- 180 ºF
- 0.5 gpm
- Standard
- 161 W
System Specifications
| Case | Steel |
|---|---|
| Direct Electronic Ignition | Yes |
| Finish Family | Gray |
| Flow Rate @ 35 ºF Rise | 8.4 gpm |
| Flow Rate @ 45 ºF Rise | 7.5 gpm |
| Flow Rate @ 75 ºF Rise | 4.2 gpm |
| Flow Rate, Maximum | 9.8 gpm |
| Hard-Wired Remote | Yes |
| Heat Exchanger Warranty | 5 Year year |
| Indoor/Outdoor | Indoor |
| Labor Warranty | 1 Year |
| Lightning Protection | Yes |
| Maximum Temperature | 180 ºF |
| Min. Installation Clearance, Front | 4 Inch |
| Min. Installation Clearance, Sides | 2 Inch in |
| Min. Installation Clearance, Top | 12 Inch in |
| Minimum Activation Rate | 0.5 gpm |
| Must ship freight | Yes |
| Parts Warranty | 5 Year Limited Parts Warranty |
| Product Depth | 10.2 in |
| Product Height | 23.6 in |
| Product Shipping Weight | 55 lb |
| Product Width | 13.13 in |
| Recirculation compatible | Yes |
| Shipping Time | 7 to 10 days |
| Thermal Efficiency | 0.84 % |
| Unit Type (Selector) | Standard |
| Warranty | 5 Year Limited Heat Exchange year |
| Water Connection Location | Top |
| Water Connection Size | 3/4 Inch in |
| Water Pressure Range, Min-Max | 15-150 psig |
| Wattage | 161 W |
