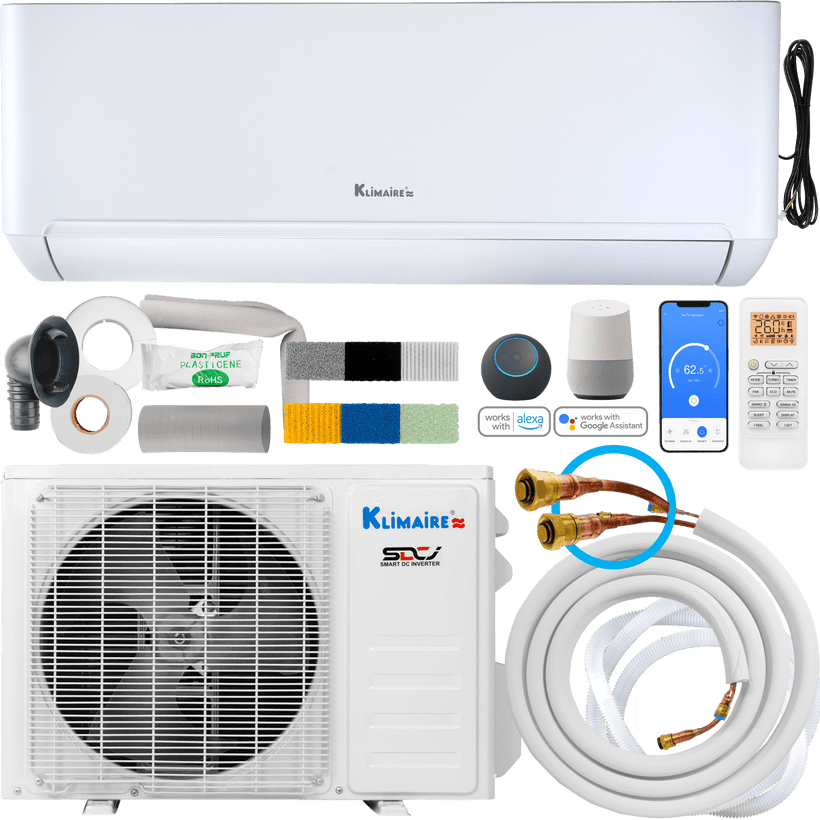

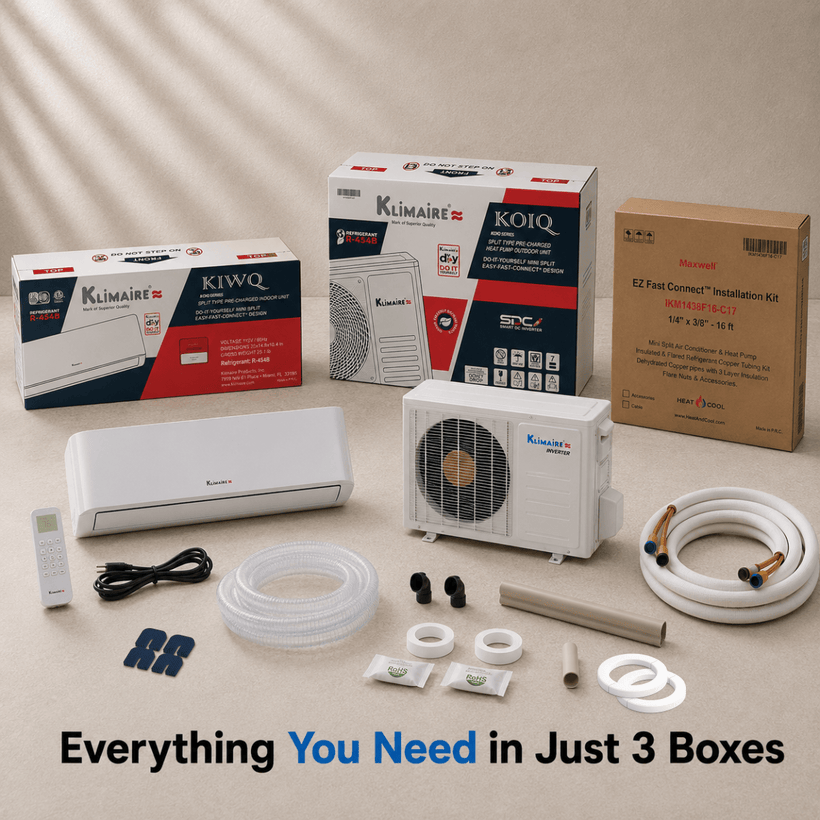

Klimaire DIY 9,000 Btu 24 SEER2 Single Zone Quick Connect Mini-Split Wall Mount | 115V | with 16ft Kit

SKU: KQS091706
Brand: Klimaire
Model Number: KOIQ09H1-45T + KIWQ09H1-45T + RLS1438Q16-4
$1,099.00
$1,099.00 $2,283.00
Tax-Free Sale *Except Florida

Ships: 24 to 72 hours

5.0
Rated 5.0 out of 5 stars
37 Reviews
with
Btu:
Required Accessories * Optional
Installation kits
Installation kits
ELECTRICAL COMPONENTS
Mounting Accessories

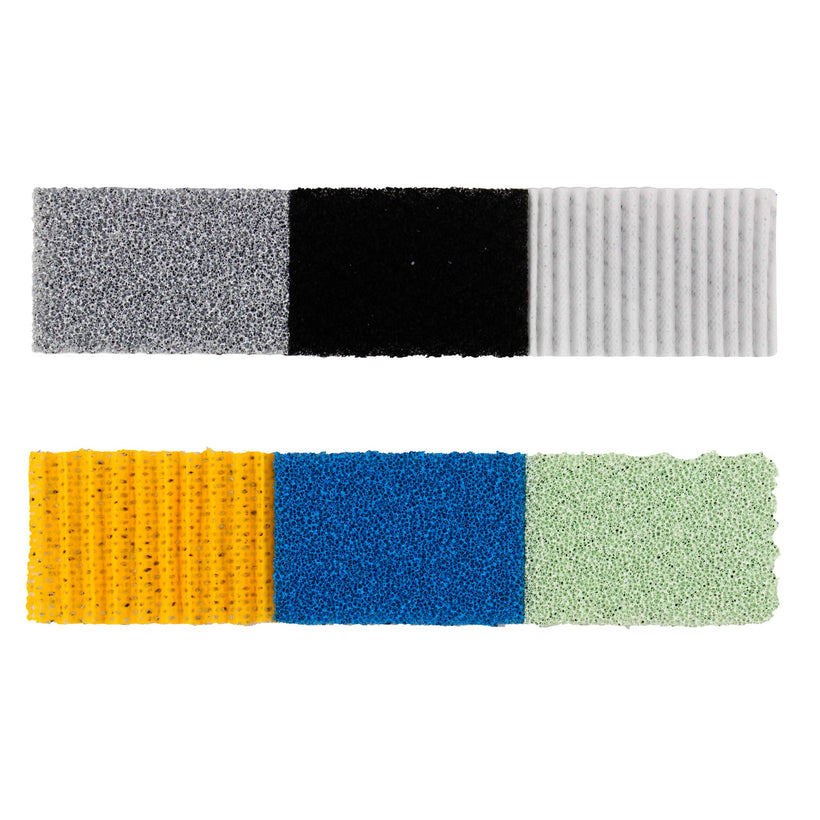

Filters

Step 1 - Select filter

Filter:

Step 2 - Filter subscription

Limited Time: Free Cruise With Your Order

Place your order today and receive a 5-day/4-night cruise certificate for two adults, valued at up to $899.

Offer ends in

0 0 0 0 0 0
90-day returns
price match plus
5 years parts & 7 years compressor warranty
free shipping
System Specifications
Air Conditioner Type Quick Connect Mini-Split Wall Mount
Application Area (SqFt) 400
Cooling Capacity (Btu/h) 9,000
Heating Capacity (Btu/h) 9,000
Cooling Capacity Range (Btu/h) 2,400~11,000
Heating Capacity Range (Btu/h) 2,400~11,000
SEER2 24
HSPF4 10
HSPF5 8.6
EER2 13
COP2 3.81
Power Supply 115 V / 1 Phase / 60 Hz
Refrigerant Type R-454B
Number of Zones (Rooms) 1
Manufacturer Limited Warranty (Years) 5 Year Parts 7 Years Compressor
Wifi Capibility Yes
Maximum Outdoor Temperature for Cooling (F°) 131
Minimum Outdoor Temperature for Heating (F°) -13
Energy Star Yes

Specifications for model: RLS1438Q16-4
Product Type Pre-Charged Mini Split Line Set
Brand Klimaire DIY Series
Model E-Z Kuick Connect™
Compatibility KIWP09H2-41T / KIWP12H2-41T / KIWP18H2-41T
Lengths (ft) 16
Liquid Line Size (in) OD 1/4
Suction Line Size (in) OD 3/8
Connection Type E-Z Kuick Connect™ Quick Connect Fittings
Tubing Material Refrigeration-Grade Copper
Insulation Color White
Installation Type DIY (Do-It-Yourself)
Application Connection between Indoor and Outdoor Units
System Type Multi-Zone Mini Split Heat Pump Systems

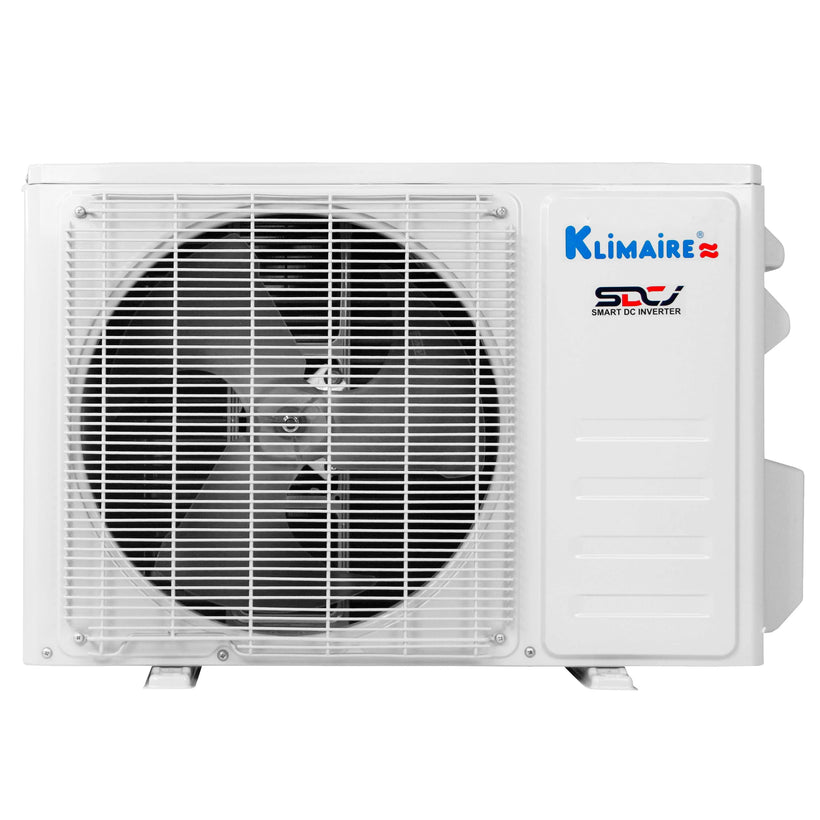

Specifications for model: KOIQ09H1-45T
Compressor Type
Sound Level dB(A)
Minimum Circuit Ampacity (MCA) (A)
Maximum Fuse Size (A)
Liquid Line Size (In)
Suction Line Size (In)
Ambient Temperature (cooling/ heating)
Net/Gross Weight (Lb)
Width/Depth/Height (In)
Packaged Width/Depth/Height (In)
Refrigerant

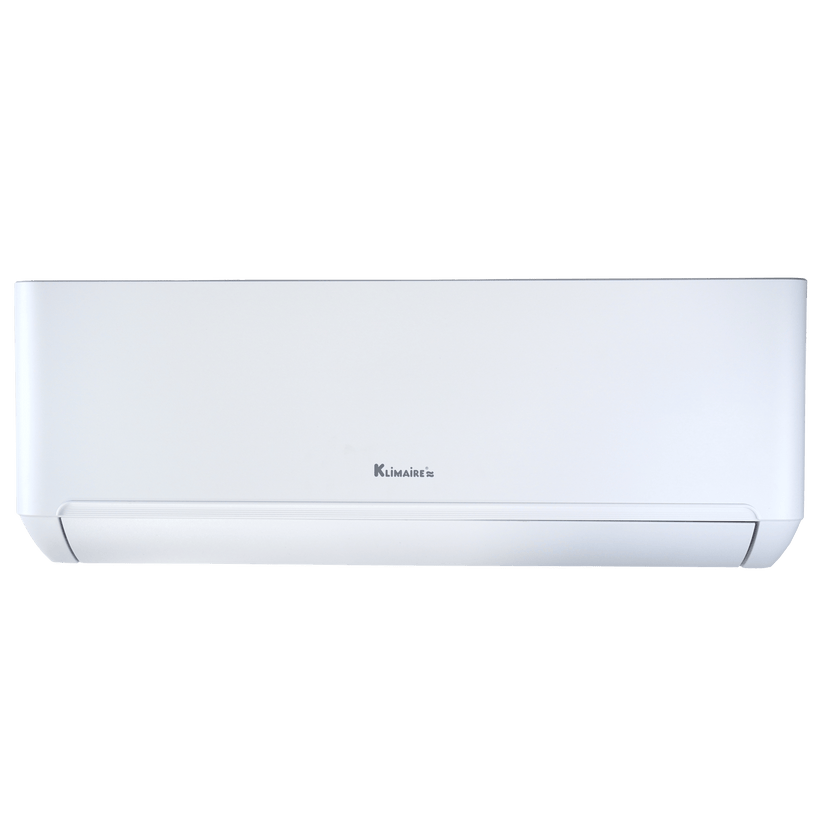

Specifications for model: KIWQ09H1-45T
Model Number KIWQ09H1-45T
Type Mini-split Quick Connect
Unit Type (Selector) Wall Mount
Mounting Type 115 / 1 / 60
Power Supply (V/ph/Hz) 43/40/33/31/30
Noise Level Turbo/Hi/Mi/Lo/Mute (dB) 1/4
Liquid Line Size (in) 3/8
Suction Line Size (in) 7.625
Depth (in) 12
Height (in) 32.25
Width (in) 326/282/235/188/153
Air Flow Turbo/Hi/Mi/Lo/Si (cfm) Wireless Remote
Control Type
Net Weight (Lb) 20.7
