Choose the right heating and air conditioning system for your home and you’ll save money upfront, recuperate your investment through lower energy bills or both.
Every Klimaire muti-zone system uses one outdoor unit connected to multiple indoor units, so it can cool or heat multiple rooms, with each room being individually controlled, scheduled, and set to the user’s preferred temperature for maximum comfort and energy saving.

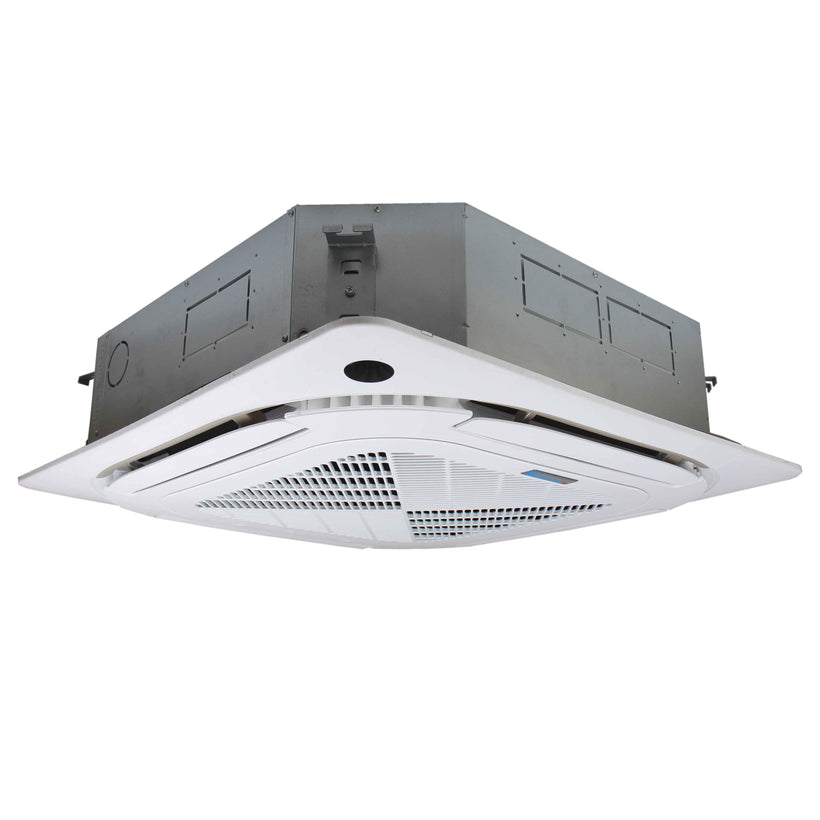

KTIS12-H2-4 + KTIS24-H2-4 | INDOOR UNIT
The recessed ceiling cassette unit is an excellent choice for spaces where ductwork is impractical or impossible. It offers the ability to share its cooling and heating capacity with an adjacent room through a flexible duct connection, ensuring comfort reaches every corner. This unit can be easily installed in the home or office with no modifications to an existing ceiling. The off-white decorative ceiling panel seamlessly blends with any ceiling configuration, making it a versatile and aesthetically pleasing solution for your needs.
Features
Compact cassettes fit into standard 2´x 2´ceilling grid
Powerful turbo fan operation
Fresh air intake design 2.5"
Flexible installation with built-in drain pump
6" supply duct connection to an adjacent room
Self diagnosis for easy maintenance
Built-in condensate drain pump
Outside air intake
Anti-corrosive fin coating
Three fan speeds
KMIR660-H224-4 | Outdoor Unit
Klimaire's new KMIR660-H224-4 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
Space saving, specially-designed for quiet operation
Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
Klimaire’s multi-zone system can adjust the capacity output as the temperature changes, by controlling the operation of the compressor and the fan motors
When not all rooms require air conditioning or when ambient temperature changes, it runs with partial load and lower energy consumption
Standard operating range: -13º F ~ 122º F
Small footprint fits most yards or easily mounts to a wall with a bracket (sold separately)
Improved Performance
SEER2: 19.2
EER2: 10
HSPF4: 9.6
HSPF5_ 7.3
COP: 3.5
Applications
Room additions
Renovations
Family rooms
Sunrooms
Wine cellars
Garages/workshops

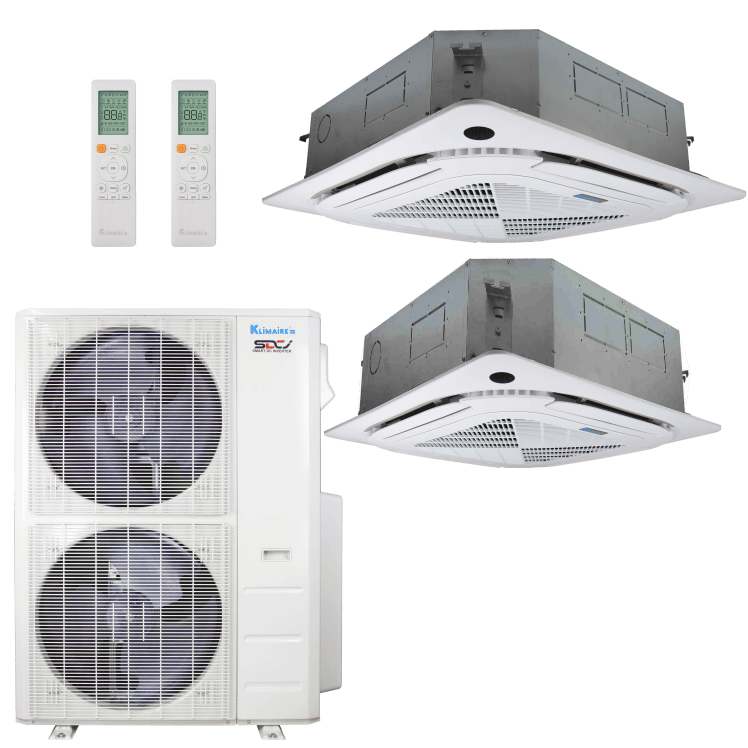

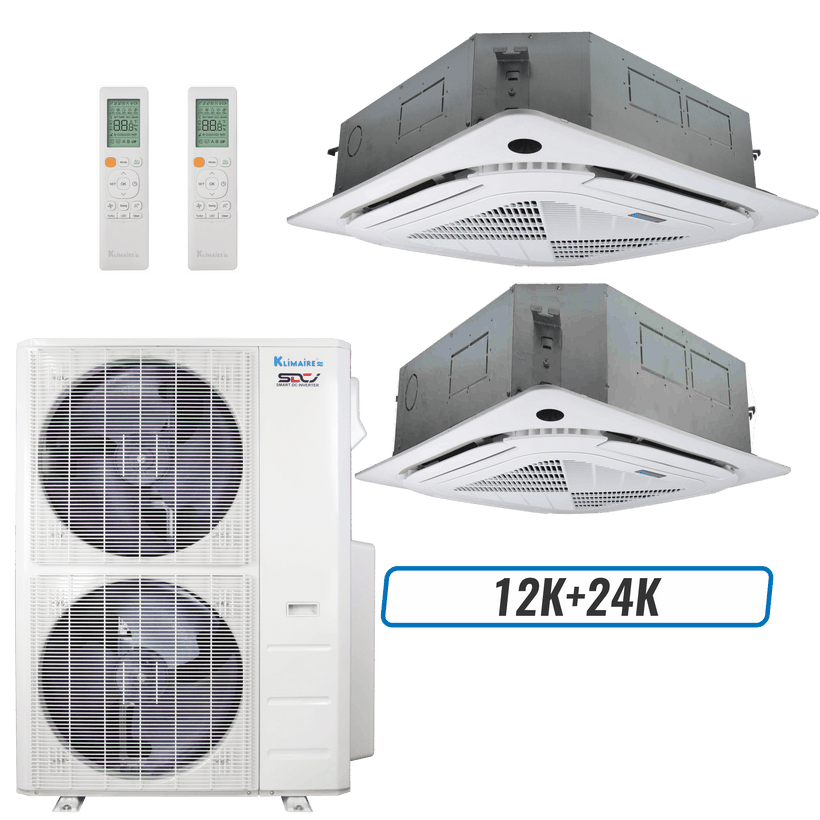

WHAT’S INCLUDED Your Klimaire Ductless Two-Zone System from Heat & Cool Comes With:
KTIS12-H2-4 | Indoor Unit
KTIS928-DFP | Front Panel
KTIS24-H2-4 | Indoor Unit
KTIS468-DFP | Front Panel
KMIR660-H224-4 | Outdoor Unit
Outdoor unit is pre-charged with R-454B refrigerant
