Choose the right heating and air conditioning system for your home and you’ll save money upfront, recuperate your investment through lower energy bills or both.
Every Klimaire muti-zone system uses one outdoor unit connected to multiple indoor units, so it can cool or heat multiple rooms, with each room being individually controlled, scheduled, and set to the user’s preferred temperature for maximum comfort and energy saving.
KSIH009-H225-IW-4 (x3) + KSIH012-H222-IW-4 | INDOOR UNIT
With Klimaire KSIH indoor unit you will enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function, and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality.
The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the wall unit hangs easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.
3D air flow technology distributes the air evenly throughout the room.
24-hour timer and memory function
Turbo mode for fast heating & cooling
ADDITIONAL FEATURES
Much higher capacity in low temperature
Anticold air
Turbo mode
Silent mode
Sleep Mode
Auto defrosting
Self-cleaning
46º F Heating
12 grades indoor unit fan speed
High density air filter
Temperature Compensation
High air discharge temperature
KDIC24-H2-4 | Multi-position Air Handler
The Klimaire KDIC24-H2-4 multi-position air handler featuring a constant CFM ECM motor. Designed for versatility, this multi-position unit supports vertical or horizontal installation and offers optional electric heat kits.
Key Features:
Performance: Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.
Quiet Operation: Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.
Easy & Installation: Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.
Control: Compatible with 24V or 485 control protocols.
Optional Components: Electric heat kits (5, 7.5, 10kW)
This unit is ideal for pairing with Klimaire multi zone heat pumps, particularly for zoning solutions in smaller homes. It is known for its quiet operation, down to 35 dB(A), and easy maintenance due to slide-out components
KMIR648-H224-4 | Outdoor Unit
Klimaire's new KMIR648-H224-4 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
Space saving, specially-designed for quiet operation
Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
Klimaire’s multi-zone system can adjust the capacity output as the temperature changes, by controlling the operation of the compressor and the fan motors
When not all rooms require air conditioning or when ambient temperature changes, it runs with partial load and lower energy consumption
Standard operating range: -13º F ~ 122º F
Small footprint fits most yards or easily mounts to a wall with a bracket (sold separately)
Improved Performance
SEER2: 20.8
EER2: 11.7
HSPF4: 10
HSPF5: 7.7
COP: 3.6
Applications
Room additions
Renovations
Family rooms
Sunrooms
Wine cellars
Garages/workshops

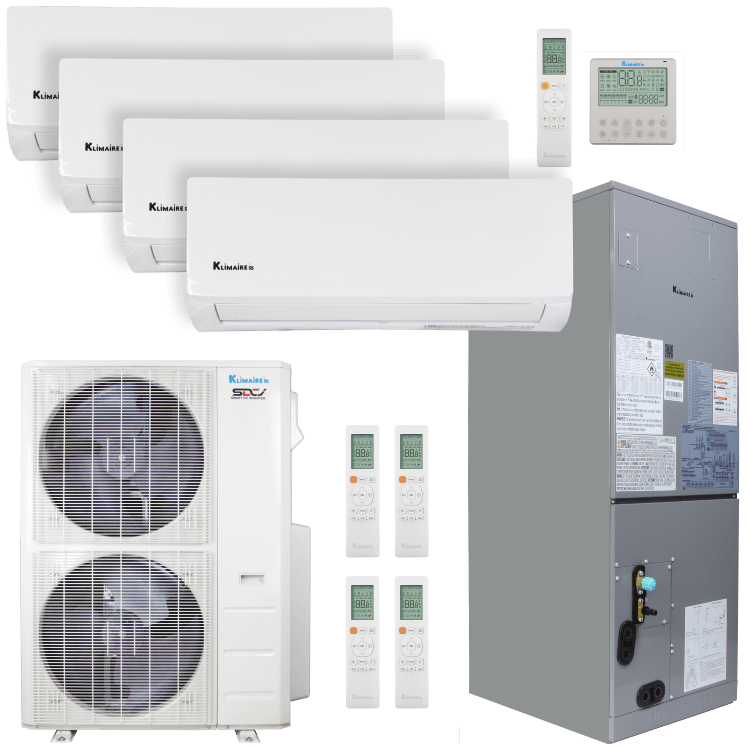

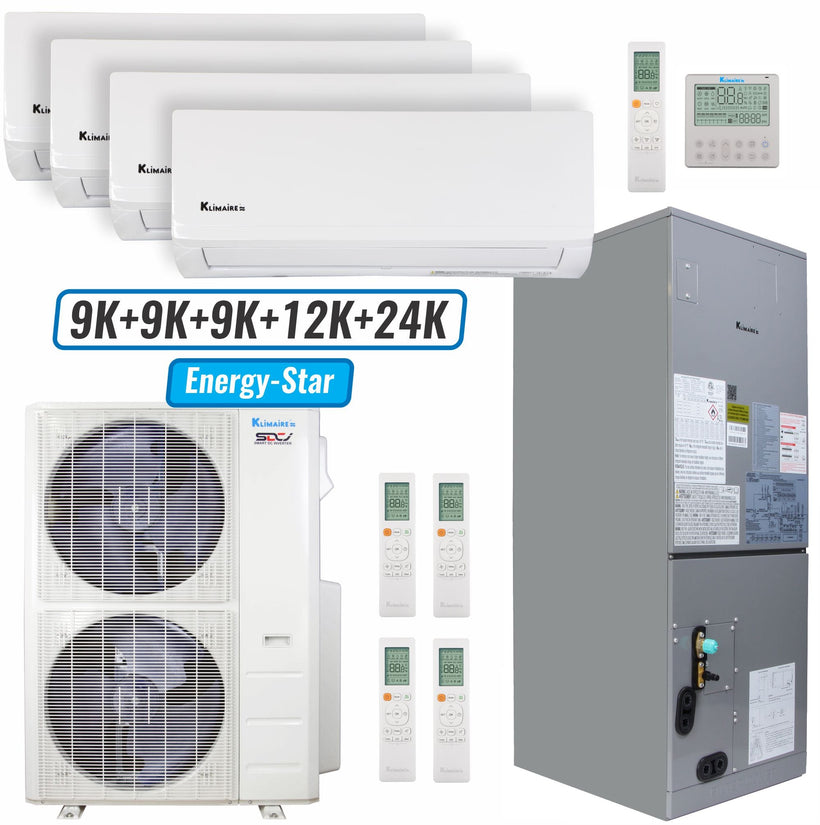

WHAT’S INCLUDED Your Klimaire Ductless Two-Zone System from Heat & Cool Comes With:
KSIH009-H225-IW-4 (x3) | Indoor Unit
KSIH012-H222-IW-4 | Indoor Unit
KDIC24-H2-4 | Indoor Unit
KMIR648-H224-4 | Outdoor Unit
Outdoor unit is pre-charged with R-454B refrigerant
