Klimaire DIY 27,000 BTU 3-Zone Regular Heat Wall Mounted Mini Split Heat Pump | 24 SEER2 | 12k + 12k + 12k | R454B | KMIP

Klimaire DIY Series Multi-zone Maximum Comfort in Every Room

Do it Quick - Do it Easy - Do it for Less
Every Klimaire DIY series muti-zone system uses one outdoor unit connected to multiple indoor units, so it can cool or heat multiple rooms, with each room being individually controlled, scheduled, and set to the user’s preferred temperature for maximum comfort and energy savings.

KIWP12H2-41T (x3) | Indoor Unit
The Klimaire DIY Series KIWP Wall-Mounted Fan Coil is a Do-It-Yourself high wall-mounted multi-zone heat pump air conditioner with the E-Z Kuick Connect™ Installation Kit (5th Generation). Designed for easy installation, it delivers rapid cooling, natural and unobstructed airflow, and a self-cleaning function for enhanced comfort and convenience.

• Gentle Cool Air Flow becomes gentle and soft, providing excellent air flow comfort to users.
• Smart Airflow – Larger louver creates Coanda effect, which makes wind blow longer and wider.
• Self-cleaning and Sterilization – An evaporator that can clean itself.
• Distributed Healthy Filter System – Multiple options for each AC.

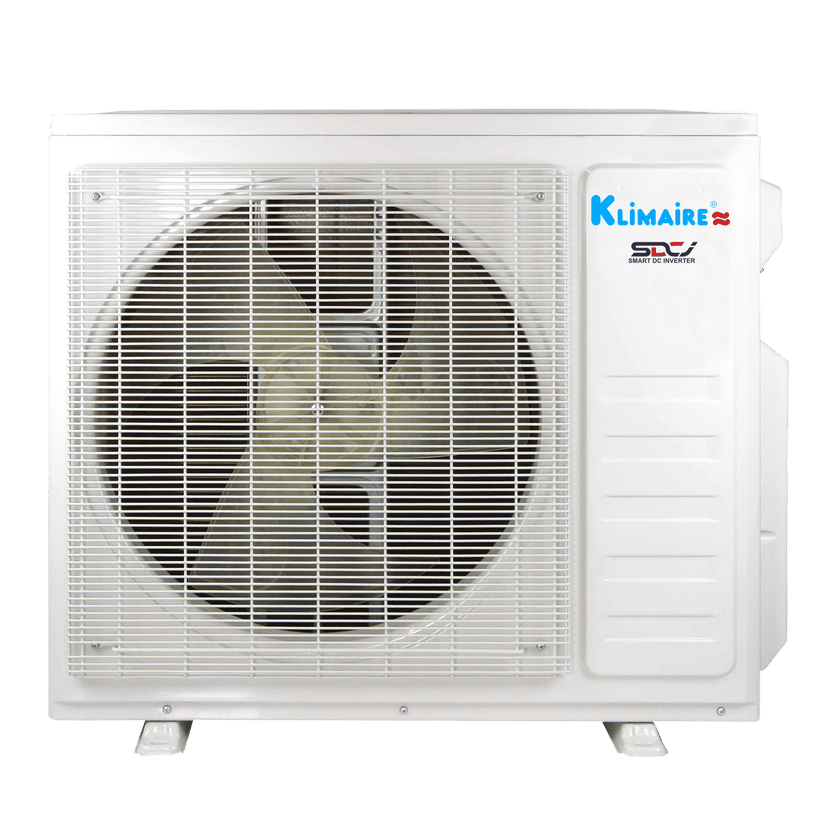

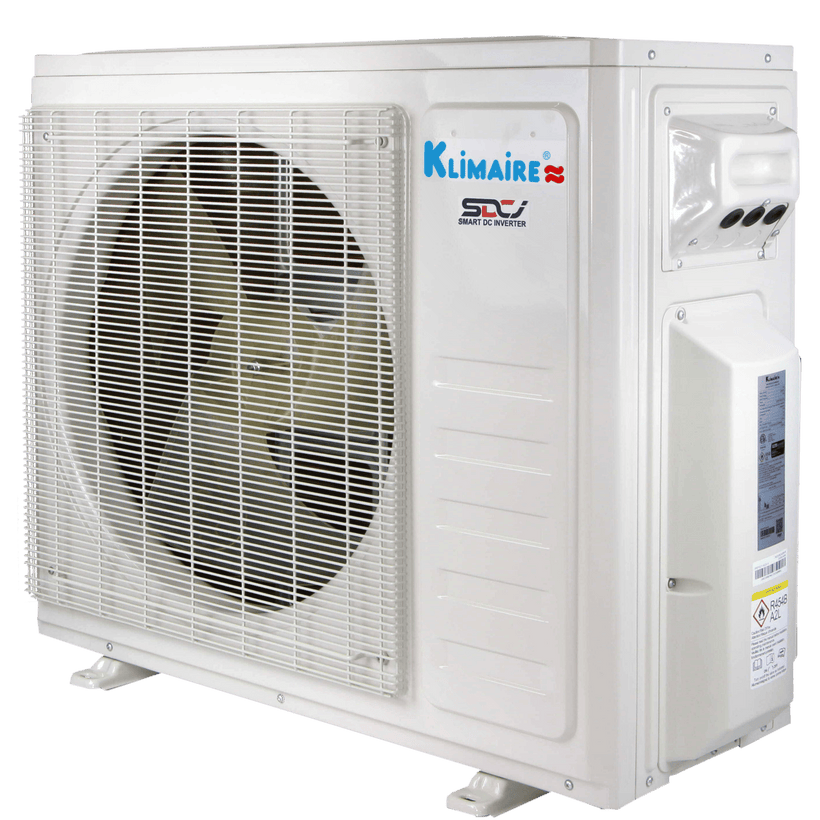

KMIP327-H225-4 | Outdoor Unit
Klimaire KMIP multi-zone outdoor units are engineered for powerful performance across a wide range of ambient temperatures. Whether facing extreme heat or cold, enjoy strong cooling in high temperatures and efficient heating in low temperatures for year-round comfort. Featuring R-454B refrigerant for eco-friendly efficiency, dry contact control delivers versatility, reliability, and energy savings for any environment.

• Wide Performance Capacity Range: 27,000 Btu/h
• Cooling Capacity Range: 4,500~31,000 Btu/h
• Heating Capacity Range: 4,500~33,000 Btu/h
• Wide Ambient Temperature Operating Range: -13º F – 131º F
• Strong Cooling at 131º F – Strong response at rough weather conditions, steady operation at high ambient temperature of 131º F, efficient cooling and stable operation with no worries.
• Strong Heating @ -13º F – The advance heat pump technology and optimized system configuration, Klimaire KMIP can heat at ambient temperatures as low as -13º F providing continuous and reliable heating performance.
• Refrigerant R454-B – It is a low GWP refrigerant that offers high cooling capacity and energy efficiency.
• Certified Performance: ENERGY STAR® Certified, AHRI certified, ETL listed.

Improved Performance

• SEER2 (Btu/W.h): 24
• HSPF2 (Region IV) (Btu/W.h): 10.5
• HSPF2 (Region V): 8.8
• EER2 (Btu/W.h): 12
• COP2 (W/W): 3.51

Applications

• Room additions
• Renovations
• Family rooms
• Sunrooms
• Wine cellars
• Garages/workshops

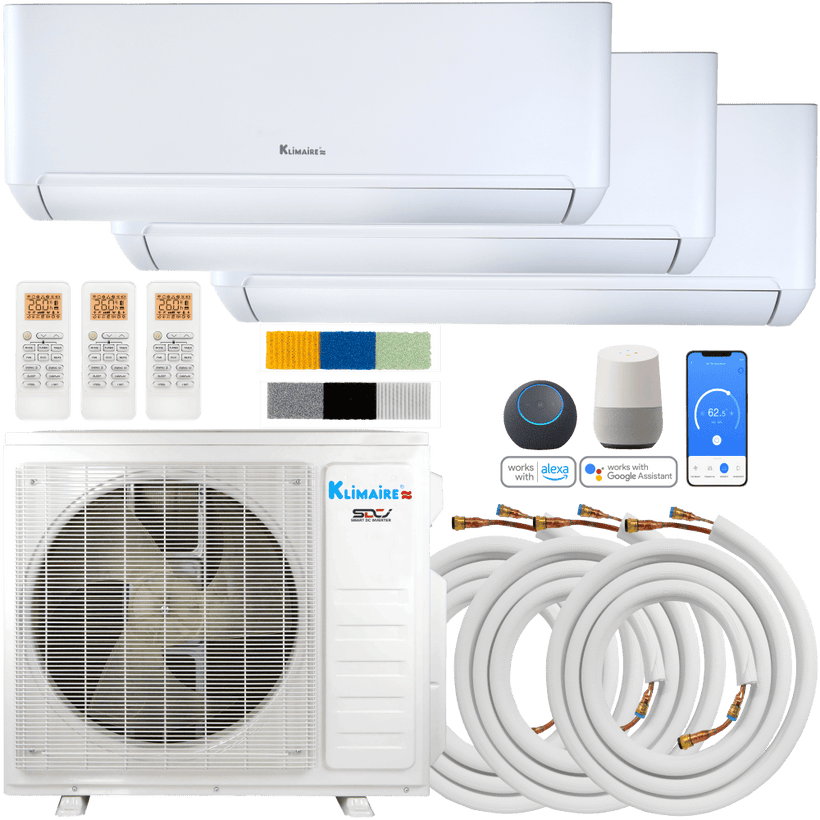

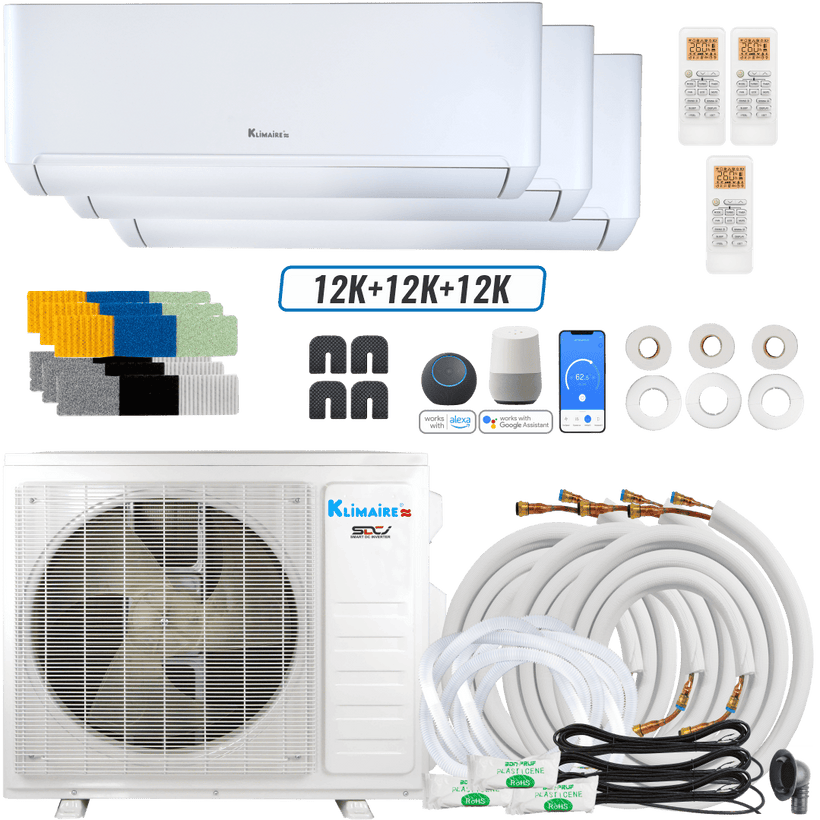

WHAT’S INCLUDED
Your Klimaire Ductless Two-Zone System from Heat & Cool Comes With:

• KIWP12-H2-41T (x3) | Indoor Unit
• KMIP327-H225-4 | Outdoor Unit

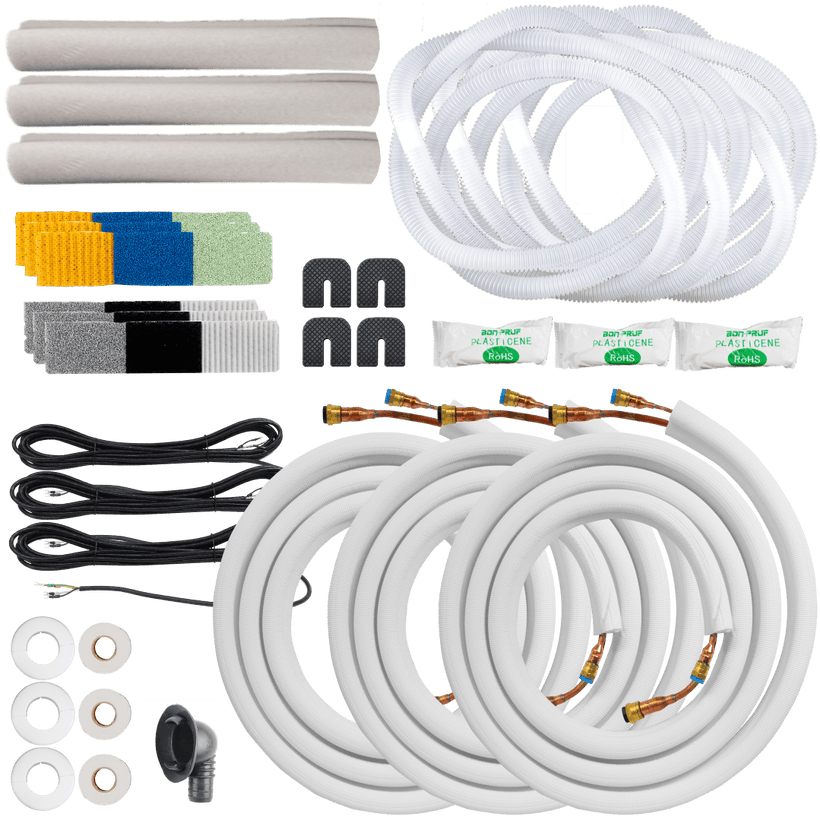

• RLS1438Q16-4 (x2) | E-Z Kuick Connect™ 16ft Line Set
• RLS1438Q25-4 | E-Z Kuick Connect™ 25ft Line Set
• Outdoor unit is pre-charged with R-454B refrigerant

• Remote controls with wall mount bracket

• Installation manual

• User’s manual

• Manufacturer warranty

Manufacturer Warranty

• 5 Year Parts
• 7 Years Compressor
