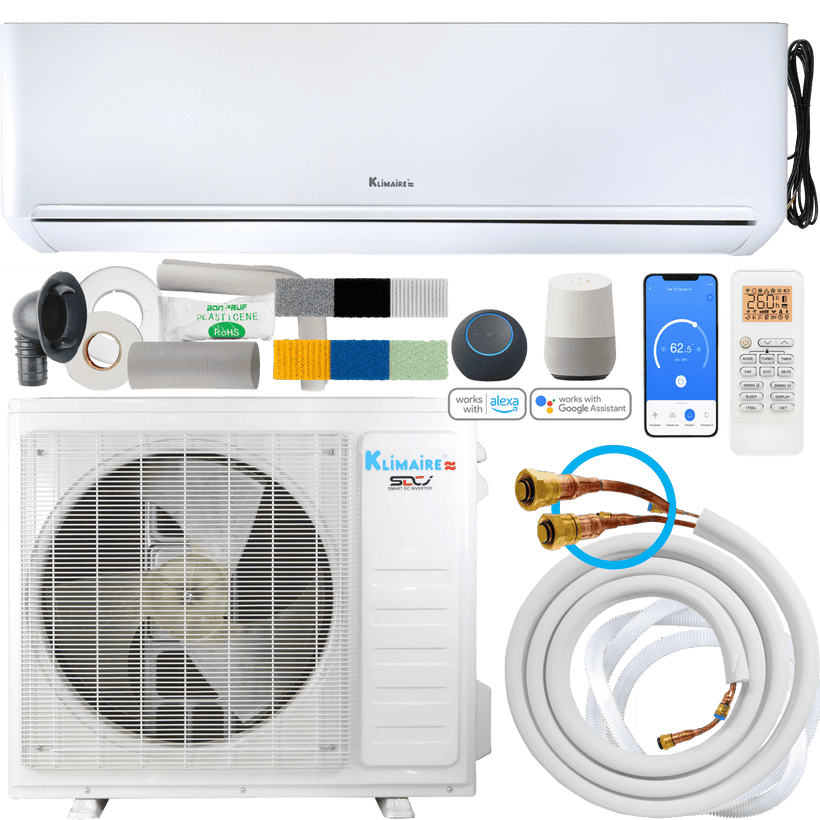

Klimaire DIY 24,000 Btu 23 SEER2 Single Zone Quick Connect Mini-Split Wall Mount | 230V | with 16ft Kit

SKU: KQS241710
Brand: Klimaire
Model Number: KOIQ24H2-45T + KIWQ24H2-45T + RLS1458Q16-4
$1,798.00
$1,798.00 $2,663.00
Tax-Free Sale *Except Florida

Ships: 24 to 72 hours

5.0
Rated 5.0 out of 5 stars
21 Reviews
Btu:
Required Accessories * Optional
ELECTRICAL COMPONENTS
Mounting Accessories
Filters

Step 1 - Select filter

Filter:

Step 2 - Filter subscription

Limited Time: Free Cruise With Your Order

Place your order today and receive a 5-day/4-night cruise certificate for two adults, valued at up to $899.

Offer ends in

0 0 0 0 0 0
90-day returns
price match plus
5 years parts & 7 years compressor warranty
free shipping
System Specifications
Air Conditioner Type Quick Connect Mini-Split Wall Mount
Application Area (SqFt) 1,500
Cooling Capacity (Btu/h) 23,000
Heating Capacity (Btu/h) 25,000
Cooling Capacity Range (Btu/h) 4,700~25,000
Heating Capacity Range (Btu/h) 4,700~26,500
SEER2 23
HSPF4 9.5
HSPF5 8.2
EER2 12.0
COP2 3.41
Power Supply 208-230 V / 1 Phase / 60 Hz
Refrigerant Type R-454B
Number of Zones (Rooms) 1
Manufacturer Limited Warranty (Years) 5 Year Parts 7 Years Compressor
Wifi Capibility Yes
Maximum Outdoor Temperature for Cooling (F°) 131
Minimum Outdoor Temperature for Heating (F°) -13
Energy Star Yes

Specifications for model: RLS1458Q16-4

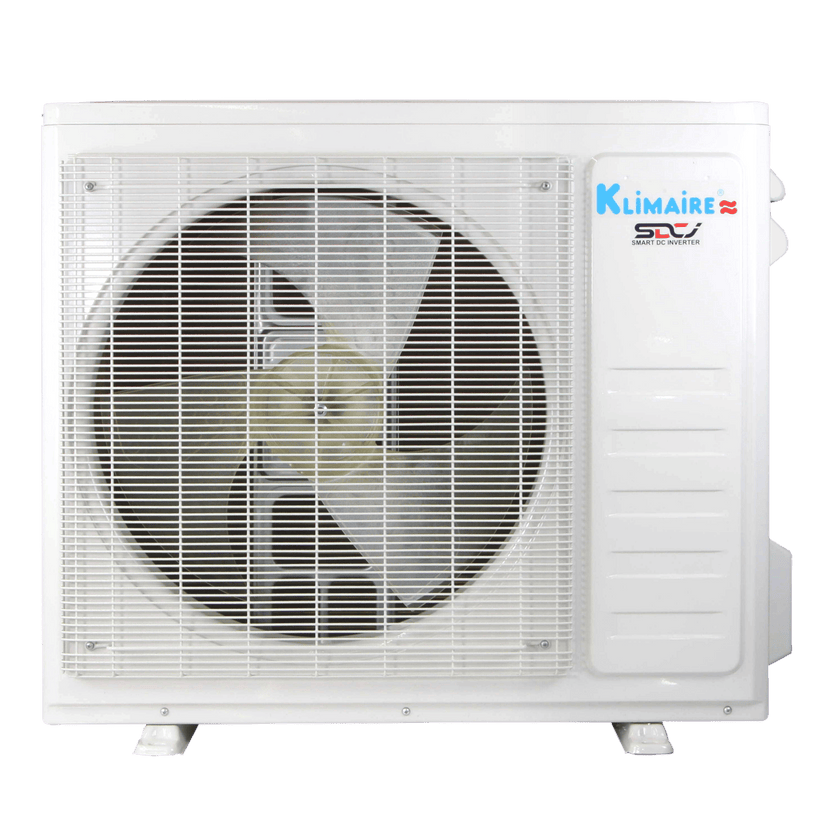

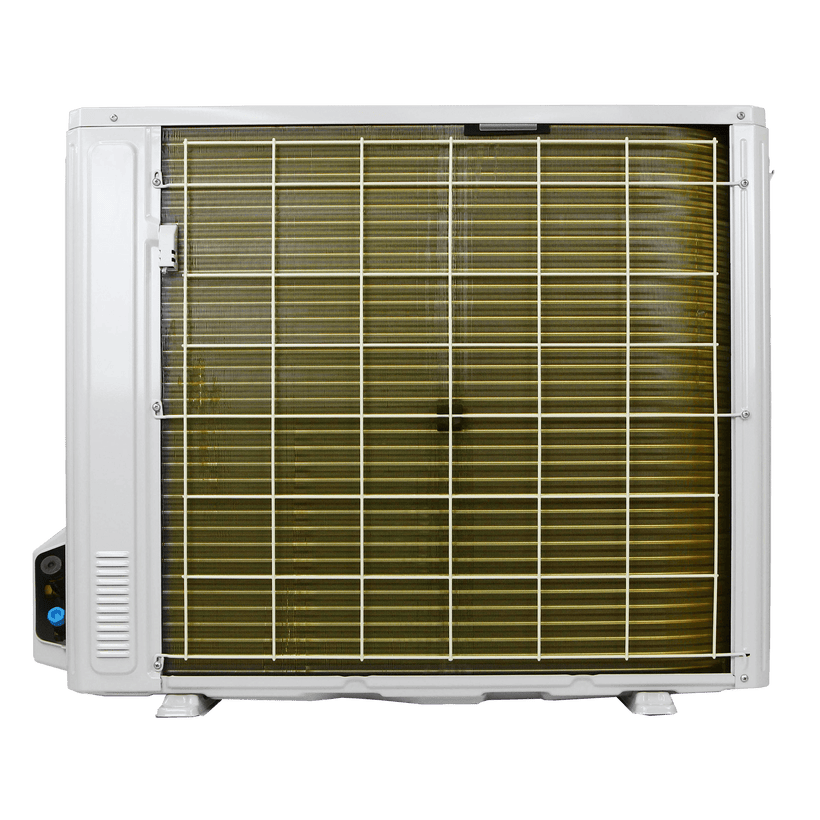

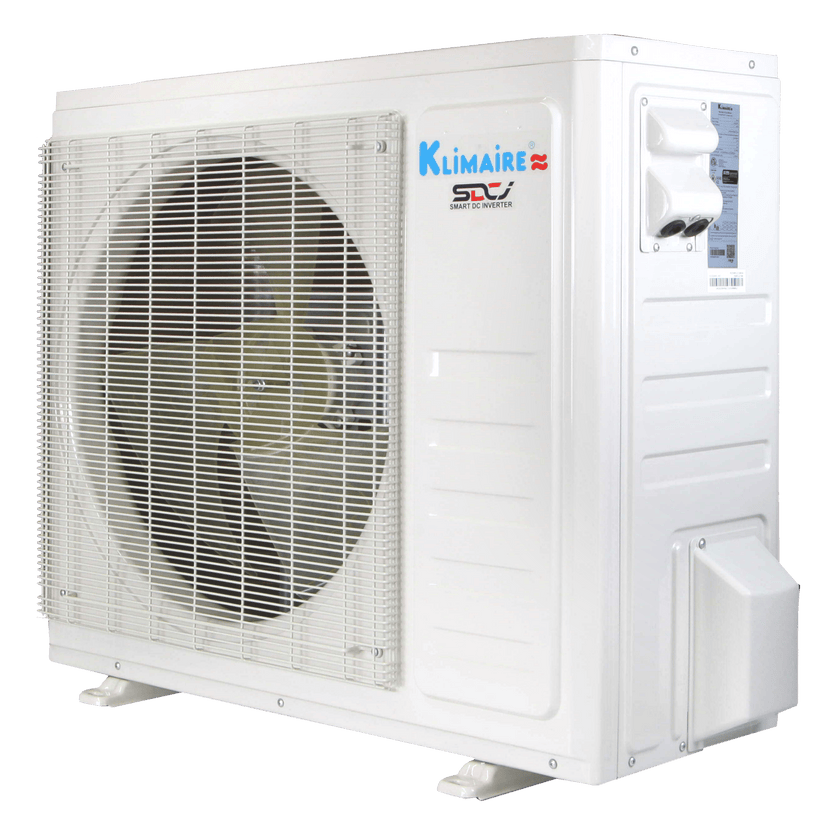

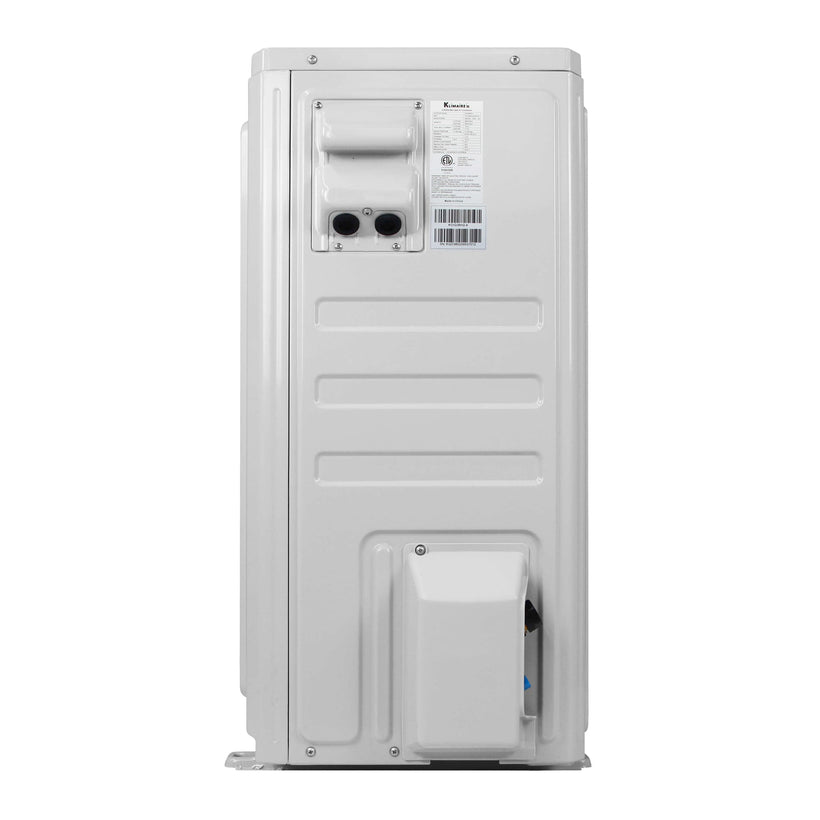

Specifications for model: KOIQ24H2-45T
Compressor Type Rotary
Sound Level dB(A) 54
Minimum Circuit Ampacity (MCA) (A) 17
Maximum Fuse Size (A) 25
Liquid Line Size (In) 1/4
Suction Line Size (In) 5/8
Ambient Temperature (cooling/ heating) 5~131/-13~86
Net/Gross Weight (Lb) 104.7/113.5
Width/Depth/Height (In) 38-1/2 x 16-5/8 x 31-5/8
Packaged Width/Depth/Height (In) 40-1/4 x 18-7/8 x 32-7/8
Refrigerant R454B

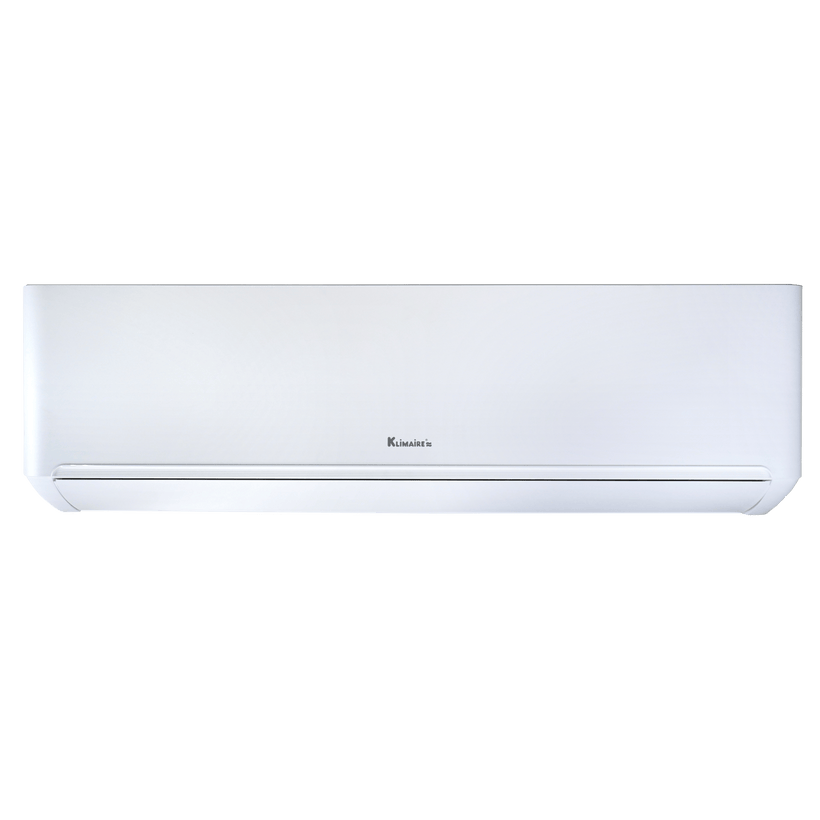

Specifications for model: KIWQ24H2-45T
Model Number KIWQ24H2-45T
Type Mini-split Quick Connect
Unit Type (Selector) Indoor Unit
Mounting Type Wall Mount
Power Supply (V/ph/Hz) 208-230 / 1 / 60
Noise Level Turbo/Hi/Mi/Lo/Mute (dB) 50/47/43/38/34
Liquid Line Size (in) 1/4
Suction Line Size (in) 5/8
Depth (in) 8.75
Height (in) 13
Width (in) 43.25
Air Flow Turbo/Hi/Mi/Lo/Si (cfm) 735/676/529/423/394

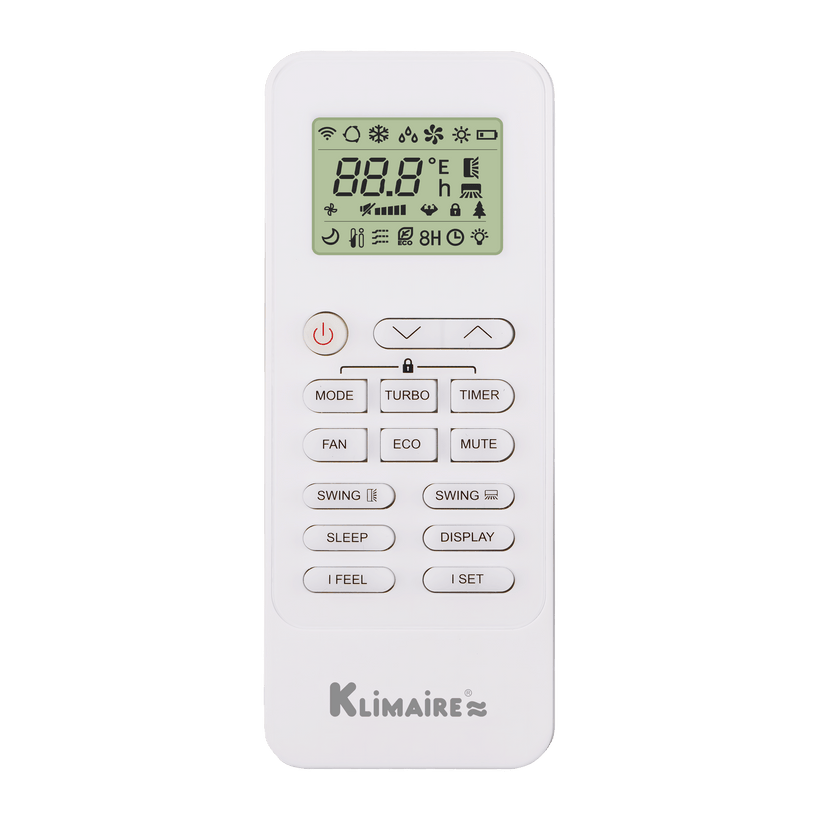

Control Type Wireless Remote
Net Weight (Lb) 30.9
