Name: Klimaire 24,000 Btu 17 SEER2 Wall Mounted Single Zone Ductless Mini-Split Heat Pump Air conditioner with 16 Ft. Kit | 230V | R32
Brand: Klimaire
Price: 1217.0 USD
Availability: InStock
Rating: 5.0 (33 reviews)

description
ACCESSORIES
You may also like

Accessories

Klimaire Entrada Series

Entrada is the newly designed 5th generation KLIMAIRE Heat pump Series consisting of a wall mounted indoor unit and Smart DC Inverter condenser with advanced comfort and energy saving features with ratings to 17 SEER2. Factory Installed 6-in-1 healthy air filtration system delivers healthier indoor air quality.

This quite highly energy efficient system is the perfect solution for many types of spaces without ductwork for comfortable cooling and heating needs all year round. Its stylish design and matt finish (12k-36k) blends perfectly in any décor, ease of installation, affordability and superior quality make it the homeowners preferred choice.

KIWE24H2-31X | Indoor Unit

Installation of Klimaire Entrada is easier and faster. Packed with the indoor unit the cardboard template helps accurate drilling and mounting.

Smart Control
Factory installed module improves functionality with SMART LIFE APP. You can remotely Manage your system via Wi-Fi from anywhere and at any time. The system can be controlled with amazon Alexa or Google assistant.

smart control air conditioner kiwu_indoor_unit

WIFI Connection

Self-cleaning and Sterilization
Built-in feature will prevent growth of harmful micro-organisms by cleaning the evaporator of the indoor unit where accumulation of dust and bacteria could be a major issue. This function keeps the unit fresh and clean for the next operation.

133˚F High Temperature Self-cleaning & Sterilization

Healthy Air Filtration System
A set of 6 different functional filters help to deliver exceptional indoor air Quality (IAQ)

filters

COMFORT

DRY Mode – Independent dehumidification to reduce the humidity of the air to make ambient of a room more comfortable.
I FEEL – This function enables the remote control to measure the temperature at its location and send signals to the indoor unit to optimize the temperature around its position. You keep the remote control close to you, it is as if the air conditioner were following you.
SLEEP mode – It can maintain the temperature at a lower setting at night during the sleeping hours.
Auto clean – This function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality.
4 way Air Flow – Up-Down-Left-Right auto swing motion – moves the air in all directions .
AUTO-RESTART – After a power failure the system will automatically re-start in the same operating mode as before the outage when the power is restored.
Smart Air Flow – Powerful and silent air flow with larger louver makes wind blow farther and wider to cover every spot of the room.

CONVENIENCE

24h Timer – Allows the user to set the time when the AC will turn ON or OFF and the preferred settings.
TURBO Mode – With this function the AC will operate at the highest fan speed and speed to make the room comfortable quickly.
AUTO Mode – The operating mode will be set automatically according to the room temperature.
EMERGENCY Button – Allows to manually operate the AC at the preset ambient conditions when the remote is missing.

PERFORMANCE

HIGH AMBIENT COOLING – Strong cooling capacity in high ambient temperatures of up to 122ºF
LOW AMBIENT COOLING – The unit can operate in cooling mode during the winter down to 5º F to cool an inner room.
LOW AMBIENT HEATING – Provides heating when the outside temperature is as low as-13º F.
SELF-TROUBLESHOOTING – Provides faster and accurate service diagnostics.

ENERGY SAVING

AWAY HOM E-- (AH) will automatically start the heating mode when the room temperature is lower than 46º F
ECO MODE--In this mode the AC will automatically set the operation to save energy.

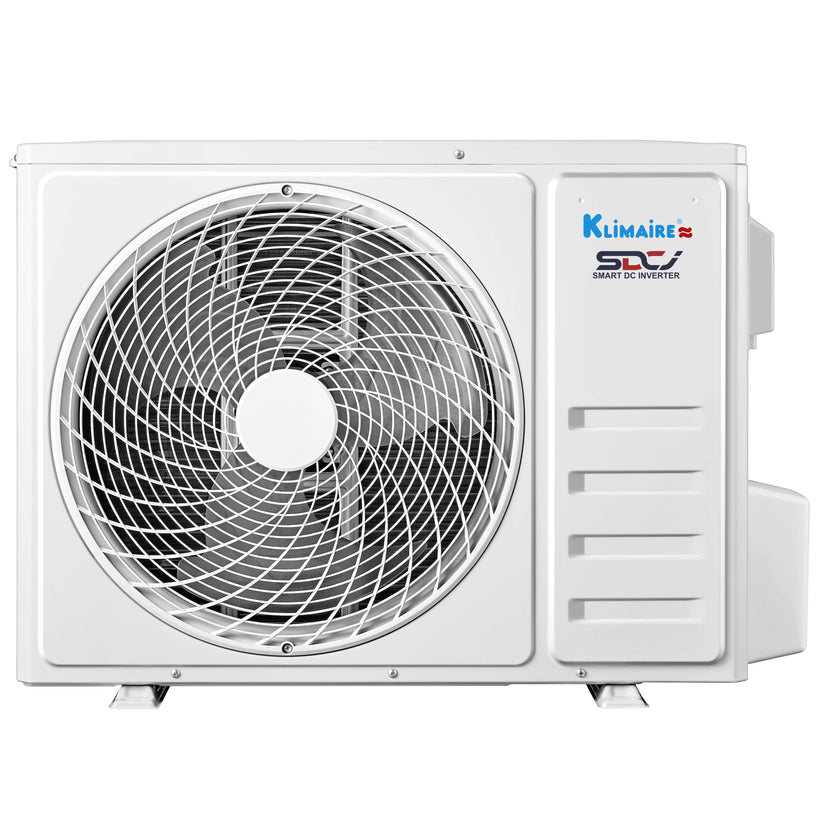

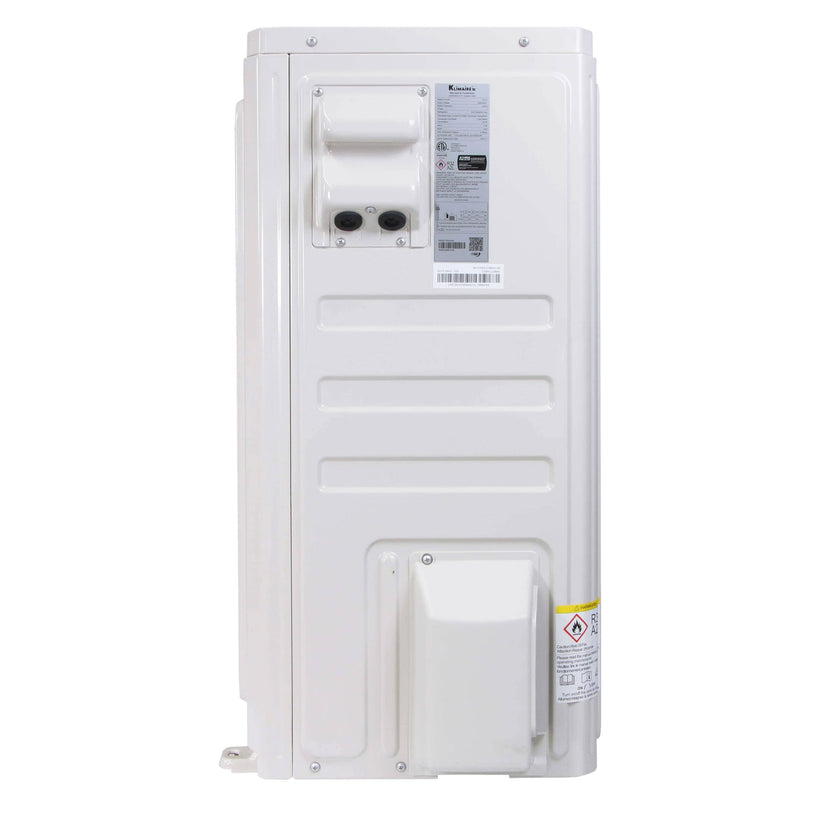

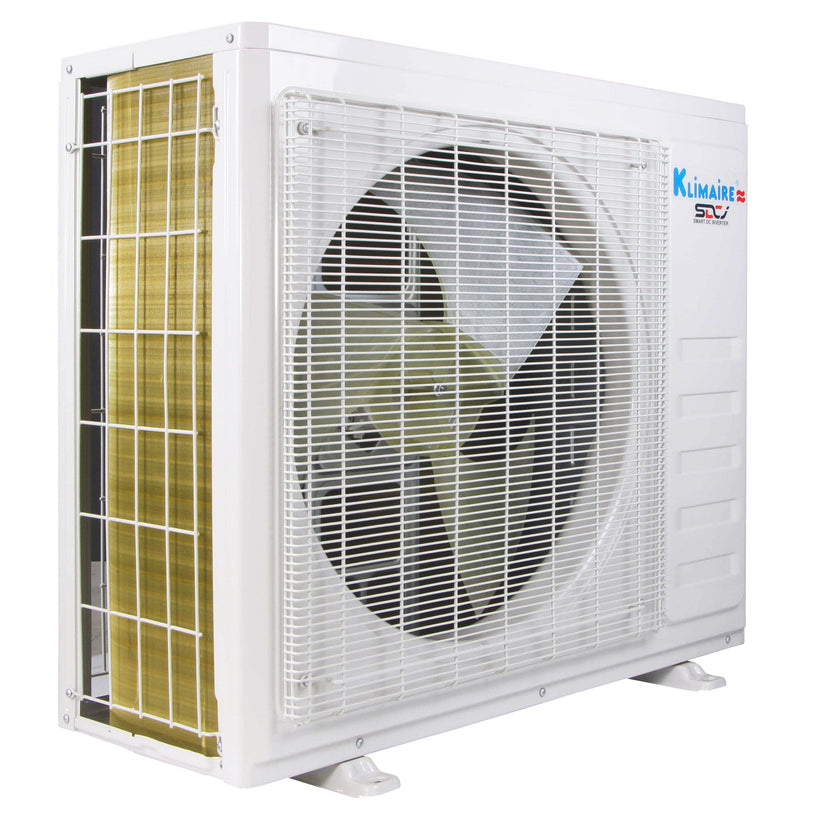

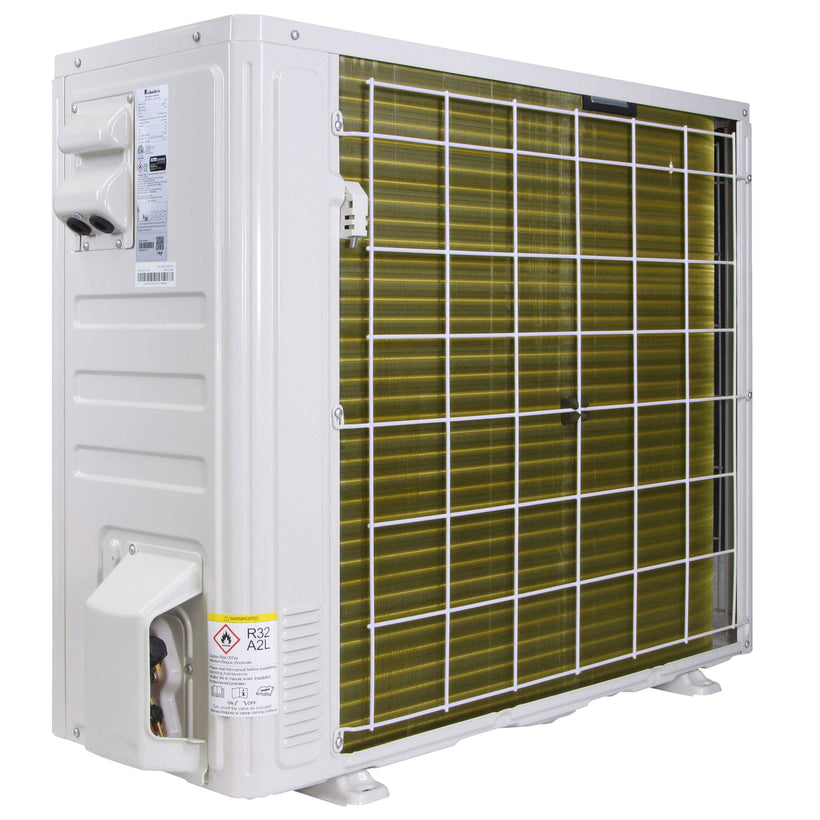

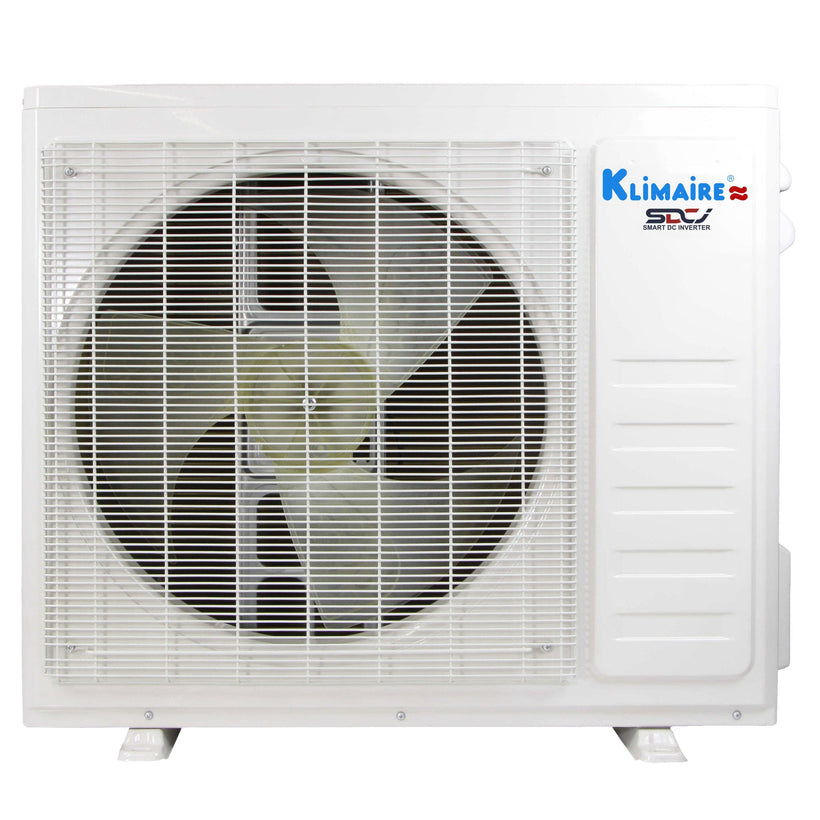

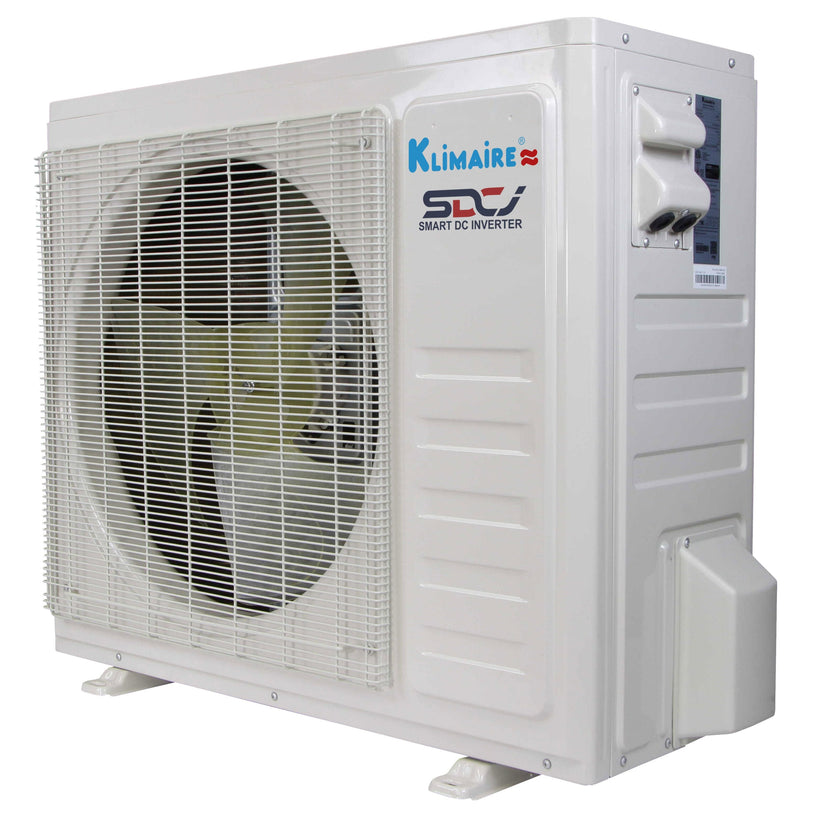

KOIE24H2-31X | Outdoor Unit

Golden fin
Anticorrosion coating to protect the outdoor coil from corrosive elements to maintain higher heat transfer for a longer time.

Refrigerant leakage detection
When the outdoor unit detects a refrigerant leakage condition the indoor unit will sound an alarm.

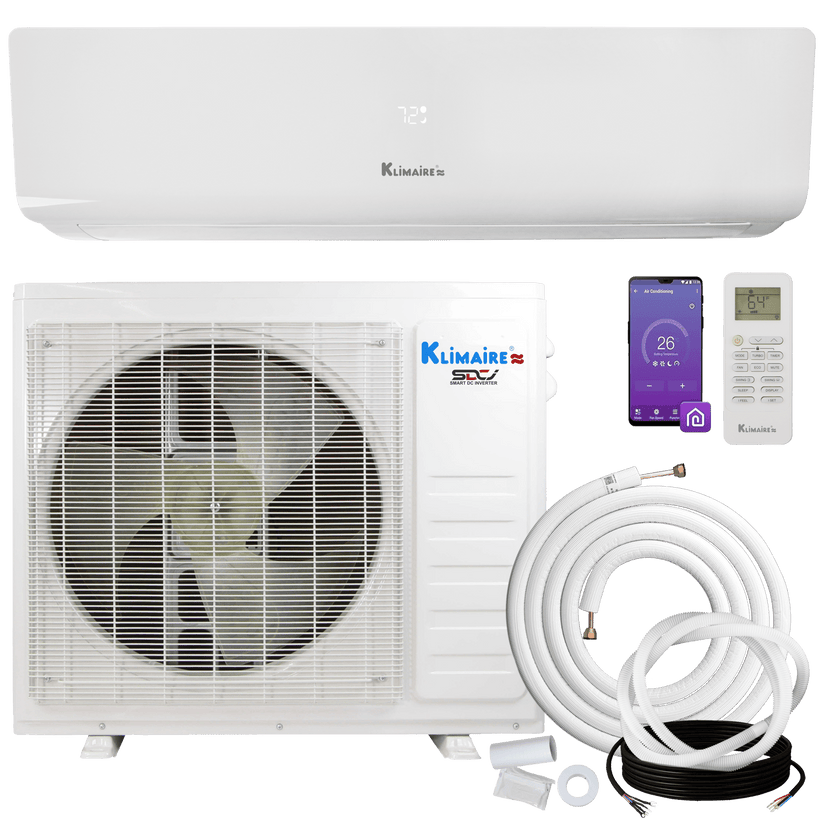

WHAT’S INCLUDED
Your Klimaire Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:

KIWE24H2-31X | Indoor Unit
KOIE24H2-31X | Outdoor Unit
Remote control with wall bracket holder
User’s Manual
Installation Manual
Wi-Fi Manual
Service Manual

MANUFACTURER WARRANTY

5-year parts limited warranty
7-year compressor limited warranty

Downloads

at a glance

Brand:
Klimaire
Air Conditioner Type
Ductless Mini Split Wall Mount
Application Area (SqFt)
1,500
Cooling Capacity (Btu)
24,000
Heating Capacity (Btu)
24,000
SEER2
17
HSPF4
9.5
HSPF5
8.5
EER2
9.5
COP2
3.3
Power Supply
208-230V / 1 Phase / 60 Hz
Refrigerant Type
R-32
Number Of Zones (Rooms)
1
Manufacturer Limited Warranty
5 Year Parts 7 Years Compressor
Wifi Capibility
Yes
Minimum Outdoor Temperature for Cooling (F°)
53.6
Minimum Outdoor Temperature for Heating (F°)
5

Bundle includes 2 items

Klimaire 24,000 Btu Mini-split Wall Mount Fan Coil | 230V | KIWE

Model Number: KIWE24H2-31X SKU: KIE241667 Not Sold Separately!

Klimaire 24,000 Btu Outdoor Inverter Heat Pump 17 SEER2 | 230V | R32 | KOIE

Model Number: KOIE24H2-31X SKU: KOE241685 Not Sold Separately!

System Specifications

Air Conditioner Type	Ductless Mini Split Wall Mount
Application Area (SqFt)	1,500
Cooling Capacity (Btu)	24,000
Heating Capacity (Btu)	24,000
SEER2	17
HSPF4	9.5
HSPF5	8.5
EER2	9.5
COP2	3.3
Power Supply	208-230V / 1 Phase / 60 Hz
Refrigerant Type	R-32
Number Of Zones (Rooms)	1
Manufacturer Limited Warranty	5 Year Parts 7 Years Compressor
Wifi Capibility	Yes
Minimum Outdoor Temperature for Cooling (F°)	53.6
Minimum Outdoor Temperature for Heating (F°)	5

Specifications for model: KIWE24H2-31X

Indoor Noise Level at Cooling Turbo/High/Med./Low/Mute	50/48/46/40/37
Suitable Area sq.ft	Up to 1,500
Net dimensions (W x D x H)	39-3/4'' x 12-3/8'' x 8-5/8''
Indoor Packing Dimensions (W x D x H)	43-1/8'' x 15-3/8'' x 11-3/4''
Net weight Ib	26.5

Specifications for model: KOIE24H2-31X

Voltage	208-230V/60Hz/1ph
SEER2	17
HSPF2	9.5
Sound Level	56
Minimum Circuit Ampacity (MCA)	17
Maximum Overcurrent protection (MOP)	25
Liquid Line Size (In)	1/4
Suction Line Size (In)	1/2
Operation Mode	Heat Pump / Heating & Cooling
Net/Gross Weight (Lb)	70.5/82.67
Width/Depth/Height (In)	34'' x 13-3/4'' x 23-3/4''
Packaged Width/Depth/Height (In)	35-3/8'' x 16'' x 27''
