System Specifications
| Air Conditioner Type | Quick Connect Mini-Split Wall Mount |
|---|---|
| Application Area (SqFt) | 1,000 |
| Cooling Capacity (Btu/h) | 18,000 |
| Heating Capacity (Btu/h) | 19,000 |
| Cooling Capacity Range (Btu/h) | 4,000~19,000 |
| Heating Capacity Range (Btu/h) | 4,000~21,000 |
| SEER2 | 23 |
| HSPF4 | 9.5 |
| HSPF5 | 8.2 |
| EER2 | 12.5 |
| COP2 | 3.81 |
| Power Supply | 208-230 V / 1 Phase / 60 Hz |
| Refrigerant Type | R-454B |
| Number of Zones (Rooms) | 1 |
| Manufacturer Limited Warranty (Years) | 5 Year Parts 7 Years Compressor |
| Wifi Capibility | Yes |
| Maximum Outdoor Temperature for Cooling (F°) | 131 |
| Minimum Outdoor Temperature for Heating (F°) | -13 |
| Energy Star | Yes |
Specifications for model: RLS1412Q16-4

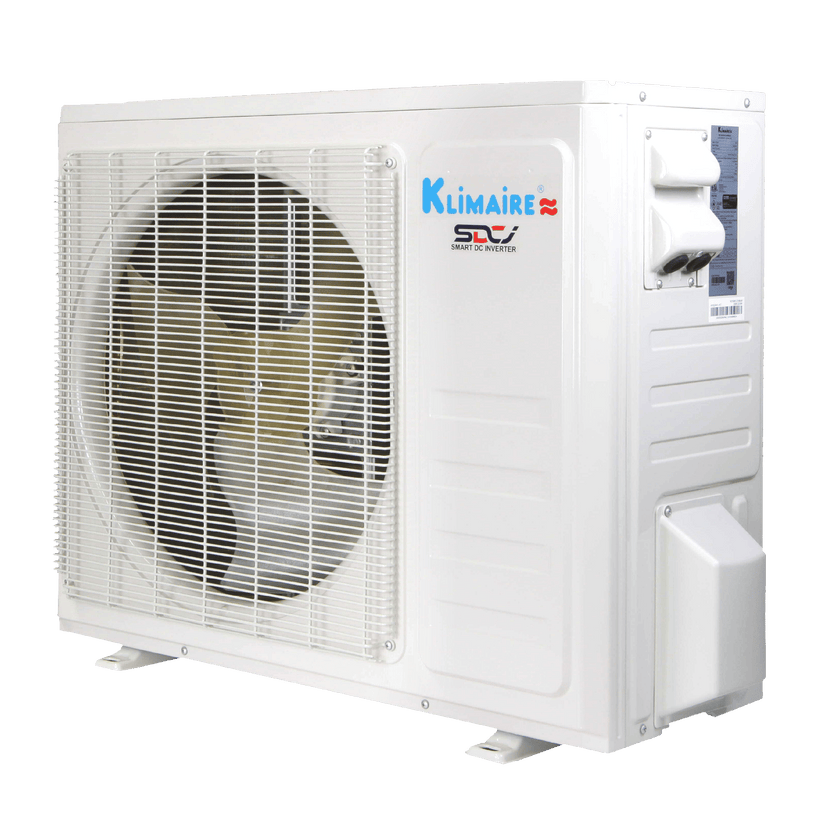

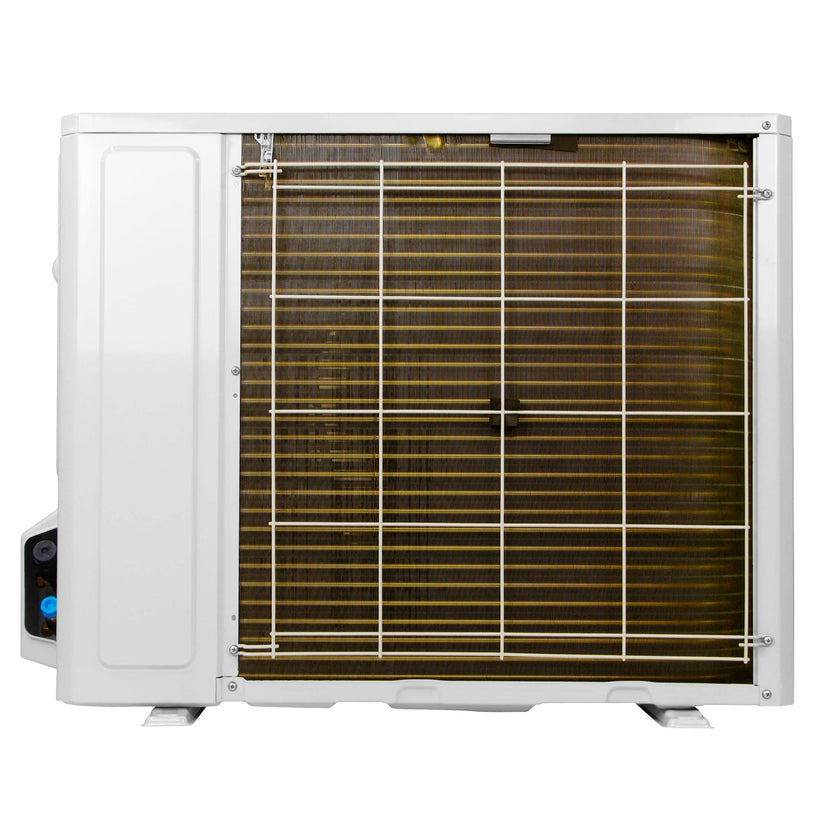

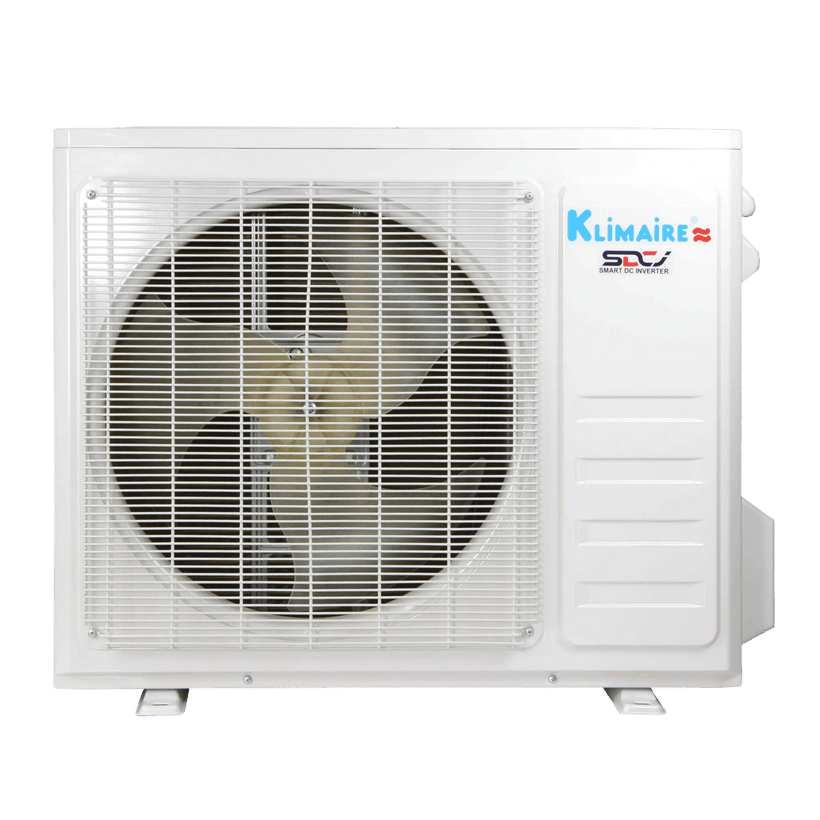

Specifications for model: KOIQ18H2-45T
| Compressor Type | Rotary |
|---|---|
| Sound Level dB(A) | 53 |
| Minimum Circuit Ampacity (MCA) (A) | 12 |
| Maximum Fuse Size (A) | 20 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 1/2 |
| Ambient Temperature (cooling/ heating) | 5~131/-13~86 |
| Net/Gross Weight (Lb) | 90.4/99.2 |
| Width/Depth/Height (In) | 43-1/4 × 13 × 8-3/4 |
| Packaged Width/Depth/Height (In) | 37-3/8 x 16-1/2 x 28-7/8 |
| Refrigerant | R454B |
Specifications for model: KIWQ18H2-45T

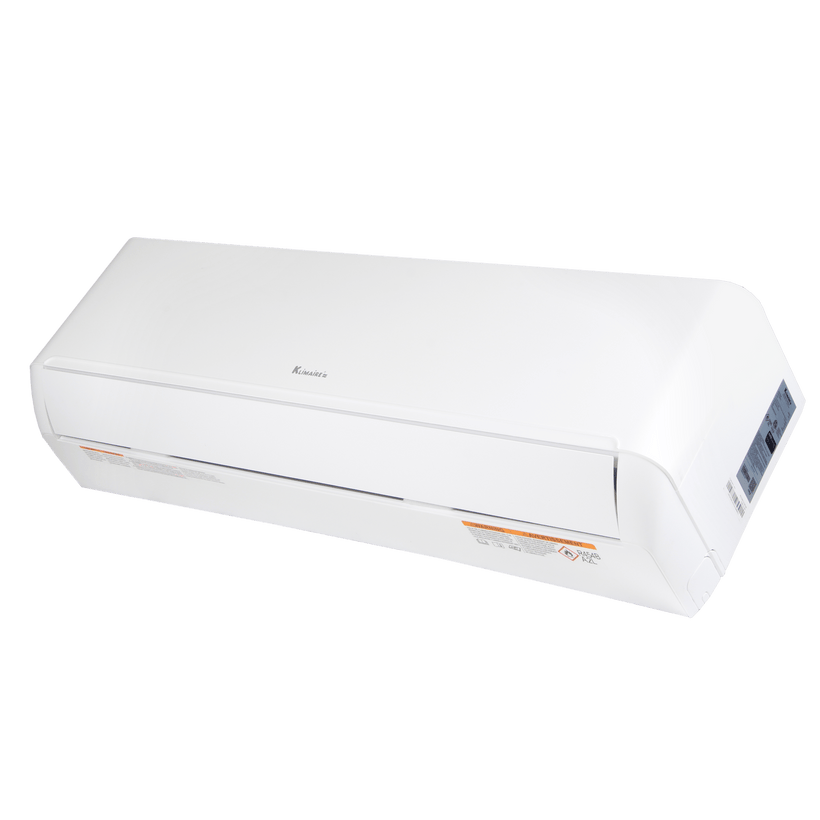

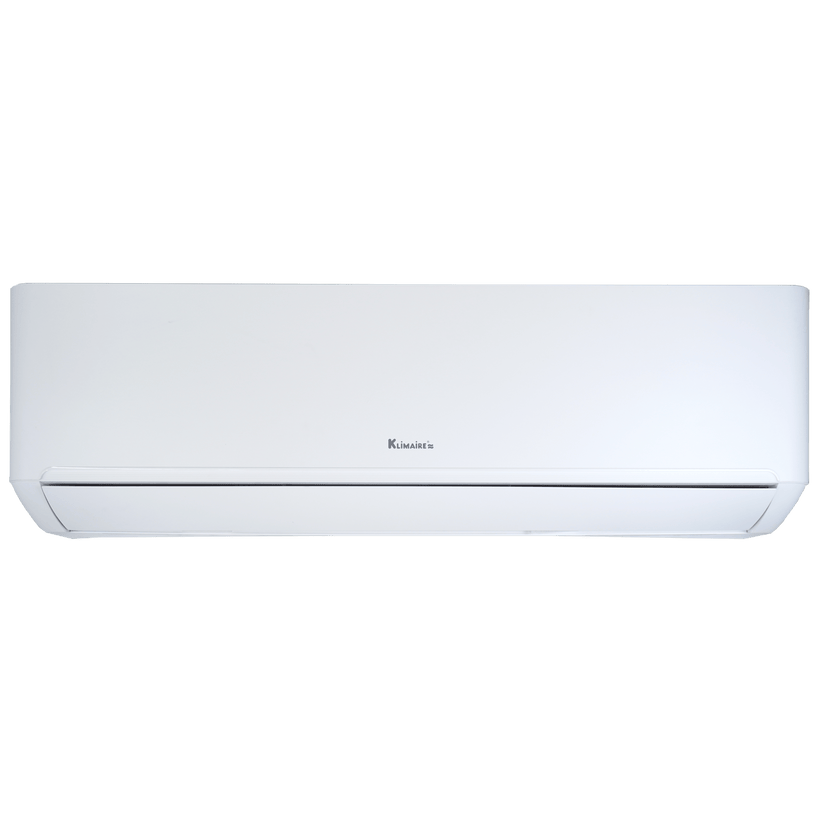

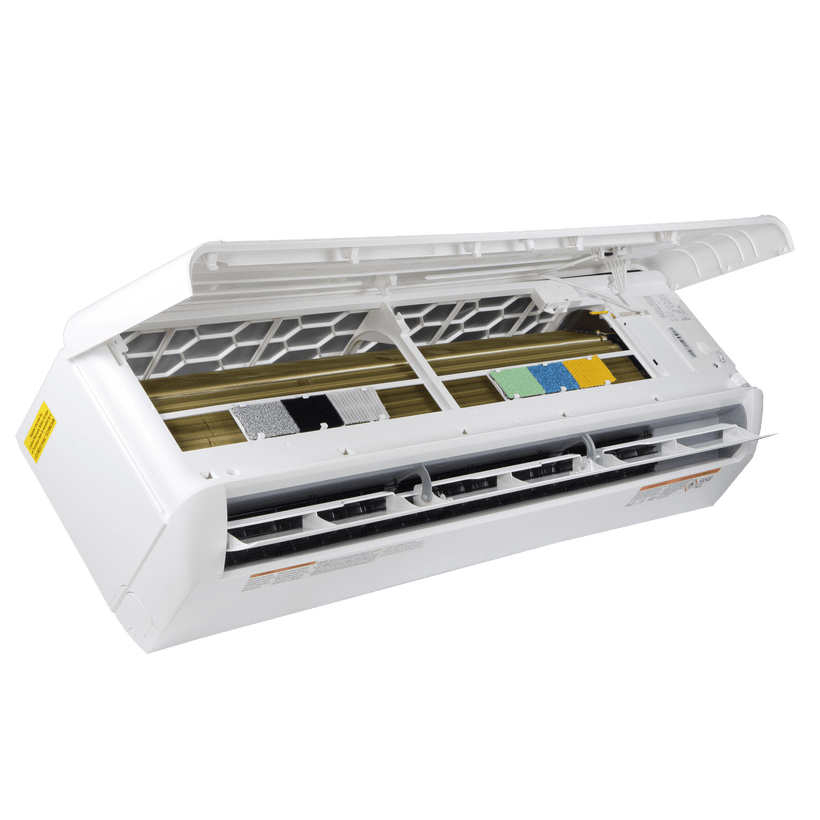

| Model Number | KIWQ18H2-45T |
|---|---|
| Type | Mini-split Quick Connect |
| Unit Type (Selector) | Indoor Unit |
| Mounting Type | Wall Mount |
| Power Supply (V/ph/Hz) | 208-230 / 1 / 60 |
| Noise Level Turbo/Hi/Mi/Lo/Mute (dB) | 50/47/43/38/34 |
| Liquid Line Size (in) | 1/4 |
| Suction Line Size (in) | 1/2 |
| Depth (in) | 8.75 |
| Height (in) | 13 |
| Width (in) | 43.25 |
| Air Flow Turbo/Hi/Mi/Lo/Si (cfm) | 735/676/529/423/394 |

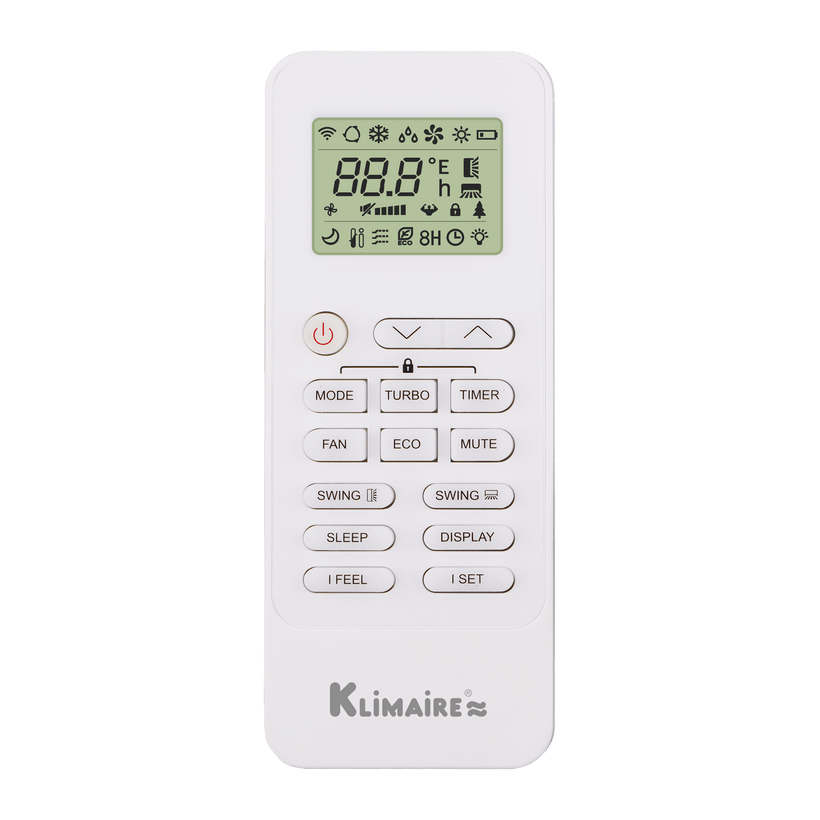

| Control Type | Wireless Remote |
| Net Weight (Lb) | 30.9 |
