Choose the right heating and air conditioning system for your home and you’ll save money upfront, recuperate your investment through lower energy bills or both.
Every Klimaire muti-zone system uses one outdoor unit connected to multiple indoor units, so it can cool or heat multiple rooms, with each room being individually controlled, scheduled, and set to the user’s preferred temperature for maximum comfort and energy saving.
KDIP09H2-4 | INDOOR UNIT KDIP12H2-4 | INDOOR UNIT Klimaire ducted recessed hideaway, low profile slim design indoor unit allows it to be installed easily above a drop ceiling or attic space, no floor space or cabinet build-up required. The super quite indoor unit is less than 9" in height.
Two convenient ways of return air configuration. Back air inlet is standard, and bottom is optional. The bottom and back flange plate size is the same, which makes it easy to exchange installation return air opening from back to bottom.
Standard fresh air intake round air duct connection
Low profile and convenient Wired control
Externally insulated body provides very quiet operation
Anti-cold air function
Self –Diagnosing Function makes it easier to diagnose malfunctions by displaying error codes, reducing service labor time. Wired control easily read LCD Display gives the user the options to adjust and set the temperature with comfort features such as sleep mode, turbo operation, dry mode, air swing control (louver control), fan speeds, timer and more, for complete automatic operation. Humidity control is achieved with Dry Mode function even when cooling may not be needed.
KMIR319-H221-4 | Outdoor Unit Klimaire's new KMIR319-H221-4 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
Space saving, specially-designed for quiet operation
Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
Klimaire’s multi-zone system can adjust the capacity output as the temperature changes, by controlling the operation of the compressor and the fan motors
When not all rooms require air conditioning or when ambient temperature changes, it runs with partial load and lower energy consumption
Standard operating range: -13º F ~ 122º F
Small footprint fits most yards or easily mounts to a wall with a bracket (sold separately)
Improved Performance
SEER2: 23
EER2: 12.5
HSPF4: 10
COP: 3.8
Applications
Room additions
Renovations
Family rooms
Sunrooms
Wine cellars
Garages/workshops

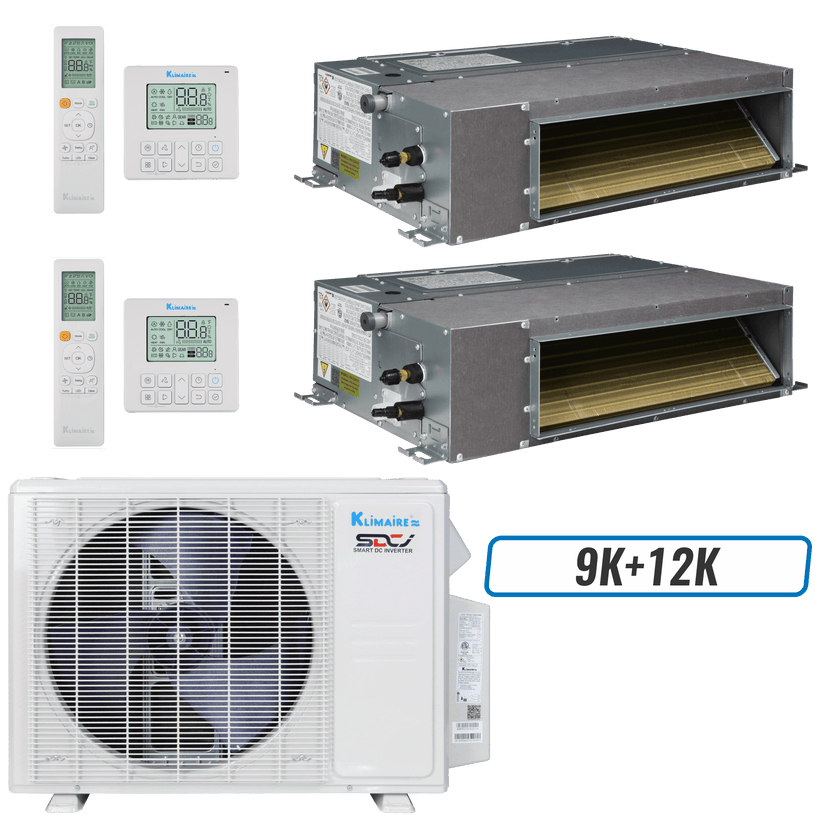

WHAT’S INCLUDED Your Klimaire Ductless Two-Zone System from Heat & Cool Comes With:
KDIP09H2-4 | Indoor Unit
KDIP12H2-4 | Indoor Unit
KMIR319-H221-4 | Outdoor Unit
Outdoor unit is pre-charged with R-454B refrigerant
