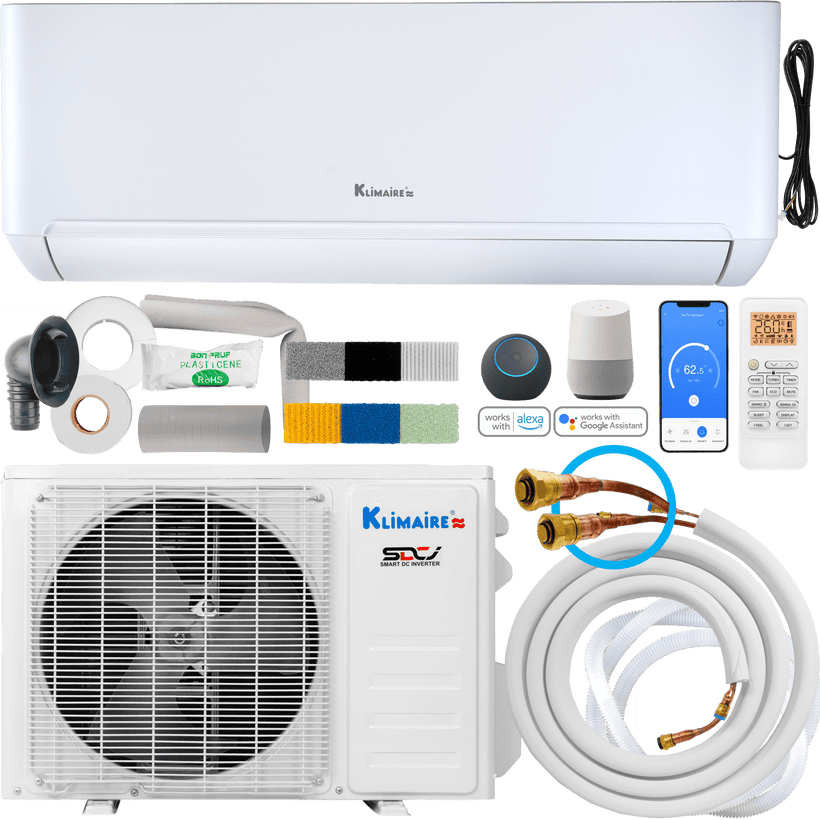

System Specifications
| Air Conditioner Type | Quick Connect Mini-Split Wall Mount |
|---|---|
| Application Area (SqFt) | 550 |
| Cooling Capacity (Btu/h) | 12,000 |
| Heating Capacity (Btu/h) | 12,000 |
| Cooling Capacity Range (Btu/h) | 2,500~15,000 |
| Heating Capacity Range (Btu/h) | 2,500~15,000 |
| SEER2 | 23 |
| HSPF4 | 10 |
| HSPF5 | 8.6 |
| EER2 | 13 |
| COP2 | 3.81 |
| Power Supply | 115 V / 1 Phase / 60 Hz |
| Refrigerant Type | R-454B |
| Number of Zones (Rooms) | 1 |
| Manufacturer Limited Warranty (Years) | 5 Year Parts 7 Years Compressor |
| Wifi Capibility | Yes |
| Maximum Outdoor Temperature for Cooling (F°) | 131 |
| Minimum Outdoor Temperature for Heating (F°) | -13 |
| Energy Star | Yes |
Specifications for model: RLS1438Q16-4
| Product Type | Pre-Charged Mini Split Line Set |
|---|---|
| Brand | Klimaire DIY Series |
| Model | E-Z Kuick Connect™ |
| Compatibility | KIWP09H2-41T / KIWP12H2-41T / KIWP18H2-41T |
| Lengths (ft) | 16 |
| Liquid Line Size (in) OD | 1/4 |
| Suction Line Size (in) OD | 3/8 |
| Connection Type | E-Z Kuick Connect™ Quick Connect Fittings |
| Tubing Material | Refrigeration-Grade Copper |
| Insulation Color | White |
| Installation Type | DIY (Do-It-Yourself) |
| Application | Connection between Indoor and Outdoor Units |
| System Type | Multi-Zone Mini Split Heat Pump Systems |

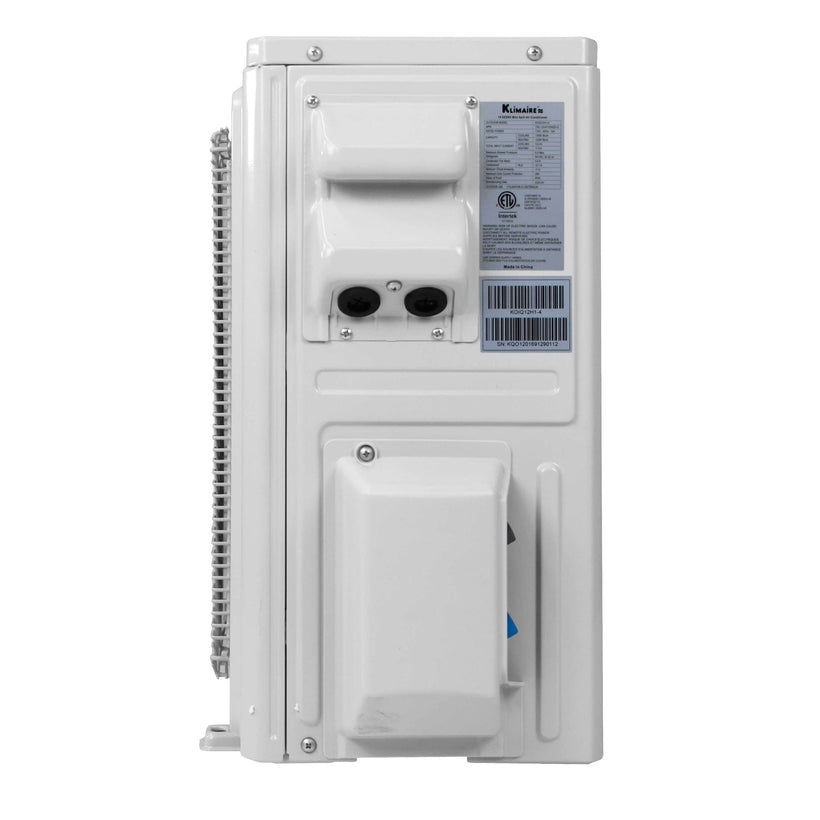

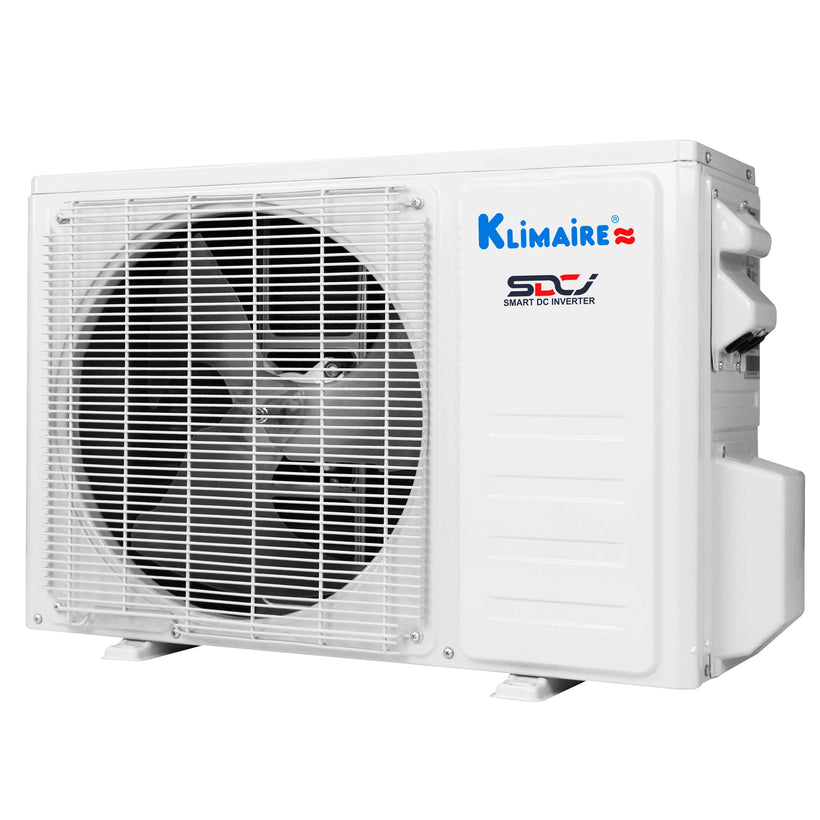

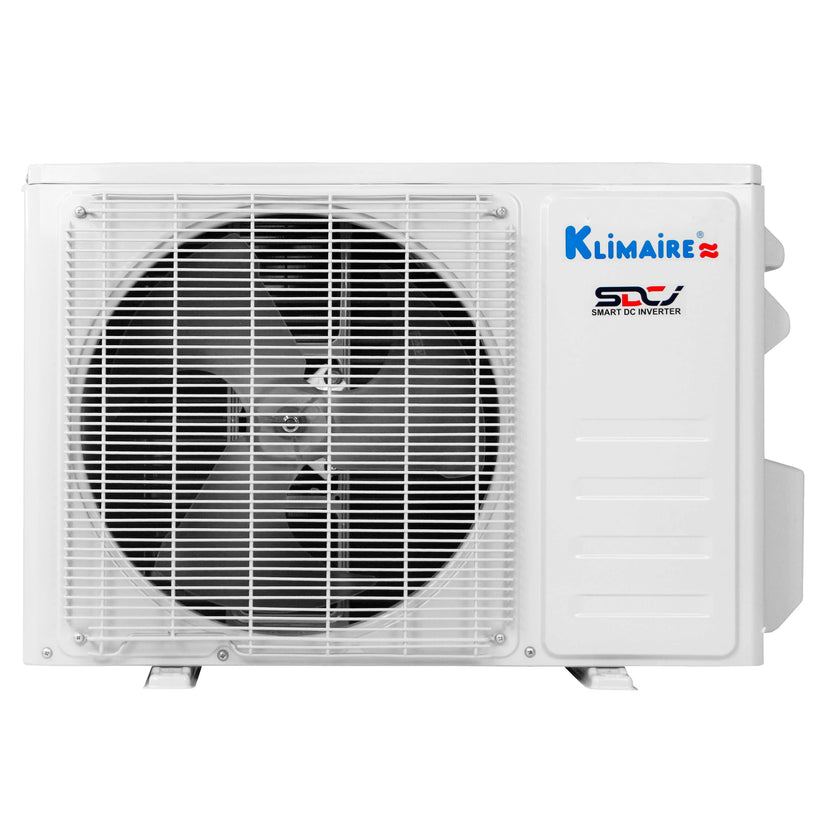

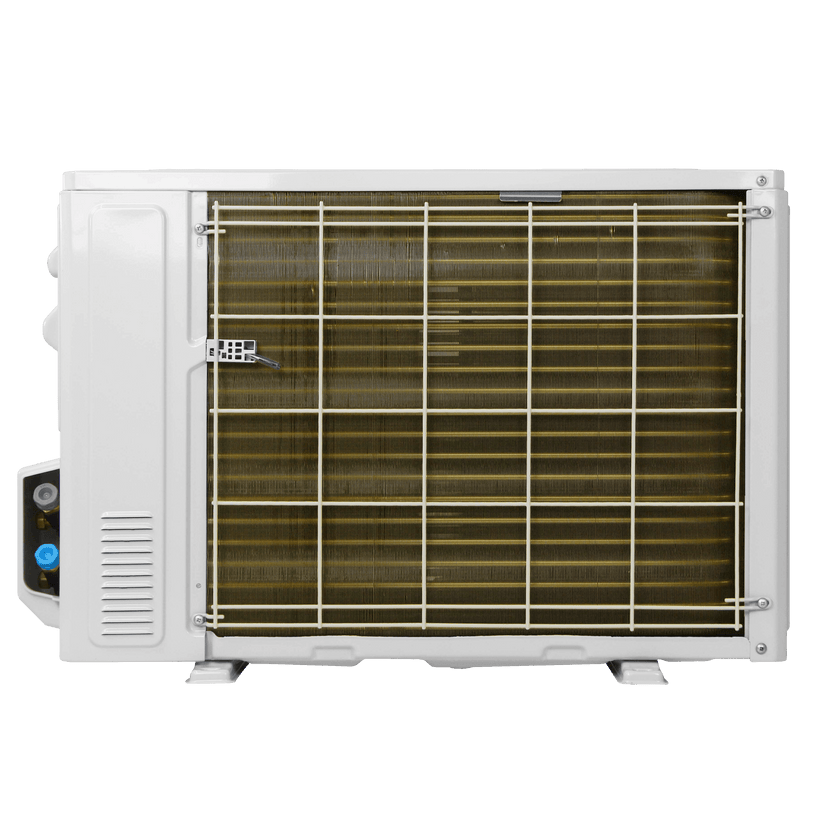

Specifications for model: KOIQ12H1-45T
| Compressor Type | Rotary |
|---|---|
| Sound Level dB(A) | 52 |
| Minimum Circuit Ampacity (MCA) (A) | 16 |
| Maximum Fuse Size (A) | 25 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 3/8 |
| Ambient Temperature (cooling/ heating) | 5~131/-13~86 |
| Net/Gross Weight (Lb) | 58.4/65.0 |
| Width/Depth/Height (In) | 31-7/8 x 12 x 21-5/8 |
| Packaged Width/Depth/Height (In) | 32-7/8 x 12-7/8 x 22-5/8 |
| Refrigerant | R454B |

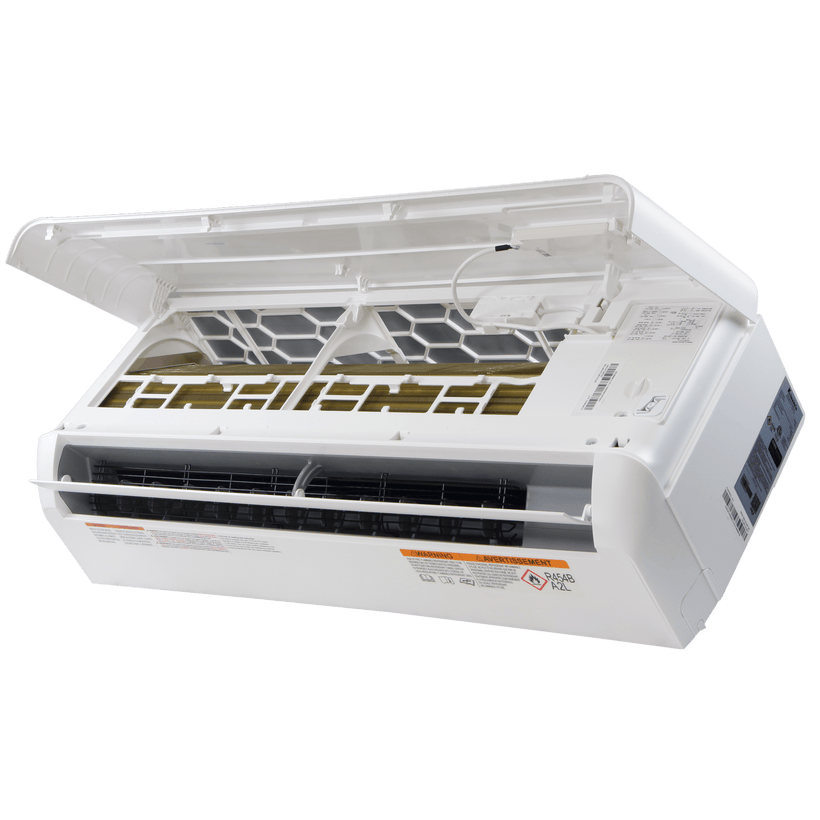

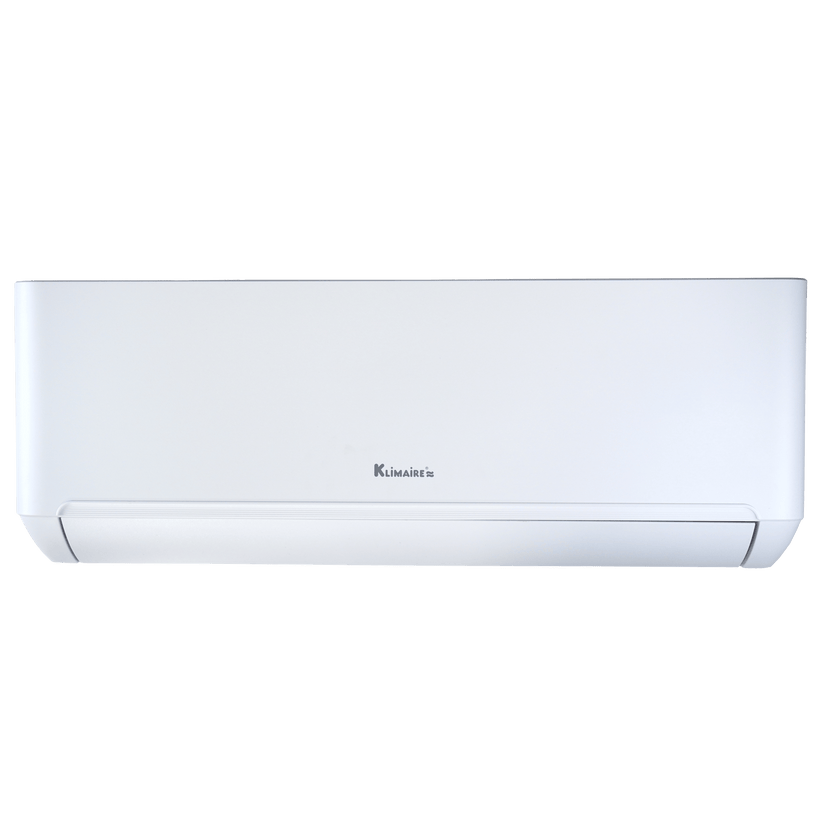

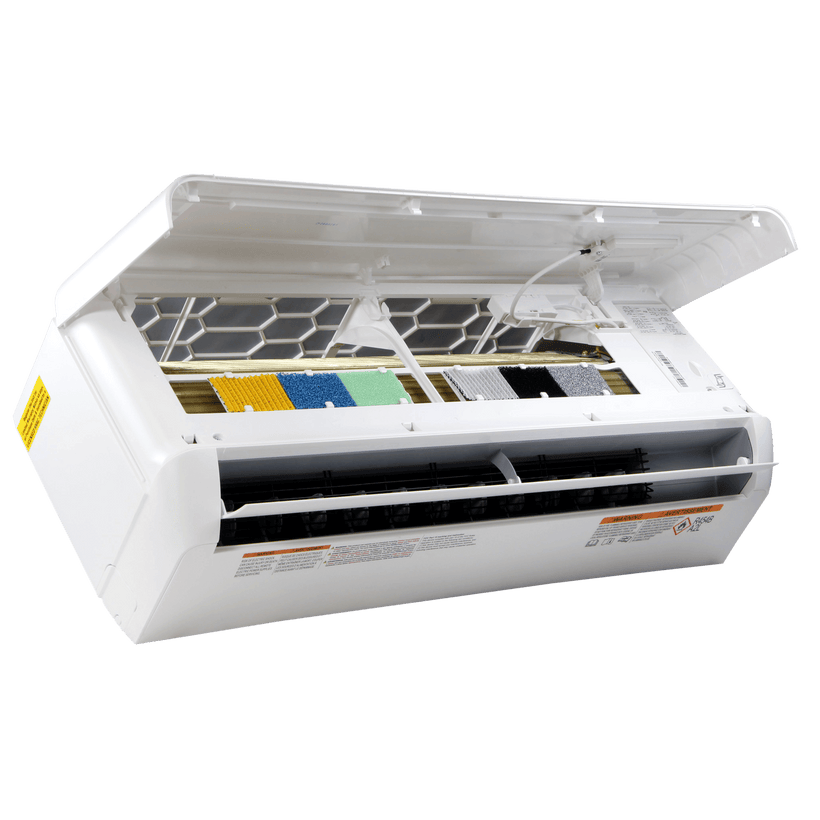

Specifications for model: KIWQ12H1-45T
| Model Number | KIWQ12H1-45T |
|---|---|
| Type | Mini-split Quick Connect |
| Unit Type (Selector) | Wall Mount |
| Mounting Type | 115 / 1 / 60 |
| Power Supply (V/ph/Hz) | 46/44/36/32/30 |
| Noise Level Turbo/Hi/Mi/Lo/Mute (dB) | 1/4 |
| Liquid Line Size (in) | 3/8 |
| Suction Line Size (in) | 7.625 |
| Depth (in) | 12 |
| Height (in) | 36.25 |
| Width (in) | 500/470/411/323/205 |

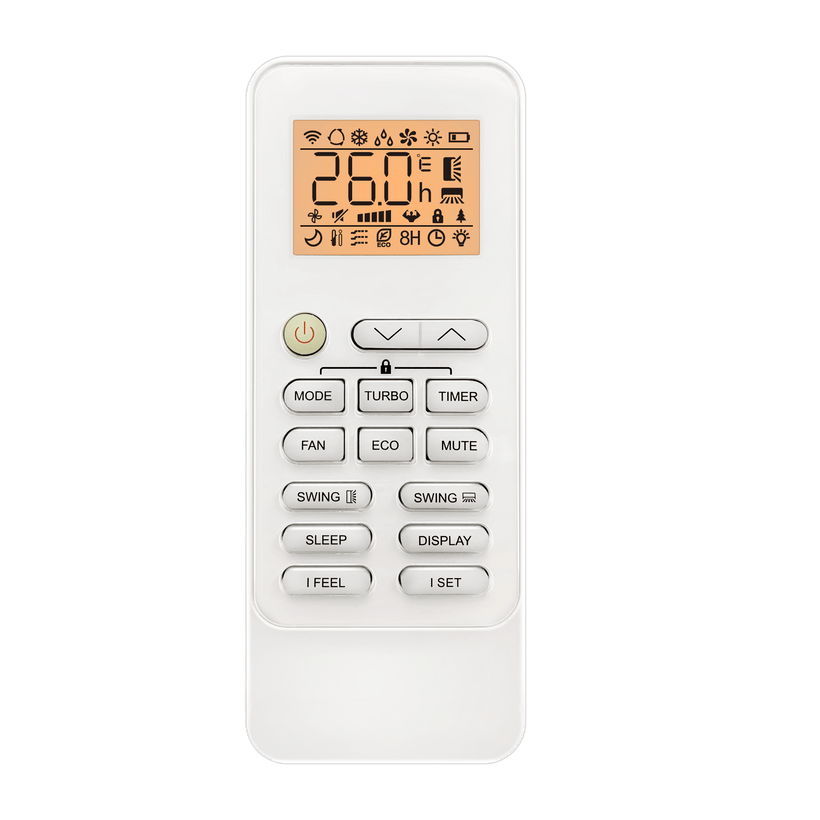

| Air Flow Turbo/Hi/Mi/Lo/Si (cfm) | Wireless Remote |
| Control Type | |
| Net Weight (Lb) | 23.1 |
- BGBret G.Verified ReviewerRated 5 out of 5 stars5 hours agoDaily Comfort
Whether it's a warm afternoon or a cool evening, this system keeps the room comfortable without frequent cycling or noticeable temperature fluctuations.
HAHeat And Cool46 seconds agoHi Bret,
Thank you for the fantastic 5-star review! We're thrilled your Klimaire 12,000 BTU system delivers consistent comfort without temperature fluctuations. That steady performance really makes our day!
- The Heat & Cool Team
- FBFran B.Verified ReviewerRated 5 out of 5 stars5 hours agoInstallation Well Planned
Everything connected exactly as described. The quick-connect design simplified the process and made the project much less intimidating than expected for a first-time installer.
HAHeat And Cool46 seconds agoHi Fran,
Thank you so much for the fantastic 5-star review! We're thrilled to hear that your Klimaire DIY 12,000 BTU installation went exactly as described and that the quick-connect design made the process much less intimidating for your first-time installation. It's particularly rewarding to know that our planning and design helped simplify what could have been a daunting project - that kind of straightforward feedback about the DIY experience really means the world to us.
Your satisfaction with how well everything connected and the user-friendly design of this 23 SEER2 system really makes our day. We're delighted that the quick-connect feature delivered on its promise to make installation more accessible, and we hope you continue to enjoy the efficient heating and cooling performance your new mini-split provides.
Thank you for choosing Heat & Cool for your DIY home comfort needs and for taking the time to share your positive experience!
- The Heat & Cool Team
- JWJody W.Verified ReviewerRated 5 out of 5 stars1 week agoComfort Without the Noise
Background noise was a concern before purchasing. Fortunately, this unit runs quietly enough that conversations and television are never interrupted.
HAHeat And Cool1 week agoHi Jody,
Thank you so much for the fantastic 5-star review! We're thrilled to hear that your Klimaire 12,000 BTU unit is running quietly enough that it never interrupts your conversations or television. It's particularly rewarding to know that the quiet operation addressed your background noise concerns - that kind of straightforward feedback about the performance really means the world to us.
Your satisfaction with how quietly your 23 SEER2 Klimaire mini-split operates while providing comfort really makes our day. We're delighted that you're experiencing the quality engineering that goes into these efficient ductless systems, and we hope you continue to enjoy the peaceful, reliable heating and cooling comfort it provides.
Thank you for choosing Heat & Cool for your home comfort needs and for taking the time to share your positive experience!
- The Heat & Cool Team
- BSBlake S.Verified ReviewerRated 5 out of 5 stars1 week agoEasy to Live
The controls are intuitive, switching between heating and cooling is effortless, and the system responds quickly whenever I adjust the temperature settings.
HAHeat And Cool1 week agoHi Blake,
Thank you so much for the fantastic 5-star review! We're thrilled to hear that your Klimaire 12,000 BTU system has intuitive controls and responds quickly to temperature adjustments. Your satisfaction with the effortless heating and cooling switching really makes our day!
- The Heat & Cool Team
- AAAiden A.Verified ReviewerRated 5 out of 5 stars2 weeks agoPractical Home Upgrade
I wanted something dependable without major installation expenses. This mini split checked every box and has performed consistently since the first week.
HAHeat And Cool2 weeks agoHi Aiden,
Thank you so much for the fantastic 5-star review! We're thrilled to hear that your Klimaire DIY 12,000 BTU mini split has been performing consistently and met all your needs as a practical home upgrade. It's particularly rewarding to know that you found a dependable solution without the major installation expenses - that kind of straightforward feedback about both the performance and value really means the world to us.
Your satisfaction with the consistent performance of your 23 SEER2 system since day one really makes our day. We're delighted that this Quick Connect mini split checked every box for your home comfort needs, and we hope you continue to enjoy the reliable heating and cooling it provides.
Thank you for choosing Heat & Cool for your home upgrade and for taking the time to share your positive experience!
- The Heat & Cool Team
