Goodman air conditioners simply work the way they are supposed to, making each one a thing of beauty.

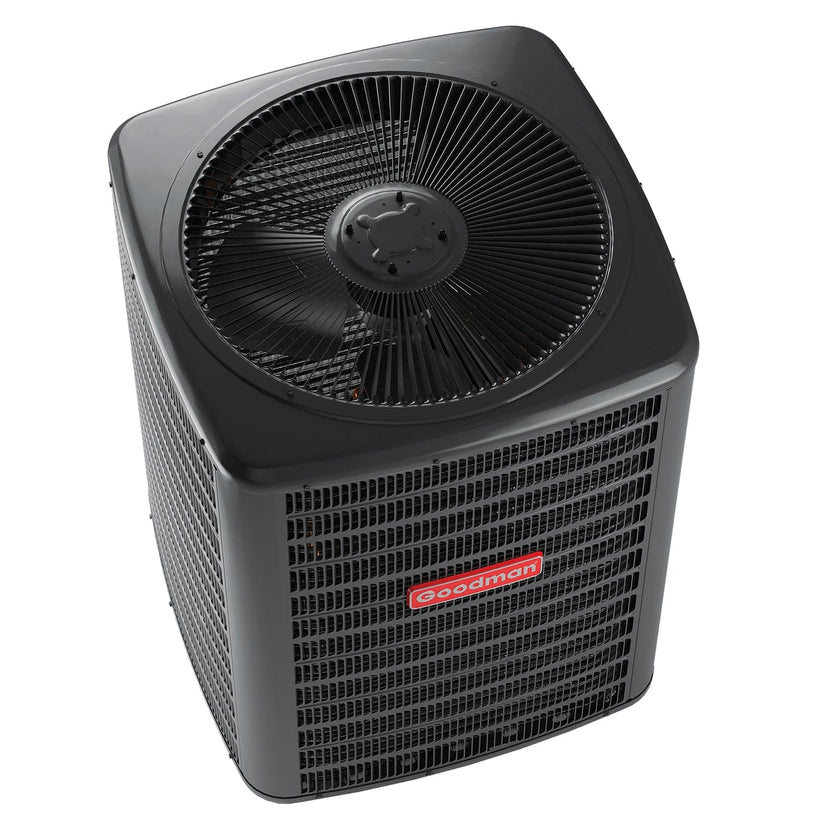

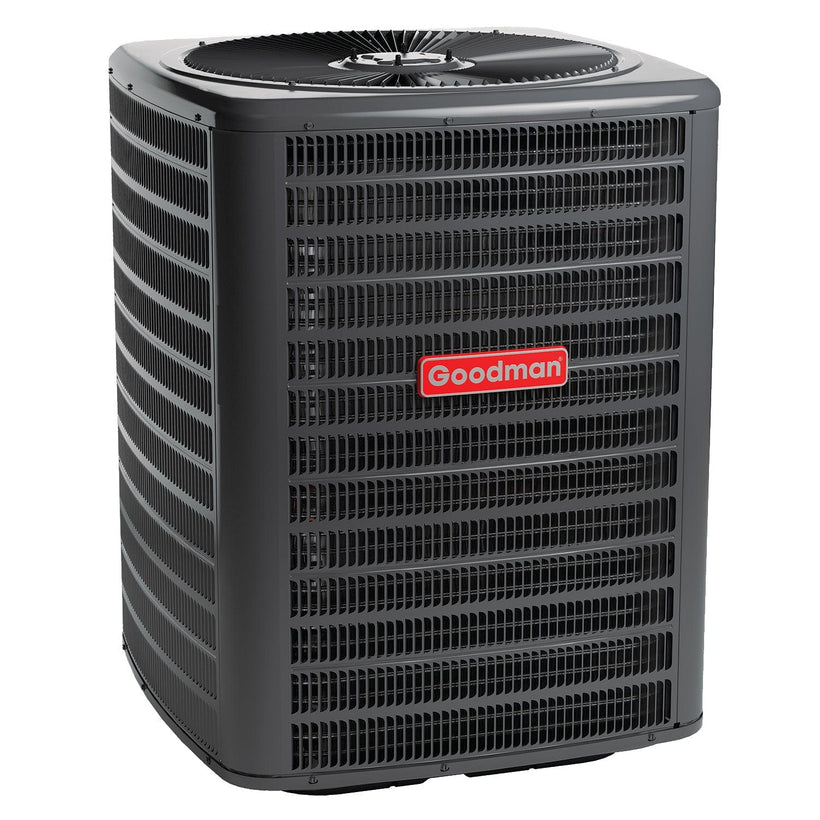

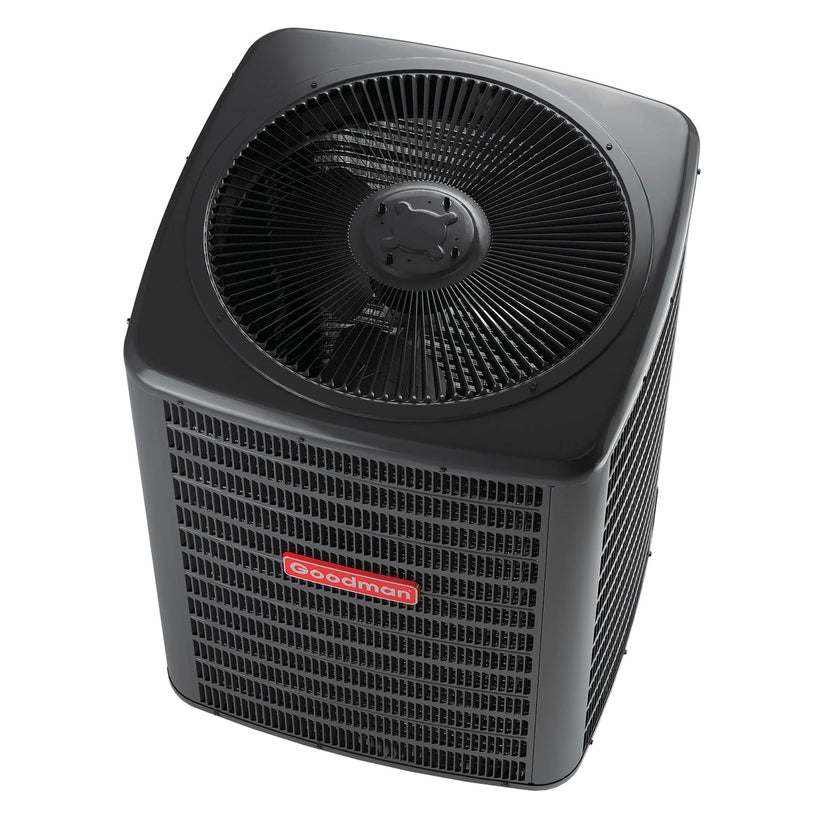

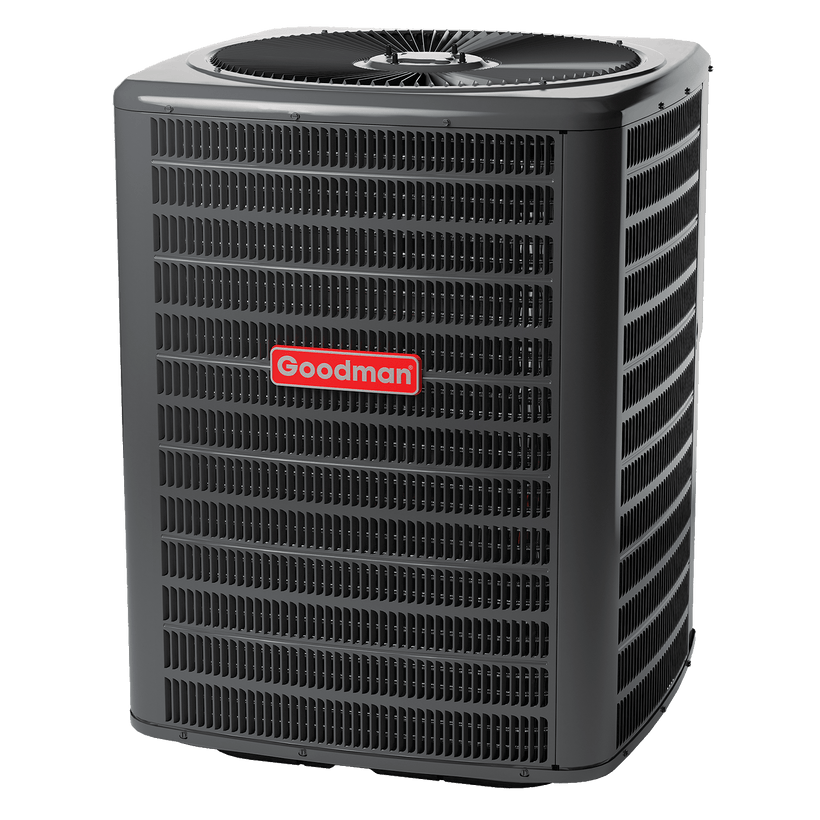

The Goodman GSXC704810 is a high-efficiency split system air conditioner condensing unit up to 17.2 SEER2 loaded with features designed to provide outstanding performance for years to come. Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology.
- Save money and resources with SMARTCOIL™ 5mm copper tubing
- Weather resistant, attractive architectural gray finish on outdoor unit
- Pre-charged with chlorine-free R-410A refrigerant
Standard Features
- Two-Stage Copeland Ultra-Tech scroll compressor
- Quiet two-speed ECM outdoor fan motor
- Integrated communicating ComfortBridge™ Technology continuously monitors system performance for customized indoor comfort.
- Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
- Copeland® ComfortAlert™ built in diagnostics - Advanced diagnostics constantly monitor your air conditioner system, reducing failures and pinpointing trouble spots for a fast fix.
- Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
- Color-coded terminal strip for non-communicating set-up
- Only two low-voltage wires required in communication mode
- Factory-installed filter drier protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
- Factory-installed transformer
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Fully charged for 15’ of tubing length
- Ambient temperature sensors
- Ground lug connection
- AHRI Certified - ETL Listed
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Heavy-gauge galvanized steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard with rust-resistant screws.
- Top and side maintenance access
- Single-panel access to controls with space for field-installed accessories
- Service valves with sweat connections and easy-access gauge ports
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
What’s Included
Your Goodman Air Conditioner from Heat & Cool Comes with:
- GSXC704810 | Outdoor Unit
- Installation Manual
- User’s Manual
- Manufacturer’s Warranty
MANUFACTURER WARRANTY
- 10 Year parts limited warranty
- LIFETIME Compressor limited warranty
Key Specifications
- Goodman
- Two Stages
- 41.625 in
- 208-230 V; 1 Phase; 60 Hz
- 41.625 in
- 10 Year Parts Warranty
- GSXC704810
- 35.5 in
System Specifications
| Certifications | Energy Star Listed / AHRI Certified / ETL Listed / ISO Certified |
|---|---|
| Compressor Stages | Two Stages |
| Compressor Type | Scroll |
| Depth | 41.625 in |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Expansion Device | TXV (Thermal Expansion Valve) |
| Height | 41.625 in |
| Manufacturer Limited Warranty (years) | 10 Year Parts Warranty |
| MCA (Minimum Circuit Ampacity) | 28.3 |
| Model Number | GSXC704810 |
| MOP (Maximum Overcurrent Protection-Breaker) | 45 |
| Motor Type | ECM |
| Must ship freight | Yes |
| Number of Fan Speeds | 2 |
| Refrigerant Type | R-410A |
| Shipping Time | 24 to 72 hours |
| Sound Level | 74 dBA |
| Sound Level | 75 dBA |
| Suction Line Size | 1 1/8" |
| Voltage | 208/230 Volt |
| Width | 35.5 in |
