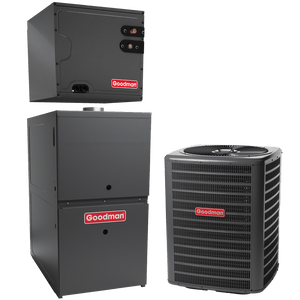

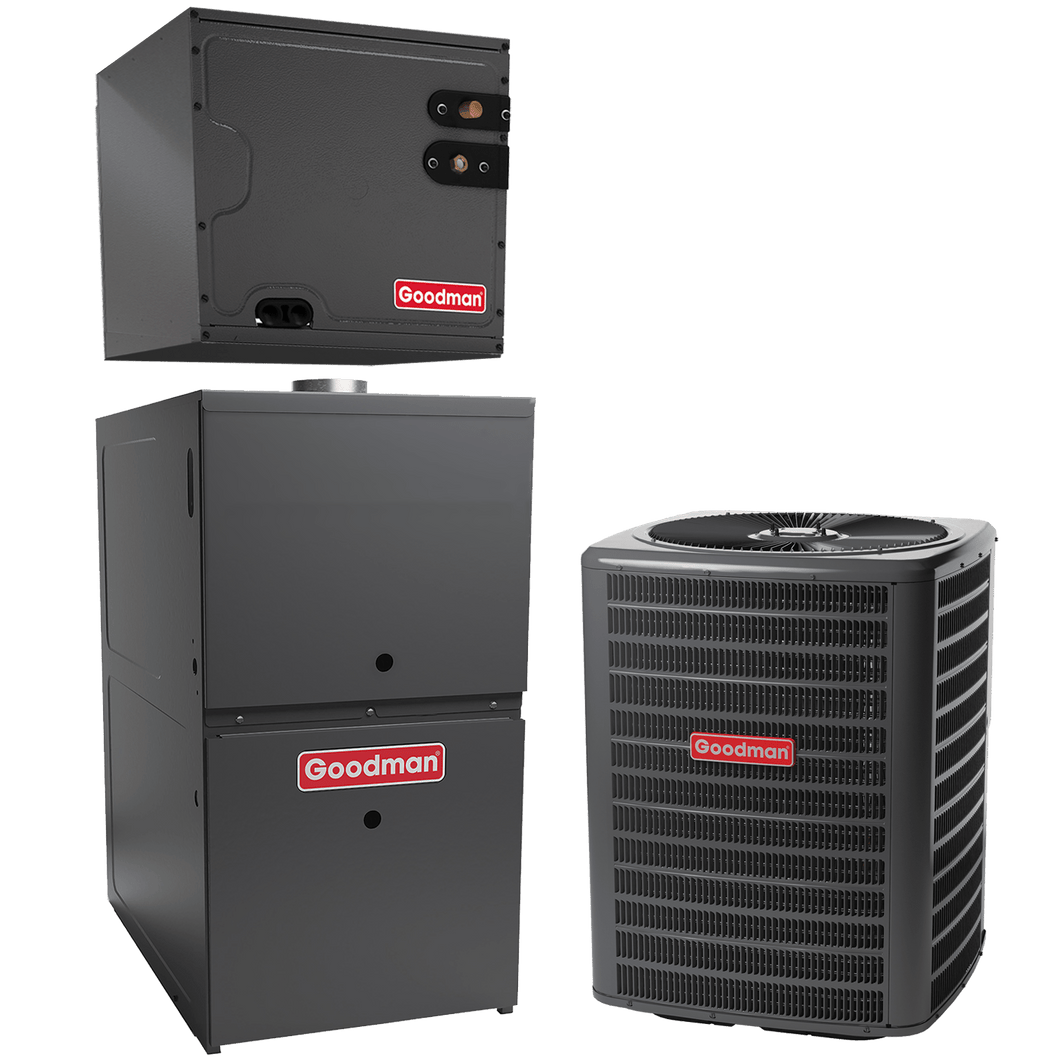

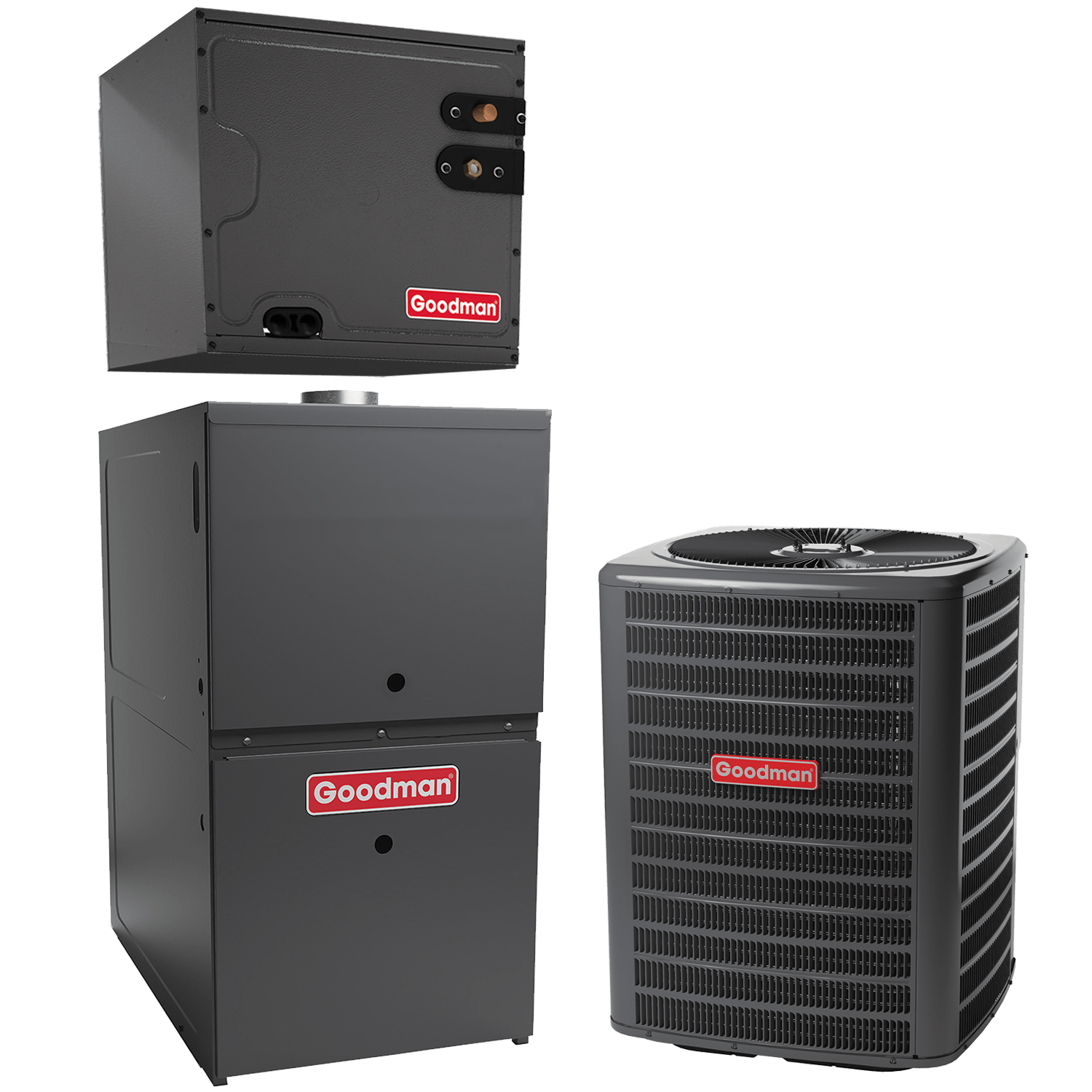

Goodman 1.5 Ton Cooling Air Conditioner 15.2 SEER2 R-32 2-Stage Variable Speed ECM 60,000 BTU Heating Gas Furnace 80% AFUE Upflow 17.5" Cabinet Width

Goodman GLXS4BA1810 + CAPTA2422B3 + GRVT800603BN

Goodman GLSX4M Condenser units use R-32 refrigerant gas. Therefore, they will not work with any R-410A AC equipment.

Goodman brand lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials, and spot-on manufacturing. Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology.

Goodman uses advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that is designed to stay for many years.

GLXS4MA1810 | Outdoor Unit

The Goodman GLXS4MA1810 Energy Efficient Classic, R-32, up to 15.2 SEER2 air conditioner is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower efficiency units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features

Standard Features:

• High Efficiency Scroll Compressor
• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil - 5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• Ground lug connection
• Capacitors with extended life
• AHRI Certified; ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

R-32 is a next generation refrigerant that efficiently carries heat and has lower environmental impact.

Because R-32 efficiently conveys heat, it can reduce electricity consumption up to approximately 10% compared to that of air conditioners using refrigerant R-22. Furthermore, compared to the refrigerants widely used today such as R-22 and R-410A, R-32 has a global warming potential (GWP) that is one-third lower and is remarkable for its low environmental impact.

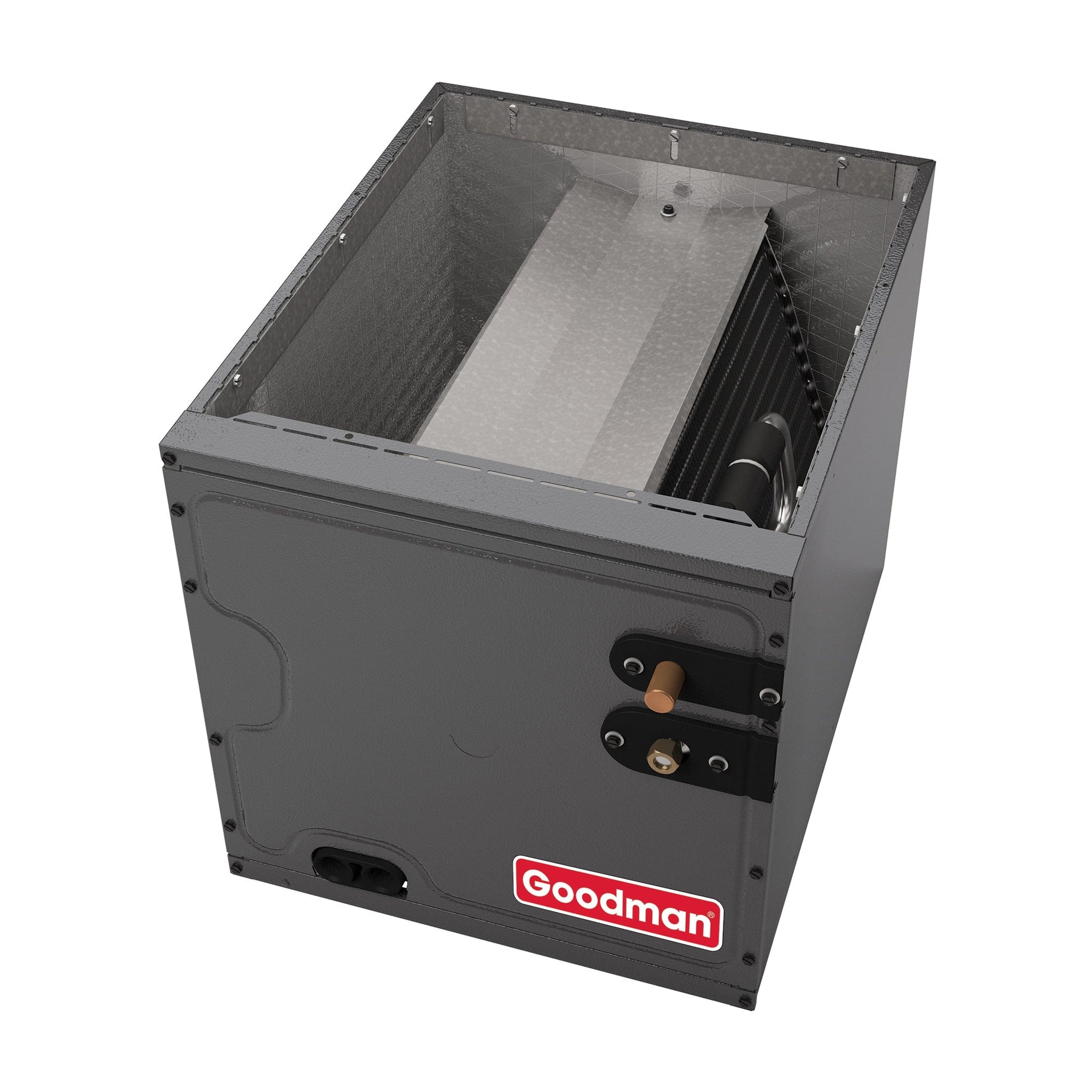

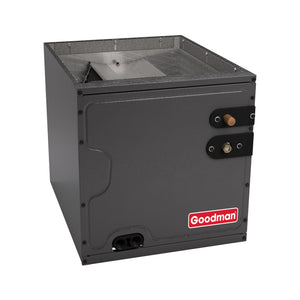

CAPTA2422B3 | Upflow/Downflow Cased Coil

Goodman air handlers and coils have features designed to provide outstanding performance. By using advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend you will love for many years.

A TIME-TESTED SINGLE METAL SOLUTION

The All-Aluminum 17.5” width CAPTA2422B3 evaporator A coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. It is an evaporator coil designed with many features and benefits to help create great value for enhanced indoor comfort.

• Aluminum Tube and Aluminum Fin Coil Construction – Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
• Grooved Aluminum Tubing – Offers increased surface area for efficient heat transfer performance by the unit’s refrigerant.
• TXV Thermostatic Expansion Valve The CAPTA has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for cooling and heat pump applications.
• Initial Pressure-Leak Test – To ensure high levels of product quality, coils are pressure tested during assembly. It is just the first step in three leak test processes to help ensure a high-quality product.
• Secondary Pressure-Leak Test – Before the coils leave the assembly line, a secondary pressure-leak test is conducted with hand-held devices to check brazed joints.
• Hound-Dog’ Vacuum Test– Coils undergo automated testing for leak ‘sniffing’ during the ‘hound-dog’ vacuum test.

Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CHPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• AHRI certified; ETL listed


GRVT800603BN | Gas Furnace 80% AFUE Downflow

Goodman gas furnaces simply work the way they are supposed to, making each one a thing of beauty.

The Goodman ® brand GRVT800603BN is loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy-efficient warming trend that is designed to stay for many years.

Distinctive, Heavy-Duty Heat Exchanger Technology – Constructed from tubular aluminized-steel, the primary heat exchanger is designed for outstanding durability and heat transfer. The use of wrinkle bend technology maintains the wall strength of the tubular design and aids in the efficient transfer of heat.

Standard Features

• Two-stage gas valve provides quiet, economical heating
• Efficient and quiet multi-speed ECM circulator motor
• SureStart® Silicon Nitride igniter designed for long igniter life
• Self-diagnostic control board
• Low constant fan speed circulates air throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant models available
• Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).

• AHRI certified; ETL listed

Cabinet Features

• Installation:
  • GR9S80 - Upflow, Horizontal Left or Right
  • GD9S80 - Downflow, Horizontal Left or Right
• Convenient left or right connection for gas and electrical service
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Foil faced insulated heat exchanger

Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime Heat. Exchanger Limited Warranty (good for as long as you own your home) and 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Québec. The duration of warranty coverage in Texas and Florida differs in some cases.

What’s Included
Your Goodman Air Conditioner from Heat & Cool Comes with:

• GLXS4MA1810 | Outdoor Uni
• CAPTA2422B3 | Evaporator coil
• GRVT800603BN | Gas Furnace Indoor Unit
• Installation Manual
• User’s Manual
• Manufacturer’s Warranty

MANUFACTURERS WARRANTY

• LIFETIME. Heat Exchanger Limited Warranty
• 10 Year Parts Warranty
