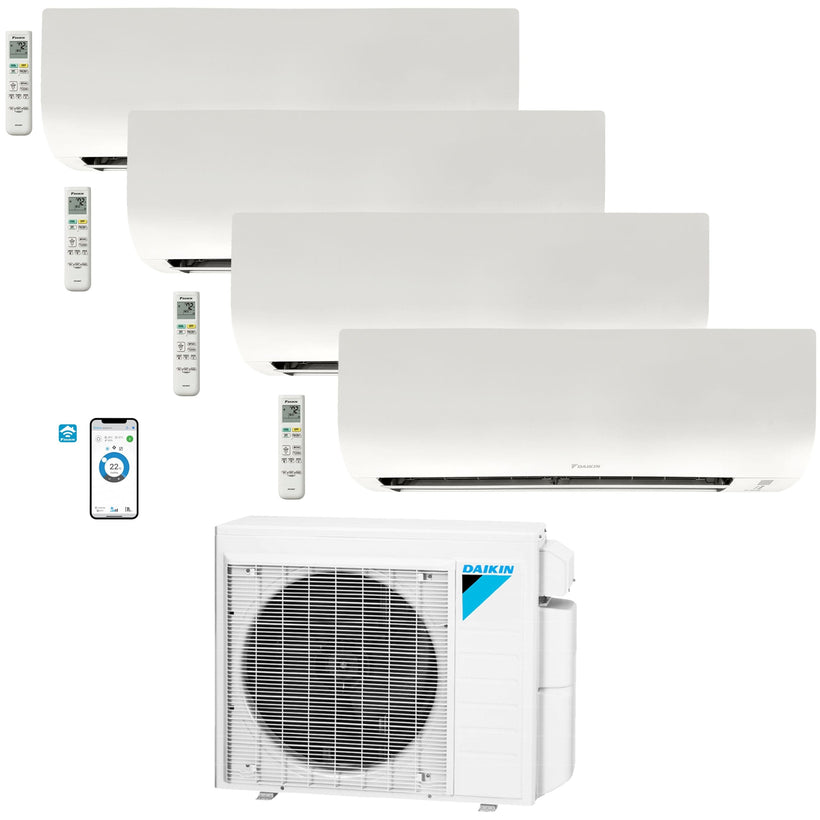

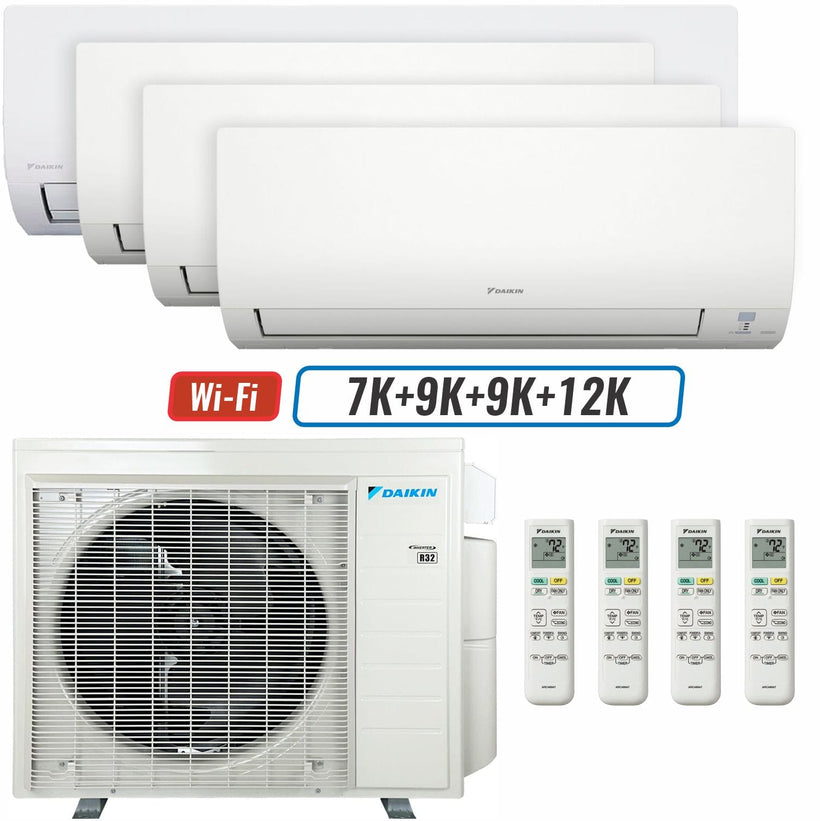

Daikin 4-Zone Wall Mounted Ductless Mini-Split 36,000 BTU Heat Pump Air Conditioner 7k+9k+9k+12k - 20 SEER2 R32 Wi-Fi Enabled

DAIKIN 4-ZONE MXM FTXV SERIES (4MXM36AVJU9 + CTXV07AVJU9 + FTXV09AVJU9 + FTXV09AVJU9 + FTXV12AVJU9)

Daikin has been a leading innovator and worldwide provider of advanced, high-quality air conditioning and heating solutions for residential and commercial applications for more than 90 years. The new Super Multi 4MXM multi-split system utilizes eco-friendly R-32 refrigerant, delivering higher energy efficiency and a lower global warming impact than conventional R-410A systems.

Homeowners often face challenges maintaining comfortable temperatures across different rooms, leading to energy waste in unused spaces. The 4MXM Series provides a solution, enabling independent temperature control in up to four separate zones with a single outdoor unit. With flexible indoor unit options - including wall-mounted, concealed slim-duct, ceiling cassette, and floor-mounted styles - Daikin’s Multi-Zone System meets a variety of residential and commercial comfort needs. The new 4MXM Series is designed and engineered to deliver years of consistent indoor comfort, assuring you premium Comfort for Life.

• 4MXM Energy Efficiency (Non-Ducted)
• 20 SEER2, 9.5 HSPF2, 10 EER2, and 1.8 COP.
• Eco-Friendly Refrigerant:
• Uses R-32 for higher efficiency and lower environmental impact.
• 12-Year Parts Warranty: Industry-leading coverage for lasting peace of mind.
• Turbo Mode: Quickly cools or warms up rooms to the desired temperature.
• Independent Control: Each unit operates independently, allowing tailored comfort in each zone.

DESIGN YOUR SYSTEM AS PER YOUR NEEDS

The Daikin MXM outdoor condenser is compatible with wall-mounted, concealed duct, floor-mounted, and ceiling cassette indoor-type units, allowing you to mix and match unit types to design a system that perfectly fits your needs at home or your business.

SMART COMFORT, WHEREVER YOU ARE

With built-in Wi-Fi, control your Daikin system remotely through the Daikin One Home app. Instantly adjust temperature, modes, and settings for personalized comfort, all from your smartphone or with voice commands via Alexa and Google Home.

LOW AMBIENT HEATING AND COOLING

The MXM Multi Split Heat Pump can provide heating or cooling in any environment. It will continue to operate optimally even in colder climates down to 5ºF for heating and up to 115ºF for cooling.

SMART INVERTER TECHNOLOGY

Daikin's Smart Inverter Technology ensures efficient and consistent room conditions with reduced energy consumption, eliminating temperature fluctuations for continuous comfort.

BUILT-IN ADVANCED FILTRATION SYSTEM

Featuring a Titanium Photocatalytic air purifying filter, this system traps microscopic particles, removes odors, and deactivates bacteria and viruses, ensuring clean, fresh air in every room.

QUIET OPERATION

Utilizing inverter technology to maintain comfort settings, the Daikin Multizone operates quietly with Indoor Sound Pressure as Low as 24 dB(A) and Outdoor Sound Pressure as Low as 56dB(A).

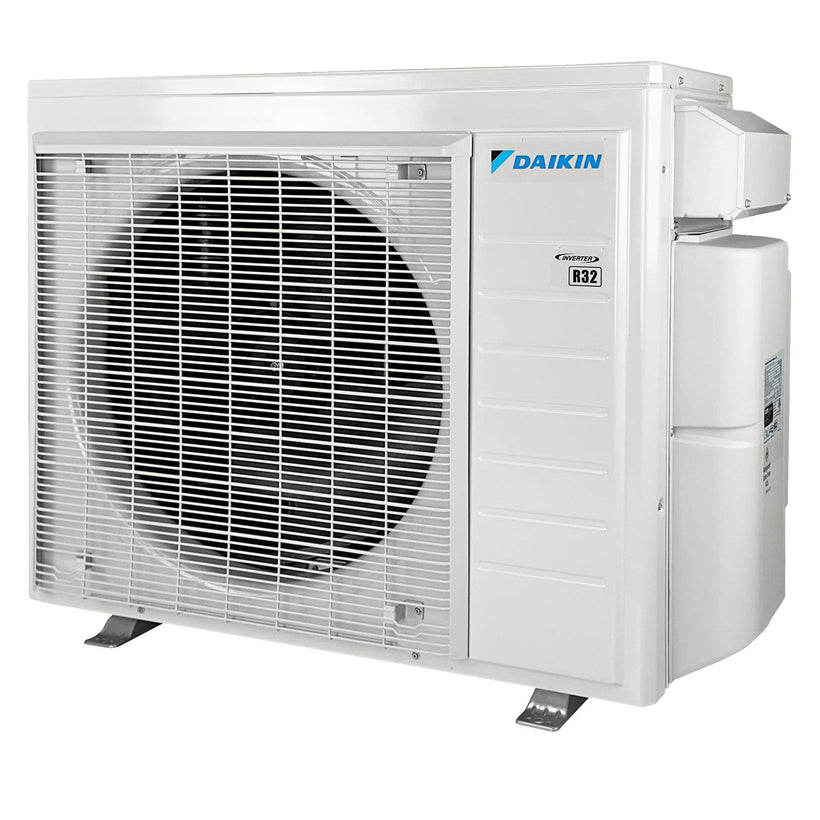

4MXM36AVJU9 - MXM OUTDOOR HEAT PUMP UNIT - 36,000 BTU

The new Daikin 4MXM36AVJU9 - 36,000 BTU SEER2 MXM Series condenser unit delivers powerful home comfort and energy efficiency in a space-saving design. Perfect for projects requiring versatility, this unit connects two, three, or four indoor units to a single outdoor unit, compatible with various Daikin indoor models. With advanced features like heat pump capabilities, anti-corrosion treatment for the outdoor heat exchanger, quiet operation, inverter power control for enhanced efficiency, and automatic defrosting, this condenser unit ensures exceptional heating and cooling performance while maintaining a serene environment. Backed by an industry-leading 12-year limited warranty, it’s designed for reliable, long-lasting comfort.

ADDITIONAL FEATURES

• Heating Range 5°F - 59.9°F
• Cooling Range 14°F - 115°F
• Pre-charged up to 131 ft. of Liquid Line.
• Auto Restart after Power Failure
• Multi-Zone comfort: One outdoor unit connects up to four separate fan coils individually controlled.
• Quick and easy installation
• Precision temperature control for individual rooms
• Space-saving design
• Quiet operation
• Fully optimized for R-32 refrigerant
• World renowned Daikin Inverter "Variable-Speed" compressor technology

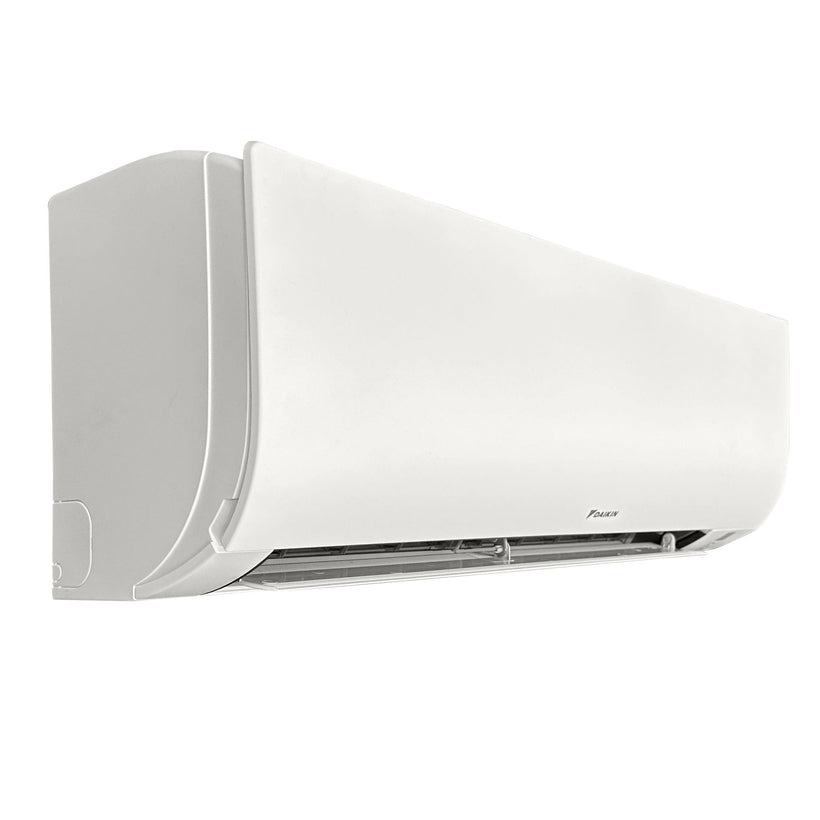

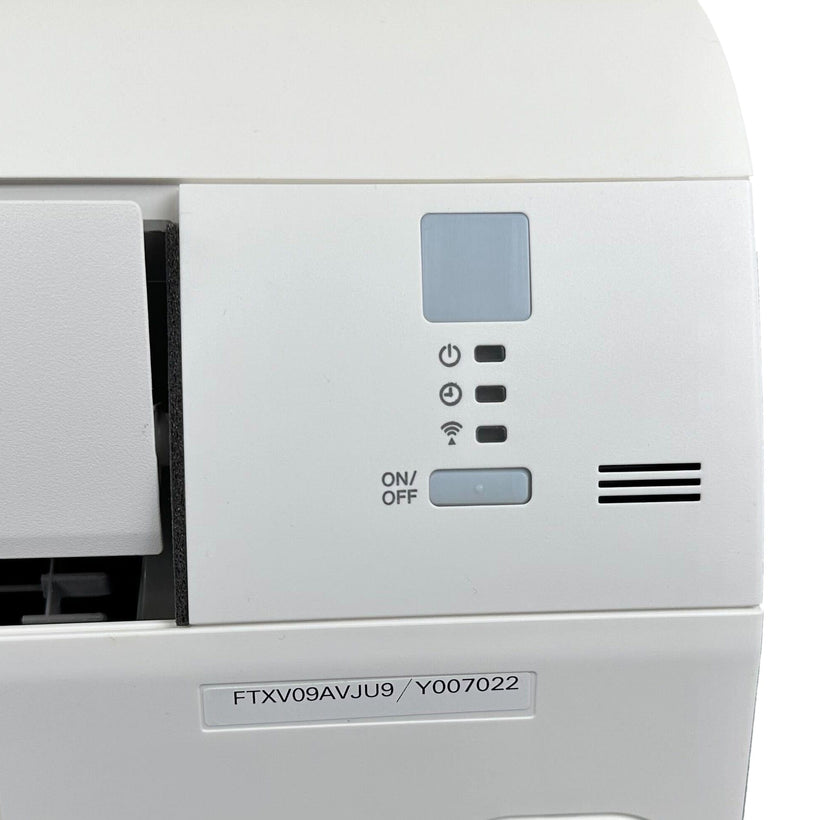

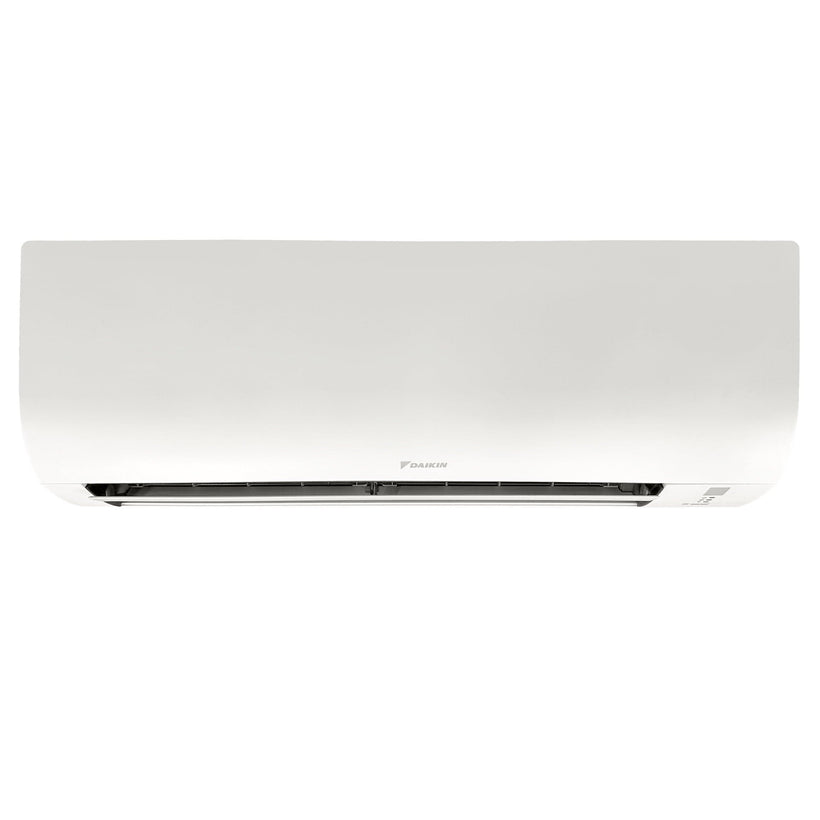

CTXV/FTXV | WALL MOUNT INDOOR UNIT

The Daikin CTXV/FTXV Multi-Zone Indoor Unit is a cutting-edge, wall-mounted system crafted to redefine your indoor comfort experience. With a sleek, stylish design that complements any decor, this unit includes a dry program to effectively reduce humidity without altering room temperature.
Operating as quietly as 24 dB(A), it also features built-in Wi-Fi for remote control, comfort air flow operation, and a Titanium Photocatalytic air purifying filter to ensure clean, fresh air. Additional features like the auto fan speed, program dry function, and ECONO Mode provide advanced control and energy savings, making this unit an effortless, stylish choice for modern comfort.

CTXV07AVJU9 FEATURES

• Nominal Capacity 7,000 BTU
• Wireless LAN connection
• Indoor sound pressure as low as 24 dB(A)
• Power-airflow flaps / Wide-angle louvers
• Titanium Photocatalytic Air Purifying Filter
• Auto-Swing
• Program Dry Operation
• Econo Mode
• Powerful Operation Mode

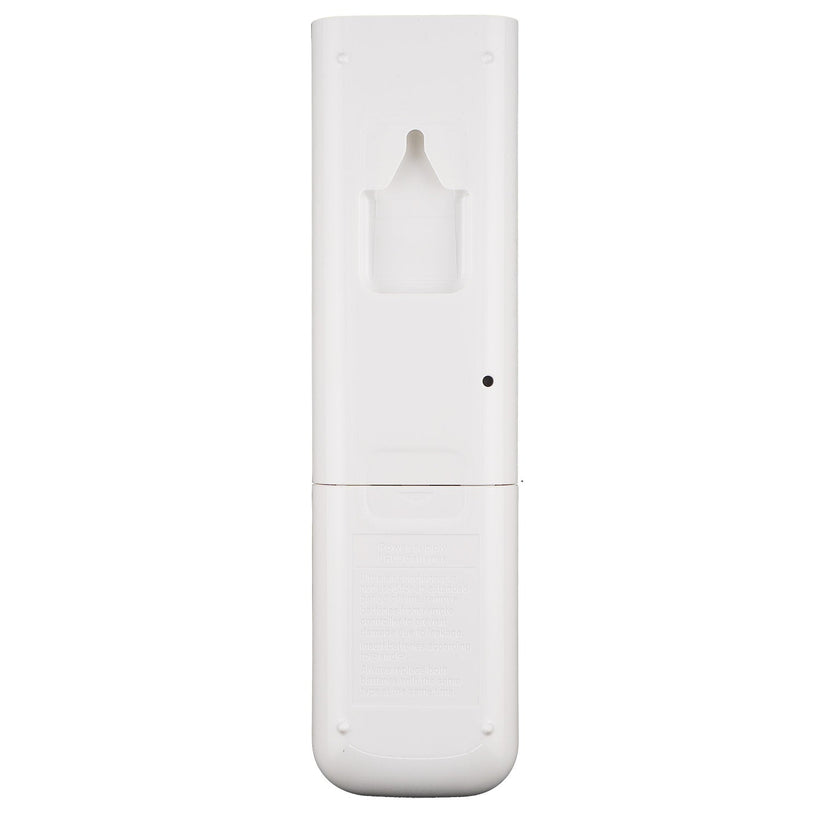

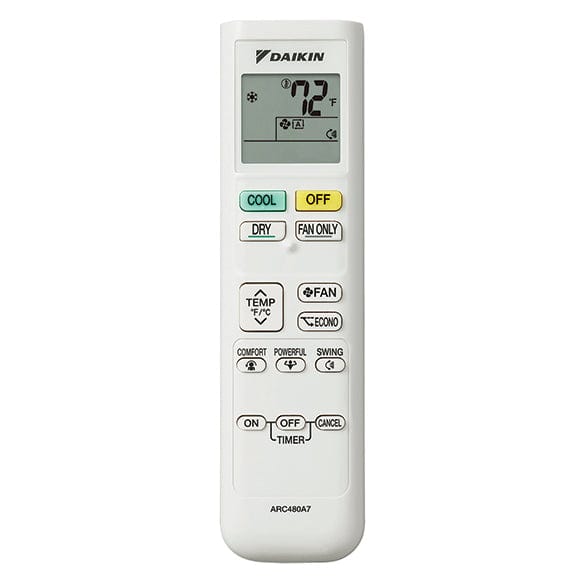

• Backlit Wireless Remote Controller
• Auto-Changeover

FTXV09AVJU9 FEATURES

• Nominal Capacity 9,000 BTU
• Wireless LAN connection
• Indoor sound pressure as low as 24 dB(A)
• Power-airflow flaps / Wide-angle louvers
• Titanium Photocatalytic Air Purifying Filter
• Auto-Swing
• Program Dry Operation
• Econo Mode
• Powerful Operation Mode
• Backlit Wireless Remote Controller
• Auto-Changeover

FTXV12AVJU9 FEATURES

• Nominal Capacity 12,000 BTU
• Wireless LAN connection
• Indoor sound pressure as low as 24 dB(A)
• Power-airflow flaps / Wide-angle louvers
• Titanium Photocatalytic Air Purifying Filter
• Auto-Swing
• Program Dry Operation
• Econo Mode
• Powerful Operation Mode
• Backlit Wireless Remote Controller
• Auto-Changeover

WHAT’S INCLUDED

Your Daikin ductless multi-zone inverter air conditioner heat pump system comes with:

• 4MXM36AVJU9 | Outdoor Unit
• CTXV07AVJU9 | Indoor Unit
• FTXV09AVJU9 | Indoor Unit (2)
• FTXV12AVJU9 | Indoor Unit
• Manufacturer’s Warranty
• User’s Manual
• Installation Manual
