Elevate your expectations and get more out of your home’s indoor comfort system performance
As you think about the functionality of your home's indoor comfort system, the Daikin brand is ready to help you
achieve control, energy efficiency and long-term peace of mind. Take that attention to quality one step farther by choosing a Daikin brand energyefficient ductless split system. We have designed and engineered all of our products to provide years of consistent indoor comfort – delivering you and your family premium Comfort for Life.
- Energy Efficient – 19.5 SEER
- 12 Year Parts Limited Warranty
- Turbo mode cools or warms up the room fast
A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. The Daikin brand 20 Series is designed to blend in discreetly with any home design and are ideal for single rooms.
Smart inverter technology
Integrated with an inverter variablespeed compressor, 20 Series ductless systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption (compared to traditional fixed-speed ducted systems).
This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
Experience comfort
Designed for Comfort for Life, the Daikin 20 Series units include features to ensure a comfortable experience every moment.
From the wide angle louver design to the auto-swing and comfortable mode controller settings, effective heating and cooling is ensured throughout the space.
Our expertise makes life easier for you, allowing you to control your system via a smartphone app or a user-friendly remote control.
Quiet operation
Utilizing inverter technology to maintain comfort settings, Daikin systems most often operate at low speeds with indoor sound levels as low as 19 decibels (dB) and outdoor sound levels as low as 50 dB. Activate the indoor unit quiet operation and sound levels drop by 2-3 dB for gentler heating and cooling and quiet operation.
Additional features
- Energy Efficient – 19.5 SEER
- Undisturbed Comfort
- Advanced Filtration
- Wireless Control
Applications
- Primary living areas (master bedrooms and living rooms)
- Hot or cold rooms
- Rooms with poor air flow
- Renovations and remodeling
- Basements, attics and garages
- New construction
WHAT’S INCLUDED

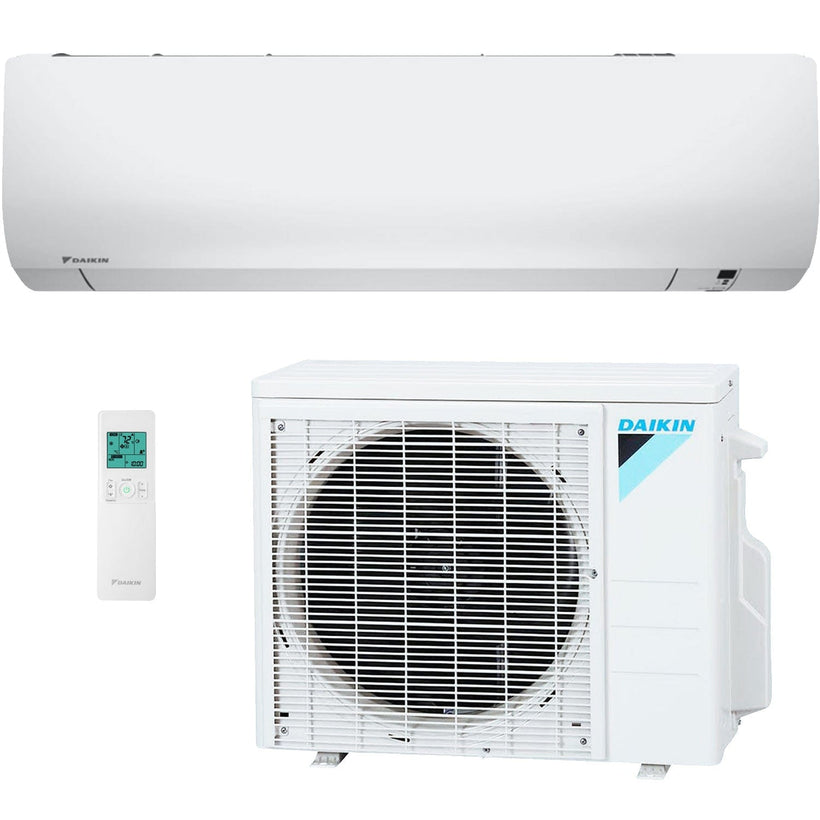

Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:

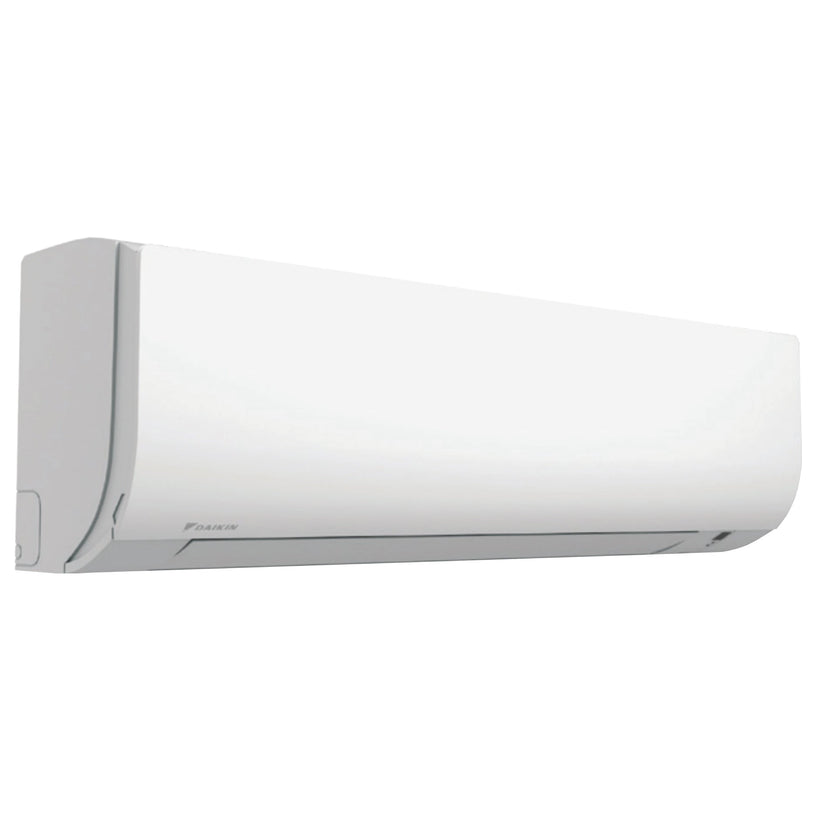

- FTX12WMVJU9 | Indoor Unit

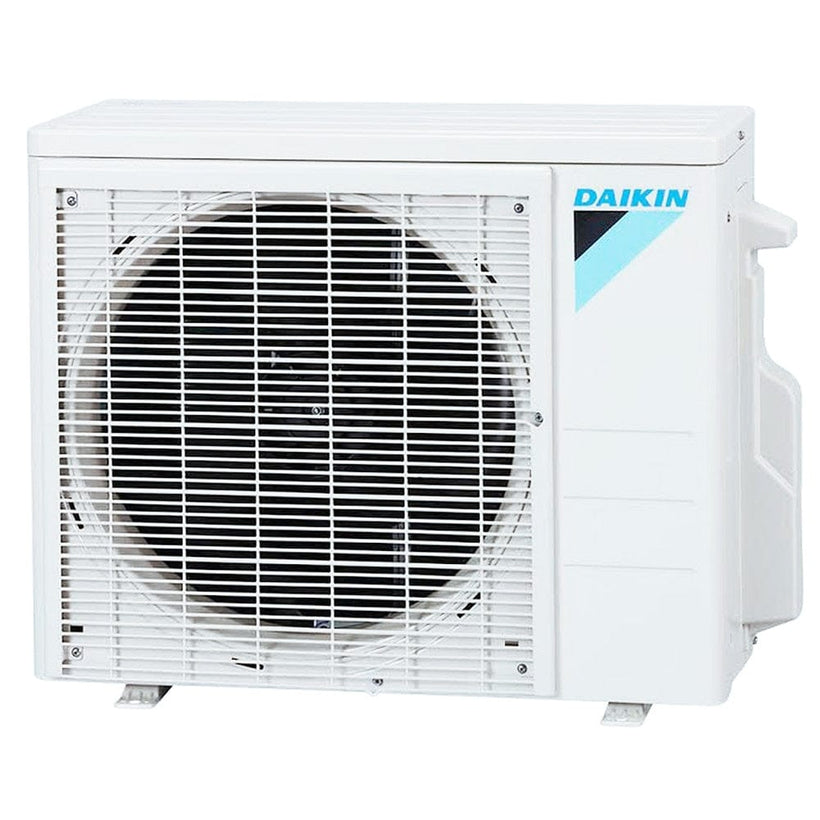

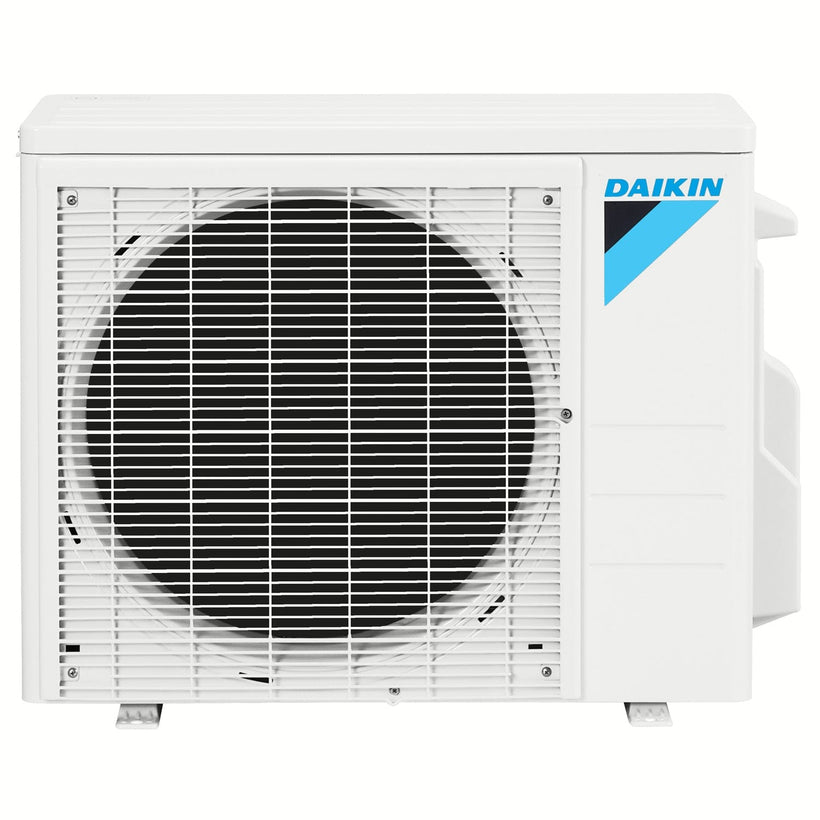

- RXL12WMVJU9 | Outdoor Unit

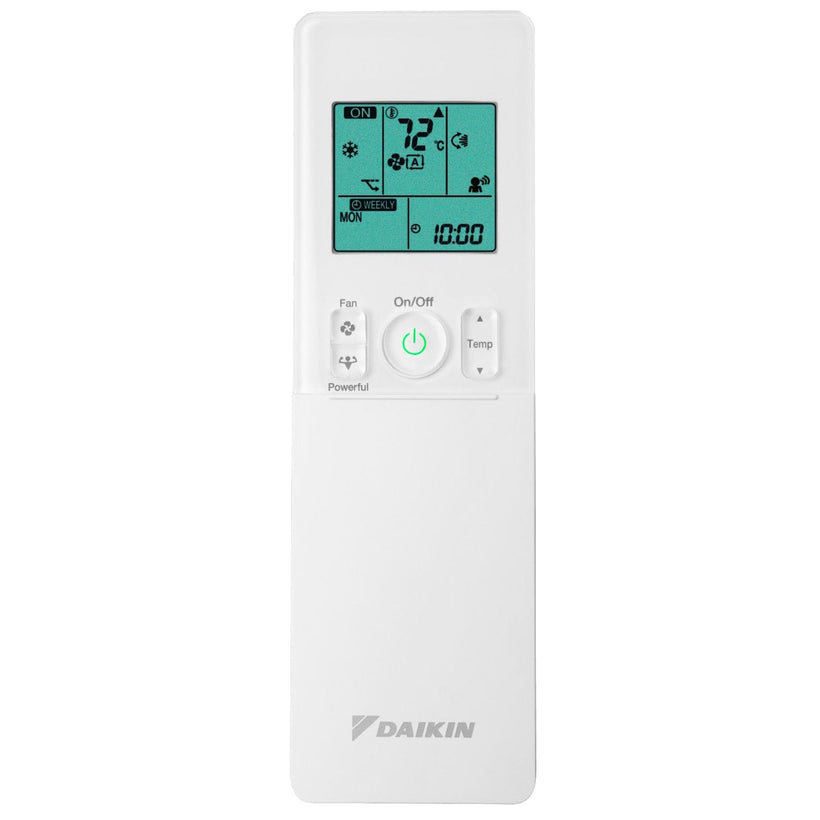

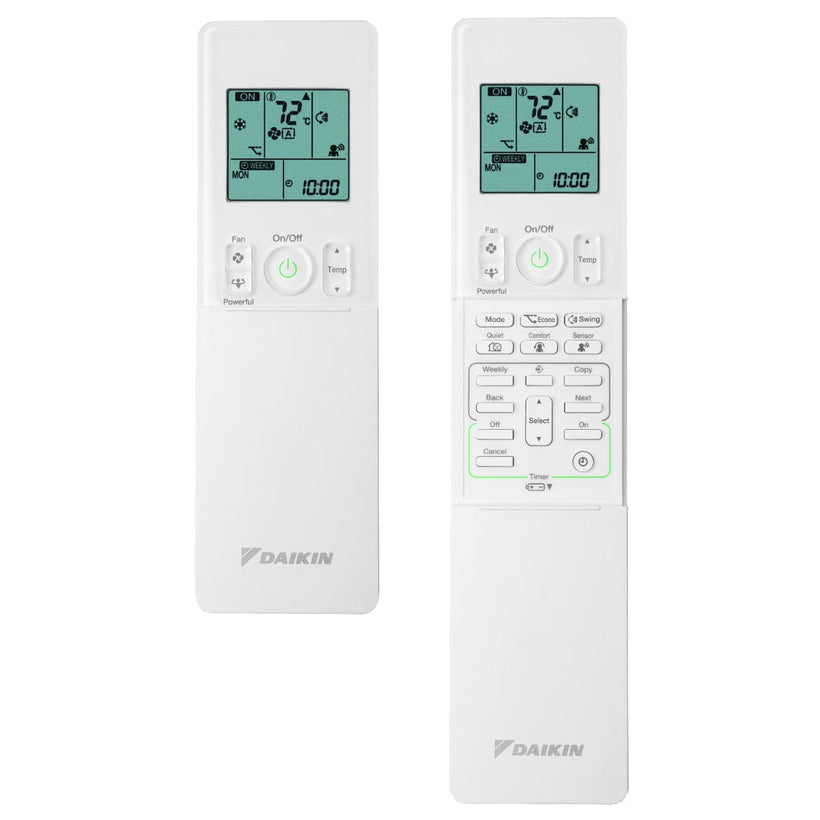

- Remote control
MANUFACTURER WARRANTY
- 12 year parts limited warranty
Downloads
- DAIKIN AURORA SERIES - BROCHURE
- DAIKIN FTX12WMVJU9-RXL12WMVJU9 - TECHNICAL SPECIFICATIONS
- DAIKIN FTX09-12-15 SERIES - INSTALLATION MANUAL
- DAIKIN FTX09-12-15 SERIES - OPERATION MANUALS
- DAIKIN RLX09-12 SERIES - INSTALLATION MANUAL
- DAIKIN RLX-W SERIES - SERVICE MANUALS
- DAIKIN AURORA SERIES - LIMITED WARRANTY
Key Specifications
- Daikin
- 550 SqFt
- 208-230 V; 1 Phase; 60 Hz
- Yes
- 12 Year Parts Warranty
- Wall Mounted
- FTX12WMVJU9
- RXL12WMVJU9
- 1
- 19.5
- 88 lbs
- Yes
Bundle includes 2 items
Daikin 12,000 BTU RXL12WMVJU9 20 SEER2 Horizontal Discharge Heat Pump
Model Number: RXL12WMVJU9 SKU: HCDNA2847Daikin 12,000 BTU FTX12WMVJU9 - Mini-Split Wall Mount Fan Coil Unit
Model Number: FTX12WMVJU9 SKU: HCDNA2858System Specifications
Application Area | 550 SqFt |
---|---|
Special Promo Label | HYPERHEAT |
Certifications | Energy Star |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Energy Star | Yes |
Manufacturer Limited Warranty (years) | 12 Year Parts Warranty |
Mounting Type | Wall Mounted |
Indoor Model Number | FTX12WMVJU9 |
Outdoor Model Number | RXL12WMVJU9 |
Number of Zones (Rooms) | 1 |
Must ship freight | Yes |
Efficiency (SEER) | 19.5 |
Shipping Time | 24 to 72 hours |
System Shipping Weight | 88 lbs |
Technology | Inverter |
Voltage | 208/230 Volt |
Wifi Capability | Yes |
Specifications for model: FTX12WMVJU9
Mounting Type | Wall Mounted |
---|
Specifications for model: RXL12WMVJU9
Model Number | RXL12WMVJU9 |
---|
