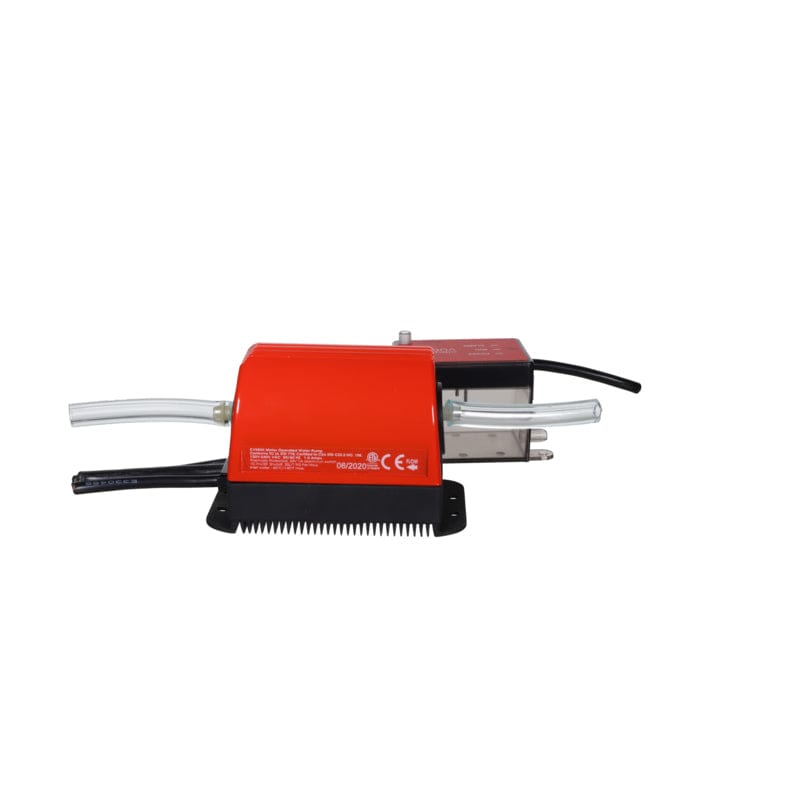

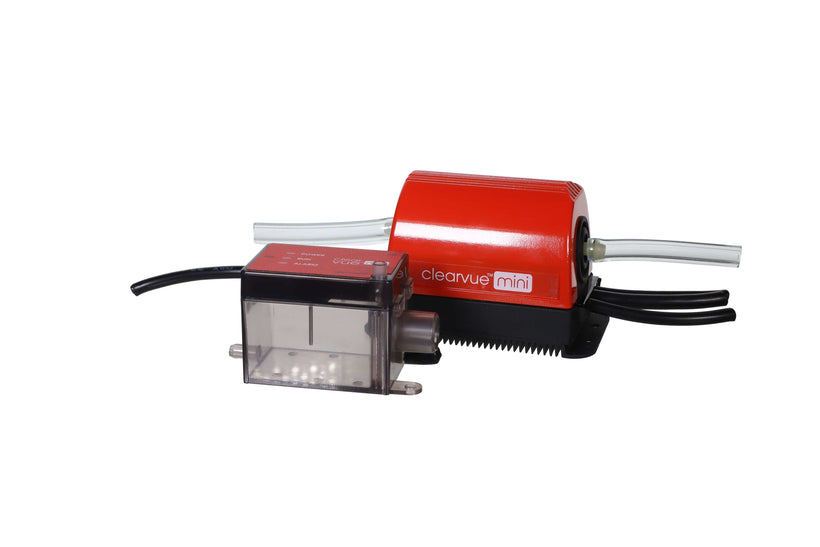

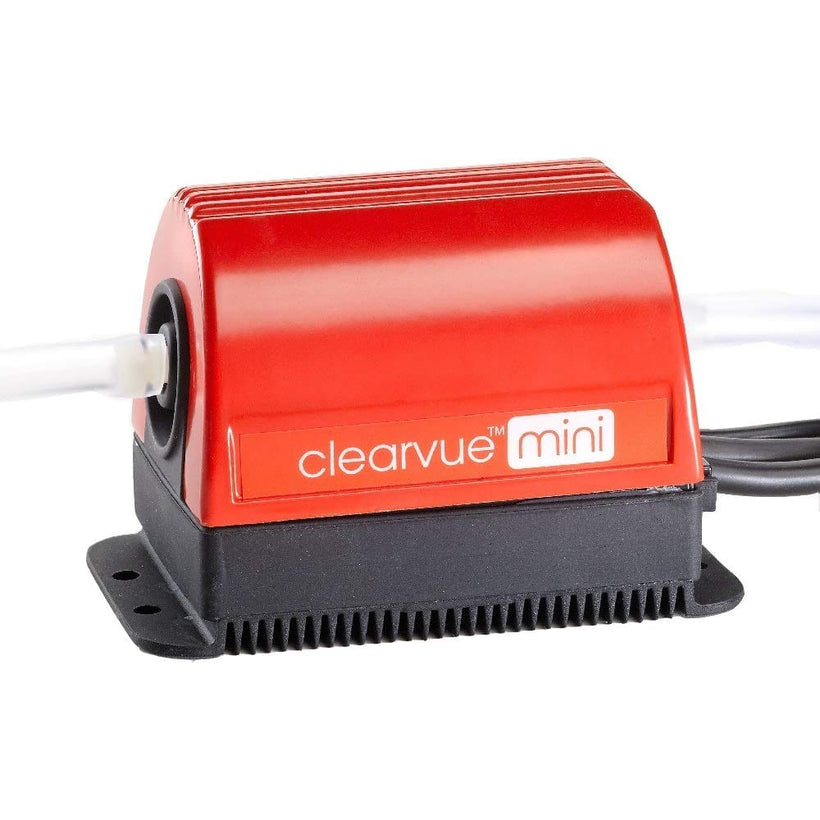

The Asurity® CVMINI Mini-Split Condensate Pump specifically designed for minisplit systems, is super quiet and compact. Flexible installation options, Floatless Sensor™ and Variable Speed and Lift technology provides great performance in a small package.
This pump is designed to automatically remove the condensate water that collects in the primary drain pan of mini-split air conditioners. The pump is equipped with a tank that collects the water from the drain tray in the appliance. When the water collected in the tank reaches a sufficient level, the pump switches on and pumps the water to a remote location.
data-stringify-type="bold">Advantages
The Asurity™ CVMINI Mini-Split Condensate Pump specifically designed for mini-split systems, is super quiet and compact. Flexible installation options, Floatless Sensor and Variable Speed and Lift technology provides great performance in a small package. Asurity™ - Your Complete System for Condensate Management.
Features
The Variable Speed and Lift in ClearVue™ Mini assures that the pump is running only as fast as is needed to lift the condensate water to the height needed.
The Floatless Sensor™ eliminates many of the mechanical problems associated with conventional condensate pumps.
Safety Switch: 5A at 230 VAC
Compact Size with Piston Technology
General Specifications
Temperature Rating: Continuous duty 140°F
Rated Voltage: 120/230 VAC – 50/60Hz
Rated Current Draw: 1.0 amps
Input Type: 3 Cond. Jacketed Flex. PVC
Maximum Lift Height: Variable between 0 to 35 feet
Flow Rate @ Zero Head: 8 gallons per hour
Maximum Rated Inlet Flow Rate: 3.38 fl oz (100 mL) per minute
Inlet Height from Base: 0.5” (1.3 cm)
Suction Lift: 2m/6.5’ (performs best at 3’, must be primed to provide maximum suction lift)
