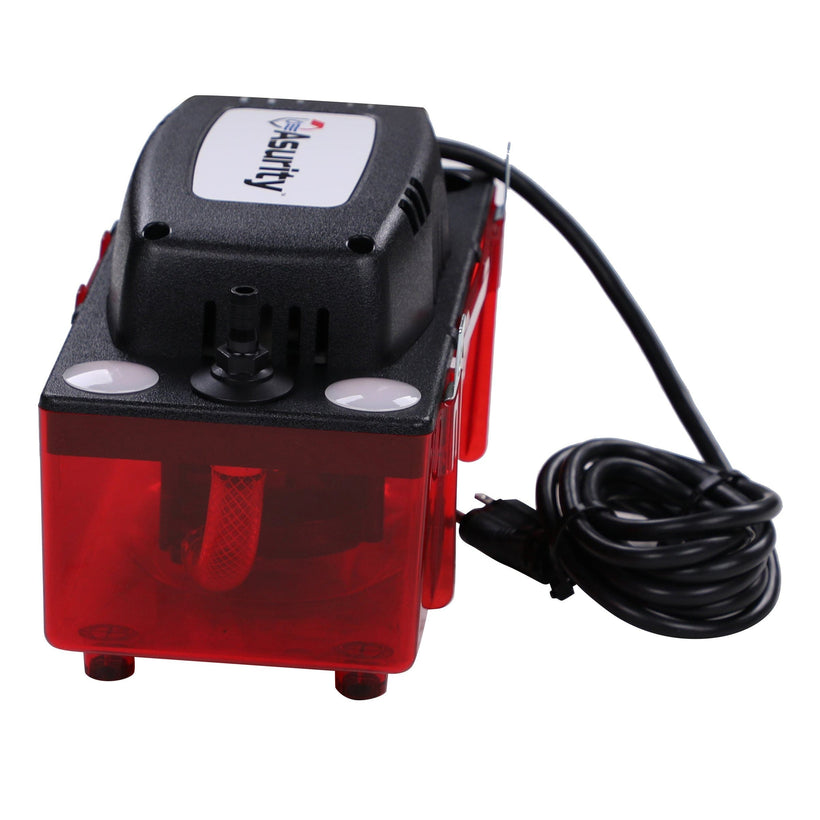

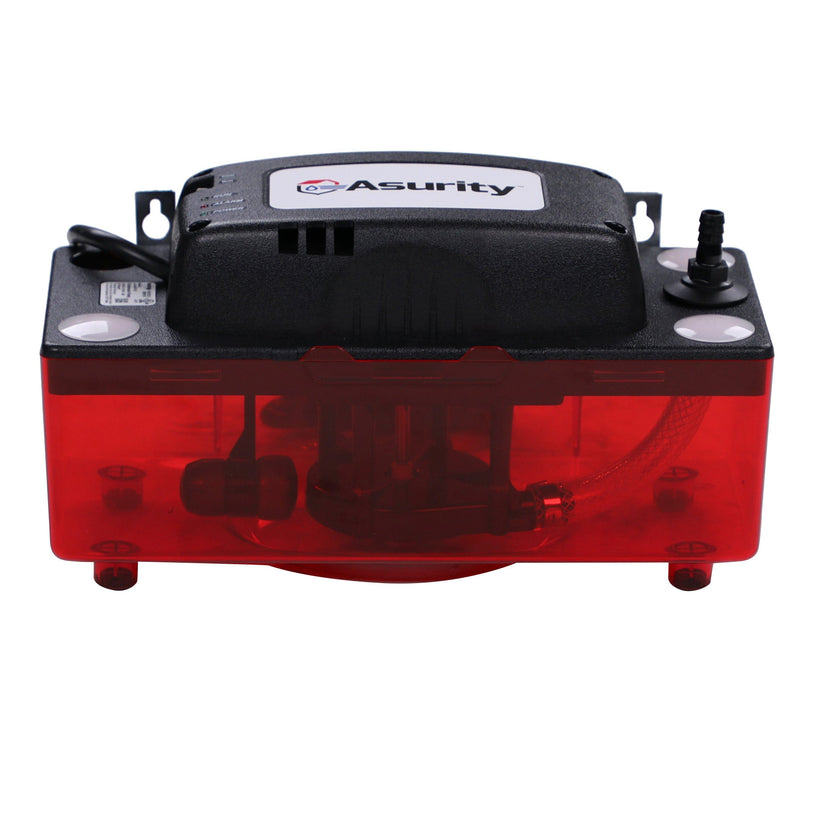

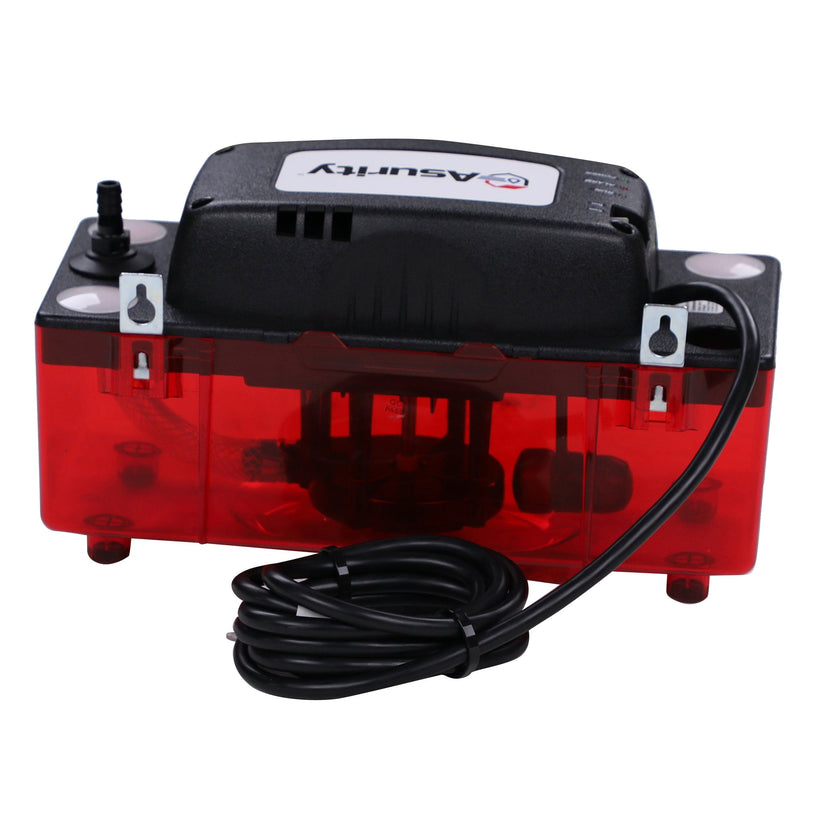

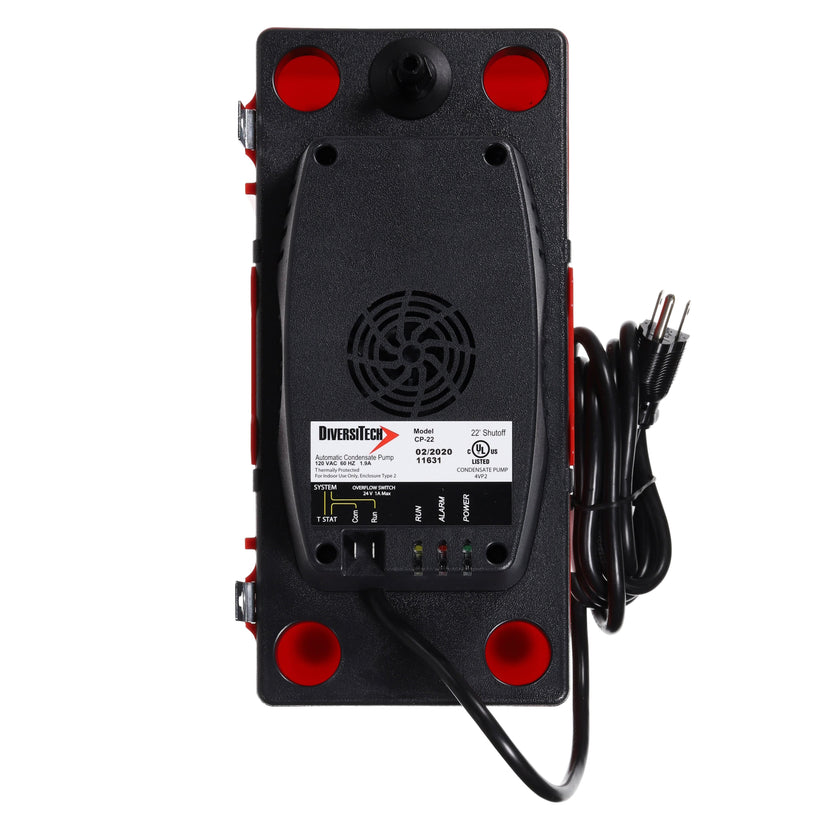

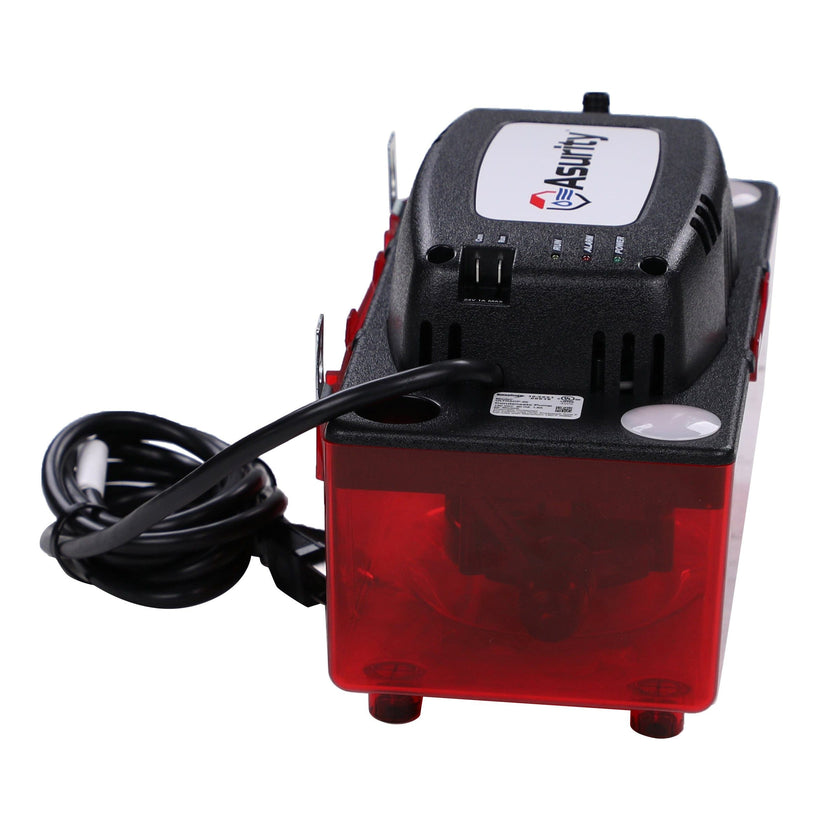

ULTRACP-22T-230 230V CONDENSATE PUMP - ASURITY

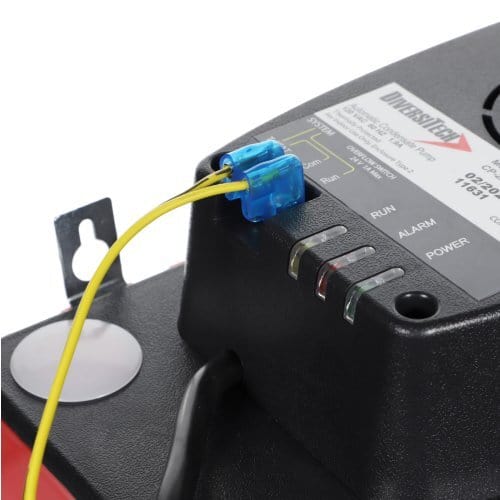

Asurity™ ULTRACP-22T series pumps beat the industry standard of 20’ lift height by 2 feet and comes with innovative features such as: translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature. Includes 20 feet of 3/8 inch tubing. Asurity™ - Your Complete System for Condensate Management.
Product Features & Benefits
- Translucent Tank for Easy & Fast Inspection
- Includes 20 feet of 3/8 in. discharge tubing
- LED Indicators Confirm Pump Status
- Built-in Safety Overflow Switch
- Removable Check Valve for Easy Cleaning
- Handles Condensate up to 160 Degrees F
Specifications
- Amps: 1.0
- Floatless Sensor: No
- Hertz: 60
- High Level Switch: Yes
- Horsepower: 1/30
- Max Condensate Temp. (Degrees): 160°F
- Max Flow Rate (GPH): 96
- No. of Inlets: 4
- Self-Cleaning: No
- Tank Capacity (Gal.):. 5
- Variable Speed and Lift: No
- Volts: 230
Inclued Accesories
- Instruction booklet
- Metal hang tabs
- 4´remote shutoff leads w/insulated terminals
- Polyethelene inlet covers (3)
Key Specifications
- Asurity
- 6 in
- 6.75 in
- ULTRACP-22T-230
- 12 in
System Specifications
| Depth | 6 in |
|---|---|
| Height | 6.75 in |
| Model Number | ULTRACP-22T-230 |
| Tank Capacity | 1/2 gallon |
| Voltage | 230VAC / 230VAC / 60hHz |
| Weight | 5.59 lb |
| Width | 12 in |
