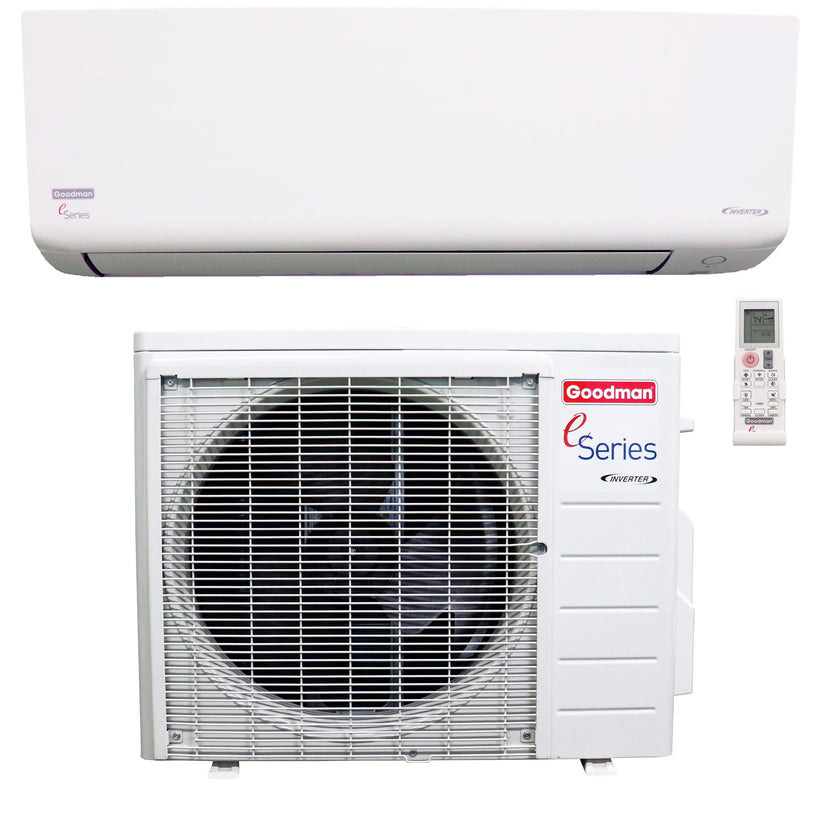

Goodman E-Series Single Zone Mini Split Heat Pump System
As you think about the functionality of your home's indoor comfort system, the Goodman brand mini-split is ready to help you achieve ambient control, energy efficiency and long-term peace of mind. Take that attention to quality one step farther by choosing a Daikin brand energy efficient ductless split system. We have designed and engineered all of our products to provide years of consistent indoor comfort – delivering you and your family premium Comfort for Life..
- Energy Efficient – 18 SEER2, 9 HSPF
- 5 Year All Parts Warranty
- Turbo mode cools or warms up the room fast
A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. The Goodman brand E-Series is designed to blend in discreetly with any home design and are ideal for single rooms.

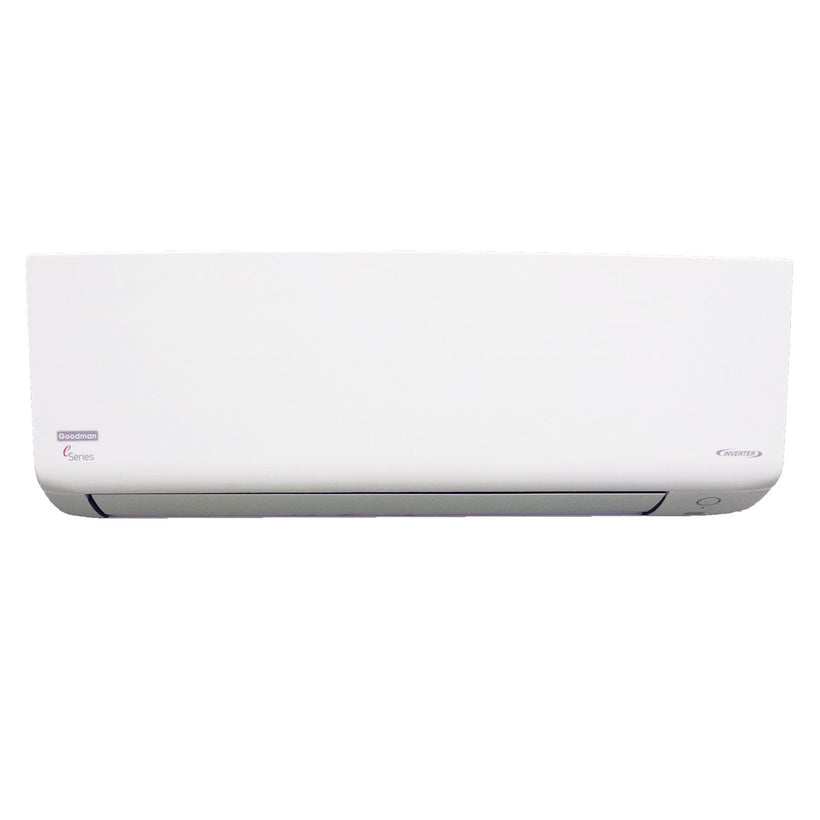

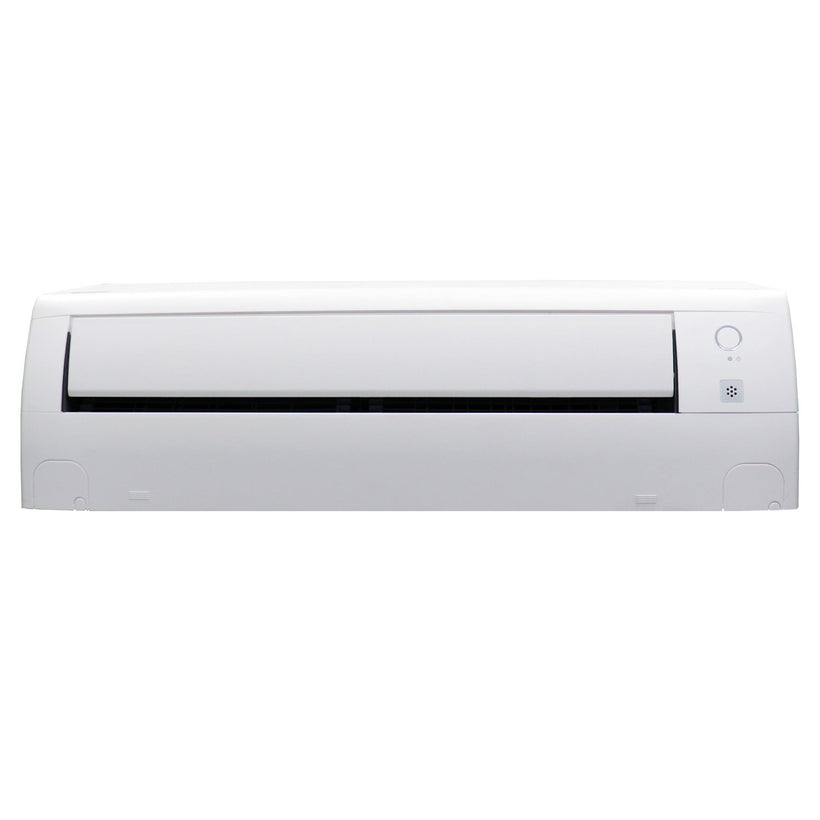

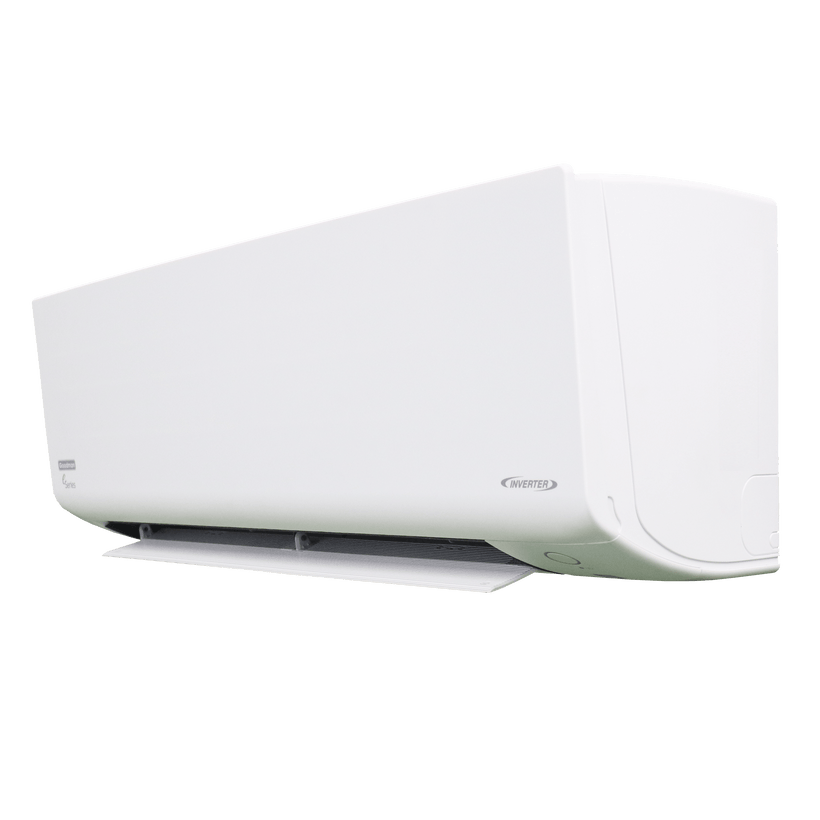

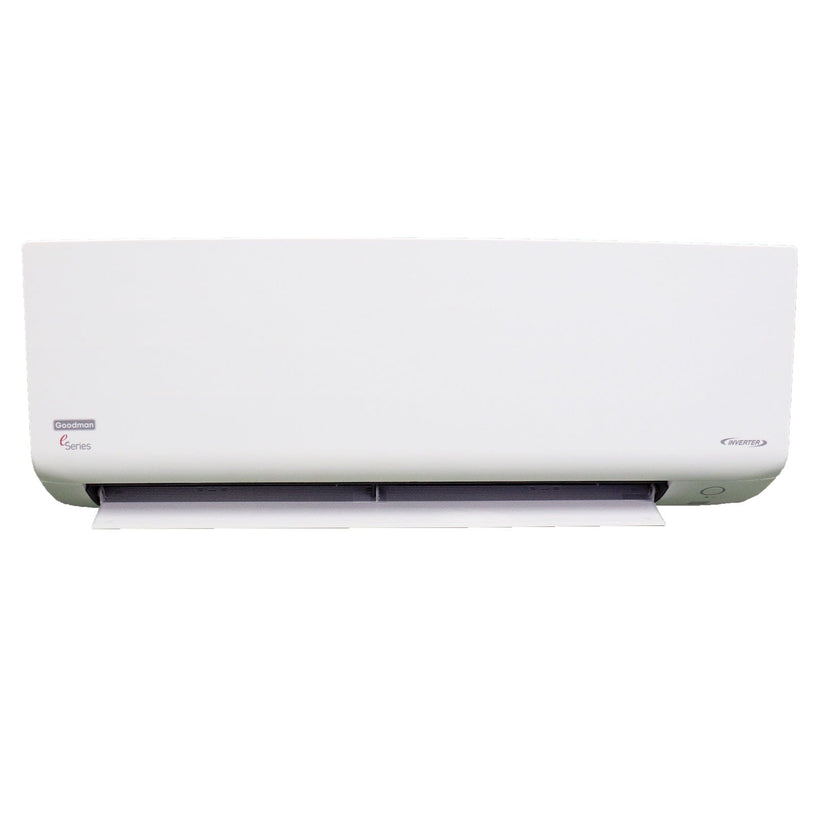

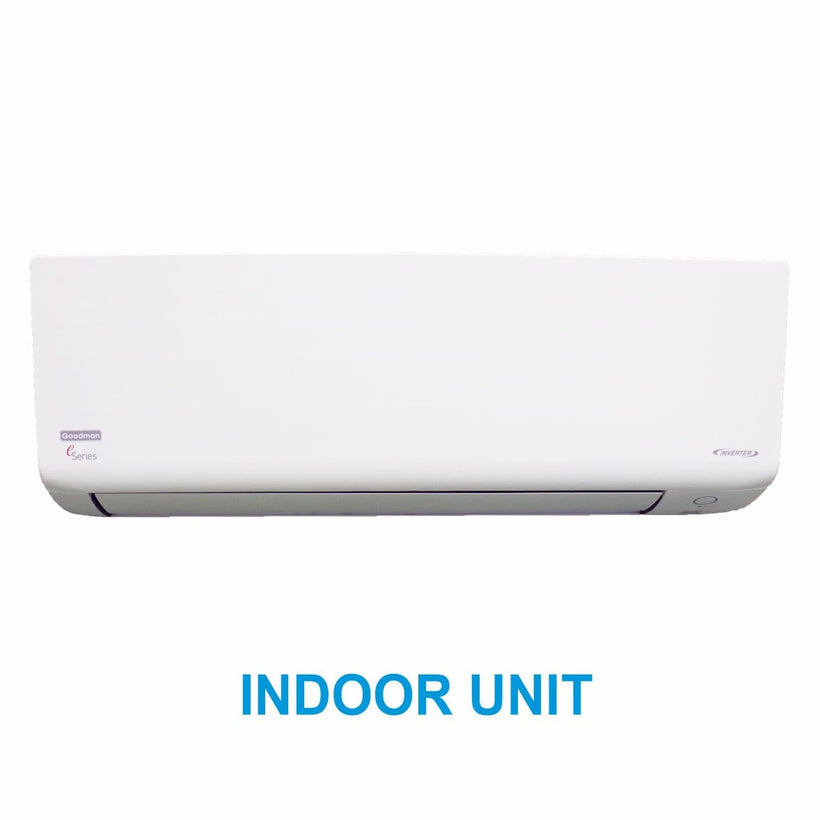

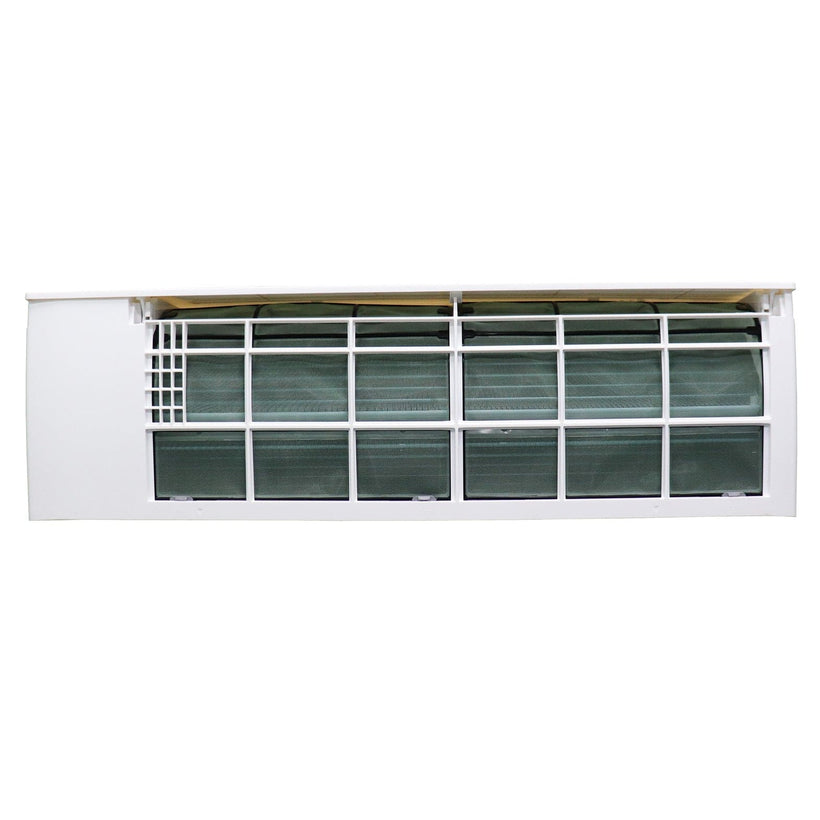

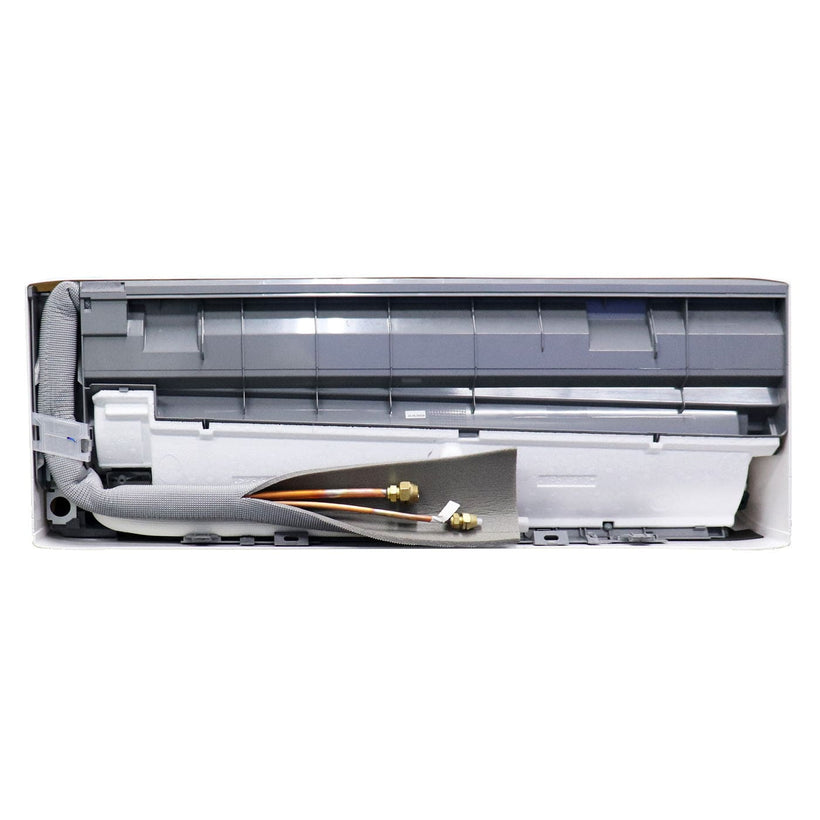

FTXNG09AXVJU | Indoor Unit
- Floating Dual Panel: A borderless panel concept with extension to side, highlighting concept of “Freedom to Pursue”.
- Spray Paint Touch Up: A metallic silver finishing on the side that give it that extra shine.
- Gradual Curved Side Edges: Soft curved edges, that gives a more approachable appearance.
- Minimalistic LED Ring Indication.
- Self-Diagnosis with Digital Display: Malfunction codes can be retrieved and shown on the digital display panel of the wireless remote controller for fast and easy maintenance.
- Adjustable airflow with wireless LED remote
- Auto swing louvers
- Auto restart after power failure

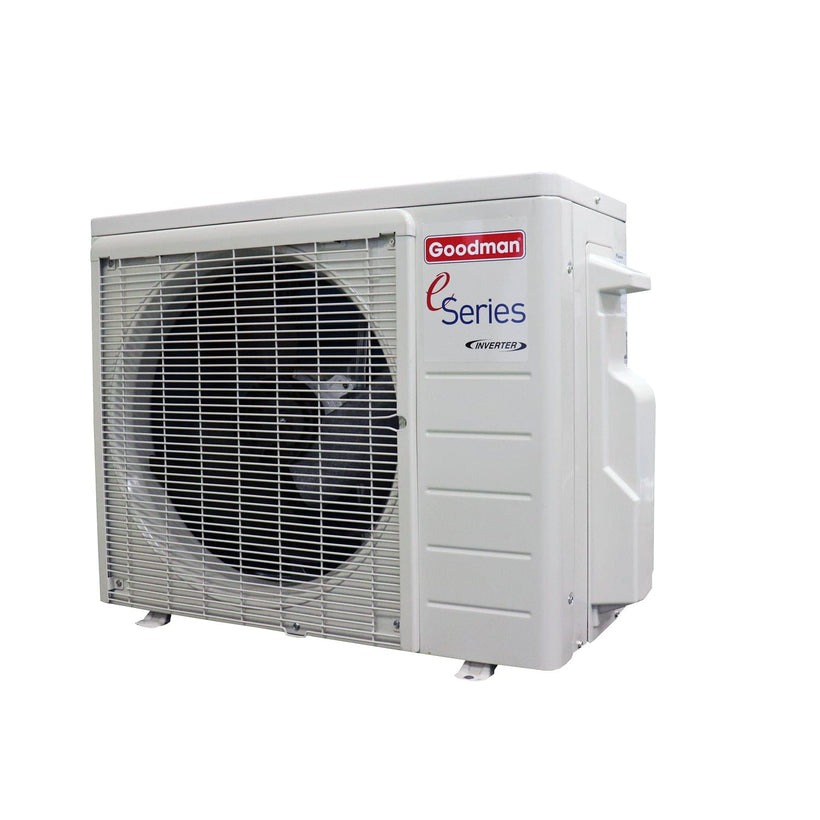

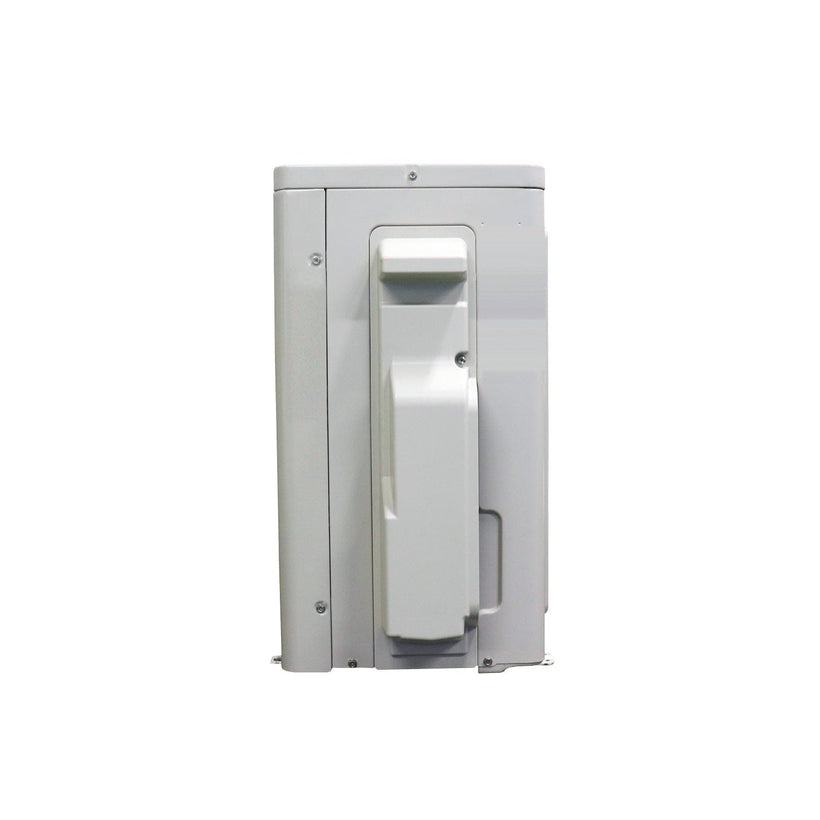

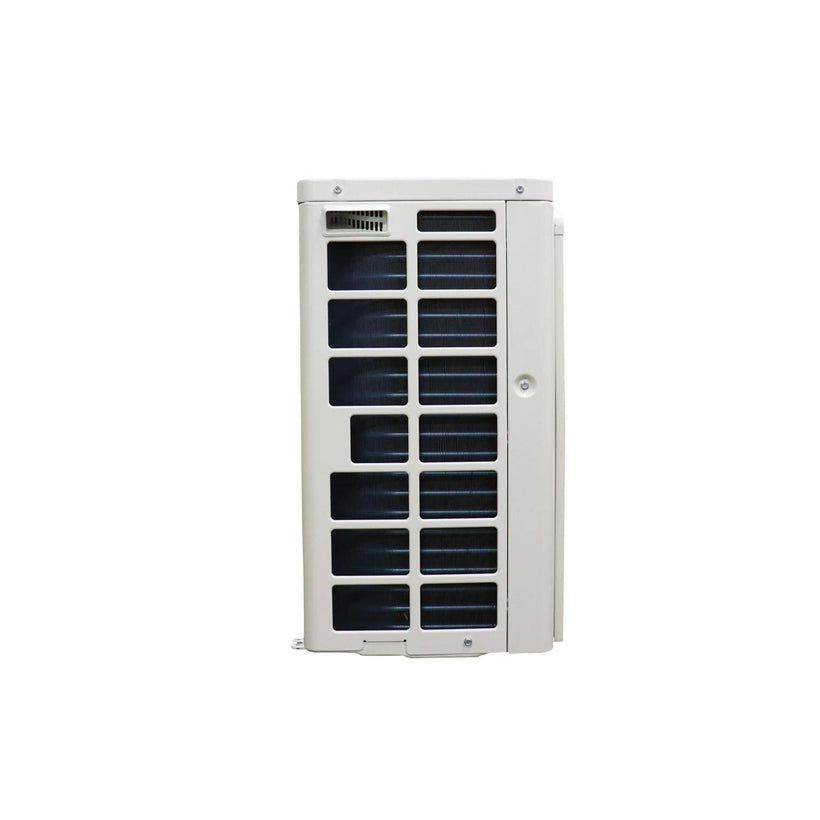

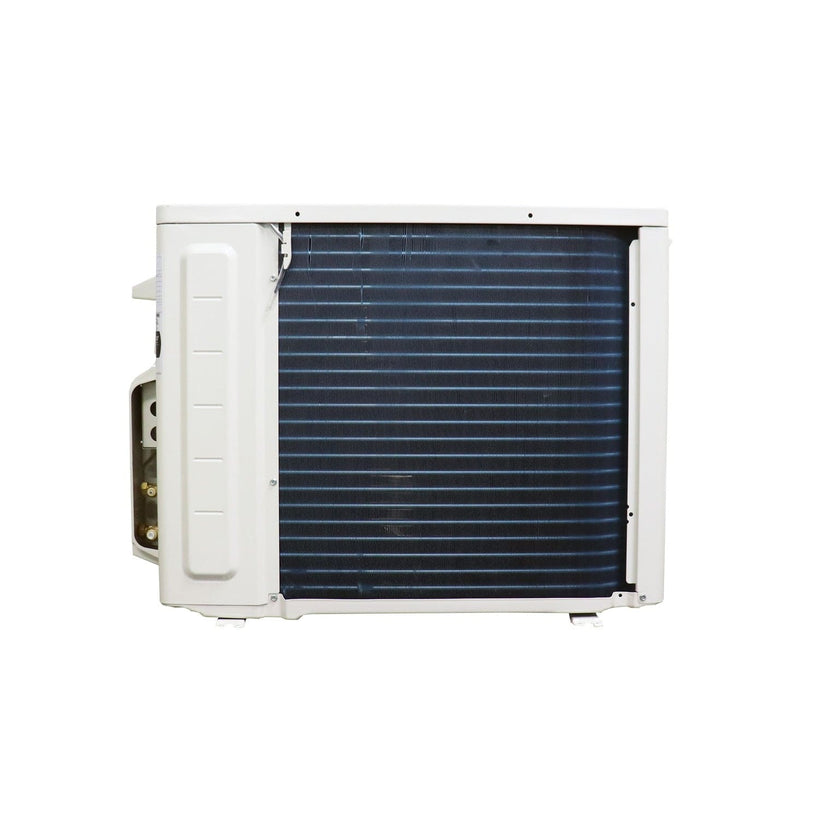

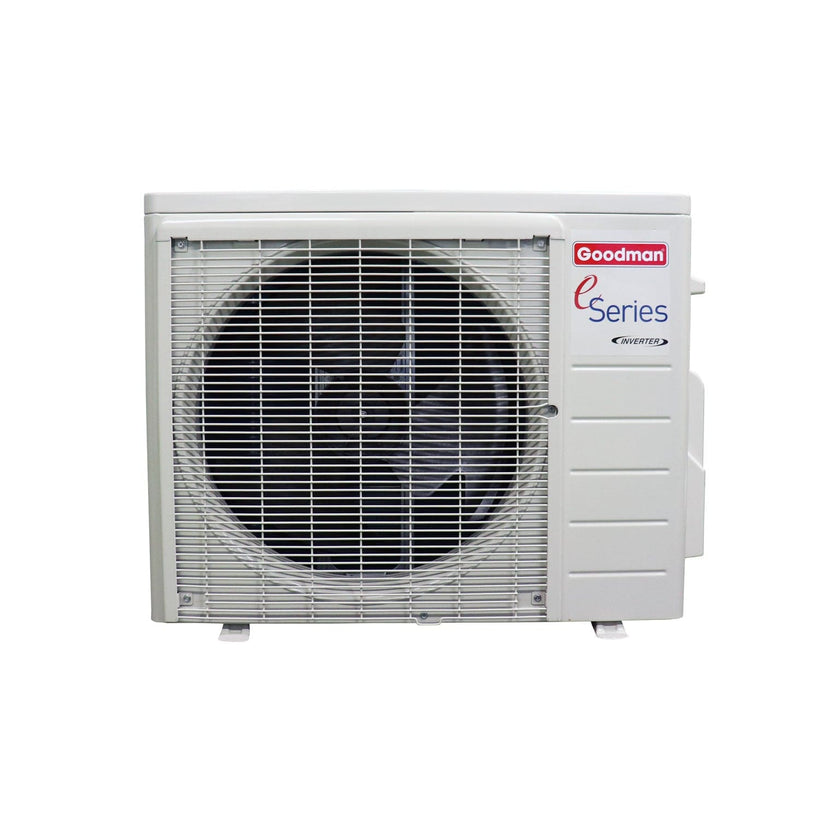

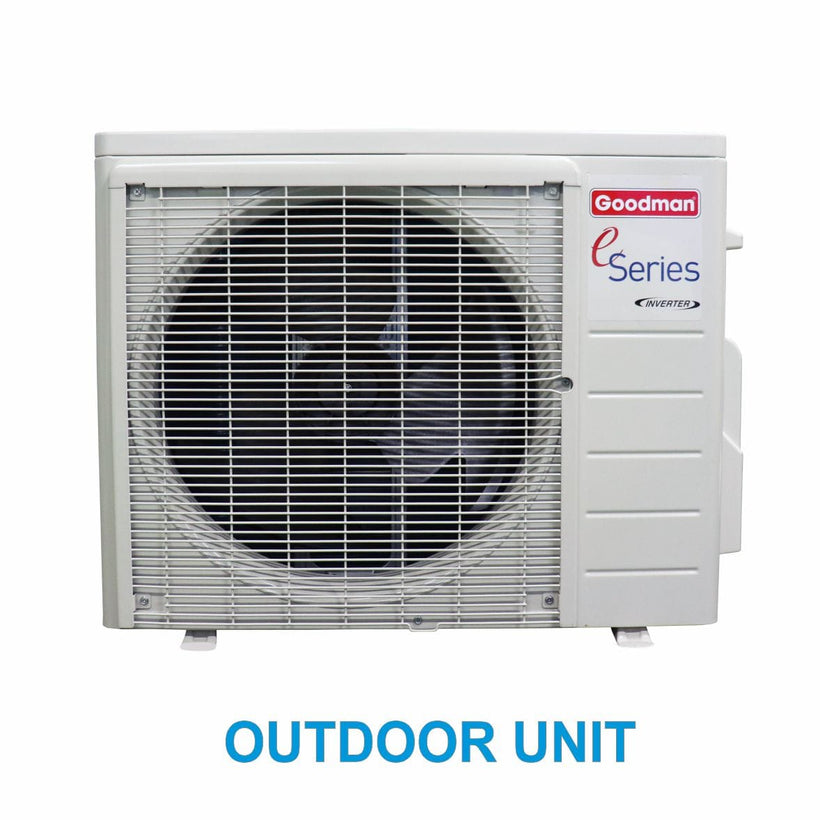

RXNG09AXVJU | Outdoor Unit
- Inverter Powerful Operation - This function boosts cooling or heating performance for a 20 minutes period. It is convenient when it is necessary to change the room temperature quickly.
- Swing Compressor - Thanks to its smooth rotation, the swing compressor decreases friction and vibration. It also prevents the leakage of refrigerant gas during compression. These advantages provide quiet and efficient operation.
- Flexible performance, rapid response time - After quickly reaching set temperature, the inverter system constantly adjusts and fine-tunes the cooling capacity to prevent undesired temperature swings. Room comfort level is constantly maintained even when the number of people in the room increases or decreases
- AHRI Certified; ETL Listed
Additional Features
- Indoor Unit On/Off Switch. The unit can be conveniently started by hand if the wireless remote controller is misplaced or its batteries are not charged.

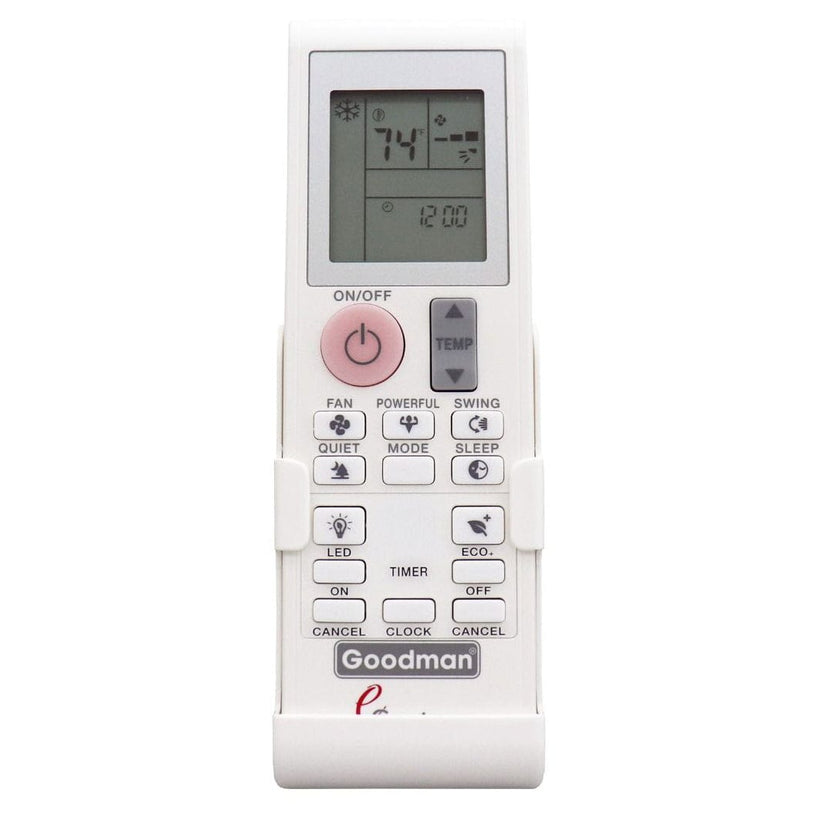

- Wireless Remote Controller with Luminous Button - The luminous button absorbs and saves light and then slowly releases it. This makes it easier to see the settings in the dark
- Inverter Powerful Operation - This function boosts cooling or heating performance for a 20 minutes period. It is convenient when it is necessary to change the room temperature quickly.
- ECO+ Function - An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an eco-friendly level while limiting the maximum power consumption.
- Sleep Mode - Unwind at the end of the day with Sleep Mode, which gradually adjust set temperature according to regular sleeping temperature patterns and auto adjust the LED display intensity for an effortlessly personalized sleeping environment.
- Wireless Remote Controller with Backlight - The backlit LCD allows easy operation in the dark, convenient for users to identify the functions activated.
- LED Display On/Off - The LED Display on unit can be conveniently turned off with the touch of a single button to ensure zero light disturbance
- Auto-Restart after Power Failure - The air conditioner memorizes the settings for operation mode, fan speed and temperature setting and automatically returns to them when power is restored after a power failure.
- Self-Diagnosis with Digital Display - Malfunction codes can be retrieved and shown on the digital display panel of the wireless remote controller for fast and easy maintenance.
- Warranty - 5 years parts, 5 years compressor (if registered)
Advantages of Inverter technology
- Superior comfort
- Powerful operation
- Higher efficiency
- Better energy savings
Fixed speed (non-inverter) systems operate by compressor start-stop cycles which consumes more energy and have higher variance of the room temperature
Applications
- Greenhouses / Hydroponic gardening
- Sunrooms
- Offices
- Warehouses
- Restaurants
- Commercial spaces
- Garages / workshops
WHAT’S INCLUDED
Your Goodman E-Series Ductless Mini-Split Air Conditioner Heat Pump System from Heat & Cool comes with:
- FTXNG09AXVJU | Indoor Unit
- RXNG09AXVJU | Outdoor Unit
- Full-function LED wireless remote control
- Installation Manual
- User’s Manual
- Manufacturer’s Warranty
MANUFACTURERS WARRANTY
- 5-Year All Parts, 5-Year Compressor
Key Specifications
- Goodman
- RXNG09AXVJU + FTXNG09AXVJU
- FTXNG09AXVJU
- RXNG09AXVJU
- Ductless Mini Split Wall Mounted
- Heating and Cooling
- 400
- 9,400
- 8,800
- 18
- 9
- 11
- 208-230 V; 1 Phase; 60 Hz
- R-410A
- 1
- 5 Year All Parts
- 75.3 lbs
- AHRI Performance Certified 210/240; ETL
Bundle includes 2 items
9,000 Btu Goodman Wall Mount Fan Coil FTXNG09AXVJU
Model Number: FTXNG09AXVJU SKU: GTXNGAX091004
9,000 Btu Goodman Outdoor condensing Unit RXNG09AXVJU
Model Number: RXNG09AXVJU SKU: GRXNGAX091001System Specifications
| Model Number | RXNG09AXVJU + FTXNG09AXVJU |
|---|---|
| Indoor Model Number | FTXNG09AXVJU |
| Outdoor Model Number | RXNG09AXVJU |
| Mounting Type | Wall Mounted |
| Application Area (SqFt) | 400 |
| System Cooling Capacity | 9,400 |
| System Heating Capacity | 8,800 |
| SEER2 | 18 |
| HSPF2 | 9 |
| EER2 | 11 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Voltage | 208/230 Volt |
| Number Of Zones Rooms | 1 |
| Manufacturer Limited Warranty (Years) | 5 Year All Parts |
| System Total Weight | 75.3 lbs |
| Shipping Time | 24 to 72 hours |
| Certifications | AHRI Performance Certified 210/240; ETL |
Specifications for model: RXNG09AXVJU
| Outdoor Model Number | RXNG09AXVJU |
|---|---|
| Compressor Type | Hermetically Sealed Swing |
| Outdoor unit noise Level (DB) | 48 |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Operation Mode | Heat Pump |
| Width / Depth / Height | 26-1/2 - 11-3/16 - 21-11/16 |
Specifications for model: FTXNG09AXVJU
| Indoor Model Number | FTXNG09AXVJU |
|---|---|
| Mounting Style | Wall Mounted |
| Indoor Unit Noise Level (DB) | 45/42/35/29/25 |
| Alerts | Refrigerent leak detection |
| Auto Restart | Yes |
| Dehumidification | Yes |
| Convenience Features | Timermode |
| Fan Only | Yes |
| Indoor Air Quality Type | Titanium apatite photo-catalytic |
| Low Temperature Operation | Yes |
| Filter Cleaning Methods | Washable |
| Remote Control Temperature Sensor | Yes |
| Turbo | Yes |
| Thermostat Type | Wireless Remote |
| Net weight (LB) | 20.3 |
| Width / Depth / Height | 30-5/16 - 9-3/16 - 11-1/3 |
