Flexible Design, Self‐Diagnostics Enhance Value of Goodman High Efficiency Furnace

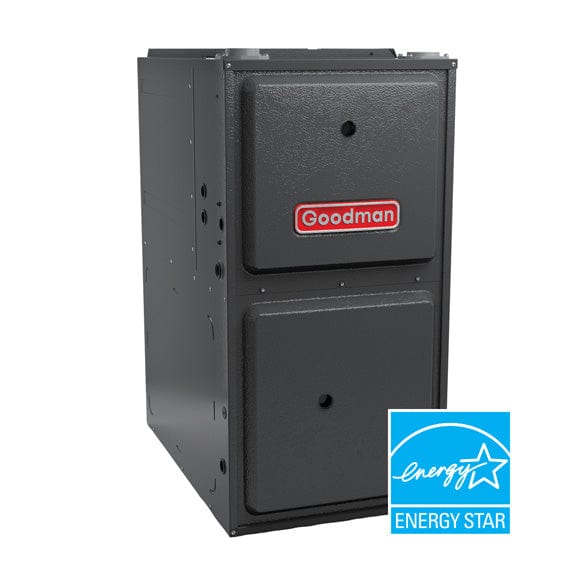

The GMVM970803BN 98% high efficiency furnace from Goodman saves you money from the moment it arrives. Its versatile design makes installation easy and fast. Once it's running, you'll notice a reduction in your energy bill since 98 cents of every dollar you spend on heating will actually go toward warming your home.
Unlike a standard furnace, which vents leftover heat out of your home in the form of exhaust, the Goodman 98% AFUE GMVM970803BN multi‐speed furnace passes the exhaust through a secondary stainless steel heat exchanger to extract additional heat. That heat – up to 30% or more – which would have otherwise been wasted is circulated through your home by a dual‐speed induced draft blower.
Additionally, the multi‐speed ECM motor also keeps your home temperature steady and several low continuous fan speed options reduce sound and keeps air circulating throughout your home. The self‐diagnostic control board with fault code history helps maintain your investment for long‐lasting comfort. Ideal for installation in a closet, alcove, utility room, basement or attic.
Additional Features
- ComfortNet™ Communicating System compatible
- Heavy‐duty aluminized‐steel tubular heat exchanger
- Stainless‐steel secondary heat exchanger
- Self‐calibrating modulating gas valve auto‐configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable‐speed induced draft blower
- Utilizes ComfortNet™ communicating, two‐stage or single‐stage thermostats
- Self‐diagnostic control board with constant memory fault code history output to a dual 7‐segment display
- Color‐coded low‐voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable‐speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto‐Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified; ETL Listed
- Designed for multi‐position installation – GMVM97: upflow, horizontal left or right GCVM97: downflow, horizontal left or right
- Certified for direct vent (2‐pipe) or non‐direct vent (1‐pipe)
- Easy‐to‐install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak)
- Heavy‐gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy‐cut tabs for effortless removal in bottom air‐inlet applications
What's Included
Your Goodman Gas Furnace from Heat & Cool Comes With:- GMVM970803BN | Gas Furnace
- Technical Specification
- Series Brochure
- Installation Manual
- Manufacturer Warranty
Key Specifications
- Goodman
- 1.5 - 3
- Multi-Speed ECM Blower Motor
- 28 in
- 34 in
- 17 ½ in
- Upflow / Horizontal
- 97%
- Yes
- Top
- PVC
- Natural Gas
- Modulating
- 80,000
- Yes
- Lifetime
- 10
- Standard
System Specifications
| Available AC Capacity Range | 1.5 - 3 |
|---|---|
| Blower Capacity | 1200 cfm |
| Blower Motor | Multi-Speed ECM Blower Motor |
| Cabinet Depth | 28 in |
| Cabinet Height | 34 in |
| Cabinet Width | 17 ½ in |
| Gas Furnace Configuration | Upflow / Horizontal |
| Heating Efficiency (AFUE) | 97% |
| Electrical | 115 V; 60 Hz |
| Energy Star | Yes |
| Flue Location | Top |
| Flue Vent Pipe | PVC |
| Fuel Type | Natural Gas |
| Gas Valve Type | Modulating |
| Heating Capacity (BTU) | 80,000 |
| Heating Source Type | Gas |
| Installation Type | Central Ducted |
| Low NOx Emission | Yes |
| Manufacturer Heat Exchanger Limited Warranty | Lifetime |
| Manufacturer Parts Limited Warranty | 10 |
| MOP (Maximum Overcurrent Protection-Breaker) | 15 Amp |
| Must ship freight | Yes |
| Shipping Time | 24 to 72 hours |
| Shipping Weight | 121 lbs |
| Unit Type (Selector) | Standard |
