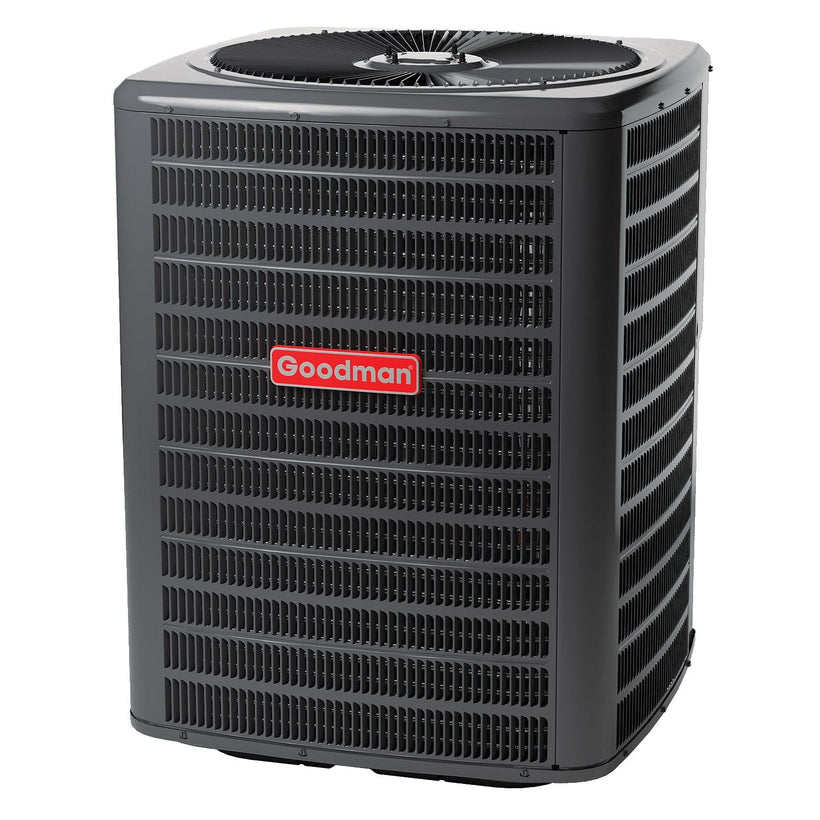

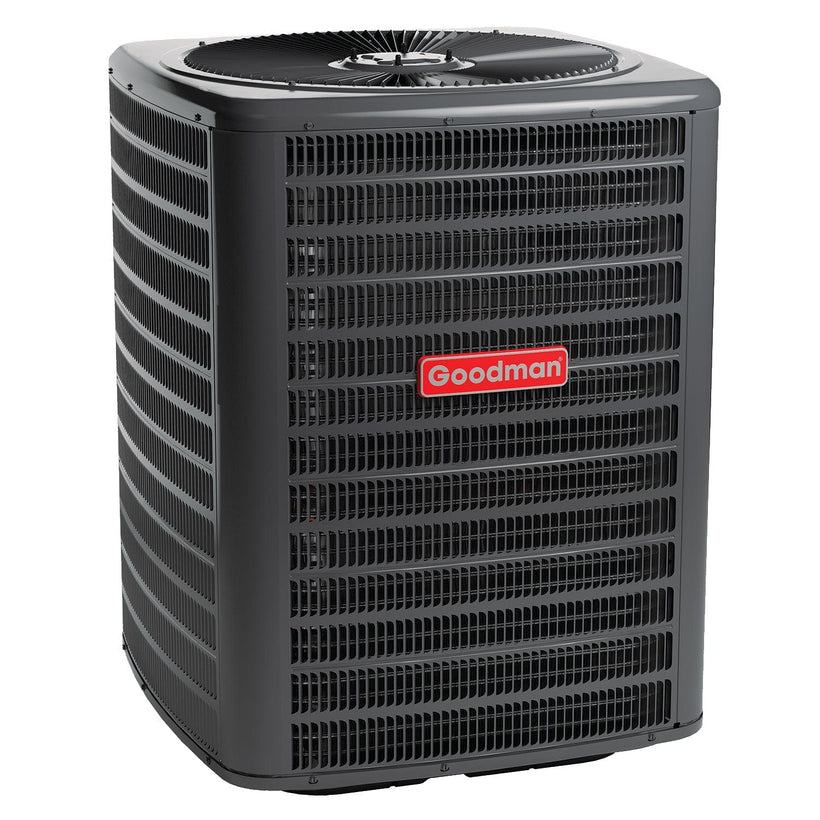

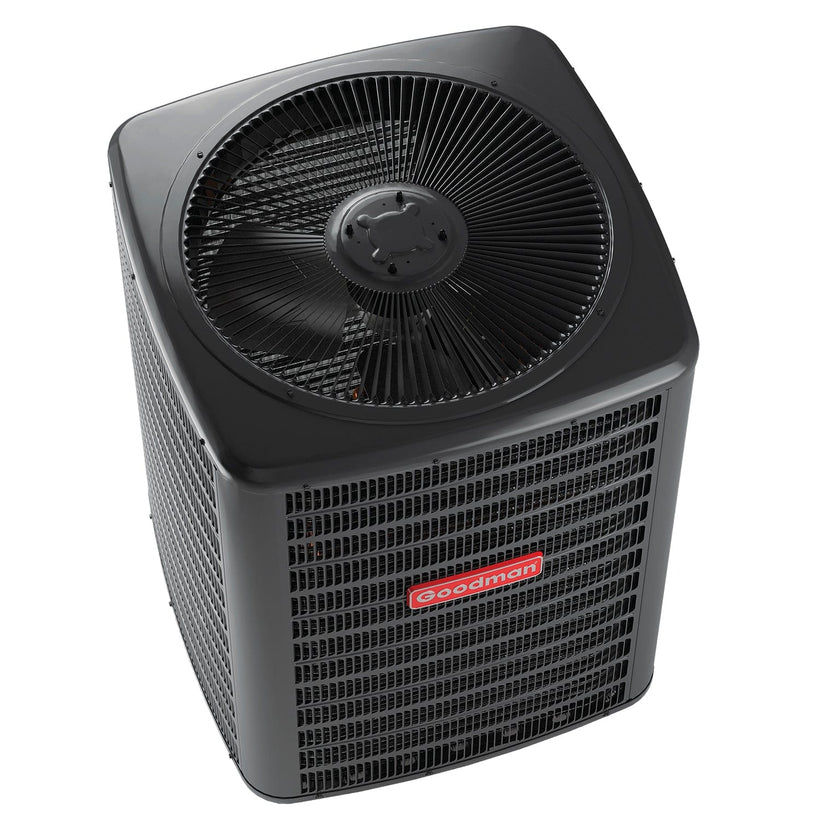

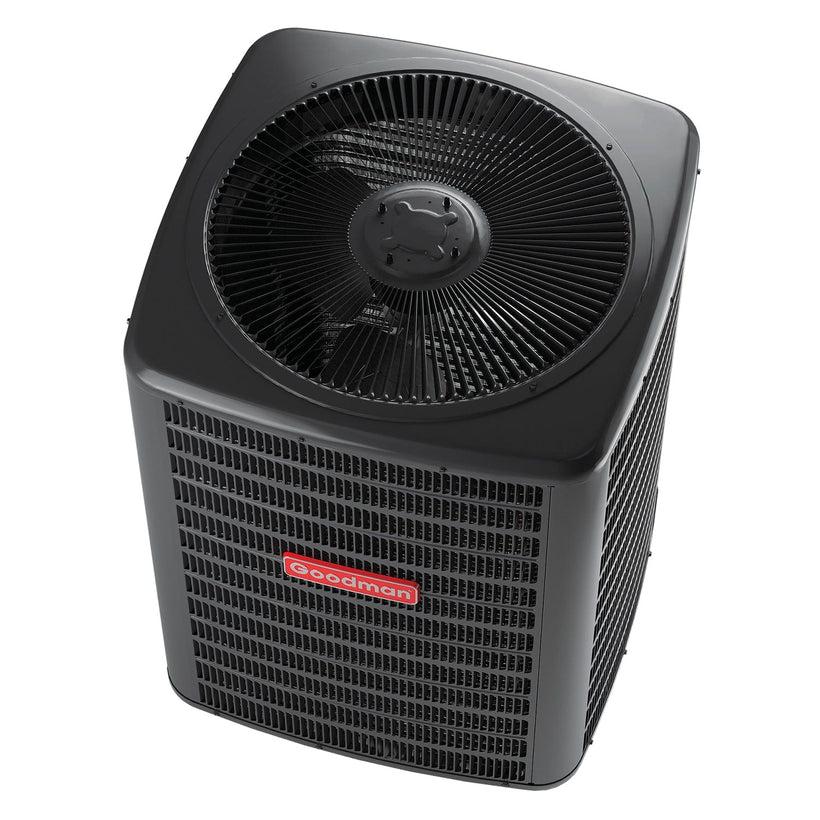

GSXN3N6010 | Outdoor Unit
The Goodman GSXN3N6010 Energy Efficient Base Value, 13.4 SEER2 Performance is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower SEER2 units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.
Standard Features- Energy-Efficient Compressor
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- Service valves with sweat connections and easy-to-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified
- ETL Listed
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powderpaint finish with 500-hour salt-spray approval
- Steel louver coil guard
- Rust-resistant coated screws
- Single-panel access to controls with space provided for field-installed accessories
Key Specifications
- Goodman
- Single Stage
- 35.5 in
- 208-230 V; 1 Phase; 60 Hz
- 39.5 in
- 10 Year Parts Warranty
- GSXN3N6010
- 35.5 in
System Specifications
| Compressor Stages | Single Stage |
|---|---|
| Depth | 35.5 in |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Expansion Device | Sweat Valve Type |
| Height | 39.5 in |
| Manufacturer Limited Warranty (years) | 10 Year Parts Warranty |
| MCA (Minimum Circuit Ampacity) | 33.3 |
| Model Number | GSXN3N6010 |
| MOP (Maximum Overcurrent Protection-Breaker) | 50 |
| Must ship freight | Yes |
| Number of Fan Speeds | 1 |
| Refrigerant | R-410A |
| Shipping Time | 24 to 72 hours |
| Sound Level | 74 dB |
| Suction Line Size | 1 1/8" |
| Suction Valve Size | 7/8" compressor_type |
| Voltage | 208/230 Volt |
| Weight | 247 lb |
| Width | 35.5 in |
