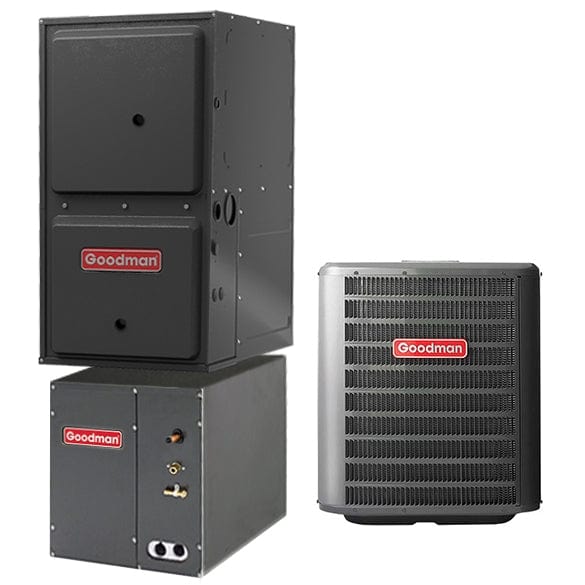

Complete Heating and Cooling for Year‐Round Comfort and Energy Savings
The GSX160601, 5 ton, 16 SEER, 54,000 BTU central air conditioning system will help reduce energy consumption throughout the life of the system. Goodman’s SMARTCOIL™ 5mm tube condensing coil design optimizes the heat transfer ability of R‐410A refrigerant compared to standard 3/8”copper tubing. The coil is made of rifled refrigeration‐grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. These high‐quality components together cool your home effectively.
Goodman GCVM971005CN variable‐speed, two‐stage 54,000 BTU gas furnace offers reliable performance and time‐tested durability. A quiet, four‐speed direct drive blower motor is coupled with a two‐stage gas valve that allows installer to turn on two‐stage operation with the flip of a dipswitch. Use with natural gas or add converter for use with propane, or LP.

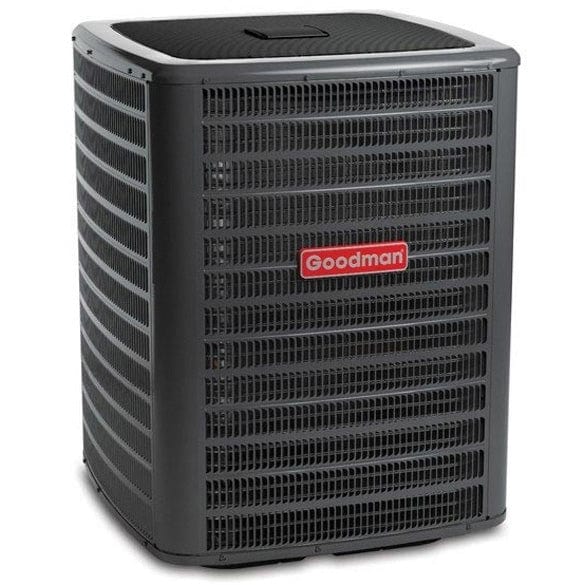

GSX160601 | Outdoor Unit
Goodman’s 5 ton, 16 SEER ENERGY STAR certified condensing unit is built with sound‐dampening features that help ensure that your cooling system doesn’t interfere with a good night’s sleep. The near silent operation is owed to quiet condenser fan system, which includes a three‐bladed fan and a unique louvered sound‐control top that reduces fan‐related noise.
Additional Features
- Chlorine‐free R‐410A refrigerant
- Louvered cabinet made of heavy‐gauge galvanized steel protects coil
- Weather‐resistant architectural gray finish
- Factory‐installed liquid line filter drier
- Brass liquid & suction line valves
- 60,000 BTU
- Contactor with lug connection
- Ground lug connection
- AHRI certified
- ETL listed
CAPF4961C6 | Indoor Unit
Goodman’s all‐aluminum evaporator coil is constructed with thick‐walled aluminum tubing, corrugated fins and panels for a single metal solution for outstanding, time‐tested, heat transfer performance properties. It’s painted architectural gray and features a leather grain embossed finish. Cased coil for upflow/downflow applications. Easy access owed to split seam front and 21” depth. Fits 21” furnace cabinets. Also compatible with split‐system air conditioning and heat pump systems.
- Inhibits mildew with low water‐retention design
- Cabinet condensation reduced with foil faced insulation
- Copper coil stud for connecting copper liquid suction lines
Additional Features
- Indoor coil quality control/pressure and vacuum‐tested at factory
- Helium pressure testing completed on indoor coil during construction
- Indoor coil’s drain pan safe for ultraviolet light treatment system
- Indoor coil has rust‐resistant, thermoplastic drain pans
- 500‐hour salt‐spray approval on outdoor unit’s post‐paint finish
- Wire fan discharge grille on condenser
- Condenser features easy access to controls & space for field‐installed accessories
- Outdoor unit has brass liquid & suction line valves
- Condenser cabinet when properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane‐type winds
- Contactor with lug connection and ground lug connection on condenser
- AHRI certified
- ETL listed
GCVM971005CN | Gas Furnace
The GCVM971005CN 98% high efficiency furnace from Goodman saves you money from the moment it arrives. Its versatile design makes installation easy and fast. Once it's running, you'll notice a reduction in your energy bill since 98 cents of every dollar you spend on heating will actually go toward warming your home.
Unlike a standard furnace, which vents leftover heat out of your home in the form of exhaust, the Goodman 98% AFUE GCVM971005CN multi‐speed furnace passes the exhaust through a secondary stainless steel heat exchanger to extract additional heat. That heat – up to 30% or more – which would have otherwise been wasted is circulated through your home by a dual‐speed induced draft blower.
Additionally, the multi‐speed ECM motor also keeps your home temperature steady and several low continuous fan speed options reduce sound and keeps air circulating throughout your home. The self‐diagnostic control board with fault code history helps maintain your investment for long‐lasting comfort. Ideal for installation in a closet, alcove, utility room, basement or attic.
Additional Features
- ComfortNet™ Communicating System compatible
- Heavy‐duty aluminized‐steel tubular heat exchanger
- Stainless‐steel secondary heat exchanger
- Self‐calibrating modulating gas valve auto‐configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable‐speed induced draft blower
- Utilizes ComfortNet™ communicating, two‐stage or single‐stage thermostats
- Self‐diagnostic control board with constant memory fault code history output to a dual 7‐segment display
- Color‐coded low‐voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable‐speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto‐Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified; ETL Listed
- Designed for multi‐position installation – GMVM97: upflow, horizontal left or right GCVM97: downflow, horizontal left or right
- Certified for direct vent (2‐pipe) or non‐direct vent (1‐pipe)
- Easy‐to‐install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak)
- Heavy‐gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy‐cut tabs for effortless removal in bottom air‐inlet applications
What’s Included
Your Goodman Central Air Conditioning System with Gas Furnace from Heat & Cool Comes With:- GSX160601 | Outdoor Unit
- CAPF4961C6 | Indoor Unit
- GCVM971005CN | Gas Furnace
- TXV‐60 | Non‐Bleed Expansion Valve Kit
- Installation Manual
- Brochure
- Technical Specification
- Manufacturer Warranty
Downloads
- GMVM97/GCVM97 SERIES - TECHNICAL SPECIFICATIONS
- GMVM/GCVM/GMVC/GCVC/GMEC/GME8 SERIES - MANUFACTURER WARRANTY
- GMVM97/GCVM97 SERIES - TECHNICAL MANUAL
- GMVM97/GCVM97 SERIES - INSTALLATION MANUAL
- GCVM97 SERIES - BROCHURE
- GSX SERIES - INSTALLATION MANUAL
- CAPF/CAPT/CAUF/CHPF/CSCF SERIES - MANUFACTURER WARRANTY
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- GSX14/GSX16/GSZ14/GSZ16/GPH SERIES - MANUFACTURER WARRANTY
- GSX16 SERIES - TECHNICAL SPECIFICATIONS
- GSX16 SERIES - BROCHURE
- CAPF SERIES - INSTALLATION MANUAL
Key Specifications
- Goodman
- CAPF4961C6
- GSX160601
- Upflow
- 97%
- Yes
- GCVM971005CN
- 16
- 54,000
- 100,000
- Standard
Bundle includes 4 items
5 Ton Goodman GSX160601 16 SEER Outdoor Condensing Unit R410A Refrigerant
Model Number: GSX160601 SKU: HCGMC1037
4 - 5 Ton Goodman CAPF4961C6 Upflow/Downflow Cased Coil Fits 21 Inch Cabinet
Model Number: CAPF4961C6 SKU: HCGMC1711
100,000 BTU Goodman GCVM971005CN 97% Efficiency Modulating Downflow/Horizontal Gas Furnace Heater
Model Number: GCVM971005CN SKU: HCGMC2603 Open in a new tab
Non-bleed Expansion Valve - 5 Ton AC Systems
Model Number: TXV-60 SKU: HCGMC1734System Specifications
| Coil Model Number | CAPF4961C6 |
|---|---|
| Condenser Model Number | GSX160601 |
| System Configuration | Upflow |
| Heating Efficiency (AFUE) | 97% |
| Energy Star | Yes |
| Furnace Model Number | GCVM971005CN |
| Must ship freight | Yes |
| Efficiency (SEER) | 16 |
| SEER (Left Filter) | 15+ |
| Shipping Cost | 400 |
| Shipping Time | 24 to 72 hours |
| Shipping Time | 7 to 10 days |
| System Cooling Capacity (BTU) | 54,000 |
| System Heating Capacity | 100,000 |
| Unit Type (Selector) | Standard |
| Video Codes | t8rjs6qgyz |
Specifications for model: GCVM971005CN
| Available AC Capacity Range | 5-Feb |
|---|---|
| Blower Capacity | 2000 cfm |
| Blower Motor | Variable Speed ECM |
| Cabinet Depth | 28 in |
| Cabinet Height | 34 in |
| Cabinet Width | 21 in |
| Gas Furnace Configuration | Downflow / Horizontal |
| Heating Efficiency (AFUE) | 97% |
| Electrical | 115 V; 60 Hz |
| Energy Star | Yes |
| Flue Location | Top |
| Flue Vent Pipe | PVC |
| Fuel Type | Natural Gas |
| Gas Valve Type | Modulating |
| Heating Capacity (BTU) | 100,000 |
| Heating Source Type | Gas |
| Installation Type | Central Ducted |
| Low NOx Emission | Yes |
| Manufacturer Heat Exchanger Limited Warranty | Lifetime |
| Manufacturer Parts Limited Warranty | 10 |
| MOP (Maximum Overcurrent Protection-Breaker) | 20 Amp |
| Must ship freight | Yes |
| Shipping Time | 24 to 72 hours |
