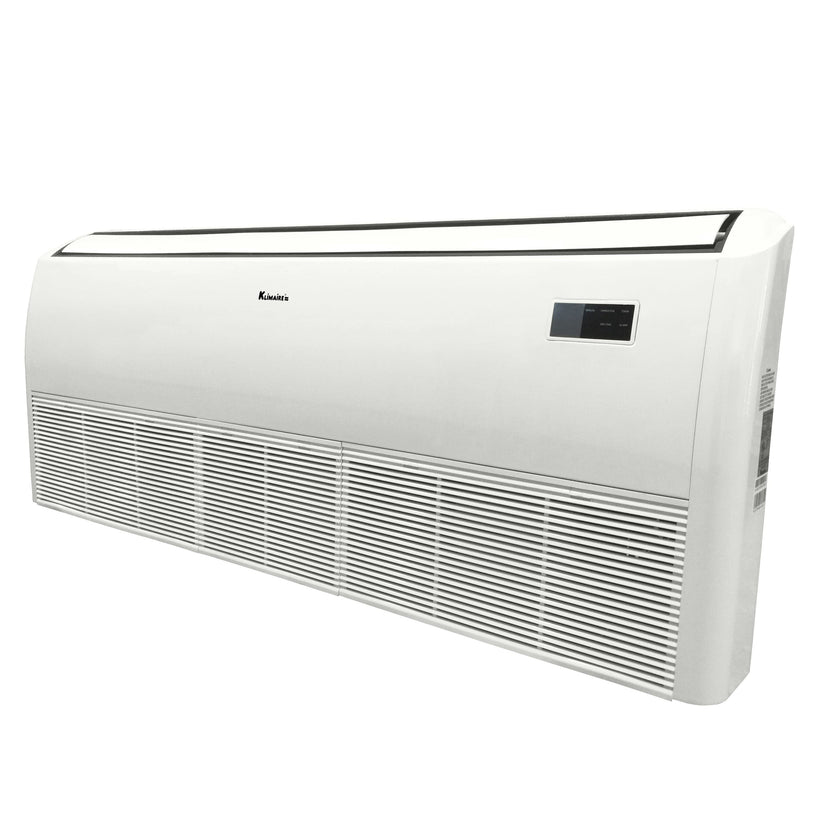

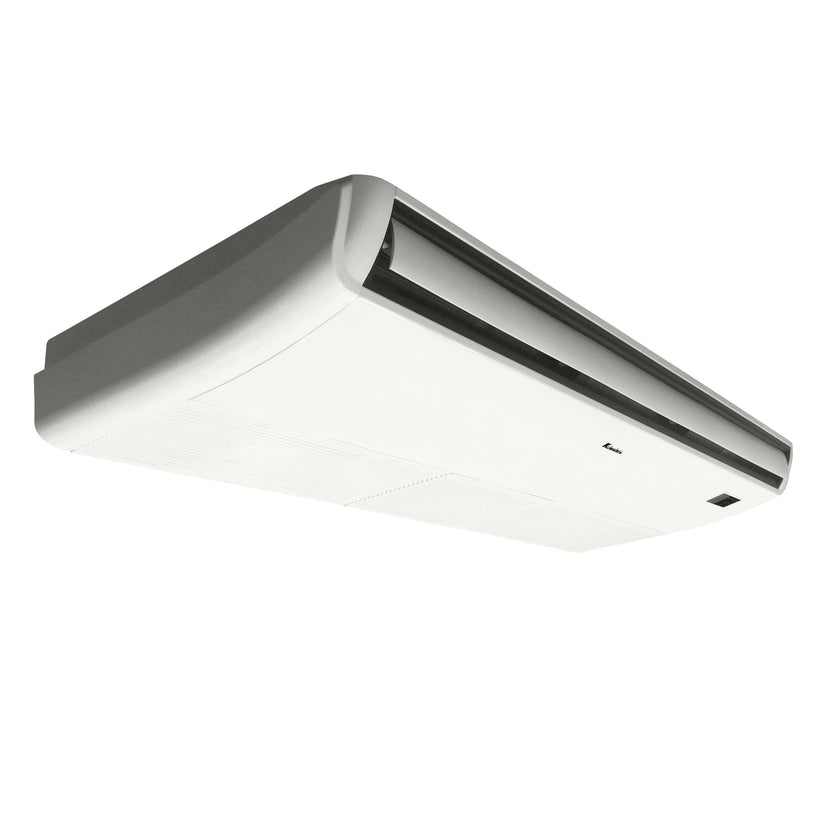

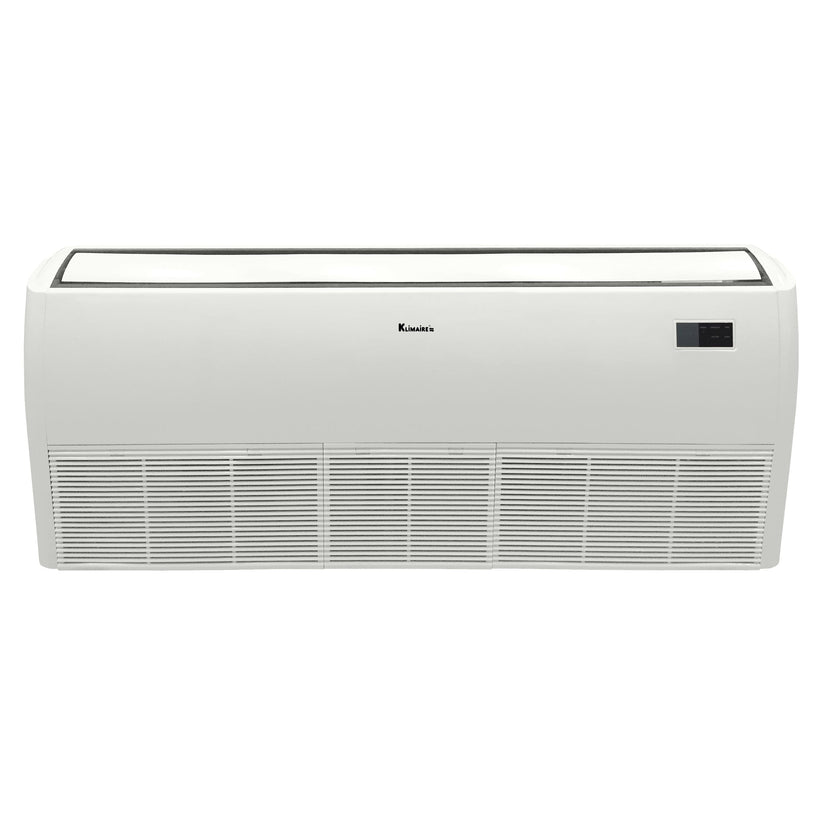

KFUF048-H2G1 | Indoor Unit
Extremely quiet operation and rugged construction make the Klimaire 36,000 BTU KFUF036-H2G1 220-volt fan coil unit ideal for heavy traffic public areas. It arrives pre-vacuumed and can be installed on the ceiling, low on a wall or on the floor. Includes slide out washable air filter and wireless remote control. Choose from cooling, fan and dehumidification modes. Features 24-hour timer, sleep mode and auto restart.
Directional air flow: Using the included remote control, manually adjust the airflow direction or set the unit to auto swing. This ensures that your commercial space is cooled evenly and prevents a continuous blast of cold air in one direction. This is especially important in commercial applications such as hydroponic indoor gardens or restaurants, both of which are ideally suited for commercial mini-split air conditioner systems.
- Adjustable airflow with wireless LED remote
- Auto swing louvers
- Auto restart after power failure

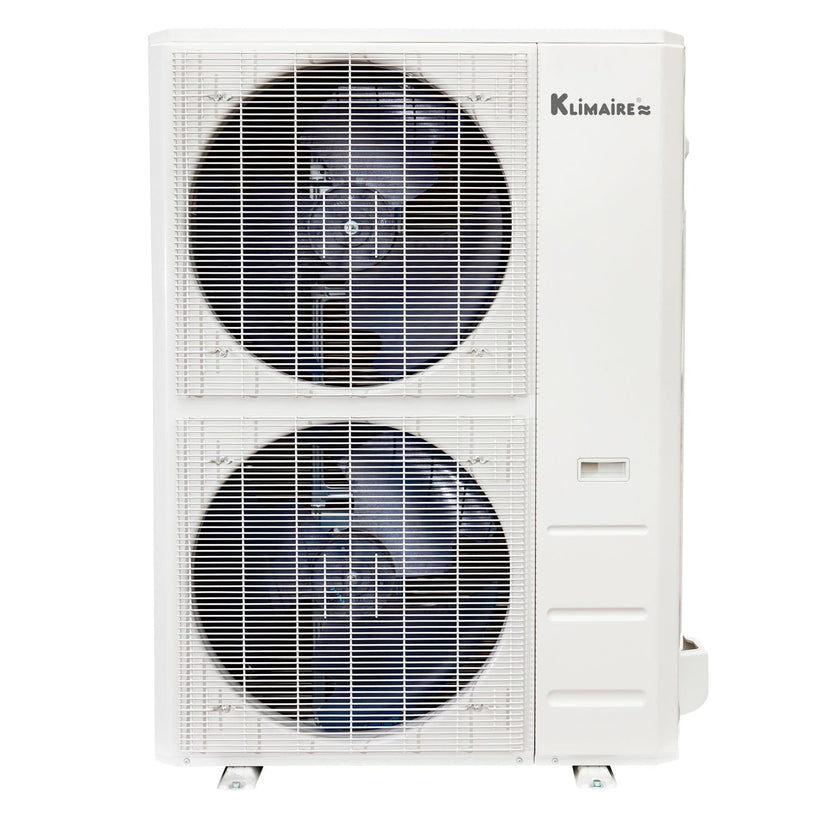

KSIR048-H218-2 | Outdoor Unit
Automatic defrost prevents condensation from freezing and damaging the compressor. The built-in base pan heater ensures reliable operation in temperatures as low as 5º F. A built-in crank case heater protects your compressor lifespan. Compact outdoor unit requires little ground space and can be mounted to a wall with wall brackets (not included). Pre-charged for up to 25 feet of refrigerant piping.
- Refrigerant leak detection
- Double cam twin rotary compressor
- Auto defrost, base pan heater plus crank case heater
IMPROVED PERFORMANCE
- SEER2: 18.9
- EER2: 9.3
- HSPF2: 10
Additional Features
- SEER (Seasonal Energy Efficiency Rating): 17.8
- EER (Energy Efficiency Rating): 9.3
- HSPF (Heating Seasonal Performance Factor): 11
- Refrigerant lines sizes: Liquid side: 3/8"; Gas side: 5/8"
- Anti-cold air function
- Full-function remote control and built-in emergency MANUAL switch button
- Indoor unit has multi-refrigerant outlet pipes: left/right/rear
- ON/OFF programmable timer
- Optional wired wall thermostat can be plugged-in easily for commercial or non-remote-control use
- Indoor unit is pre-vacuumed and outdoor unit is pre-charged
Applications
- Sunrooms
- Greenhouses
- Indoor gardens / hydroponic gardening
- Room additions to homes or offices
- Churches
- Fitness Centers
- Renovations
- Family rooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED
- KFUF048-H2G1 | Indoor Unit
- KSIR048-H218-2 | Outdoor Unit

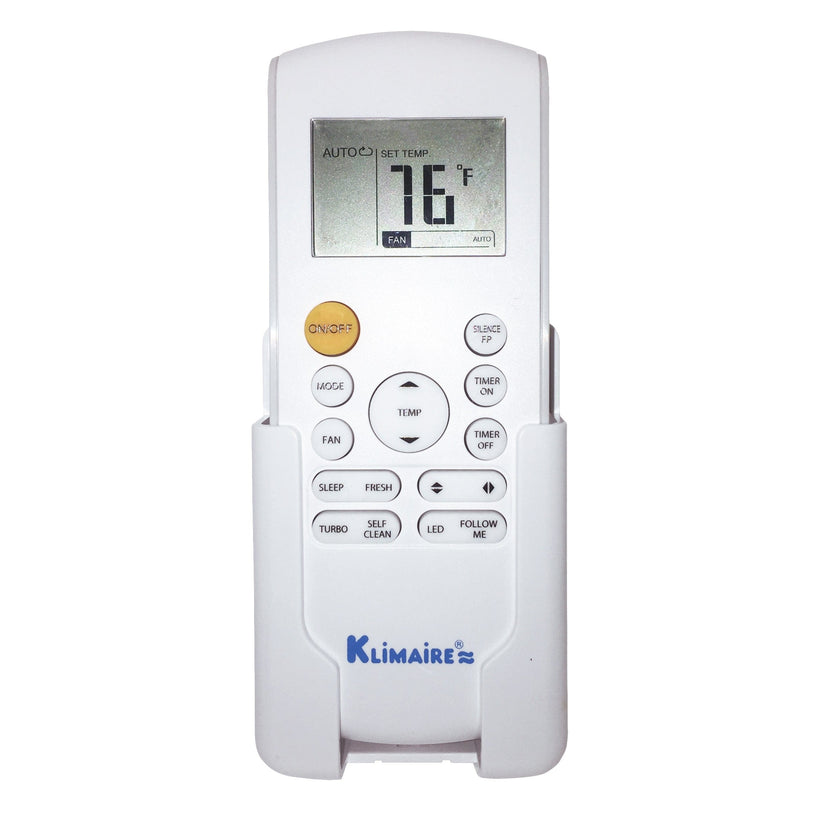

- Remote Control with Wall Bracket Holder
- Indoor Unit Wall Mounting Bracket
- Installation Manual
- User’s Manual
- Manufacturer Warranty
MANUFACTURER WARRANTY
- 5 Year Parts
- 7 Years Compressor
Key Specifications
- Klimaire
- White
- 208-230 V; 1 Phase; 60 Hz
- 1 Year Parts; 5 Year Compressor
- Ceiling Suspended
- KSIR048-H218-2 + KFUF048-H2G1
- 1
- 17.8
- 343 lbs

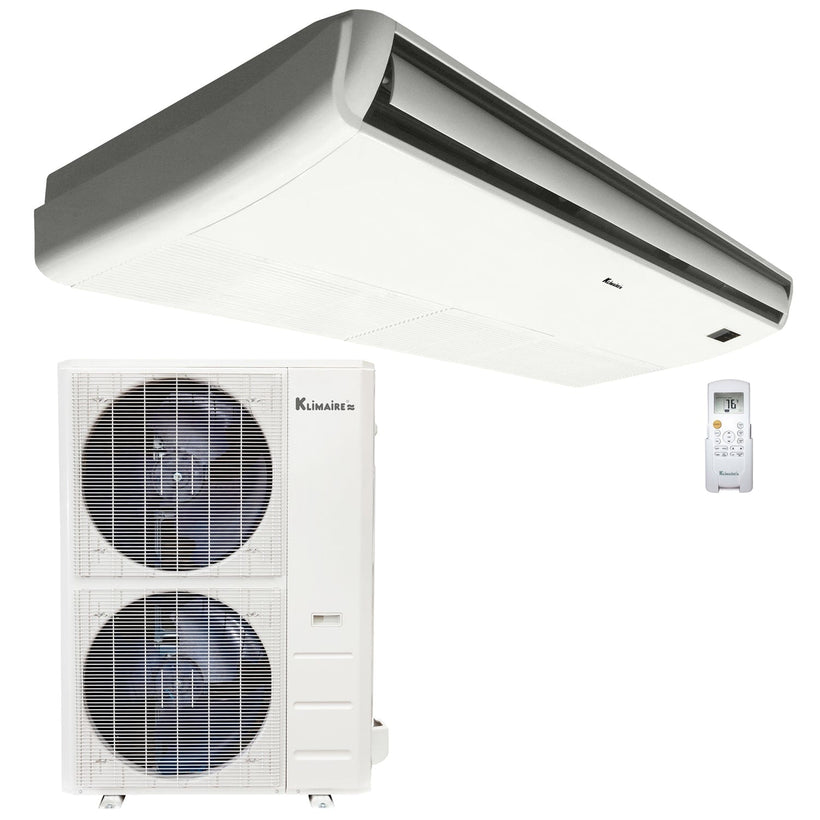

Bundle includes 2 items
48,000 BTU Klimaire KSIR048-H218-2 up to 18.9 SEER Outdoor Heat Pump Unit R-410A Refrigerant
Model Number: KSIR048-H218-2 SKU: KRO480060
48,000 Btu Flex-Match Floor Ceiling Fan Coil Unit, 220V - KFUF048-H2G1
Model Number: KFUF048-H2G1 SKU: HCKPI1751System Specifications
| Certifications | AHRI Performance Certified 210/240; ETL; UL |
|---|---|
| Colors | White |
| EER (Energy Efficiency Ratio) | 9.3 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 11 |
| Manufacturer Limited Warranty (years) | 1 Year Parts; 5 Year Compressor |
| Mounting Type | Ceiling Suspended |
| Model Number | KSIR048-H218-2 + KFUF048-H2G1 |
| MOP (Maximum Overcurrent Protection-Breaker) | 50 |
| Number of Zones (Rooms) | 1 |
| Must ship freight | Yes |
| Refrigerant | R-410A |
| Efficiency (SEER) | 17.8 |
| SEER (Left Filter) | 17+ |
| Shipping Cost | 415 |
| Shipping Time | 24 to 72 hours |
| System Shipping Weight | 343 lbs |
| Technology | Inverter |
| Voltage | 208/230 Volt |
Specifications for model: KFUF048-H2G1
| Control Type | Wireless Remote |
|---|---|
| Cooling Capacity (BTU) | 48,000 |
| Depth | 26.6 in |
| Depth | 26.57 |
| Drain Pipe Connection | OD Ф1" |
| Expansion Device | Flowrater |
| Handling Cost | 15 |
| Height | 9.3 in |
| Height | 9.25 |
| Air Flow (Hi/Mi/Lo) | 1350 / 1120 / 1000 |
| Manufacturer Parts Limited Warranty | 1 |
| Mounting Type | Floor Mounted / Ceiling Suspended |
| Noise Level Hi/Med/Low (dB) | 57 / 54 / 52 |
| Product Shipping Weight | 97 lb |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Refrigerant | R-410A |
| Shipping Cost | 60 |
| Unit Type (Selector) | Standard |
| Voltage | 208/230 Volt |
| Width | 64.5 in |
| Width | 64.96 |
Specifications for model: KSIR048-H218-2
| Compressor Type | Rotary |
|---|---|
| Sound Level | 62.5 |
| Minimum Circuit Ampacity (MCA) | 35 |
| Maximum Overcurrent protection (MOP) | |
| Liquid Line Size (In) | 3/8 |
| Suction Line Size (In) | 5/8 |
| Operation Mode | Heat Pump / Heating & Cooling |
| Net/Gross Weight (Lb) | 217.4/246.0 |
| Width/Depth/Height (In) | 37.5x16.3x52.5 |
| Packaged Width/Depth/Height (In) | 43.1x19.5x58.3 |
