The GSX160481, 4 ton, 16 SEER, 45,500 BTU central air conditioning system will help reduce energy consumption throughout the life of the system. Goodman’s SMARTCOIL™ 5mm tube condensing coil design optimizes the heat transfer ability of R‐410A refrigerant compared to standard 3/8”copper tubing. The coil is made of rifled refrigeration‐grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. These high‐quality components together cool your home effectively.
Goodman GMVM970804CN variable‐speed, two‐stage 45,500 BTU gas furnace offers reliable performance and time‐tested durability. A quiet, four‐speed direct drive blower motor is coupled with a two‐stage gas valve that allows installer to turn on two‐stage operation with the flip of a dipswitch. Use with natural gas or add converter for use with propane, or LP.

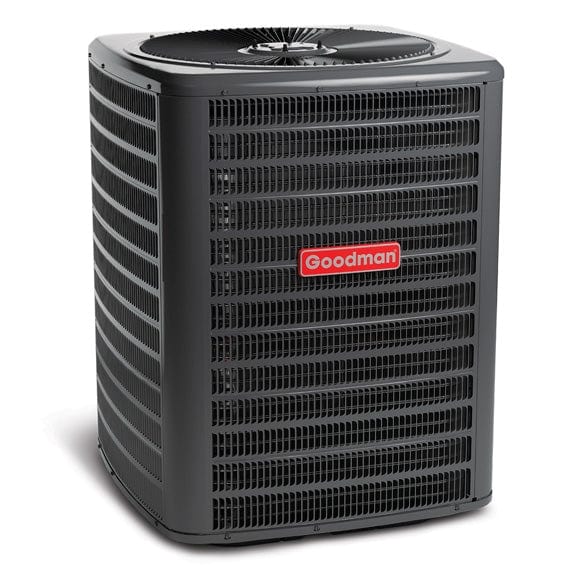

GSX160481 | Outdoor Unit
Goodman’s 4 ton, 16 SEER ENERGY STAR certified condensing unit is built with sound‐dampening features that help ensure that your cooling system doesn’t interfere with a good night’s sleep. The near silent operation is owed to quiet condenser fan system, which includes a three‐bladed fan and a unique louvered sound‐control top that reduces fan‐related noise.
Additional Features
- Chlorine‐free R‐410A refrigerant
- Louvered cabinet made of heavy‐gauge galvanized steel protects coil
- Weather‐resistant architectural gray finish
- Factory‐installed liquid line filter drier
- Brass liquid & suction line valves
- 60,000 BTU
- Contactor with lug connection
- Ground lug connection
- AHRI certified
- ETL listed

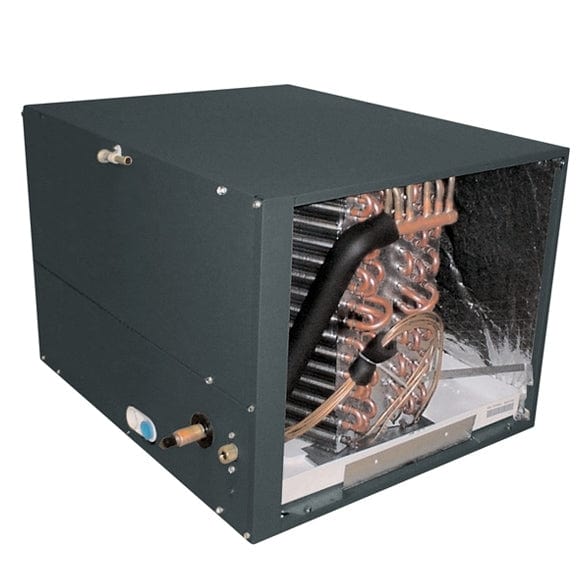

CHPF4860D6 | Indoor Unit
Goodman’s all‐aluminum evaporator coil is constructed with thick‐walled aluminum tubing, corrugated fins and panels for a single metal solution for outstanding, time‐tested, heat transfer performance properties. It’s painted architectural gray and features a leather grain embossed finish. Cased coil for upflow/downflow applications. Easy access owed to split seam front and 21” depth. Fits 21” furnace cabinets. Also compatible with split‐system air conditioning and heat pump systems.
- Inhibits mildew with low water‐retention design
- Cabinet condensation reduced with foil faced insulation
- Copper coil stud for connecting copper liquid suction lines
Additional Features
- Indoor coil quality control/pressure and vacuum‐tested at factory
- Helium pressure testing completed on indoor coil during construction
- Indoor coil’s drain pan safe for ultraviolet light treatment system
- Indoor coil has rust‐resistant, thermoplastic drain pans
- 500‐hour salt‐spray approval on outdoor unit’s post‐paint finish
- Wire fan discharge grille on condenser
- Condenser features easy access to controls & space for field‐installed accessories
- Outdoor unit has brass liquid & suction line valves
- Condenser cabinet when properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane‐type winds
- Contactor with lug connection and ground lug connection on condenser
- AHRI certified
- ETL listed

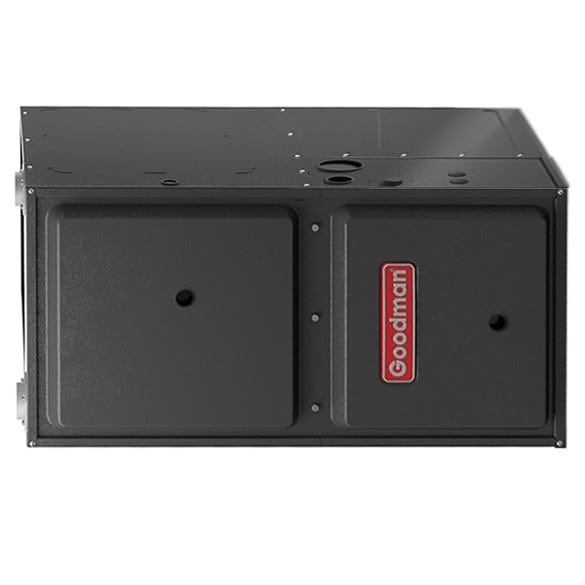

GMVM970804CN | Gas Furnace
The GMVM970804CN 98% high efficiency furnace from Goodman saves you money from the moment it arrives. Its versatile design makes installation easy and fast. Once it's running, you'll notice a reduction in your energy bill since 98 cents of every dollar you spend on heating will actually go toward warming your home.
Unlike a standard furnace, which vents leftover heat out of your home in the form of exhaust, the Goodman 98% AFUE GMVM970804CN multi‐speed furnace passes the exhaust through a secondary stainless steel heat exchanger to extract additional heat. That heat – up to 30% or more – which would have otherwise been wasted is circulated through your home by a dual‐speed induced draft blower.
Additionally, the multi‐speed ECM motor also keeps your home temperature steady and several low continuous fan speed options reduce sound and keeps air circulating throughout your home. The self‐diagnostic control board with fault code history helps maintain your investment for long‐lasting comfort. Ideal for installation in a closet, alcove, utility room, basement or attic.
Additional Features
- ComfortNet™ Communicating System compatible
- Heavy‐duty aluminized‐steel tubular heat exchanger
- Stainless‐steel secondary heat exchanger
- Self‐calibrating modulating gas valve auto‐configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable‐speed induced draft blower
- Utilizes ComfortNet™ communicating, two‐stage or single‐stage thermostats
- Self‐diagnostic control board with constant memory fault code history output to a dual 7‐segment display
- Color‐coded low‐voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable‐speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto‐Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified; ETL Listed
- Designed for multi‐position installation – GMVM97: upflow, horizontal left or right GCVM97: downflow, horizontal left or right
- Certified for direct vent (2‐pipe) or non‐direct vent (1‐pipe)
- Easy‐to‐install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak)
- Heavy‐gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy‐cut tabs for effortless removal in bottom air‐inlet applications
What’s Included
Your Goodman Central Air Conditioning System with Gas Furnace from Heat & Cool Comes With:- GSX160481 | Outdoor Unit
- CHPF4860D6 | Indoor Unit
- GMVM970804CN | Gas Furnace
- Installation Manual
- Brochure
- Technical Specification
- Manufacturer Warranty
Downloads
- GMVM97/GCVM97 SERIES - TECHNICAL SPECIFICATIONS
- GMVM/GCVM/GMVC/GCVC/GMEC/GME8 SERIES - MANUFACTURER WARRANTY
- GMVM97/GCVM97 SERIES - TECHNICAL MANUAL
- GMVM97/GCVM97 SERIES - INSTALLATION MANUAL
- GMVM97 SERIES - BROCHURE
- GSX SERIES - INSTALLATION MANUAL
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- CAPF/CAPT/CAUF/CHPF/CSCF SERIES - MANUFACTURER WARRANTY
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- GSX14/GSX16/GSZ14/GSZ16/GPH SERIES - MANUFACTURER WARRANTY
- GSX16 SERIES - TECHNICAL SPECIFICATIONS
- GSX16 SERIES - BROCHURE
- CHPF SERIES - INSTALLATION MANUAL
Key Specifications
- Goodman
- CHPF4860D6
- GSX160481
- Horizontal
- 97%
- Yes
- GMVM970804CN
- 16
- 45,500
- 80,000
Bundle includes 3 items
4 Ton Goodman GSX16S481 16 SEER Outdoor Condensing Unit R410A Refrigerant
Model Number: GSX16S481 SKU: HCGMC1036
4 - 5 Ton Goodman CHPF4860D6 Horizontal Cased Coil Fits 24.5 Inch Cabinet
Model Number: CHPF4860D6 SKU: HCGMC1717
80,000 BTU Goodman GMVM970804CN 98% Efficiency Modulating Upflow/Horizontal Gas Furnace Heater
Model Number: GMVM970804CN SKU: HCGMC2597 Open in a new tabSystem Specifications
| Coil Model Number | CHPF4860D6 |
|---|---|
| Condenser Model Number | GSX160481 |
| System Configuration | Horizontal |
| Heating Efficiency (AFUE) | 97% |
| Energy Star | Yes |
| Furnace Model Number | GMVM970804CN |
| Must ship freight | Yes |
| Efficiency (SEER) | 16 |
| SEER (Left Filter) | 15+ |
| Shipping Time | 24 to 72 hours |
| Shipping Time | 7 to 10 days |
| System Cooling Capacity (BTU) | 45,500 |
| System Heating Capacity | 80,000 |
| Video Codes | t8rjs6qgyz |
Specifications for model: CHPF4860D6
| Cabinet Height | 24.5 in |
|---|---|
| Coil Configuration | Horizontal |
| Depth | 21.1 in |
| Handling Cost | 15 |
| Height | 24.5 in |
| Installation Type | with Gas Furnace |
| Manufacturer Parts Limited Warranty | 10 |
| Must ship freight | Yes |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Refrigerant | R-410A |
| Shipping Cost | 80 |
| Model Number | CHPF4860D6 |
| Unit Type (Selector) | Standard |
| Width | 26 in |
Specifications for model: GSX16S481
| Compressor Stages | 1 |
|---|---|
| Compressor Type | Scroll |
| Cooling Capacity (Nominal) | 45500 Btu/h |
| Depth | 35.5 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| Energy Star | Yes |
| Handling Cost | 25 |
| Height | 39.5 |
