Choose the right heating and air conditioning system for your home and you’ll save money upfront, recuperate your investment through lower energy bills or both.
Automatic defrost prevents condensation from freezing and damaging the compressor. The built-in base pan heater ensures reliable operation in temperatures as low as 5º F. A built-in crank case heater protects your compressor lifespan. Compact outdoor unit requires little ground space and can be mounted to a wall with wall brackets (not included). Pre-charged for up to 25 feet of refrigerant piping.
Refrigerant leak detection
Double cam twin rotary compressor
Auto defrost, base pan heater plus crank case heater
Improved Performance
SEER: 16
EER: 8.5
HSPF: 9.6
Additional Features
SEER (Seasonal Energy Efficiency Rating): 16
EER (Energy Efficiency Rating): 8.5
HSPF (Heating Seasonal Performance Factor): 9.6
COP (Coefficient of Performance): 2.8
Refrigerant lines sizes: Liquid side: 3/8"; Gas side: 5/8"
Application area (cooling standard): 1400~1900 sq.ft.
Anti-cold air function
Full-function remote control and built-in emergency MANUAL switch button
Indoor unit has multi-refrigerant outlet pipes: left/right/rear
ON/OFF programmable timer
Optional wired wall thermostat can be plugged-in easily for commercial or non-remote-control use
Indoor unit is pre-vacuumed and outdoor unit is pre-charged
at a glance
Brand:
Klimaire

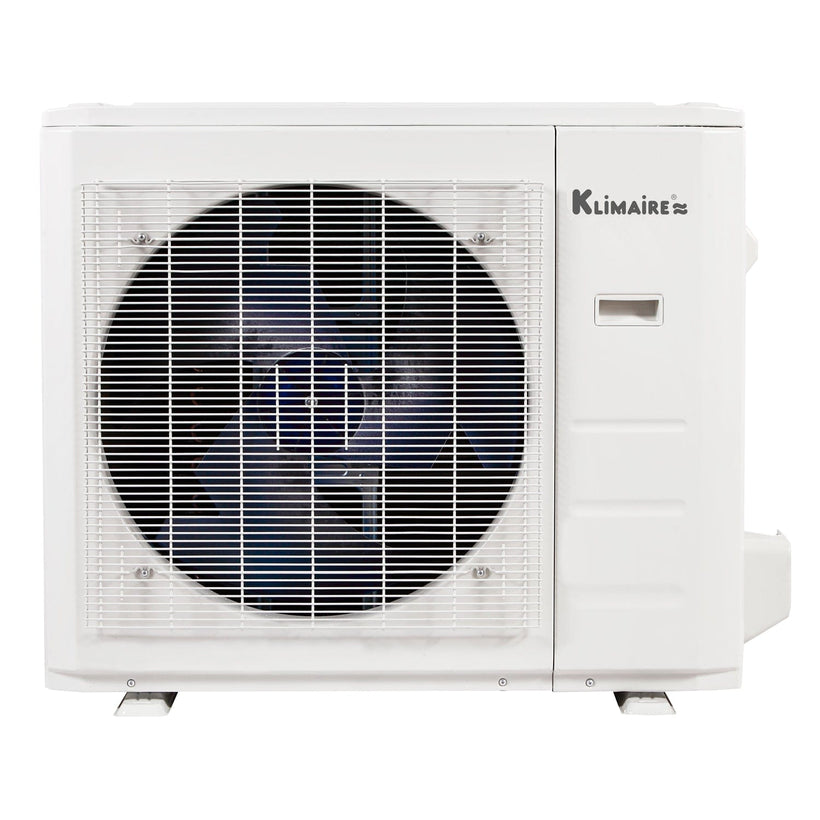

Unit Type
Outdoor Unit
Nominal Capacity (Ton)
2.5
Application Area (SqFt)
1,600 up to 1,900
Cooling Capacity (Btu)
30,000
Heating Capacity (Btu)
30,000
SEER
18
HSPF
9.6
EER
10.5
COP
2.8
Power Supply
208-230 V / 1 Phase / 60 Hz
Refrigerant Type
R-410A
Certifications
ETL / cETL / AHRI Performance Certified 210/240
Manufacturer Limited Warranty
1 Year Parts 5 Years Compressor
Minimum Outdoor Temperature for Cooling (F°)
5
Minimum Outdoor Temperature for Heating (F°)
5
Dimension (WxDxH) (in)
37.24 x 16.54 x 31.89
Packing Dimension (WxDxH) (in)
42.91 x 19.69 x 34.06
Net/Gross weight (lb)
137.79/147.71
Liquid Line Size (In)
3/8
Suction Line Size (In)
5/8
Application
Heat Pump/Heating & Cooling
Matching Indoor Unit
KSIR030-H215-IW-2
Outdoor Air Flow (cfm)
2530
Outdoor noise level dB(A)
62
System Specifications
Unit Type
Outdoor Unit
Nominal Capacity (Ton)
2.5
Application Area (SqFt)
1,600 up to 1,900
Cooling Capacity (Btu)
30,000
Heating Capacity (Btu)
30,000
SEER2
18.6
HSPF2
8.7
EER2
10.5
COP
2.8
Power Supply
208-230 V / 1 Phase / 60 Hz
Refrigerant Type
R-410A
Certifications
ETL / cETL / AHRI Performance Certified 210/240
Manufacturer Limited Warranty
1 Year Parts 5 Years Compressor
Minimum Outdoor Temperature for Cooling (F°)
5
Minimum Outdoor Temperature for Heating (F°)
5
Dimension (WxDxH) (in)
37.24 x 16.54 x 31.89
Packing Dimension (WxDxH) (in)
42.91 x 19.69 x 34.06
Net/Gross weight (lb)
137.79/147.71
Liquid Line Size (In)
3/8
Suction Line Size (In)
5/8
Application
Heat Pump/Heating & Cooling
Matching Indoor Unit
KSIR030-H215-IW-2
Outdoor Air Flow (cfm)
2530
Outdoor noise level dB(A)
62
