GOODMAN IS ONE OF THE BIGGEST NAMES IN HOME HEATING AND ENERGY-EFFICIENT HOME COMFORT
Goodman lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a gas furnace system to help keep your home warm and comfortable.
Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology, but the company ultimately adheres to some old-fashioned values too. Goodman believes in the integrity of the American worker. That’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

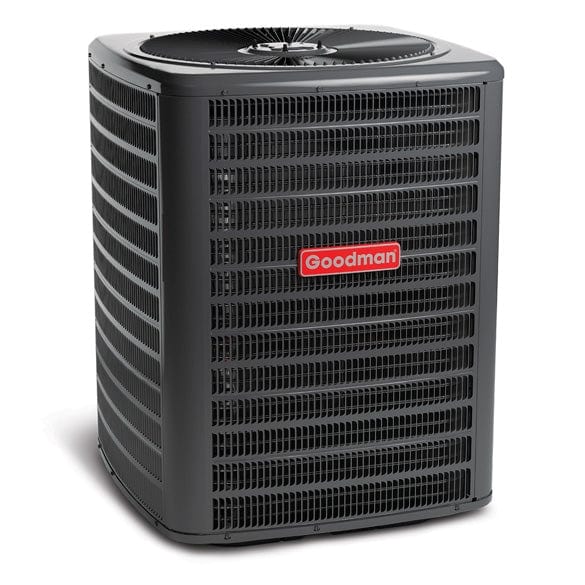

GSX160361 | Outdoor Unit
Goodman air conditioners simply work the way they are supposed to, making each one a thing of beauty.
Long ago the HVAC industry determined that the combination of copper tubing and aluminum fins provided the most efficient transfer of thermal heat available. Today, the Goodman brand has improved upon this industry standard by making the condenser coil copper tubing smaller and smarter. The result is an air conditioner unit that can offer high efficiency, use less refrigerant, and deliver money-saving and energy saving comfort to you for years.
- High-Efficiency Compressor – Designed to provide years of reliable cooling comfort, it provides up to 16 SEER cooling performance for lower energy bills compared to lower SEER compressors.
- Single-Speed Condenser Fan Motor – With advanced fan design, it provides dependable, quiet airflow across the condensing coil.
- Efficient Cooling Capacity – Five-millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
- Heavy-Gauge, Galvanized Steel Enclosure Cabinet – A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
- Factory-Installed In-Line Filter Drier – Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Standard Features
- Fully charged for 15’ of tubing length
- Copper tube/aluminum fin coil
- Service valves with sweat connections and easy-to-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
Cabinet Features
- Heavy-gauge galvanized-steel cabinet with a louvered sound control top
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds

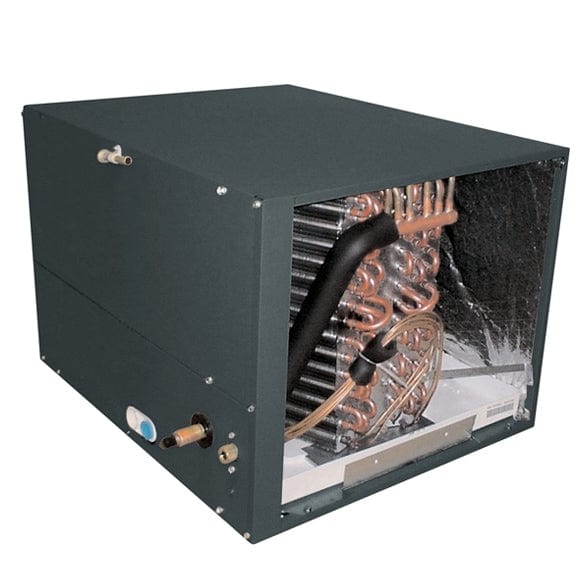

CHPF3743C6 | Indoor Unit
Goodman’s all-aluminum evaporator coil is constructed with thick-walled aluminum tubing, corrugated fins and panels for a single metal solution for outstanding, time-tested, heat transfer performance properties. It’s painted architectural gray and features a leather grain embossed finish. Cased coil for horizontal applications. Easy access owed to split seam front and 21” depth. Fits 17 ½” furnace cabinets. Also compatible with split-system air conditioning and heat pump systems.
- Inhibits mildew with low water-retention design
- Cabinet condensation reduced with foil faced insulation
- Copper coil stud for connecting copper liquid suction lines

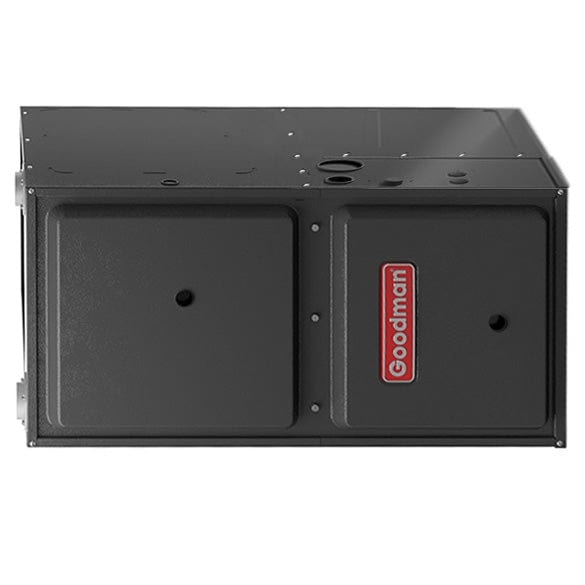

GCVC961005CN | Furnace
Get the most out of your heating dollars with the Goodman 100,000 BTU GCVC961005CN high-efficiency gas furnace’s next generation technology. Unlike a standard furnace, which vents left-over heat out of your home in the form of exhaust, the Goodman GCVC961005CN high-efficient furnace passes the exhaust through a secondary stainless steel heat exchanger to extract additional heat. That extra heat – up to 30% more – which would have otherwise been wasted is circulated through your home. The end result is 96 cents out of every dollar you spend on heating is used to keep your home warm.
This two-stage gas furnace saves energy and maintains a steady temperature by adjusting its airflow according to the heating or cooling demands of your home. Also enjoy advanced diagnostics, automatic maintenance alerts and continuous monitoring of the system’s performance. Ideal for installation in a closet, alcove, utility room, basement or attic.
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Complies with California 40 ng/J Low NOx emissions standard
- Multiple continuous fan speed options silently circulate the air
What’s Included:
Your Goodman Central Air Conditioning System with Gas Furnace from Heat & Cool Comes With:
- GSX160361 | Outdoor Unit
- CHPF3743C6 | Indoor Unit
- GCVC961005CN | Gas Furnace
- Installation Manual
- Brochure
- Manufacturer Warranty
- Technical Specification
Downloads
- CAPF/CAPT/CAUF/CHPF/CSCF SERIES - MANUFACTURER WARRANTY
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- GCVC96 SERIES - BROCHURE
- GCVC96 SERIES - MANUFACTURER WARRANTY
- GCVC96 SERIES - TECHNICAL SPECIFICATIONS
- GSX14/GSX16/GSZ14/GSZ16/GPH SERIES - MANUFACTURER WARRANTY
- GSX16 SERIES - TECHNICAL SPECIFICATIONS
- GSX16 SERIES - BROCHURE
- CHPF SERIES - INSTALLATION MANUAL
- GSX DSX GSZ DSZ VSX VSZ - SERVICE MANUAL
Key Specifications
- Goodman
- CHPF3743C6
- GSX160361
- Horizontal
- 96%
- GCVC961005CN
- 16
- 36,000
- 100,000
Bundle includes 4 items
3 Ton Goodman GSX160361 16 SEER Outdoor Condensing Unit R410A Refrigerant
Model Number: GSX160361 SKU: HCGMC1034
3.5 Ton Goodman CHPF3743C6 Horizontal Cased Coil Fits 21 Inch Cabinet
Model Number: CHPF3743C6 SKU: HCGMC1716
System Specifications
| Coil Model Number | CHPF3743C6 |
|---|---|
| Condenser Model Number | GSX160361 |
| System Configuration | Horizontal |
| Heating Efficiency (AFUE) | 96% |
| Furnace Model Number | GCVC961005CN |
| Efficiency (SEER) | 16 |
| SEER (Left Filter) | 16+ |
| Shipping Cost | 360 |
| System Cooling Capacity (BTU) | 36,000 |
| System Heating Capacity | 100,000 |
| Video Codes | t8rjs6qgyz |
Specifications for model: CHPF3743C6
| Cabinet Height | 21 in |
|---|---|
| Coil Configuration | Horizontal |
| Depth | 21.1 in |
| Expansion Device | Flowrater |
| Handling Cost | 15 |
| Height | 21 in |
| Installation Type | with Gas Furnace |
| Manufacturer Parts Limited Warranty | 10 |
| Must ship freight | Yes |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Refrigerant | R-410A |
| Shipping Cost | 80 |
| Model Number | CHPF3743C6 |
| Unit Type (Selector) | Standard |
| Width | 26 in |
Specifications for model: GSX160361
| Compressor Stages | 1 |
|---|---|
| Compressor Type | Scroll |
| Cooling Capacity (Nominal) | 34800 Btu/h |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| Energy Star | Yes |
| Handling Cost | 25 |
| Manufacturer Compressor Limited Warranty | 10 |
| Liquid Valve Size | 3/8" |
| Liquid Line Size | 3/8" |
| Manufacturer Parts Limited Warranty | 10 |
