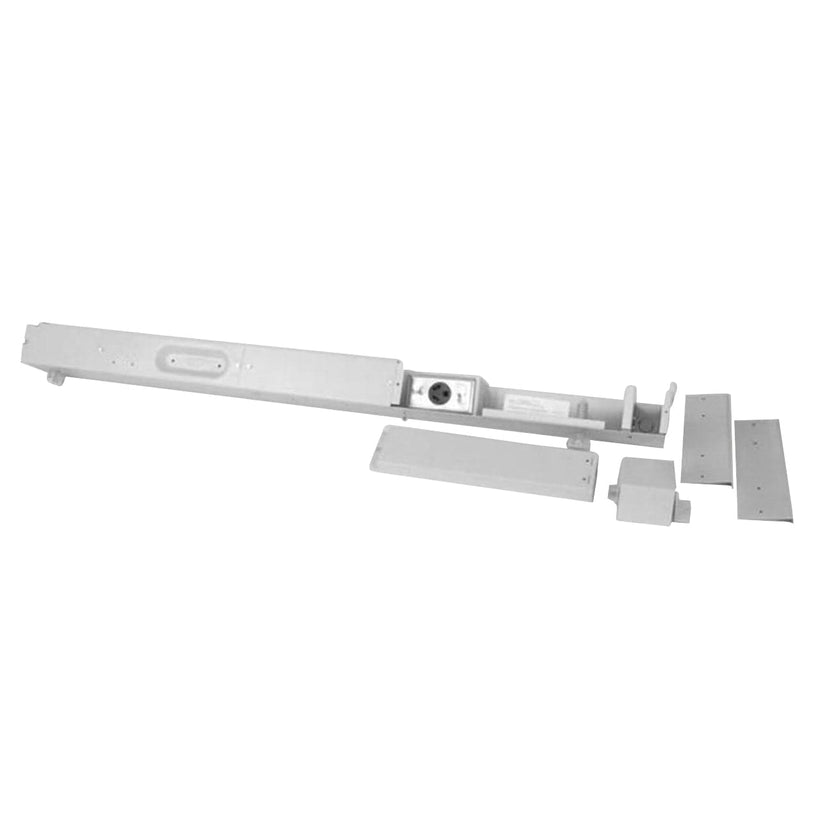

The PTSB420QW Sub-Base Kit, designed for 265V with a 20A power rating, offers a comprehensive solution for PTAC unit installations.
Key Features:

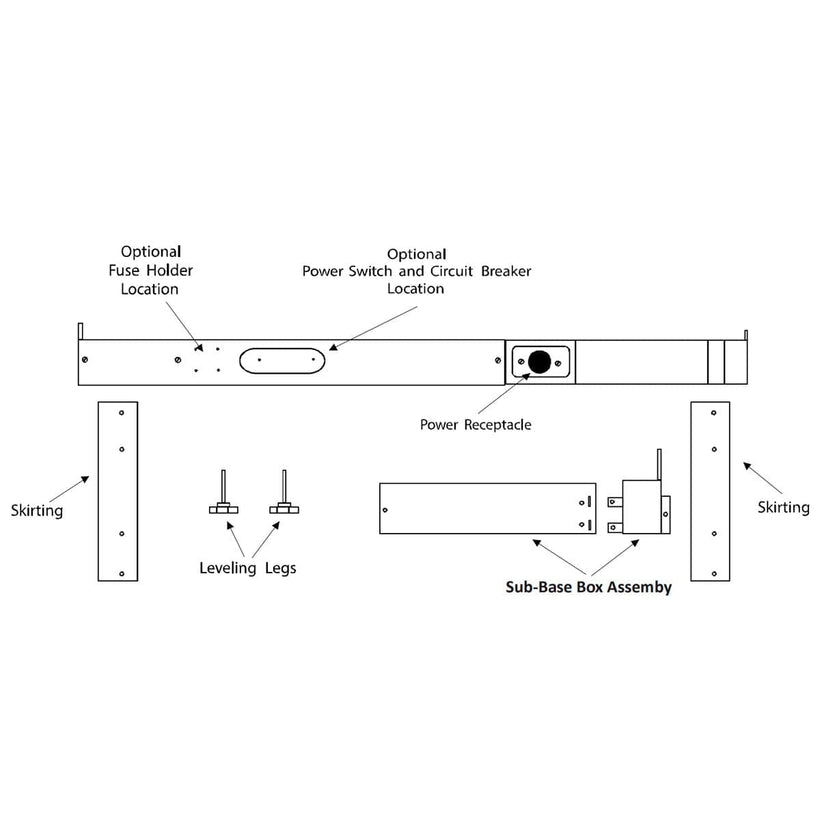

Fully Skirted Design: The sub-base comes fully skirted, concealing wiring to ensure a neat and professional appearance. It also provides robust support if required.
Efficient Installation: The inclusion of a plugin receptacle and field-wiring access streamlines the installation process, offering convenience and ease of setup.
Electrical Accessories Compliance: Electrical accessories like fuse holders, circuit breakers, and disconnect switches meet NEC requirements, ensuring safety and adherence to standards. These accessories can be seamlessly installed in the unit sub-base.
Versatile Installation: Sub-bases can be installed onto the wall sleeve either before or after sleeve installation, providing flexibility in the installation process.
Clearance Requirements:
Minimum clearance between the wall sleeve bottom and the finished floor is 3¾".
Maximum height clearance from the bottom of the wall sleeve to the finished floor is 5".
Minimum clearance between the wall sleeve flange and the finished wall is 2¾".
The PTSB420QW Sub-Base Kit not only enhances the aesthetics of the installation by concealing wiring but also offers practical features for efficient and compliant PTAC unit installations.
