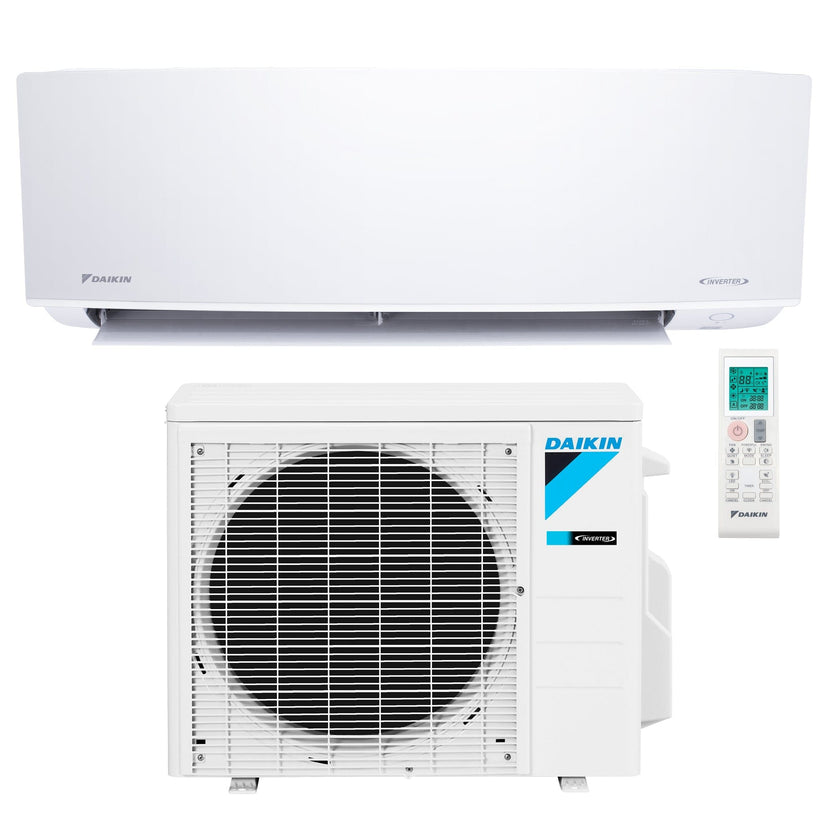

Daikin OTERRA™ FTX24BXVJU Wall Mount - Heat Pump
0.75 Ton to 2.0 Ton
Up to 20 SEER2 / Up to 10 HSPF2
Daikin OTERRA™ Wall Mount Systems provide energy efficiency and comfort control with an affordable, cost-saving solution. Available in both heat pump and cooling only models, these systems feature streamlined, wall mounted indoor units paired with quietly compact outdoor units. The flexible design blends discretely with any home décor and is ideal for single room enhancements, spaces requiring additional heating or cooling, and additions up to 1,600 square feet.
Ideal solutions for:
- Renovations, remodeling and new construction
- A perfect alternative to noisy and inefficient window or through-the-wall air conditioner units
- Sun rooms, basements, attics, garages, hot rooms, and more
- Rooms where floor space comes at a premium or is not available for other application
- Ceiling void or attic does not allow for a viable duct run option
- Cooling Only models are an excellent value for space not requiring heating
Features
- Energy Efficient – Up to 20 SEER2, up to 10 HSPF2, up to 12.5 EER2
- Variable-Speed Inverter Compressor
- Cooling Range: 50° - 115° F
- Extended Coolig Operation: -4° - 115° F
- Heating Range: 5° - 65° F
- Facility Setting and Air Adjustment Grille
- Indoor Sound Pressure as Low as 25 dB(A)
- Outdoor Sound Pressure as Low as 46 dB(A)
- Washable Air Filter
- Program Dry Function
- Eco+ Mode.
- Titanium Apatite Photocatalytic Air Purifying Filter
- Powerful Operation Mode

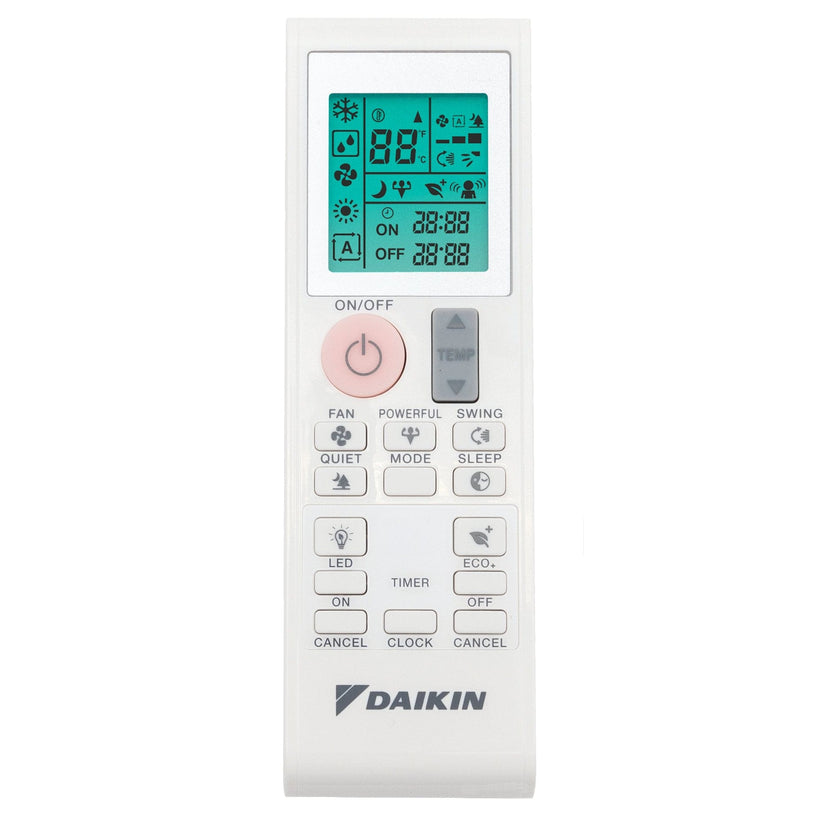

- Backlit Wireless Remote Controller
- Auto-Changeover (Heat Pump Only)
- Auto-Fan Speed Control
- Self Diagnostics with Digital Display
- Auto-Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Automatic Defrosting (Heat Pump)

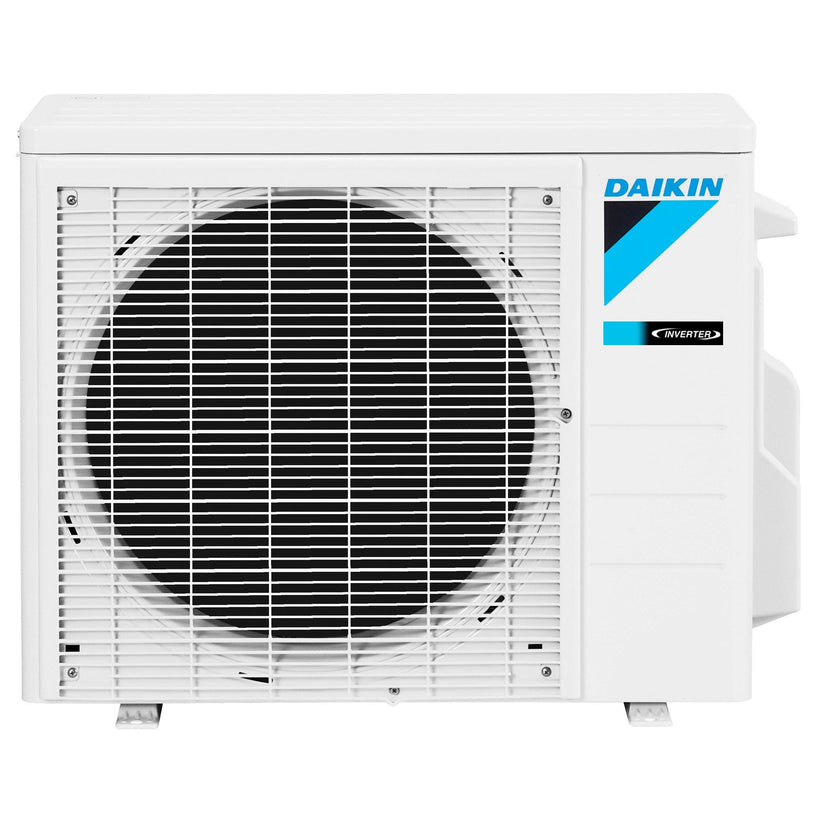

Daikin Oterra™ RX24BXVJU Outdoor Unit
Daikin OTERRA™ ductless outdoor unit heat pumps offer you streamlined heat without the hassle of reworking ducts or getting a full furnace. By going ductless, you choose heat that is reliable while also being easy to install and maintain. Ideal for maintaining a comfortable small office, room, or studio.
OTERRA™ heat pumps extract or reject heat from the outside air, even in cold weather. They use an electrically powered compressor and are extremely effective at heating and cooling an apartment or a house. Daikin heat pumps are quiet and discreet, and use state-of-the-art technology to keep your energy bills low. With a Daikin heat pump, a large portion of the energy used to heat or cool your home comes from the outside air, a free and infinitely renewable resource.
Features
- High-efficiency inverter driven swing compressor
- Low-ambient cooling capable
- Auto-restart in case of power failure
- Coated coils for corrosion protection
- Automatic defrosting
WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:

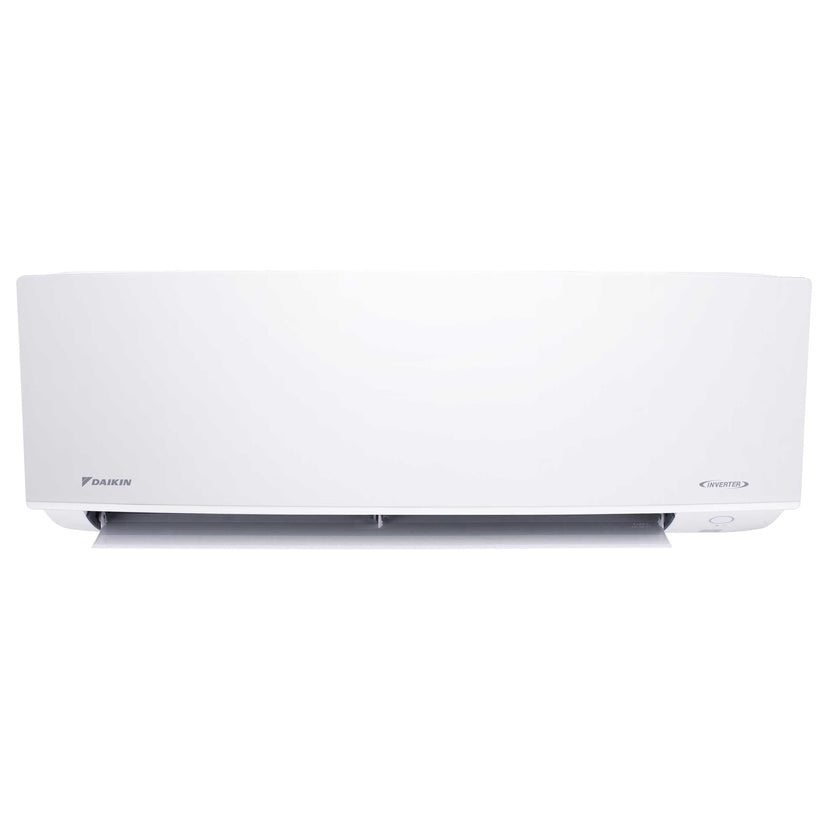

- FTX24BXVJU | Indoor Unit
- RX24BXVJU | Outdoor Unit
- Remote control
MANUFACTURER WARRANTY
- 12 year parts limited warranty
Downloads
- Daikin OTERRA SERIES - BROCHURE
- Daikin OTERRA FTX24BXVJU-RX24BXVJU SERIES - TECHICAL SPECIFICATIONS
- Daikin OTERRA FTK-FTX RK-RX BXVJU SERIES - ENGINEERING MANUAL
- Daikin OTERRA FTK-FTX RK-RX BXVJU SERIES - INSTALLATION MANUALS -
- Daikin OTERRA FTK-FTX RK-RX BXVJU SERIES - SERVICE MANUAL
- Daikin OTERRA FTK-FTX RK-RX BXVJU SERIES - USERS MANUALS
- Daikin OTERRA FTK-FTX RK-RX BXVJU SERIES - LIMITED WARRANTY
Key Specifications
- Daikin
- Wall Mount
- 1,500 SqFt
- 21,200
- 23,600
- 20.0
- 9.0
- 12.2
- 208-230 V; 1 Phase; 60 Hz
- R-410A
- 1
- 12 Year Parts Warranty
- 3.45
Bundle includes 2 items
Daikin 24000 Btu 20 SEER2 Condenser Heat Pump
Model Number: RX24BXVJU SKU: DRX24BX0513Daikin 24000 Btu Wall Mount Fan Coil Unit
Model Number: FTX24BXVJU SKU: DFTX24BX0502System Specifications
Indoor Model Number | FTX24BXVJU |
---|---|
Model Number | RX24BXVJU + FTX24BXVJU |
Outdoor Model Number | RX24BXVJU |
System Type (Selector) | Mini Split |
Type | Mini Split Systems |
Application Area | 1,500 SqFt |
Cooling Capacity Btu | 21,200 |
Nominal Capacity (BTU) | 24,000 |
Heating Capacity (BTU) | 23,600 |
Efficiency SEER2 | 20.0 |
SEER2 Filter | 20+ |
HSPF2 | 9.0 |
EER2 | 12.2 |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Voltage | 208/230 Volt |
Refrigerant | R-410A |
Number of Zones (Rooms) | 1 |
Manufacturer Limited Warranty (Years) | 12 Year Parts Warranty |
Shipping Time | 24 to 72 hours |
Application | Heat Pump / Heating & Cooling |
COP2 | 3.45 |
Fancoil Style | Wall Mounted |
Must ship freight | Yes |
Purifier Type | Electronic & HEPA |
Technology | Inverter |
Specifications for model: FTX24BXVJU
Brand | Daikin |
---|---|
Model Number | FTX24BXVJU |
Air Filter Type | Catechin |
Type | Ductless Mini Split |
Unit Type (Selector) | Wall Mounted |
Mounting Type | Wall Mounted |
Cooling Capacity (BTU) | 21,200 |
Nominal Capacity (BTU) | 24,000 |
Heating Capacity (BTU) | 23,600 |
[k_4] | 2.0 |
Efficiency SEER2 | 20.0 |
HSPF2 | 9.0 |
EER2 | 12.2 |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Voltage | 208/230 Volt |
Manufacturer Limited Warranty (Years) | 12 Year Parts Warranty |
Wi-Fi Fi_With With_Additional Adaptor | Yes |
Certifications | ETL / HARI Performance Certified 210/240 |
Sound Level Cooling | 53 / 45 / 39 / 34 dBA |
Sound Level Heating | 53 / 43 / 38 / 34 dBA |
Liquid Line Size | 1/4 inches |
Suction Line Size | 1/2 inches |
Mode | Yes |
Night Set Mode | Yes |
Gross Weight Lb | 36 lbs |
Weight | 31 lbs |
Depth | 14.125 in |
Height | 14.25 in |
Width | .42.25 in |
Airflow Rate (H/M/L) | 754 / 716 / 605 / 467 cfm |
Drain Line Size | 5/8 inches |
Shipping Time | 24 to 72 hours |
Louvers | Yes |
Filter | Catechin |
Anti Cold Air | Yes |
Anti Corrosion | Yes |
Application | Heat Pump / Heating & Cooling |
Auto Restart | Yes |
Swing | Yes |
Blue Fin Protection | Yes |
COP | 3.45 |
Dehumidification | Yes |
Fan Only | Yes |
Filter Cleaning Methods | Washable |
Filter Type | Titanium Apatite Photocatalytic |
Low Temperature Operation | Yes |
Memory | Yes |
Motor Type | Direct Current |
Must ship freight | Yes |
Number of Fan Speeds | 3 Steps; Quiet; Auto; Turbo |
Remote Control Temperature Sensor | Yes |
Diagnosis | Yes |
Inverter | Yes |
Smart Technology | Yes |
Technology | Inverter |
Thermostat Type | Wireless Remote |
Turbo | Yes |
Specifications for model: RX24BXVJU
Blower Motor | Multi-Speed ECM Blower Motor |
---|---|
Compressor Type | Hermetically Sealed Swing |
Depth | 13.81 in |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Fan Type | Propeller |
Height | 27.41 in |
Manufacturer Limited Warranty (years) | 12 Year Parts Warranty |
Maximum Indoor Units | 1 |
Maximum Indoor Units | 1 |
MCA (Minimum Circuit Ampacity) | 16.55 amps |
Model Number | RX24BXVJU |
