Elevate your expectations and get more out of your home’s indoor comfort system performance
As you think about the functionality of your home's indoor comfort system, the Daikin brand is ready to help you
achieve control, energy efficiency and long-term peace of mind. Take that attention to quality one step farther by choosing a Daikin brand energyefficient ductless split system. We have designed and engineered all of our products to provide years of consistent indoor comfort – delivering you and your family premium Comfort for Life.
- Energy Efficient – 17 SEER, 9 HSPF
- 10 Year Parts Limited Warranty
- Turbo mode cools or warms up the room fast
A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. The Daikin brand 17 Series is designed to blend in discreetly with any home design and are ideal for single rooms.
Smart inverter technology
Integrated with an inverter variablespeed compressor, 17 Series ductless systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption (compared to traditional fixed-speed ducted systems).
This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
Experience comfort
Designed for Comfort for Life, the Daikin 17 Series units include features to ensure a comfortable experience every moment.
From the wide angle louver design to the auto-swing and comfortable mode controller settings, effective heating and cooling is ensured throughout the space.
Quiet operation
Utilizing inverter technology to maintain comfort settings, Daikin systems most often operate at low speeds with indoor sound levels as low as 37 decibels (dB) and outdoor sound levels as low as 51 dB. Activate the indoor unit quiet operation and sound levels drop by 2-3 dB for gentler heating and cooling and quiet operation.
Additional features
- Energy Efficient – 17 SEER, 9 HSPF
- Undisturbed Comfort
- Advanced Filtration
- Wireless Control
Applications
- Primary living areas (master bedrooms and living rooms)
- Hot or cold rooms
- Rooms with poor air flow
- Renovations and remodeling
- Basements, attics and garages
- New construction

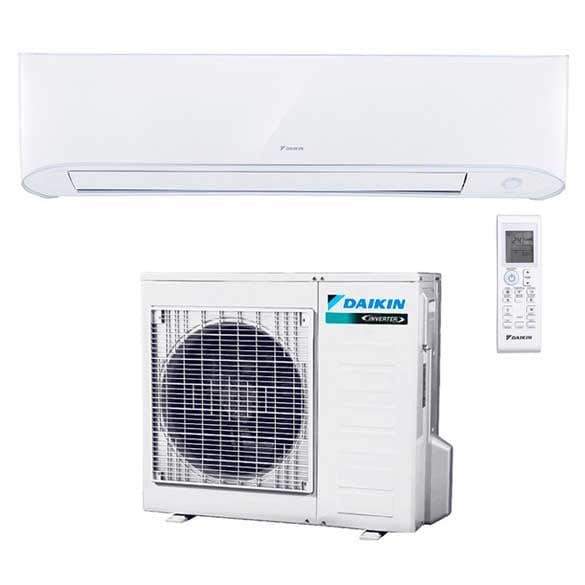

WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
- FTXB24AXVJU | Indoor Unit

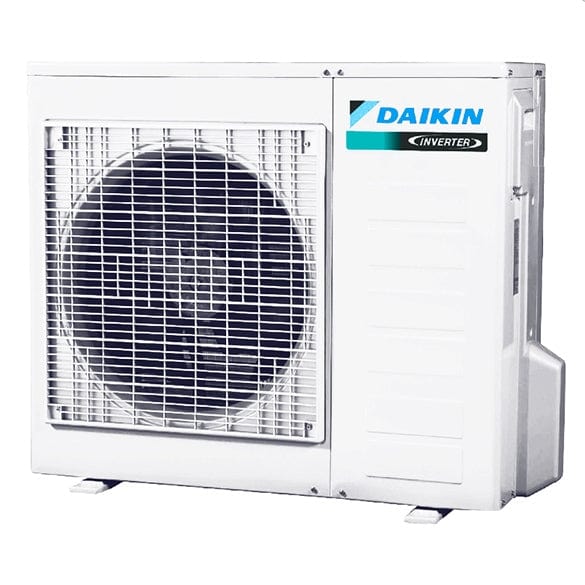

- RXB24AXVJU | Outdoor Unit

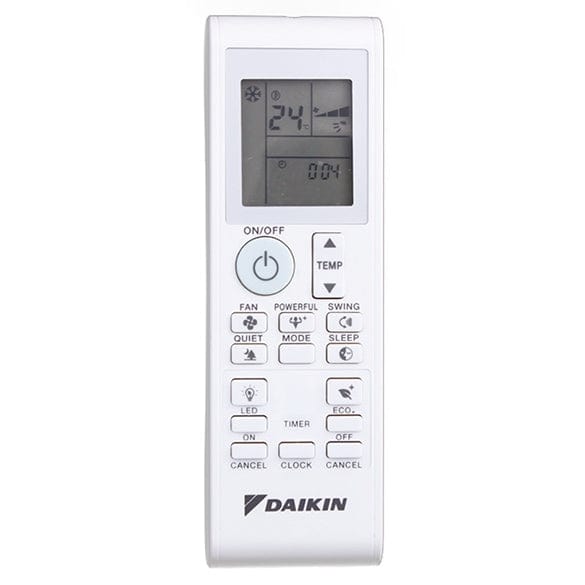

- Remote control
MANUFACTURER WARRANTY
- 10 year parts limited warranty
Key Specifications
- Daikin
- 21,200
- 208-230 V; 1 Phase; 60 Hz
- 21,200
- 10-Year Parts Limited
- Wall Mounted
- FTXB24AXVJU
- RXB24AXVJU
- 1
- 17
- 128 lbs
- Standard
Bundle includes 2 items
24,000 Btu Daikin Outdoor Heat Pump Unit 17 Seer RXB24AXVJU
Model Number: RXB24AXVJU SKU: HCDNA2242
24,000 BTU Daikin Mini-Split Wall Mount Fan Coil Unit FTXB24AXVJU
Model Number: FTXB24AXVJU SKU: HCDNA2243System Specifications
| Special Promo Label | DEEP DISCOUNT |
|---|---|
| Certifications | AHRI Certified; ETL Listed |
| Cooling Capacity (BTU) | 21,200 |
| EER (Energy Efficiency Ratio) | 11 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Heating Capacity (BTU) | 21,200 |
| HSPF (Heating Seasonal Performance Factor) | 9 |
| Manufacturer Limited Warranty (text) | 10-Year Parts Limited |
| Mounting Type | Wall Mounted |
| Indoor Model Number | FTXB24AXVJU |
| Outdoor Model Number | RXB24AXVJU |
| MOP (Maximum Overcurrent Protection-Breaker) | 3.68 |
| Number of Zones (Rooms) | 1 |
| Must ship freight | Yes |
| Refrigerant | R410A |
| Efficiency (SEER) | 17 |
| SEER (Left Filter) | 17+ |
| Shipping Cost | 195 |
| Shipping Time | 24 to 72 hours |
| System Shipping Weight | 128 lbs |
| Technology | Inverter |
| Unit Type (Selector) | Standard |
| Video Codes | akrl4fsvy9 |
| Voltage | 208/230 Volt |
Specifications for model: FTXB24AXVJU
| Ambient Temperature Cooling Range | 21200 |
|---|---|
| Ambient Temperature Heating Range | 21200 |
| Air Volume | 654 CFM |
| Auto Restart | Yes |
| Automatic Swing | Yes |
| Certifications | Ahri |
| Colors | White |
| Convenience Features | Humidistat |
| DC Inverter Technology | Yes |
| Dehumidification | Yes |
| Depth | 9.5 In |
| EER (Energy Efficiency Ratio) | 11 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Filter Cleaning Methods | Washable |
| Height | 12.625 In |
| Liquid Line Size | 1/4" |
| Low Temperature Operation | Yes |
| Manufacturer Limited Warranty (text) | 10 Year Parts Limited |
| Matching Outdoor Unit | RXB24AXVJU |
| MCA (Minimum Circuit Ampacity) | 16.2 amps |
| Memory | Yes |
| Mounting Type | Wall Mounted |
| Noise Level Hi/Med/Low (dB) | 43 / 41 / 37 |
| Remote Control Temperature Sensor | Yes |
| Suction Line Size | 5/8" |
| Thermostat Type | Wireless Remote |
| Turbo | Yes |
| Unit Type (Selector) | Standard |
| Voltage | 208/230 Volt |
| Weight | 31 lbs |
| Width | 46.125 In |
Specifications for model: RXB24AXVJU
| Certifications | AHRI Performance Certified |
|---|---|
| Compressor Type | Hermetically Sealed Swing |
| Cooling Capacity (Nominal) | 21200 Btu/h |
| Depth | 33.7 In |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Heating Capacity (Nominal) | 21200 Btu |
| Height | 12.9 In |
| Manufacturer Limited Warranty (text) | 10 Year Parts Limited |
| Maximum Indoor Units | 1 |
| Unit Type (Selector) | Standard |
| Voltage | 208/230 Volt |
| Weight | 97 lbs |
| Width | 29.7 In |
