Elevate your expectations and get more out of your home’s indoor comfort system performance
As you think about the functionality of your home's indoor comfort system, the Daikin brand is ready to help you achieve control, energy efficiency and long-term peace of mind. Take that attention to quality one step farther by choosing a Daikin brand energy efficient ductless split system. We have designed and engineered all of our products to provide years of consistent indoor comfort – delivering you and your family premium Comfort for Life.
- Energy Efficient – 18.9 SEER, 12.5 HSPF
- 12 Year Parts Warranty
- Turbo mode cools or warms up the room fast
A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. The Daikin brand MXS Series is designed to blend in discreetly with any home design and are ideal for single rooms.
Smart inverter technology
Integrated with an inverter variable speed compressor, Daikin MXS Series ductless systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption (compared to traditional fixed-speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
Experience comfort
Designed for Comfort for Life, the Daikin MXS Series units include features to ensure a comfortable experience every moment. From the wide angle louver design to the auto-swing and comfortable mode controller settings, effective heating and cooling is ensured throughout the space.
Quiet operation
Utilizing inverter technology to maintain comfort settings, Daikin systems most often operate at low speeds with indoor sound levels as low as 19 decibels (dB) and outdoor sound levels as low as 46 dB. Activate the indoor unit quiet operation and sound levels drop by 2-3 dB for gentler heating and cooling and quiet operation.
Additional features
- Energy Efficient – 18.9 SEER, 12.5 HSPF
- Undisturbed Comfort
- Advanced Filtration
- Wireless Control

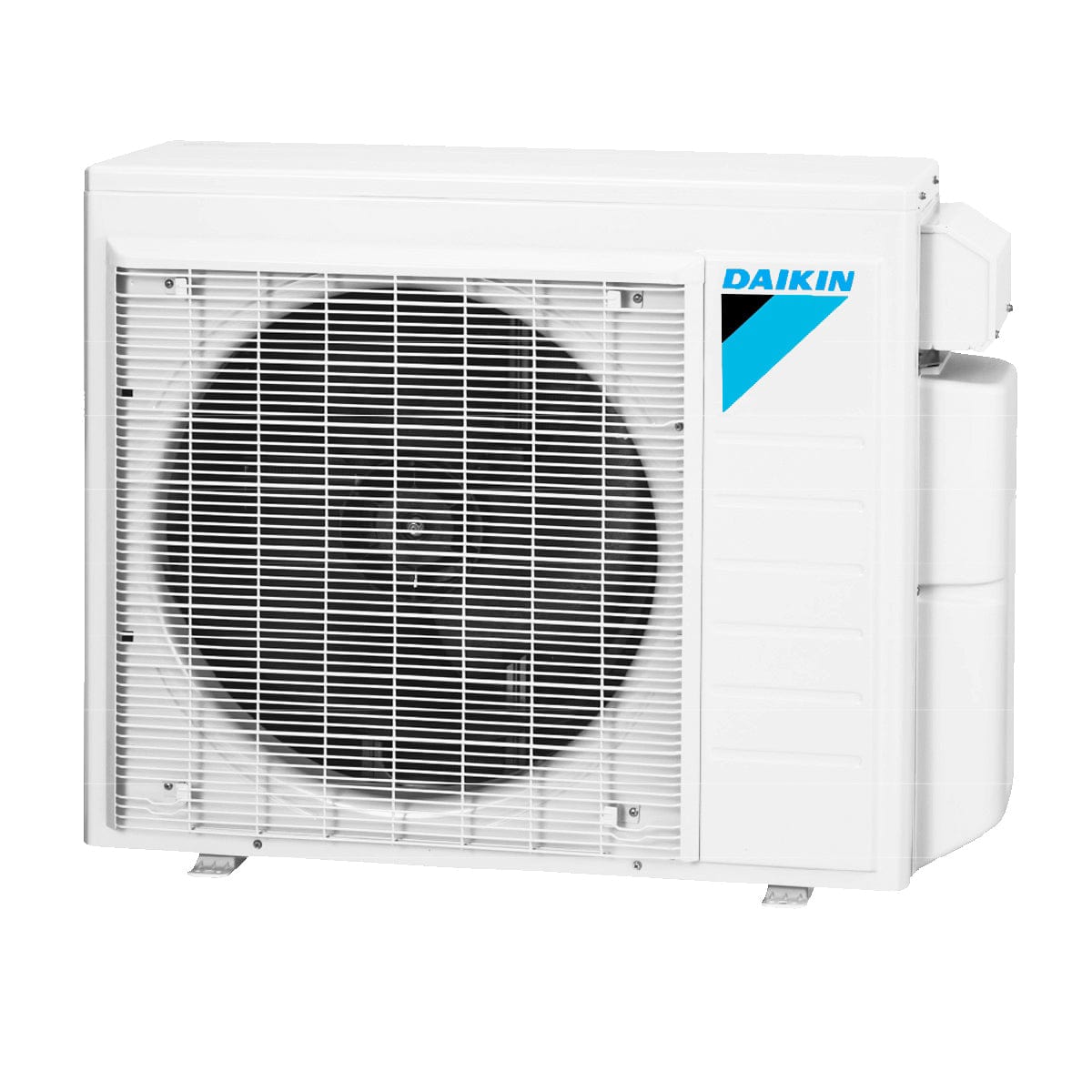

2MXS18NMVJU | Outdoor Unit
The Daikin Multi-Zone System is a flexible solution for individual zone comfort. Connecting up to 4 indoor units to a single outdoor unit reduces installation space and costs while maximizing comfort and energy savings. With a choice of five indoor unit types in a wide range of capacities, Daikin Multi-Zone Systems allow mixed and matched combinations.
Features
- Multi-zone comfort: One outdoor unit connects up to four separate fan coils individually controlled
- Energy Efficient – Up to 18.9 SEER, up to 10.7 HSPF, up to 12.5 EER
- Variable Speed Inverter Compressor Technology
- Cooling Range 14° – 115° F
- Heating Range 5° – 60° F
- Quick and easy installation
- Precision temperature control for individual rooms
- Space-saving design
- Quiet operation
- Fully optimized for R-410A refrigerant
- World renowned Daikin Inverter
FFQ09Q2VJU | Indoor Unit
VISTA™ is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA™ is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.
Features
- 0.75‐Ton Ceiling Mounted Indoor Unit
- Cooling Airflow Rate (cfm): 268 – 378
- Heating Airflow Rate (cfm): 268 – 406
- Nominal Capacity: 9,000 (Btu/hr)
- Intelligent eye occupancy sensor (optional)
- Hot start technology
- Auto‐restart (after power failure)
- Weekly Timer (Up to 4 events per day) Comfort
- Quiet operation
- 2, 3, or 4–way airflow pattern
- Built‐in condensate pump (up to 22")
- Fresh air intake knockout
- Individual Flap Control
FFQ15Q2VJU | Indoor Unit
Features
- 1.25‐Ton Ceiling Mounted Indoor Unit
- Cooling Airflow Rate (cfm): 293 – 420
- Heating Airflow Rate (cfm): 307 – 441
- Nominal Capacity 15,000 (Btu/hr)
- Intelligent eye occupancy sensor (optional)
- Hot start technology
- Auto‐restart (after power failure)
- Weekly Timer (Up to 4 events per day) Comfort
- Quiet operation
- 2, 3, or 4–way airflow pattern
- Built‐in condensate pump (up to 22")
- Fresh air intake knockout
- Individual Flap Control
Applications
- Primary living areas (master bedrooms and living rooms)
- Hot or cold rooms
- Rooms with poor air flow
- Renovations and remodeling
- Basements, attics and garages
- New construction

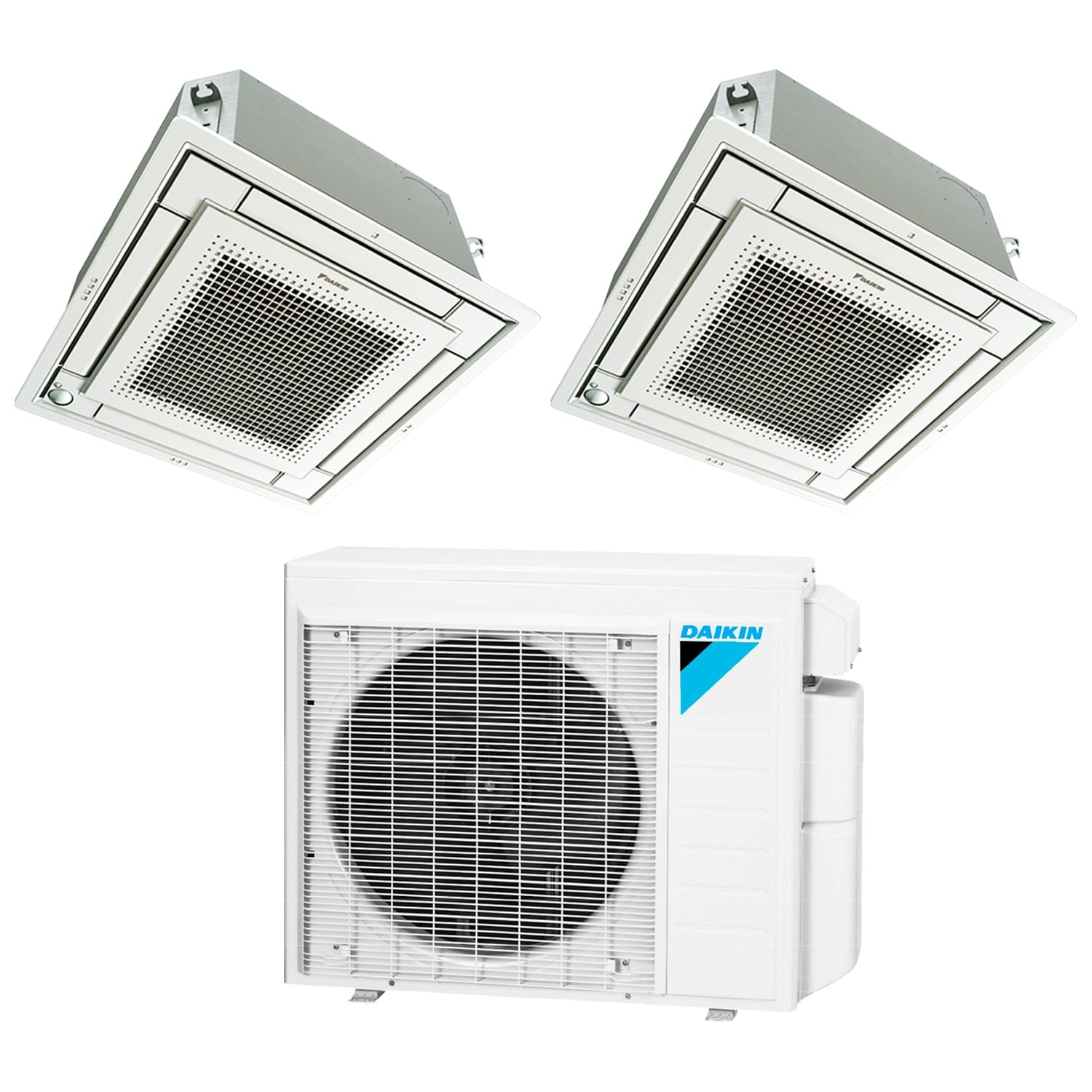

WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
- FFQ09Q2VJU | Indoor Unit
- FFQ15Q2VJU | Indoor Unit
- 2MXS18NMVJU | Outdoor Unit
MANUFACTURER WARRANTY
- 12 year parts warranty
Downloads
- DAIKIN SERIES - MANUFACTURER WARRANTY
- DAIKIN MXS SERIES - TECHNICAL SPECIFICATION
- DAIKIN MXS SERIES - SERVICE MANUAL
- DAIKIN FFQ SERIES - SERVICE MANUAL
- DAIKIN FFQ SERIES - INSTALLATION MANUAL
- DAIKIN FFQ SERIES - ENGINEERING MANUAL
- DAIKIN MULTIZONE SERIES - INSTALLATION MANUAL
- DAIKIN MULTIZONE SYSTEMS - BROCHURE
Key Specifications
- Daikin
- 208-230 V; 1 Phase; 60 Hz
- Yes
- 12 Year Parts Warranty
- Ceiling Cassette
- 2
- 18.9
- 18,000
- 19,000
- 195 lbs
- FFQ09Q2VJU
- FFQ15Q2VJU
Bundle includes 3 items
9,000 BTU Daikin Vista Mini-Split Ceiling Cassette Fan Coil Unit
Model Number: FFQ09Q2VJU SKU: HCDNA2044
System Specifications
| Certifications | Energy Star |
|---|---|
| EER (Energy Efficiency Ratio) | 12.5 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| HSPF (Heating Seasonal Performance Factor) | 10.7 |
| Installation Kit (Included) | No |
| Manufacturer Limited Warranty (years) | 12 Year Parts Warranty |
| Mounting Type | Ceiling Cassette |
| Mounting Type | Ceiling Cassette |
| Number of Zones (Rooms) | 2 |
| Must ship freight | Yes |
| Refrigerant | R-410A |
| Efficiency (SEER) | 18.9 |
| SEER (Left Filter) | 18+ |
| Shipping Time | 24 to 72 hours |
| System Cooling Capacity (BTU) | 18,000 |
| System Heating Capacity | 19,000 |
| System Total Weight | 195 lbs |
| Technology | Inverter |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | FFQ09Q2VJU |
| Indoor 2: Model Number | FFQ15Q2VJU |
Specifications for model: FFQ09Q2VJU
| Depth | 22.7 |
|---|---|
| Expansion Device | TXV (Thermal Expansion Valve) |
| Height | 10.25 |
| Manufacturer Parts Limited Warranty | 12 year parts limited warranty |
| Mounting Type | Ceiling Cassette |
| Model Number | FFQ09Q2VJU |
| Mounting Type | Ceiling Cassette |
| Noise Level Hi/Med/Low (dB) | 38 / 35 / 29 |
| Product Shipping Weight | 40 lb |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Refrigerant | R-410A |
| Unit Type (Selector) | Standard |
| Voltage | 208/230 Volt |
| Width | 22.7 |
Accessories
Electrical Components
Thermostats

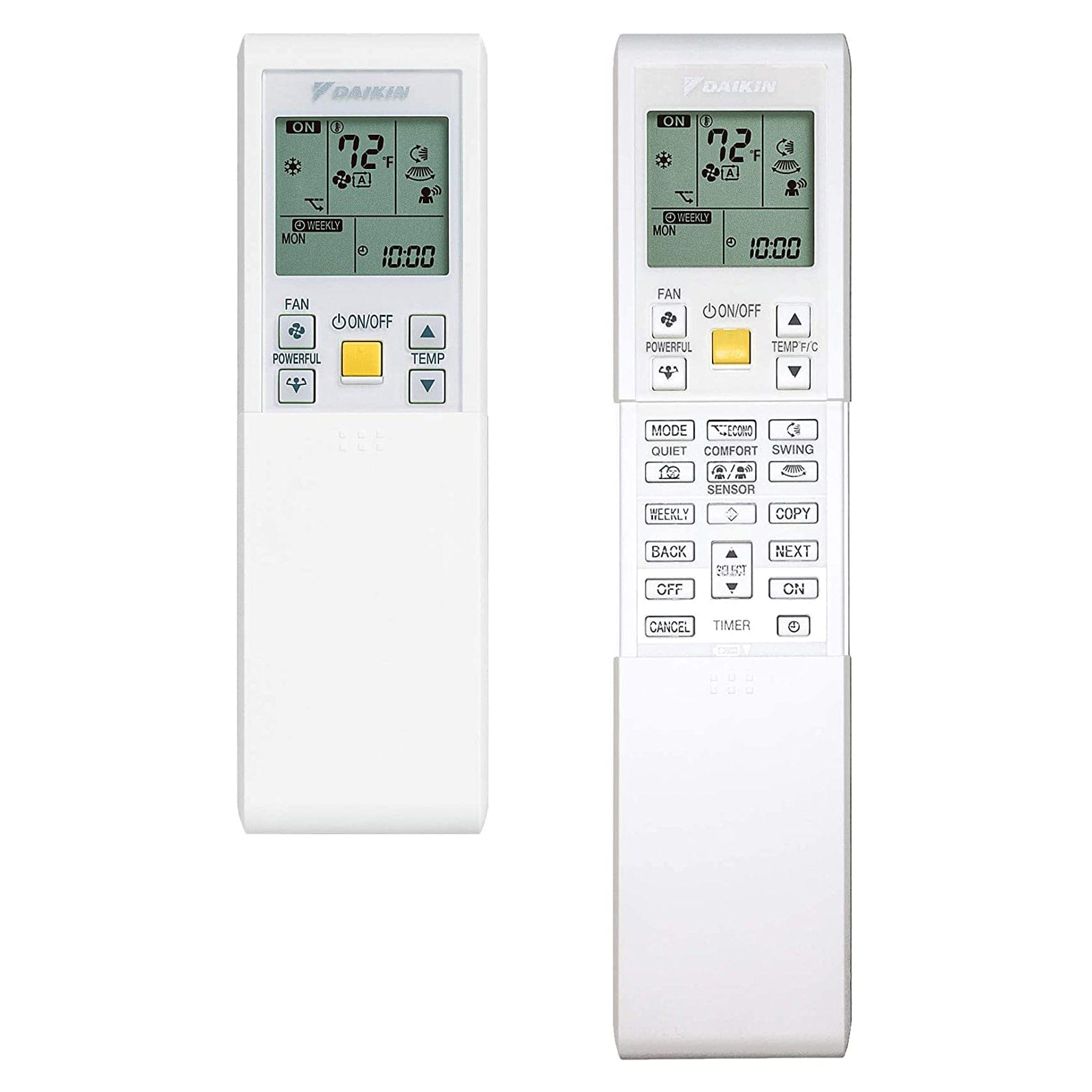

BRC944B2 Daikin Remote Control
