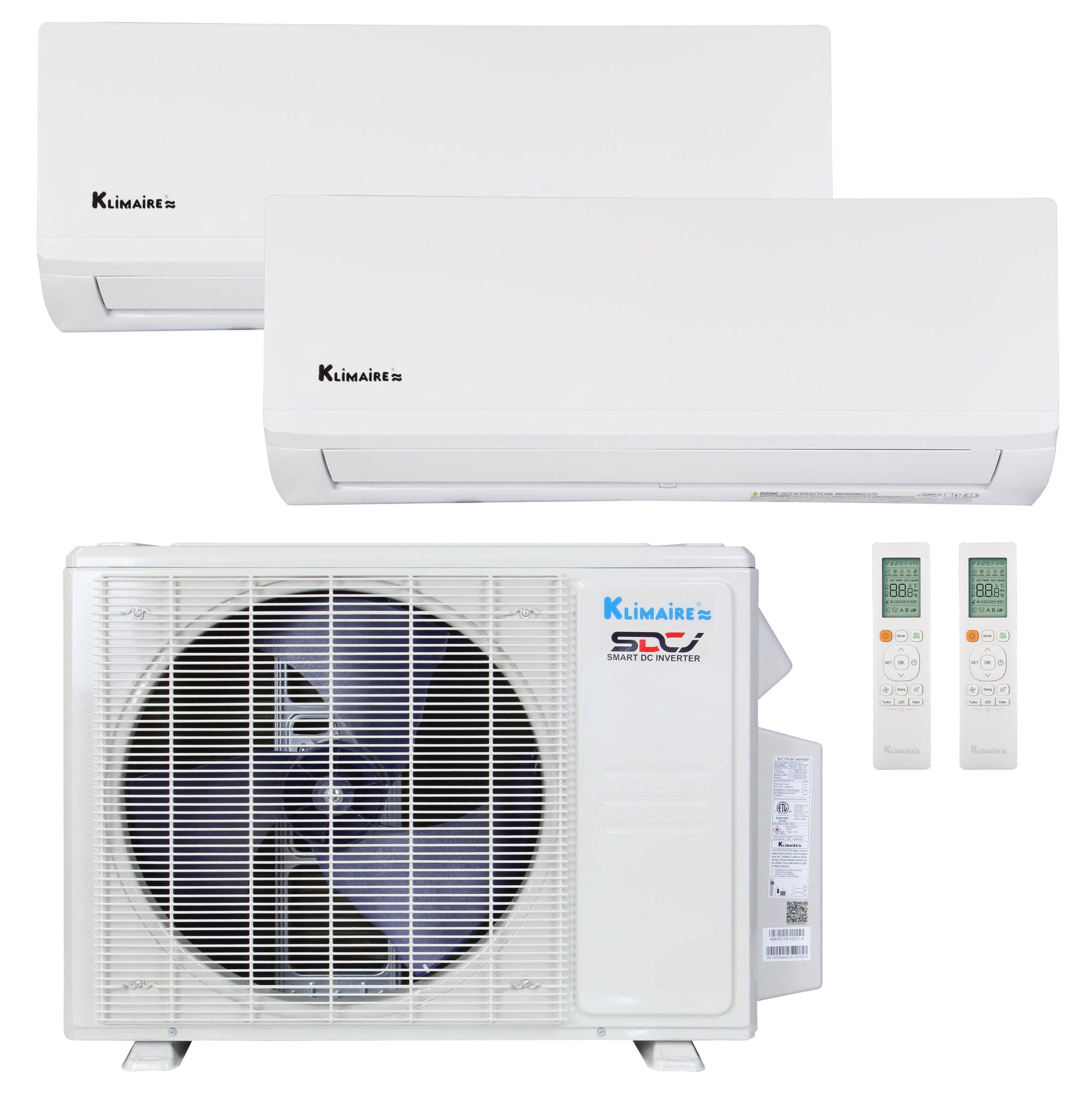

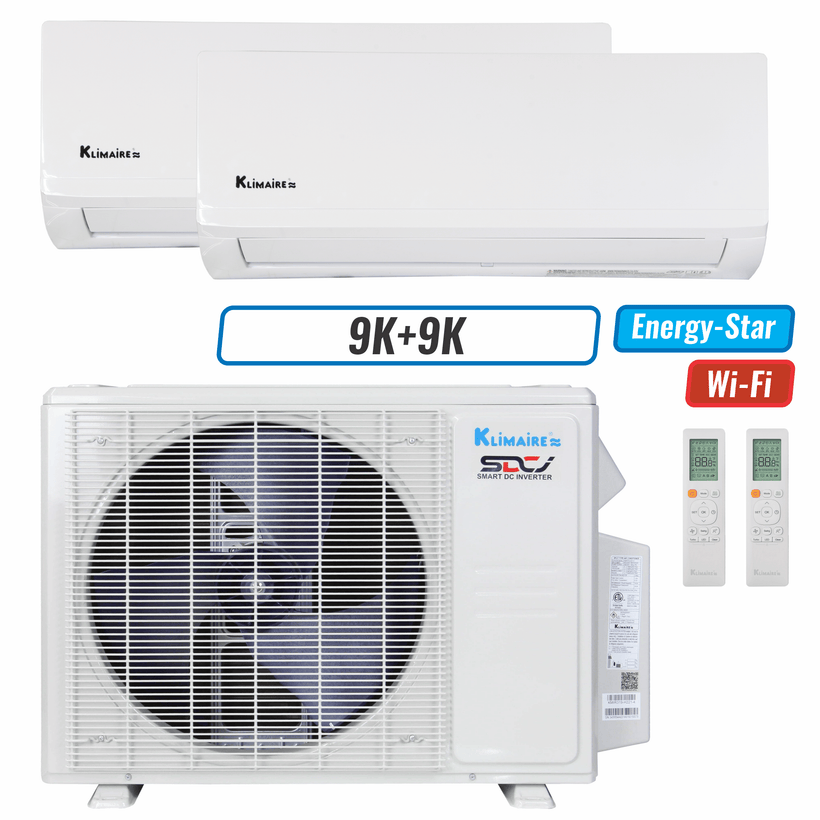

System Specifications
| Air Conditioner Type | Ductless Multi Split |
|---|---|
| Application Area (Sqft) | 700 up to 1,000 |
| Cooling Capacity (Btu) | 18,000 |
| Heating Capacity (Btu) | 19,000 |
| SEER2 | 23 |
| HSPF4 | 10 |
| HSPF5 | 7.7 |
| EER2 | 12.5 |
| Coeficient Of Performance (COP) | 3.8 |
| Power Supply | 208-230 V; 1 Phase; 60 Hz |
| Refrigerant Type | R-454B |
| Number of Zones (Rooms) | 2 |
| Manufacturer Limited Warranty (Yr) | 5 Parts / 7 Compressor |

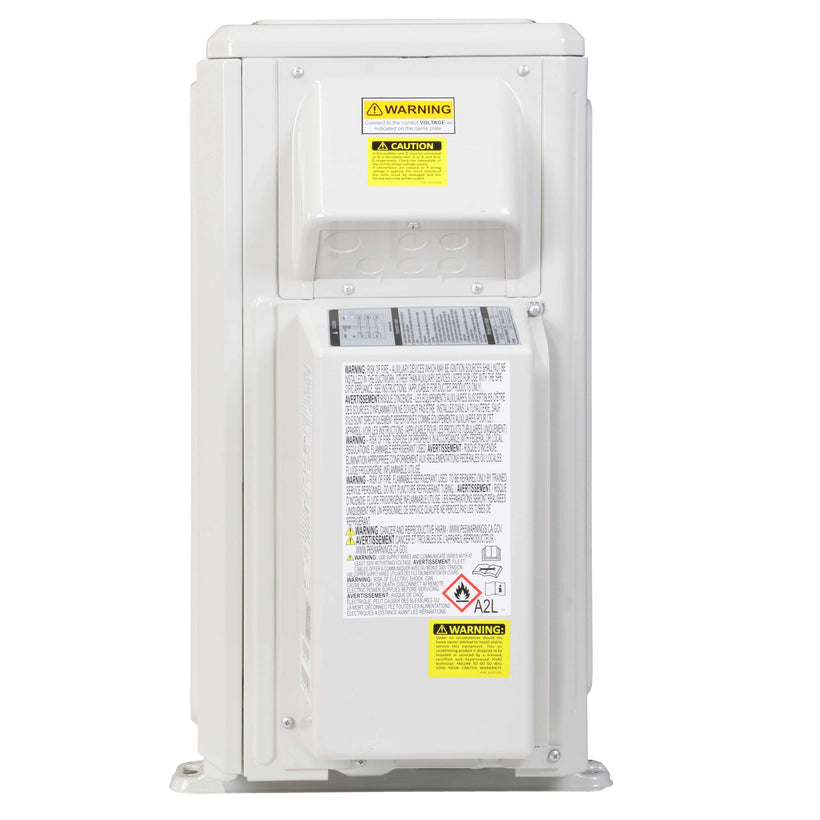

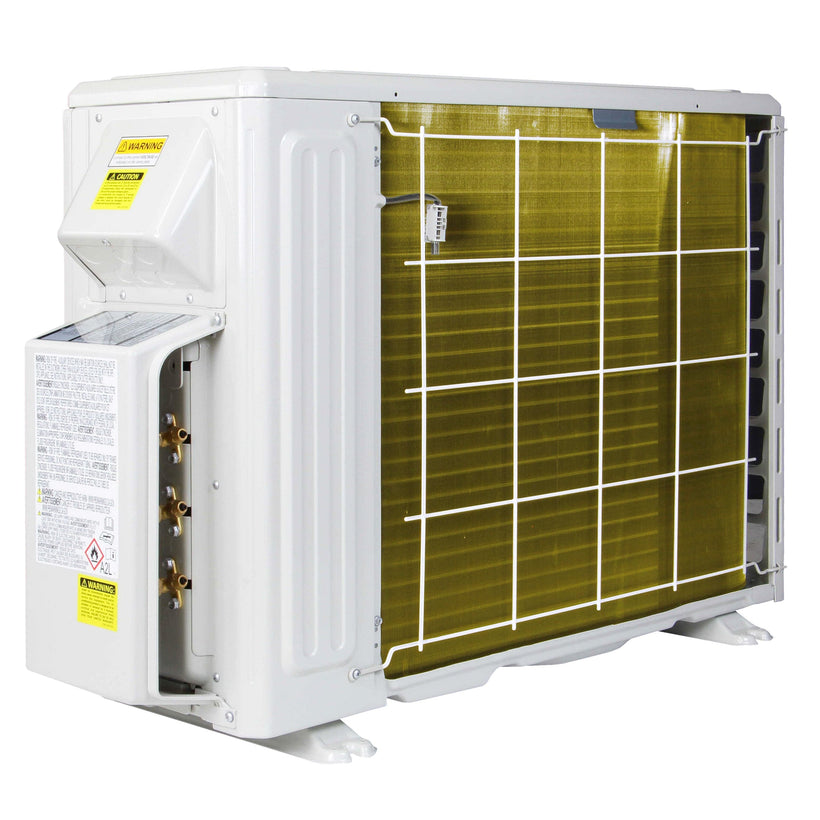

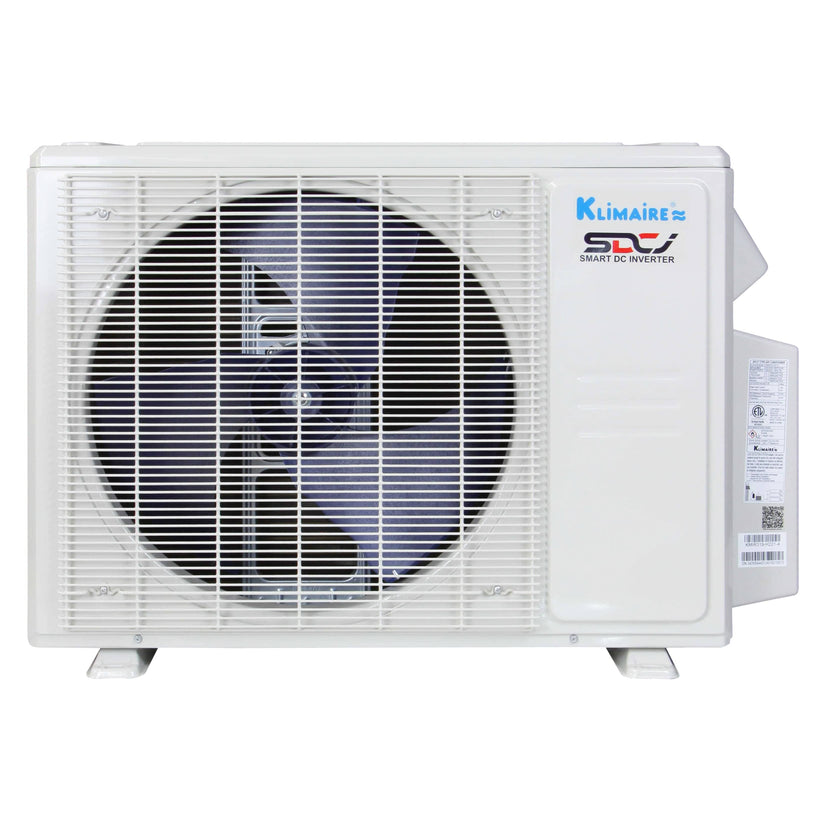

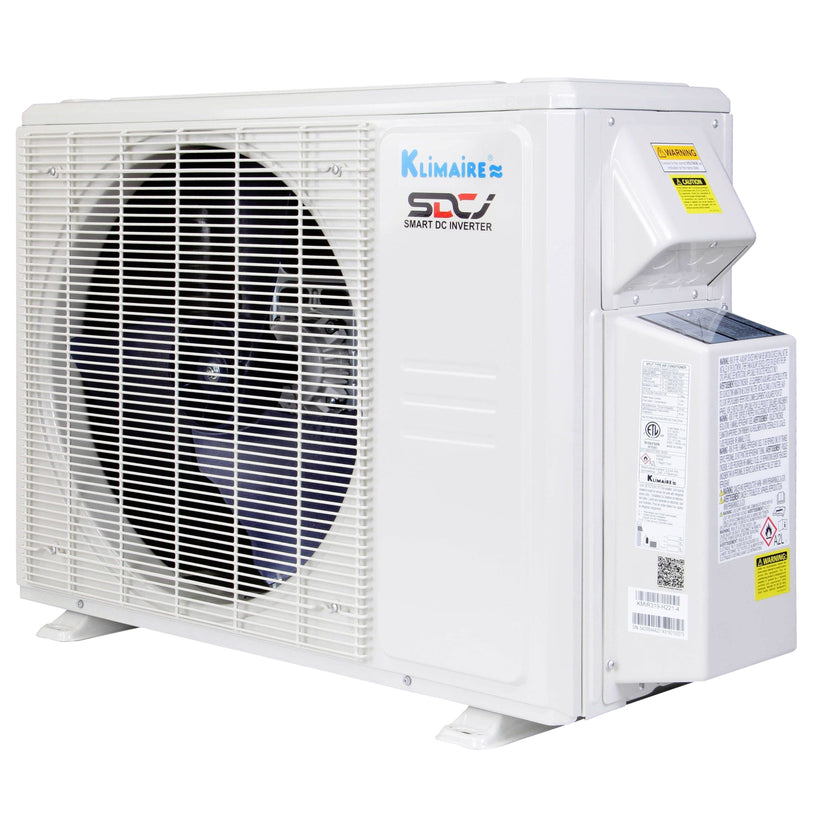

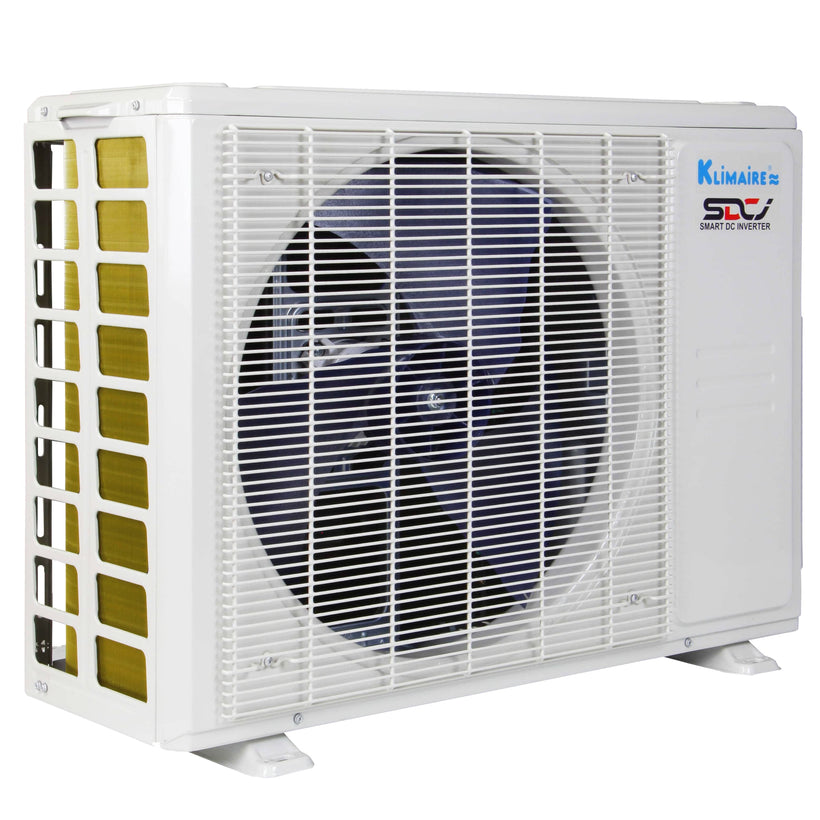

Specifications for model: KMIR319-H221-4
| Operation Mode | Heat Pump / Heating & Cooling |
|---|---|
| Refrigerant | R-454B |
| Cooling Nominal Capacity | 18,000 |
| Cooling Capacity Range | 5400~21600 |
| SEER2 | 23 |
| EER2 | 12.5 |
| Heating Nominal Capacity | 19,000 |
| Heating Capacity Range | 5700~21600 |
| HSPF5 | 7.7 |
| COP | 3.8 |
| Compressor Type | Twin-Rotary |
| Sound Level | 60 |
| Minimum Circuit Ampacity (MCA) | 16 |
| Maximum Overcurrent Protection (MOP) | 20 |
| Liquid Line Size (In) | 3 x 1/4" |
| Suction Line Size (In) | 3 x 3/8" |
| Net/Gross Weight (Lb) | 100.5/109.4 |
| Dimensions Width/Depth/Height (In) | 35.04 x 13.46 x 26.50 |
| Packaged Width/Depth/Height (In) | 40.55 x 17.24 x 29.53 |
| Fan Motor Speed (Hi/Mi/Lo) (rpm) | 750/600/500 |
| Power Supply | 208-230V / 1ph / 60Hz |
| Certifications | AHRI / ETL / Energy Star / NEEP |
Specifications for model: KSIH009-H225-IW-4
| Model Number | KSIH009-H225-IW-4 |
|---|---|
| Type | Min Split |
| Unit Type (Selector) | Indoor Unit |
| Mounting Type | Wall Mount |
| Voltage | 208-230 / 1 / 60 |
| Noise Level Turbo/Hi/Mi/Lo/Si (dB) | 45.5/42/36/21/19.5 |
| Liquid Line Size | 1/4 inches |
| Suction Line Size | 3/8 inches |
| Depth | 11.6 |
| Height | 7.9 |
| Width | 31.6 |
| Air Flow Turbo/Hi/Mi/Lo/Si | 382.6 / 294.3 / 194.2 / 153.0 / N/A |
| Control Type | Wireless Remote |
- RBRoger B.Verified BuyerRated 5 out of 5 stars3 weeks agoUncertainty

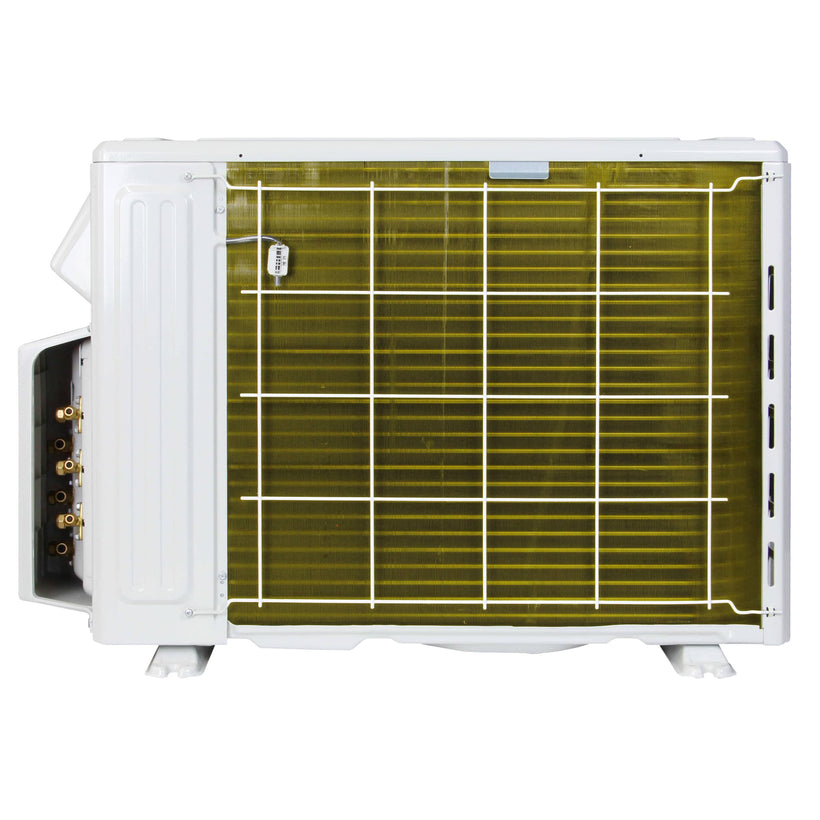

The condenser that was sent has the capabilities of 3 evaporators. I only need 2 ports?
Can I just use the A and B indoor refrigerant line set connections?
HAHeat And Cool2 weeks agoHi Roger!
Thanks for the 5-star review on the Klimaire 18,000 BTU 2-Zone system. Yes, you can absolutely just use the A and B connections for your 2 indoor units - the extra port gives you flexibility for future expansion but you dont need to use all 3. Just connect your 9k units to ports A and B and you'll be all set. The system will work perfectly with just the 2 connections you need.
- APAlex P.Verified ReviewerRated 5 out of 5 stars1 month agoSmall Space Magic
This beat heat perfectly, dehumidifies superbly, top value buy.
HAHeat And Cool1 month agoHi Alex,
Thank you so much for the fantastic 5-star review! We're thrilled to hear that your Klimaire 18,000 BTU 2-Zone system is beating the heat perfectly and providing superb dehumidification. It's particularly rewarding to know that you're experiencing such excellent performance from both the heating and moisture control capabilities - that kind of straightforward feedback about how well your 9k + 9k setup is working really means the world to us.
Your satisfaction with the value and performance of your Klimaire 23 SEER2 mini-split really makes our day. We're delighted that this dual-zone system is delivering the "small space magic" you mentioned, efficiently managing both temperature and humidity in your home.
Thank you for choosing Heat & Cool for your multi-zone comfort needs and for taking the time to share your positive experience!
- The Heat & Cool Team
- LSLeslie S.Verified ReviewerRated 5 out of 5 stars1 month agoSeamless Cooling
Quick setup, powerful dehumidification, steady temps, 9k zones keep spaces cozy year-round.
HAHeat And Cool1 month agoHi Leslie,
Thank you so much for the fantastic 5-star review! We're thrilled to hear that your Klimaire 18,000 BTU 2-zone system provided seamless cooling with quick setup and that you're experiencing powerful dehumidification and steady temperatures. It's particularly rewarding to know that both 9k zones are keeping your spaces cozy year-round - that kind of straightforward feedback about the performance and comfort really means the world to us.
Your satisfaction with the quick installation process and how well this 23 SEER2 heat pump is maintaining consistent comfort in both zones really makes our day. We're delighted that you're experiencing the reliable heating and cooling performance this R454B system provides, and we hope you continue to enjoy the efficient climate control it delivers throughout the seasons.
Thank you for choosing Heat & Cool for your multi-zone comfort needs and for taking the time to share your positive experience!
- The Heat & Cool Team
