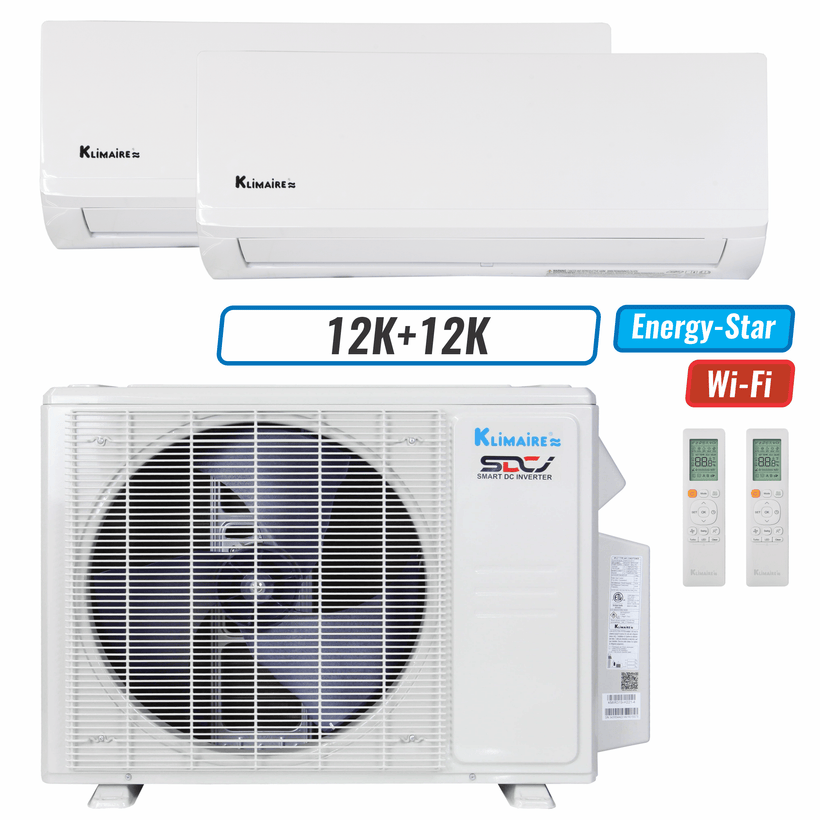

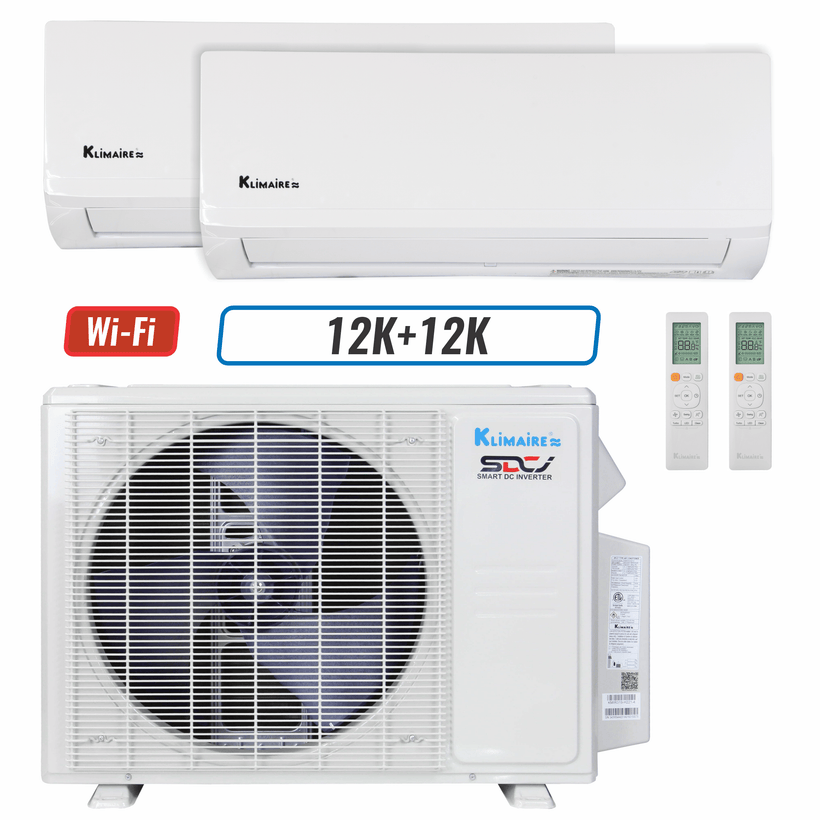

Klimaire 18,000 BTU 2-Zone Regular Heat Wall Mounted Mini Split Heat Pump | 23 SEER2 | 12k + 12k | R454B | KMIR

Klimaire Multi-zone Maximum Comfort in Every Room

Every Klimaire muti-zone system uses one outdoor unit connected to multiple indoor units, so it can cool or heat multiple rooms, with each room being individually controlled, scheduled, and set to the user’s preferred temperature for maximum comfort and energy saving.

KSIH012-H222-IW-4 (x2) | INDOOR UNIT

With Klimaire KSIH indoor unit you will enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function, and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality.

The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the wall unit hangs easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.

• 3D air flow technology distributes the air evenly throughout the room.
• 24-hour timer and memory function
• Turbo mode for fast heating & cooling

ADDITIONAL FEATURES

• Much higher capacity in low temperature
• Anticold air
• Turbo mode
• Silent mode
• Sleep Mode
• Auto defrosting
• Self-cleaning
• 46º F Heating
• 12 grades indoor unit fan speed
• High density air filter
• Temperature Compensation
• High air discharge temperature

KMIR319-H221-4 | Outdoor Unit

Klimaire's new KMIR319-H221-4 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.

• Space saving, specially-designed for quiet operation.
• Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off.
• Klimaire’s multi-zone system can adjust the capacity output as the temperature changes, by controlling the operation of the compressor and the fan motors.
• When not all rooms require air conditioning or when ambient temperature changes, it runs with partial load and lower energy consumption.
• Standard operating range: -13º F ~ 122º F.
  Small footprint fits most yards or easily mounts to a wall with a bracket (sold separately).

Improved Performance

• SEER2: 23
• EER2: 12.5
• HSPF5: 7.7
• COP: 3.8

RECOMMENDED

• Room additions
• Renovations
• Family rooms
• Sunrooms
• Wine cellars
• Garages/workshops

WHAT’S INCLUDED
Your Klimaire Ductless Two-Zone System from Heat & Cool Comes With:

• KSIH012-H222-IW-4 (x2) | Indoor Unit
• KMIR319-H221-4 | Outdoor Unit
• Outdoor unit is pre-charged with R-454B refrigerant
• Indoor units mounting plates
• Remote controls with wall mount bracket
• Installation manual
• User’s manual
• Manufacturer warranty

Manufacturer Warranty

• 5 Year Parts
• 7 Years Compressor
