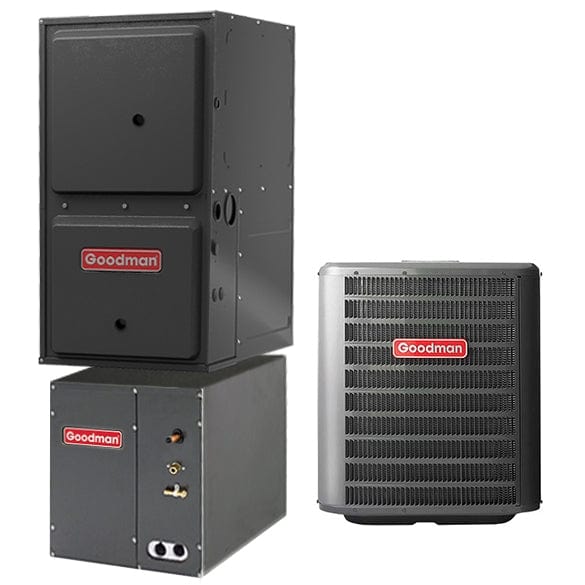

Complete Heating and Cooling for Year‐Round Comfort and Energy Savings
The GSX160241, 2 Ton, 16 SEER, 23,600 BTU central air conditioning system will help reduce energy consumption throughout the life of the system. Goodman’s SMARTCOIL™ 5mm tube condensing coil design optimizes the heat transfer ability of R‐410A refrigerant compared to standard 3/8”copper tubing. The coil is made of rifled refrigeration‐grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. These high‐quality components together cool your home effectively.
Goodman GCVM970603BN variable‐speed, two‐stage 23,600 BTU gas furnace offers reliable performance and time‐tested durability. A quiet, four‐speed direct drive blower motor is coupled with a two‐stage gas valve that allows installer to turn on two‐stage operation with the flip of a dipswitch. Use with natural gas or add converter for use with propane, or LP.

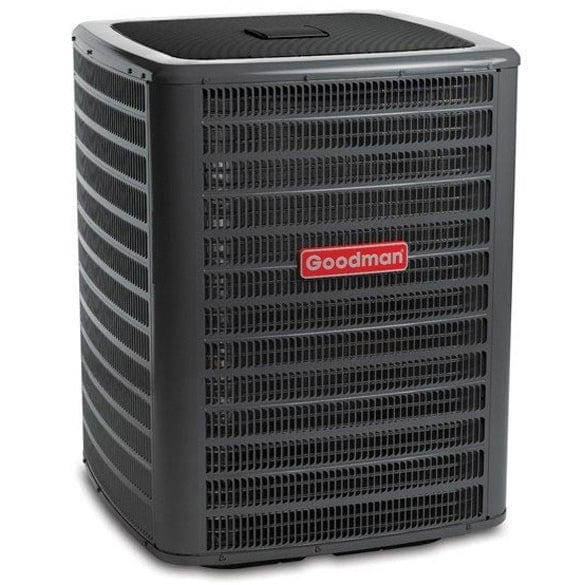

GSX160241 | Outdoor Unit
Goodman’s 2 ton, 16 SEER air conditioning system is built with sound-dampening features that help ensure that your cooling system doesn’t interfere with a good night’s sleep. The near silent operation is owed to quiet condenser fan system, which includes a three-bladed fan and a unique louvered sound-control top that reduces fan-related noise.
Additional Features
- Chlorine-free R-410A refrigerant
- Louvered cabinet made of heavy-gauge galvanized steel protect coil
- Weather-resistant architectural gray finish
- Factory-installed liquid line filter drier
- Brass liquid & suction line valves
- 23,600 BTU
- Contactor with lug connection
- Ground lug connection
- AHRI certified
- ETL listed
CAPF3743C6 | Indoor Unit
Goodman’s all-aluminum painted cased evaporator coil is constructed from aluminum tubing, corrugated fins and panels giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. Easy access owed to split seam front and 21” depth. Fits 21” furnace cabinet.
- Superb strength provided by thick-walled aluminum tubing
- Reliable quality control/pressure and vacuum-tested at factory
- Reduced cabinet condensation achieved with foil-faced insulation over the internal casing
GCVM970603BN | Gas Furnace
The GCVM970603BN 98% high efficiency furnace from Goodman saves you money from the moment it arrives. Its versatile design makes installation easy and fast. Once it's running, you'll notice a reduction in your energy bill since 98 cents of every dollar you spend on heating will actually go toward warming your home.
Unlike a standard furnace, which vents leftover heat out of your home in the form of exhaust, the Goodman 98% AFUE GCVM970603BN multi‐speed furnace passes the exhaust through a secondary stainless steel heat exchanger to extract additional heat. That heat – up to 30% or more – which would have otherwise been wasted is circulated through your home by a dual‐speed induced draft blower.
Additionally, the multi‐speed ECM motor also keeps your home temperature steady and several low continuous fan speed options reduce sound and keeps air circulating throughout your home. The self‐diagnostic control board with fault code history helps maintain your investment for long‐lasting comfort. Ideal for installation in a closet, alcove, utility room, basement or attic.
Additional Features
- ComfortNet™ Communicating System compatible
- Heavy‐duty aluminized‐steel tubular heat exchanger
- Stainless‐steel secondary heat exchanger
- Self‐calibrating modulating gas valve auto‐configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable‐speed induced draft blower
- Utilizes ComfortNet™ communicating, two‐stage or single‐stage thermostats
- Self‐diagnostic control board with constant memory fault code history output to a dual 7‐segment display
- Color‐coded low‐voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable‐speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto‐Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified; ETL Listed
- Designed for multi‐position installation – GMVM97: upflow, horizontal left or right GCVM97: downflow, horizontal left or right
- Certified for direct vent (2‐pipe) or non‐direct vent (1‐pipe)
- Easy‐to‐install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak)
- Heavy‐gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy‐cut tabs for effortless removal in bottom air‐inlet applications
What’s Included:
Your Goodman Central Air Conditioning System with Gas Furnace from Heat & Cool Comes With:
- GSX160241 | Outdoor Unit
- CAPF3743C6 | Indoor Unit
- GCVM970603BN | Gas Furnace
- Installation Manual
- Brochure
- Manufacturer Warranty
- Technical Specification
Downloads
- GMVM97/GCVM97 SERIES - TECHNICAL SPECIFICATIONS
- GMVM/GCVM/GMVC/GCVC/GMEC/GME8 SERIES - MANUFACTURER WARRANTY
- GMVM97/GCVM97 SERIES - TECHNICAL MANUAL
- GMVM97/GCVM97 SERIES - INSTALLATION MANUAL
- GCVM97 SERIES - BROCHURE
- GSX SERIES - INSTALLATION MANUAL
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- CAPF/CAPT/CAUF/CHPF/CSCF SERIES - MANUFACTURER WARRANTY
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- GSX14/GSX16/GSZ14/GSZ16/GPH SERIES - MANUFACTURER WARRANTY
- GSX16 SERIES - TECHNICAL SPECIFICATIONS
- GSX16 SERIES - BROCHURE
Key Specifications
- Goodman
- CAPF3743C6
- GSX160241
- Upflow
- 97%
- Yes
- GCVM970603BN
- 16
- 23,600
- 60,000
- Standard
Bundle includes 3 items
2 Ton Goodman GSX160241 16 SEER Outdoor Condensing Unit R410A Refrigerant
Model Number: GSX160241 SKU: HCGMC1032
3 - 3.5 Ton Goodman CAPF3743C6 Upflow/Downflow Cased Coil Fits 21 Inch Cabinet
Model Number: CAPF3743C6 SKU: HCGMC1708
60,000 BTU Goodman GCVM970603BN 98% Efficiency Modulating Downflow/Horizontal Gas Furnace Heater
Model Number: GCVM970603BN SKU: HCGMC2600System Specifications
| Coil Model Number | CAPF3743C6 |
|---|---|
| Condenser Model Number | GSX160241 |
| System Configuration | Upflow |
| Heating Efficiency (AFUE) | 97% |
| Energy Star | Yes |
| Furnace Model Number | GCVM970603BN |
| Must ship freight | Yes |
| Efficiency (SEER) | 16 |
| SEER (Left Filter) | 15+ |
| Shipping Time | 24 to 72 hours |
| Shipping Time | 7 to 10 days |
| System Cooling Capacity (BTU) | 23,600 |
| System Heating Capacity | 60,000 |
| Unit Type (Selector) | Standard |
| Video Codes | t8rjs6qgyz |
Specifications for model: GSX160241
| Compressor Stages | 1 |
|---|---|
| Compressor Type | Scroll |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| Energy Star | Yes |
| Handling Cost | 25 |
| Manufacturer Compressor Limited Warranty | 10 |
| Liquid Valve Size | 3/8" |
| Liquid Line Size | 3/8" |
| Manufacturer Parts Limited Warranty | 10 |
| MCA (Minimum Circuit Ampacity) | 18 amps |
| MOP (Maximum Overcurrent Protection-Breaker) | 30 Amp |
| Must ship freight | Yes |
| Refrigerant Type | R-410A |
| Efficiency (SEER) | 16 |
| SEER (Left Filter) | 16+ |
| Shipping Cost | 180 |
| Shipping Weight | 160 lbs |
| Model Number | GSX160241 |
| Sound Level | 71 dB |
| Suction Line Size | 3/4" |
| Suction Valve Size | 3/4" |
