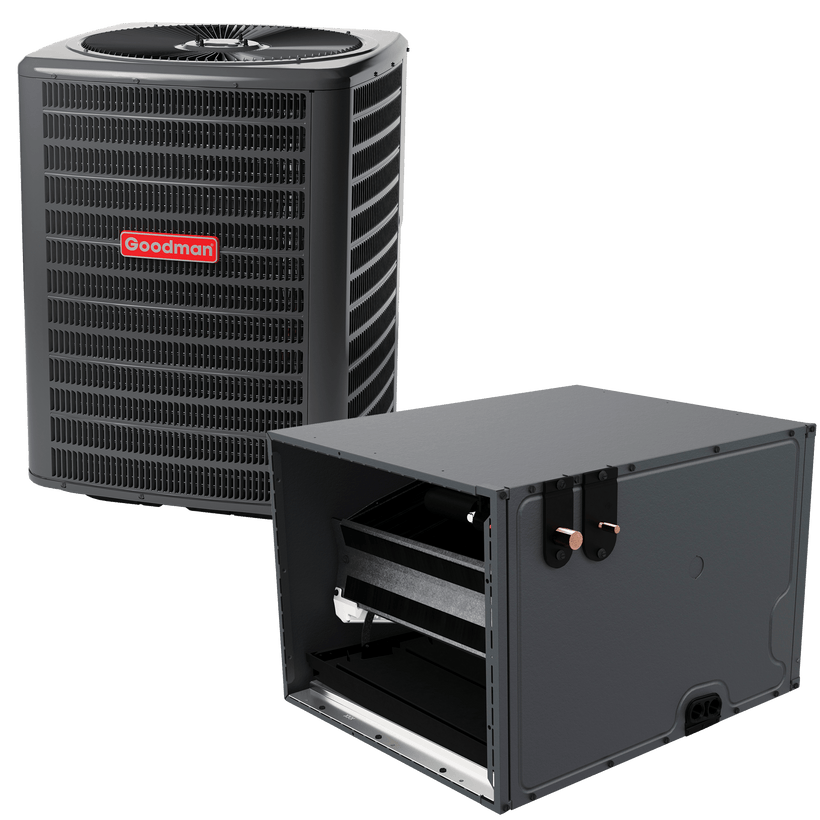

GLXS4MA2410 + CHPTA3026C3
Goodman GLSX4B Condenser units use R-32 refrigerant gas. Therefore, they will not work with any R-410A AC equipment.
Goodman brand lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials, and spot-on manufacturing. Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology.
Goodman uses advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that is designed to stay for many years.
GLXS4MA2410 | Outdoor Unit
The Goodman GLXS4MA2410 Energy Efficient Classic, R-32, up to 14.3 SEER2 air conditioner is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower efficiency units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features
Standard Features
- Energy-efficient compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil - 5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

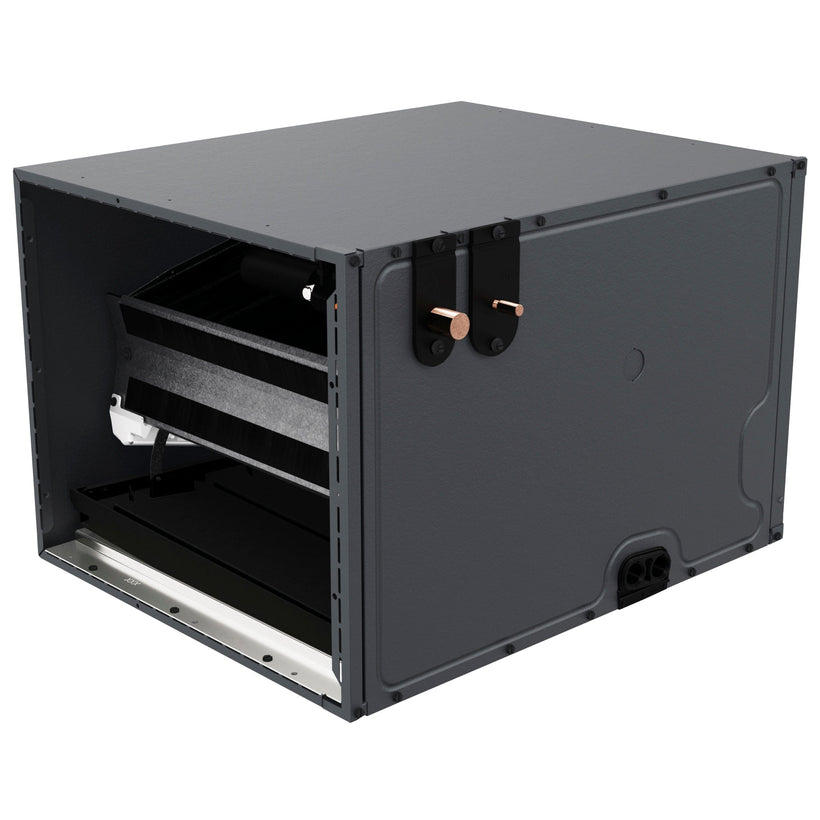

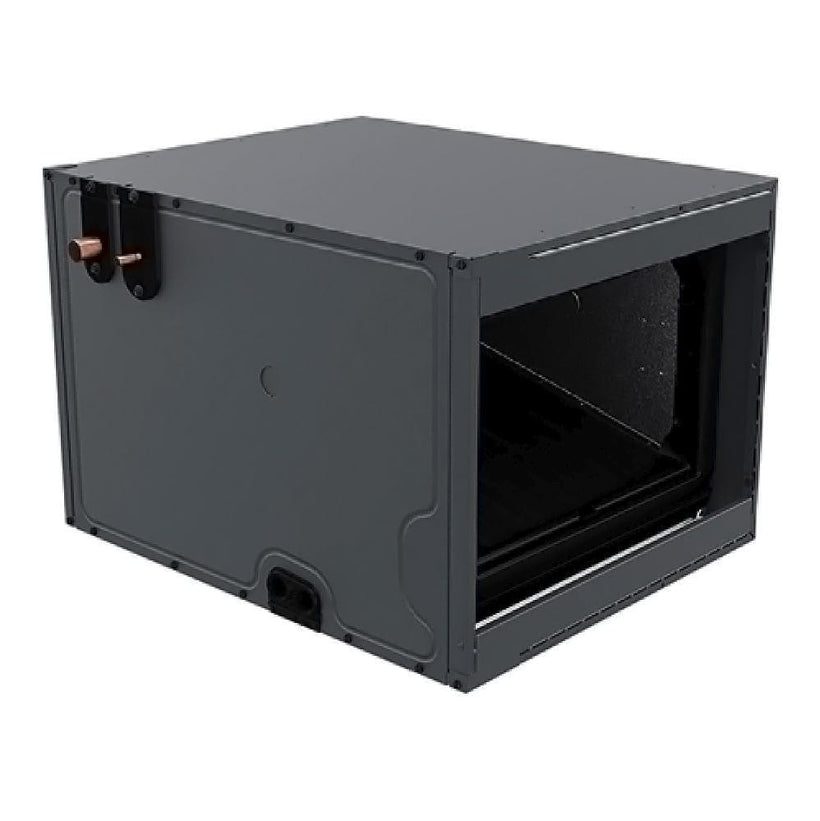

CHPTA3026C3 | Horizontal Left/Right Cased Coil
The All-Aluminum CHPTA3026C3 R-32 evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. It is an evaporator coil design with many features coupled with enhanced performance, lab tested, and benefits to help create great value for enhanced indoor comfort.
Standard Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- CHPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- AHRI certified; ETL listed
What’s Included
- Your Goodman Cased Coil from Heat & Cool comes with:
- GLXS4MA2410 | Outdoor unit
- CHPTA3026C3 | Horizontal Left/Right Cased Coil
- Installation Manual
- User’s Manual
- Manufacturer’s Warranty
MANUFACTURER WARRANTY
- 10 YEAR Parts Limited Warranty - Complete warranty details available at www.goodmanmfg.com. To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
Key Specifications
- Goodman
- Central Ducted Air Conditioner Split System
- 2
- 900 up to 1,500
- 24,000
- 14.3
- 208/230 V, 1 Phase, 60 Hz
- 10
- Air Conditioner / Cooling Only
- AHRI Certified, ETL Listed
Bundle includes 2 items
2 Ton 15.2 SEER2 R-32 Goodman Multi-Family Central Air Conditioner Condenser
Model Number: GLXS4MA2410 SKU: GSM40263 Open in a new tab2.5 Ton R32 Goodman Evaporator Coil Horizontal with TXV - 21" Width
Model Number: CHPTA3026C3 SKU: GHPTA0324 Open in a new tabSystem Specifications
Air Conditioner Type | Central Ducted Air Conditioner Split System |
---|---|
Nominal Capacity (Ton) | 2 |
Application Area (SqFt) | 900 up to 1,500 |
Cooling Capacity (Btu) | 24,000 |
SEER2 | 14.3 |
Power Supply | 208/230 V, 1 Phase, 60 Hz |
Manufacturer Limited Warranty (Yr) | 10 |
Application | Air Conditioner / Cooling Only |
Certifications | AHRI Certified, ETL Listed |
Specifications for model: CHPTA3026C3
Configuration | Horzontal flow |
---|---|
Cabinet Width (In) | 26 |
Liquid Line Size | ⅜ |
Suction Line Size | ⅞ |
Gross weight (Lb) | 62 |
Width / Depth / Height (In) | 26" 21" 21" |
Specifications for model: GLXS4MA2410
Cooling Capacity (BTU) | 24,000 |
---|---|
Voltage | 208/230-1 |
Compressor Type | Scroll |
Sound Level | 69 |
Minimum Circuit Ampacity (MCA) | 13.5 |
Maximum Overcurrent protection (MOP) | 15 |
Liquid Line Size (In) | 3/8 |
Suction Line Size (In) | 3/4 |
Operation Mode | Cooling |
Net/Gross Weight (Lb) | 136/151 |
Width / Depth / Height (In) | 26x26x32½ |
