Choose the right heating and air conditioning system for your home and you’ll save money upfront, recuperate your investment through lower energy bills or both.
Goodman brand lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials, and spot-on manufacturing. Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology.
Goodman uses advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that is designed to stay for many years.
GLXS4BA2410 | Outdoor Unit
The Goodman GLXS4BA2410Energy Efficient Classic, R-32, up to 14.3 SEER2 air conditioner is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower efficiency units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.
Standard Features
Energy-efficient compressor
Fully charged for 15' of tubing length
Copper tube/ enhanced aluminum fin coil - 5mm diameter
Factory-installed filter drier
Sweat connection service valves with easy access to gauge ports
Enclosed contactor
High-pressure switch
Ground lug connection
Capacitors with extended life
AHRI Certified
ETL Listed
Cabinet Features
Removable grille-style top design compliant with UL 60335-2-40
Venturi for increased velocity of airflow
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Wire fan discharge grille
Steel louver coil guard
Top and side maintenance access
Single-panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

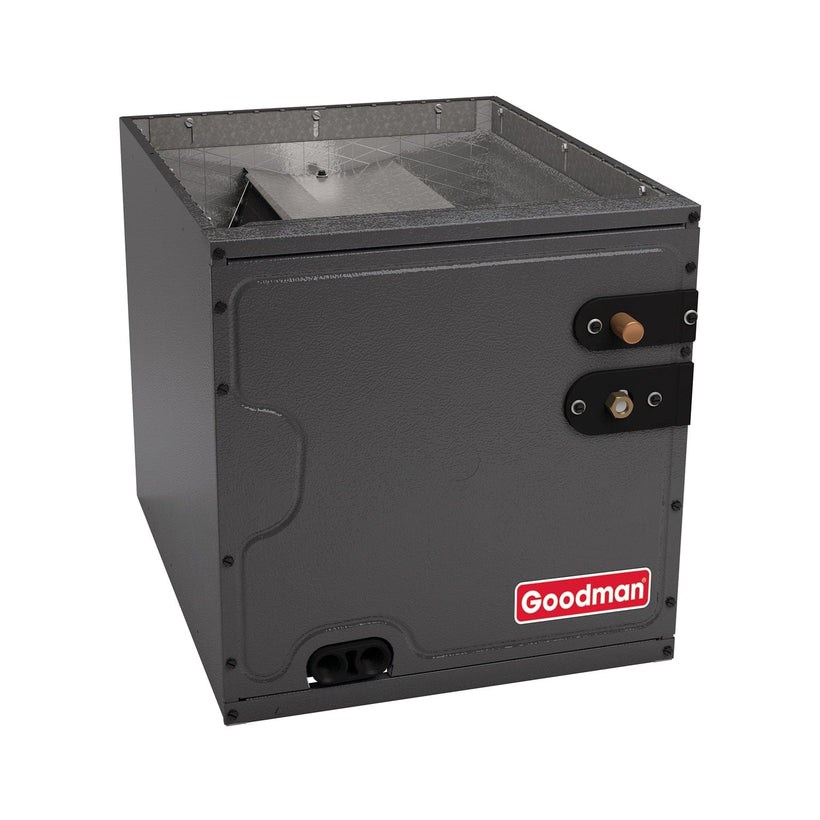

CAPTA2422B3 | Cased Coil
Goodman air handlers and coils have features designed to provide outstanding performance. By using advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend you will love for many years.
A TIME-TESTED SINGLE METAL SOLUTION

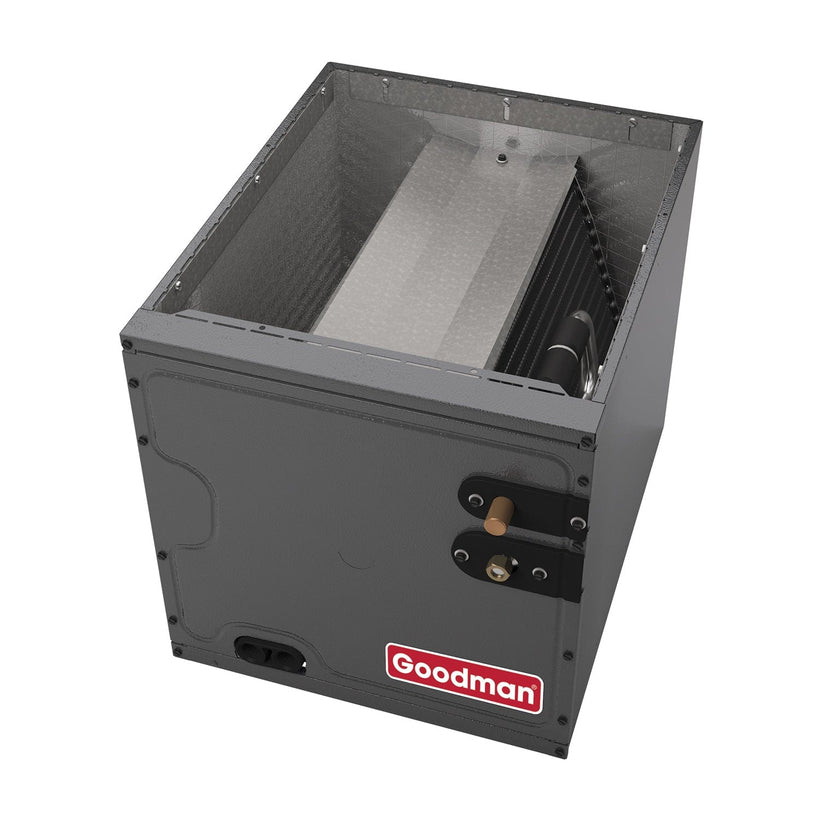

The All-Aluminum 17.5” width CAPTA2422B3 evaporator A coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. It is an evaporator coil designed with many features and benefits to help create great value for enhanced indoor comfort.
Aluminum Tube and Aluminum Fin Coil Construction – Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
Grooved Aluminum Tubing – Offers increased surface area for efficient heat transfer performance by the unit’s refrigerant.
TXV Thermostatic Expansion Valve -The CAPTA has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for cooling and heat pump applications.
Initial Pressure-Leak Test – To ensure high levels of product quality, coils are pressure tested during assembly. It is just the first step in three leak test processes to help ensure a high-quality product.
Secondary Pressure-Leak Test – Before the coils leave the assembly line, a secondary pressure-leak test is conducted with hand-held devices to check brazed joints.
Hound-Dog’ Vacuum Test – Coils undergo automated testing for leak ‘sniffing’ during the ‘hound-dog’ vacuum test.
What’s Included Your Goodman Cased Coil from Heat & Cool Comes with:
GLXS4BA2410 | Outdoor unit
CAPTA2422B3 | Up-flow/Down-flow Cased Coil
Installation Manual
User’s Manual
Manufacturer’s Warranty
MANUFACTURER WARRANTY
10 Year Parts Warranty. Complete warranty details available at www.goodmanmfg.com. To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
